Stewart Mason

Loughborough University, Margaret Keay Road, Loughborough, LE11 3TU

View Accessibility Symbols

Accessibility Symbols

For more information about what these symbols mean, view our Accessibility Symbols Guide.

Close this popup window.

Access Guide

Show Easy Read

Overview

Getting Inside

  • The approach to the building is step-free and level.
  • Stewart Mason Building has two entrances.
    Both entrances provide step-free level access to the ground floor.
    The accessible entrance has push pad activated double automatic doors, the other entrance has a single manual door.
  • The entrances are not signed.

Getting Around

  • There is step-free access throughout the building on all floors.

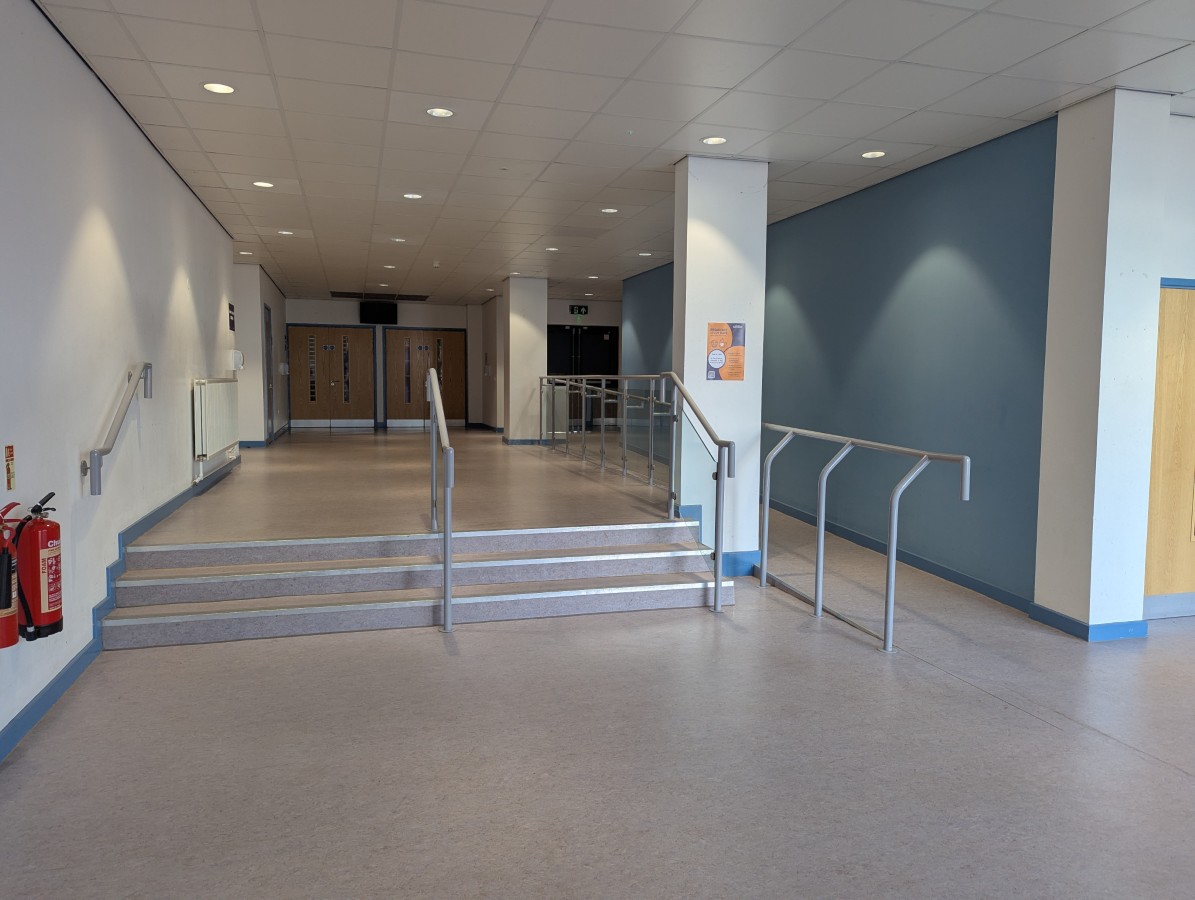

  • On the ground floor there is a slight ramp to access Lecture Theatre SMB010 and Lecture Theatre SMB014.
  • Access to Lecture Rooms SMB102-SMB105 and Computer Room SMB108 on the first floor is via a slight ramp.
  • Floor surfaces along all circulation routes are hard and smooth, with some having a shiny finish.

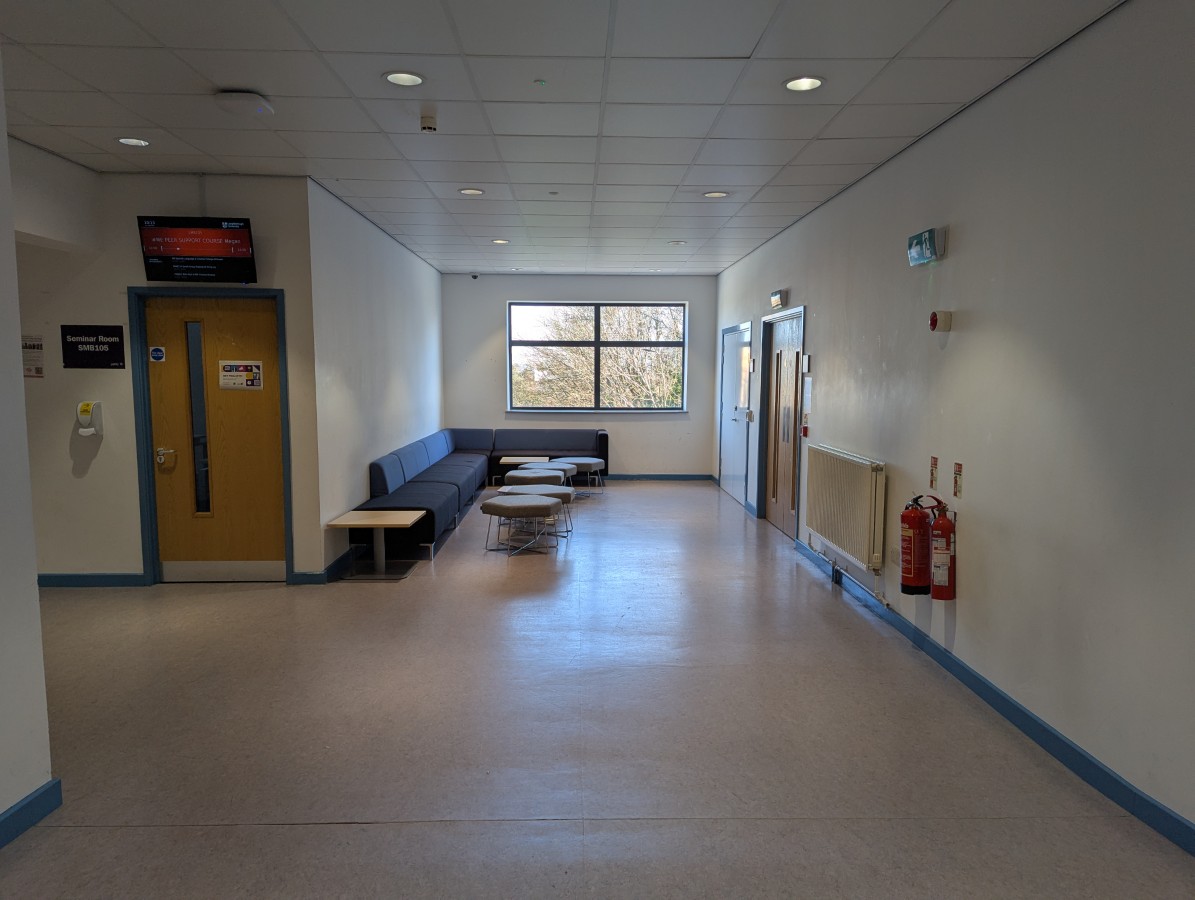

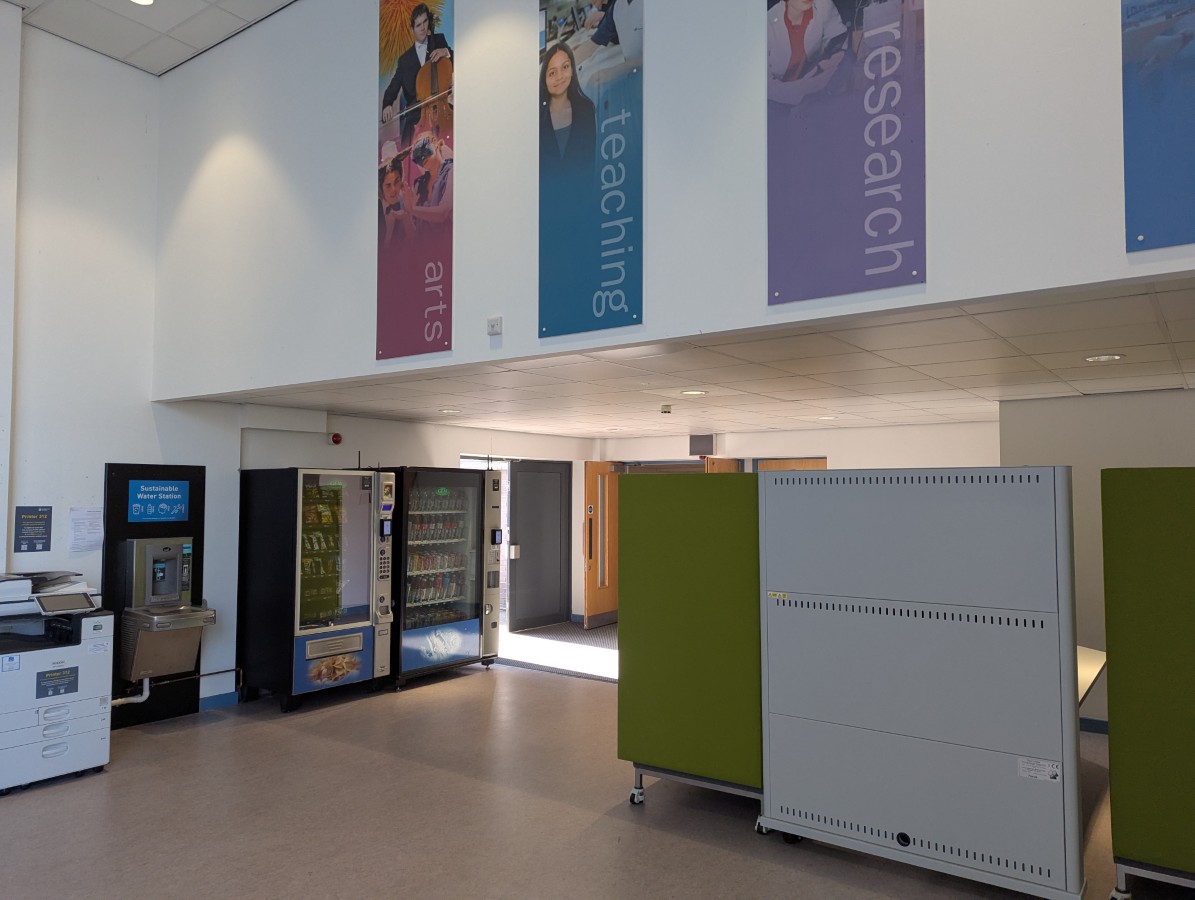

  • There are resting areas in some circulation and lobby areas with a mixture of seating.
  • Wall mounted wayfinding signage is provided throughout the building.
  • There are manual doors in some corridors.

Toilet and Changing Facilities

  • Toilet Facilities View
    • There is 1 toilet with adaptations.
    • The toilet with adaptations is located on the ground floor, off the main lobby area.
    • All toilets with adaptations have a right hand transfer space.
    • The toilet with adaptations is also signed for use as gender inclusive toilet.
    • The male and female step-free toilet facilities are located on the ground floor, off the main lobby area.

Rooms and Services in the Building

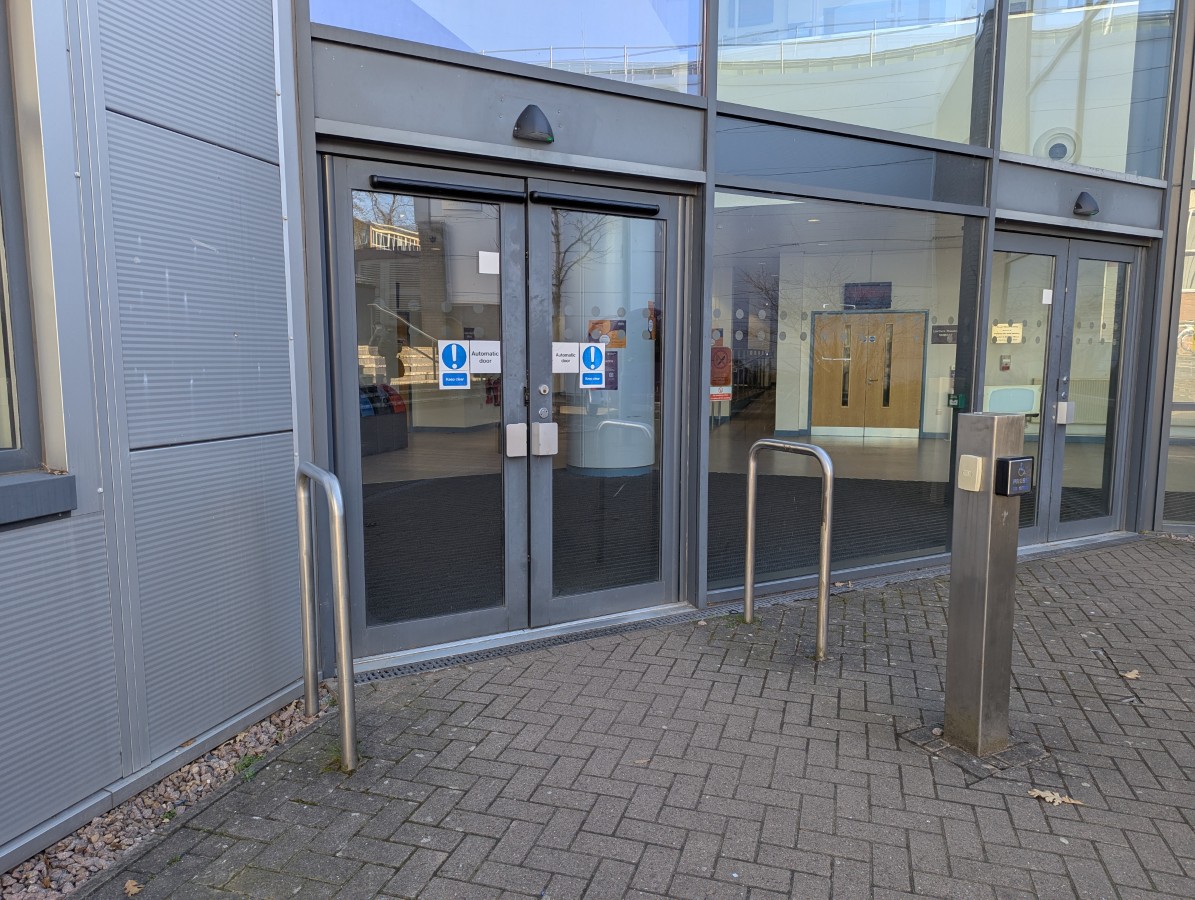

Entrance (Accessible)

  • This entrance is located at the front of the building.
  • The approach to the entrance has uneven surfaces.
  • The entrance area is not clearly signed.
  • There is not a canopy or recess which provides weather protection at the entrance.
  • There is step-free level access at the entrance.
  • There are double automatic doors at this entrance.
  • The doors open towards you.
  • The width of the opening is 166cm.
  • There is a small lip on the threshold of the opening.
  • The doors have a low visual contrast.

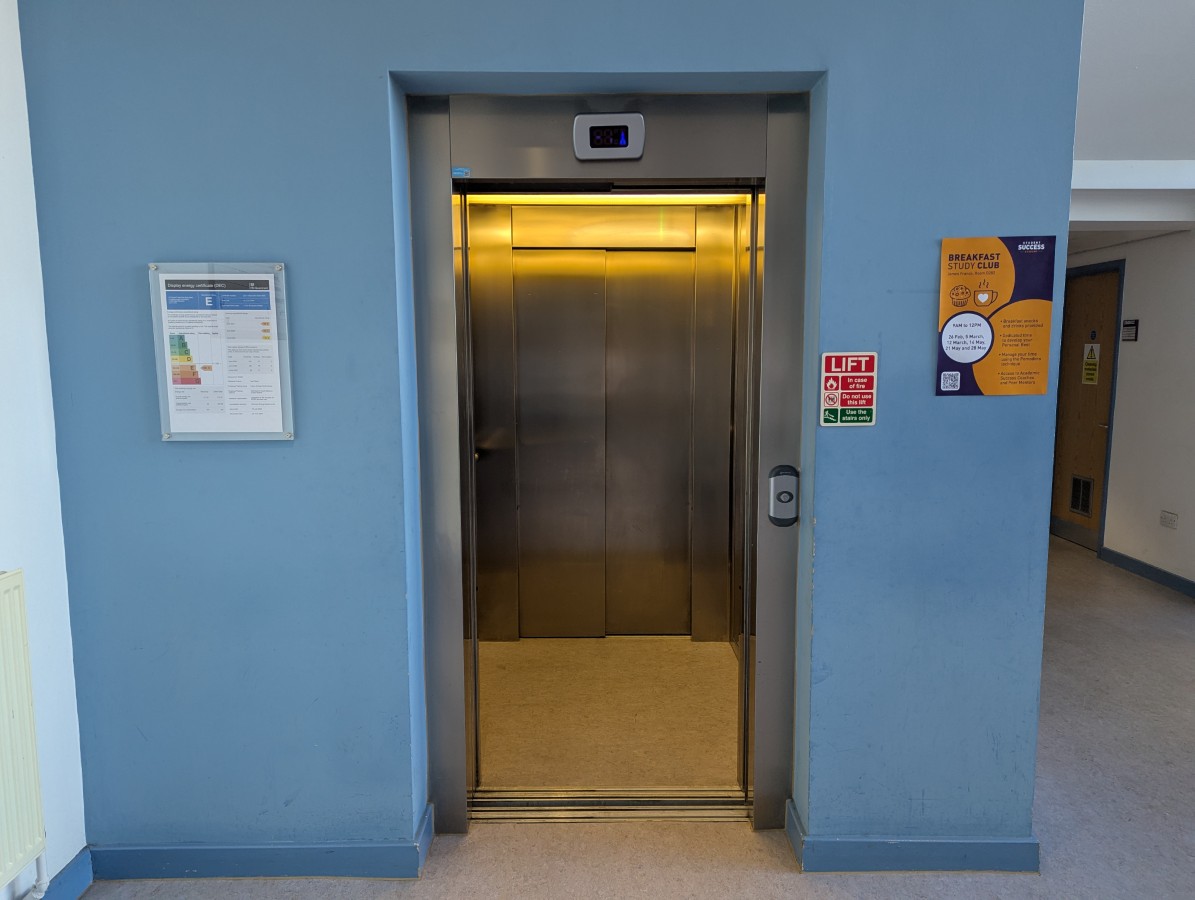

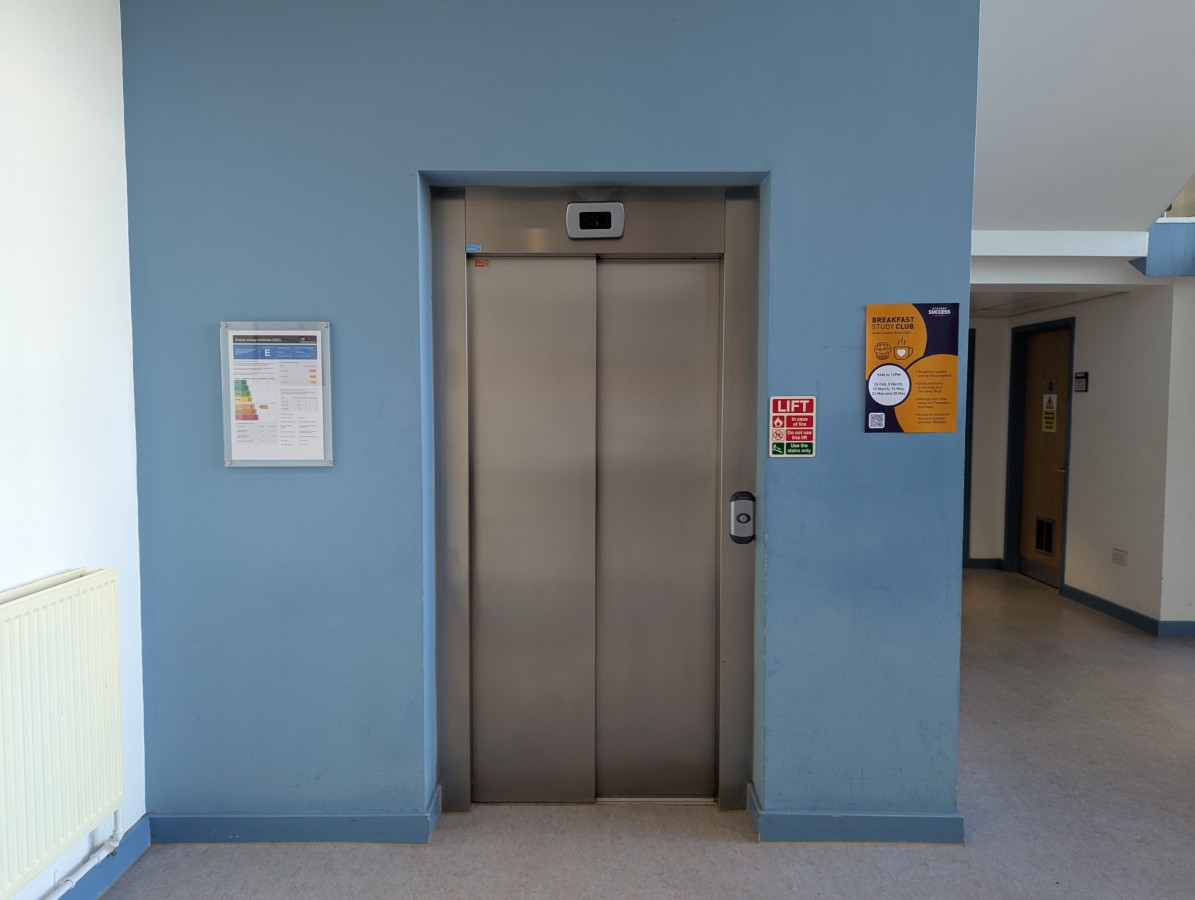

Lift

  • The lift surveyed is located in the middle of the building.
  • The distance from the main entrance is 10m.
  • The most accessible route to the lift has step-free level access.
  • The ground, mezzanine and first floor are accessed by this lift.
  • The lift door has a high visual contrast.
  • The lift has a level manoeuvring space in front of it for a wheelchair user (150cm x 150cm).
  • The external lift control buttons have tactile markings and a low visual contrast.
  • All of the external lift controls are at a suitable height for a wheelchair user.
  • The lift door opening width is 90cm.
  • The internal dimensions of the lift are 126cm (width) x 140cm (depth).

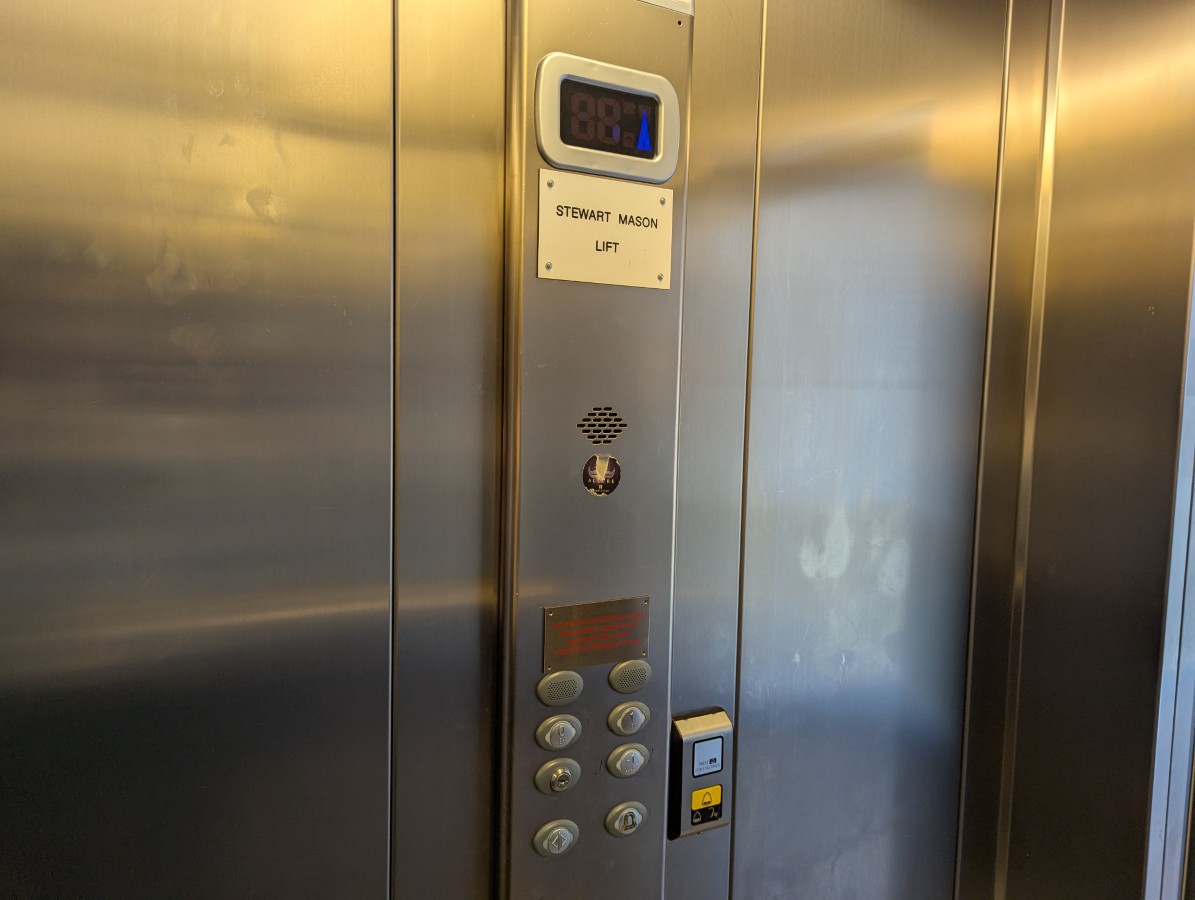

  • The internal lift control buttons have tactile markings, Braille markings and a low visual contrast.
  • Some of the internal lift controls are at a suitable height for a wheelchair user.
  • Internally the lift has: a separate door to exit, a visual floor indicator and an audible announcer.
  • Lighting levels were uneven at the time of the survey, with pools of light and shade.

Stairs

  • The stairs surveyed are located in the middle of the building.
  • The ground, mezzanine and first floor can be accessed by these stairs.
  • There are 15 steps between floors.
  • The steps have low visual contrast markings and have handrails on both sides.
  • The handrails are easy to grip.
  • The handrails cover the flight of stairs throughout its length.
  • The handrails extend horizontally beyond the first and last step.
  • The height of the steps is between 15cm and 18cm.
  • The height of the highest step is 18cm.
  • The depth of the steps is not between 30cm and 45cm.
  • Lighting levels vary due to the use of large glazed walls.

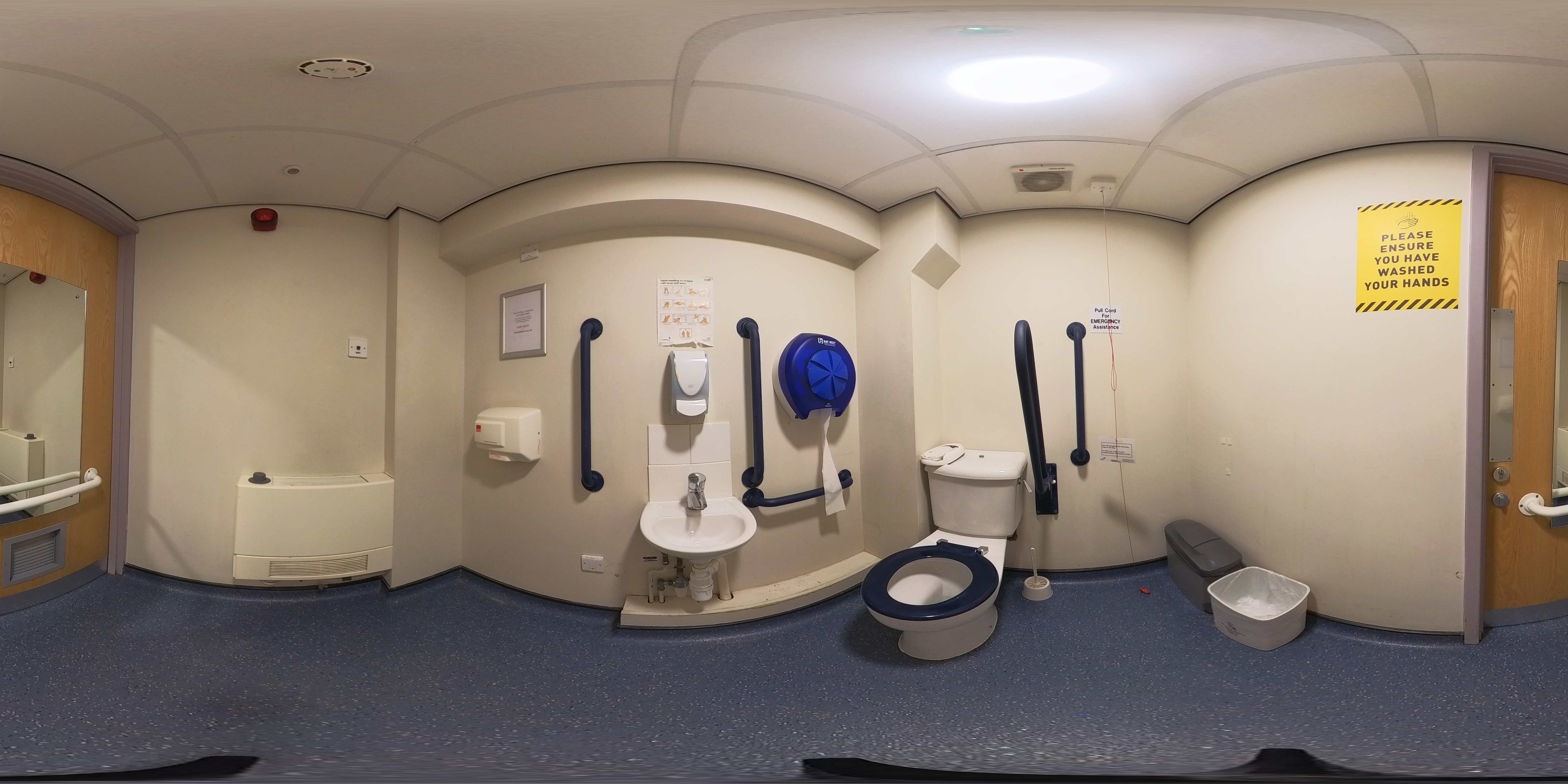

Toilet with Adaptations (Ground Floor - Right Hand Transfer)

  • Location and Access View
    • The toilet surveyed is located on the ground floor, off the main corridor.
    • The distance from the main entrance is 12m.
    • The most accessible route to the toilet has step-free level access.
    • There is step-free level access into the facility.
    • There is pictorial and written text signage on or near the door.
    • The door opens outwards and has a high visual contrast.
    • The width of the door opening is 79cm.
    • The door has a twist lock.
    • Internally the door has a high visual contrast.
    • There is a grab rail on the internal door with a high visual contrast.
  • Dimensions and Features View
    • The dimensions of the cubicle are 146cm (width) x 209cm (depth) and there is not room for a wheelchair user to manoeuvre (150cm x 150cm).
    • There is a lateral transfer space to the right as you face the toilet, however it is obstructed.
    • The lateral transfer space is 88cm (from the side of the toilet pan).
    • There is a lever flush on the transfer side.
    • There is a horizontal grab rail on the non-transfer side.
    • The horizontal grab rail has a high visual contrast.
    • There is a vertical grab rail on the transfer side.
    • The vertical grab rail has a high visual contrast.
    • There is a dropdown rail on the transfer side.
    • The dropdown rail has a high visual contrast.
    • The toilet seat is 49cm from the floor.
    • The toilet seat has a high visual contrast.
    • There is a wall mounted toilet roll holder which can be reached when seated on the toilet.
    • The toilet roll holder has a high visual contrast.
    • The toilet roll holder is 108cm from the floor.
    • The wash basin and taps can be reached when seated on the toilet.
    • The wash basin is 70cm from the floor.
    • The wash basin has a lever mixer tap.
    • The vertical grab rails are on both sides of the wash basin.
    • The wash basin grab rails have a high visual contrast.
    • There is a wall mounted soap dispenser which can be reached when seated on the toilet.
    • The soap dispenser has a low visual contrast.
    • The soap dispenser is 109cm from the floor.
    • There is not a towel dispenser.
    • There is a wall mounted hand dryer.
    • The hand dryer has a low visual contrast.
    • The hand dryer is 87cm from the floor.
    • There is a pull cord emergency alarm within 10cm from the floor.
    • There is a full length mirror.
    • There is no shelf.
    • The cubicle has a waste bin and a sanitary bin.
    • There are no coat hooks.
    • The walls and floor have a high visual contrast.
    • Lighting levels were uneven at the time of the survey, with pools of light and shade and unshaded light sources.
