Summary

  • Building View
    • Services / Facilities within the building include; Ground Floor - Art Shop, Seminar Rooms, Teaching Rooms.
      First Floor - Seminar Rooms, Teaching Rooms, Workshops, Lecture Theatre.
      Second Floor - Seminar Rooms, Teaching Rooms, Workshops.
  • Location of Toilet/Changing Facilities View

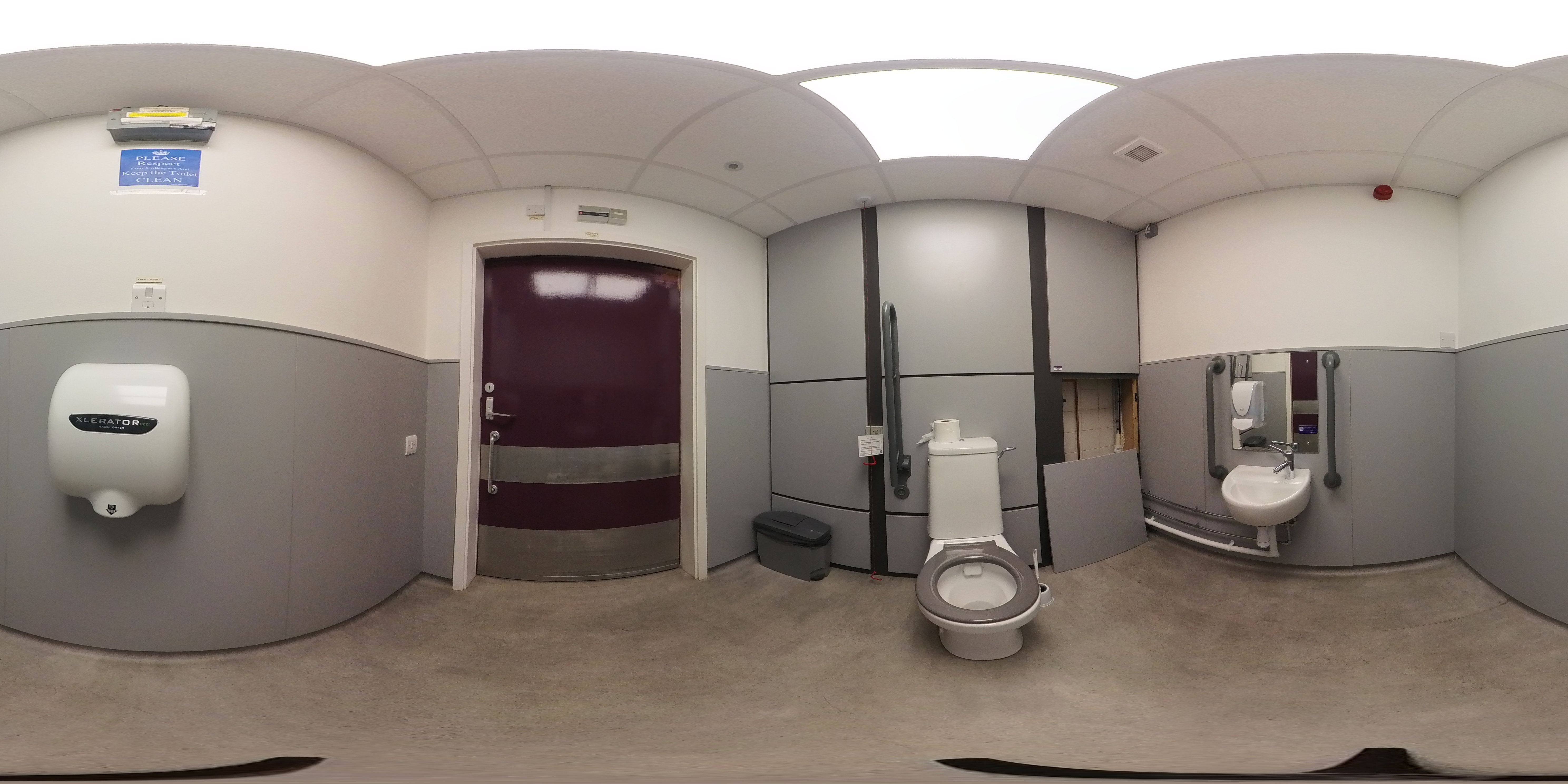

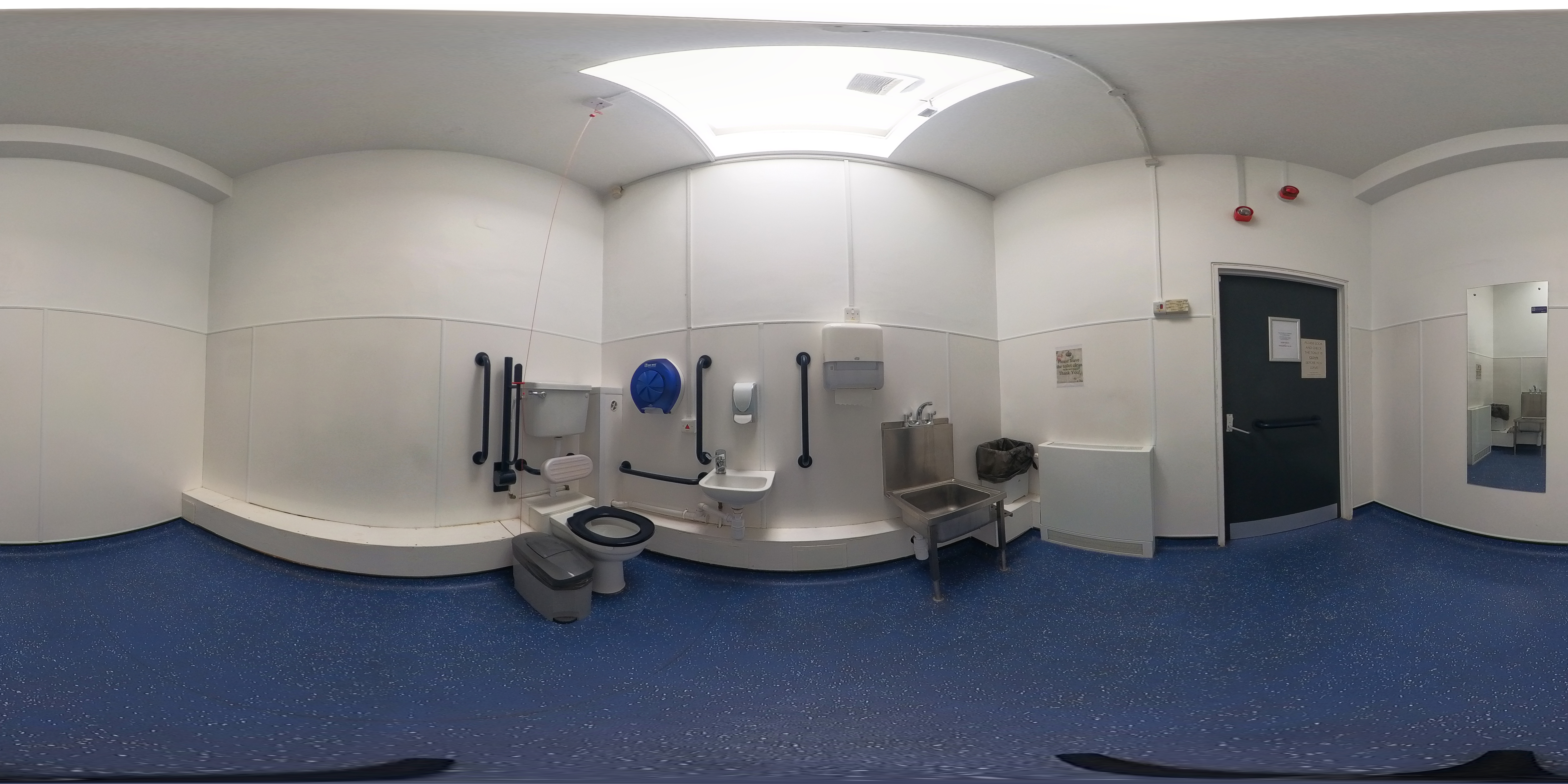

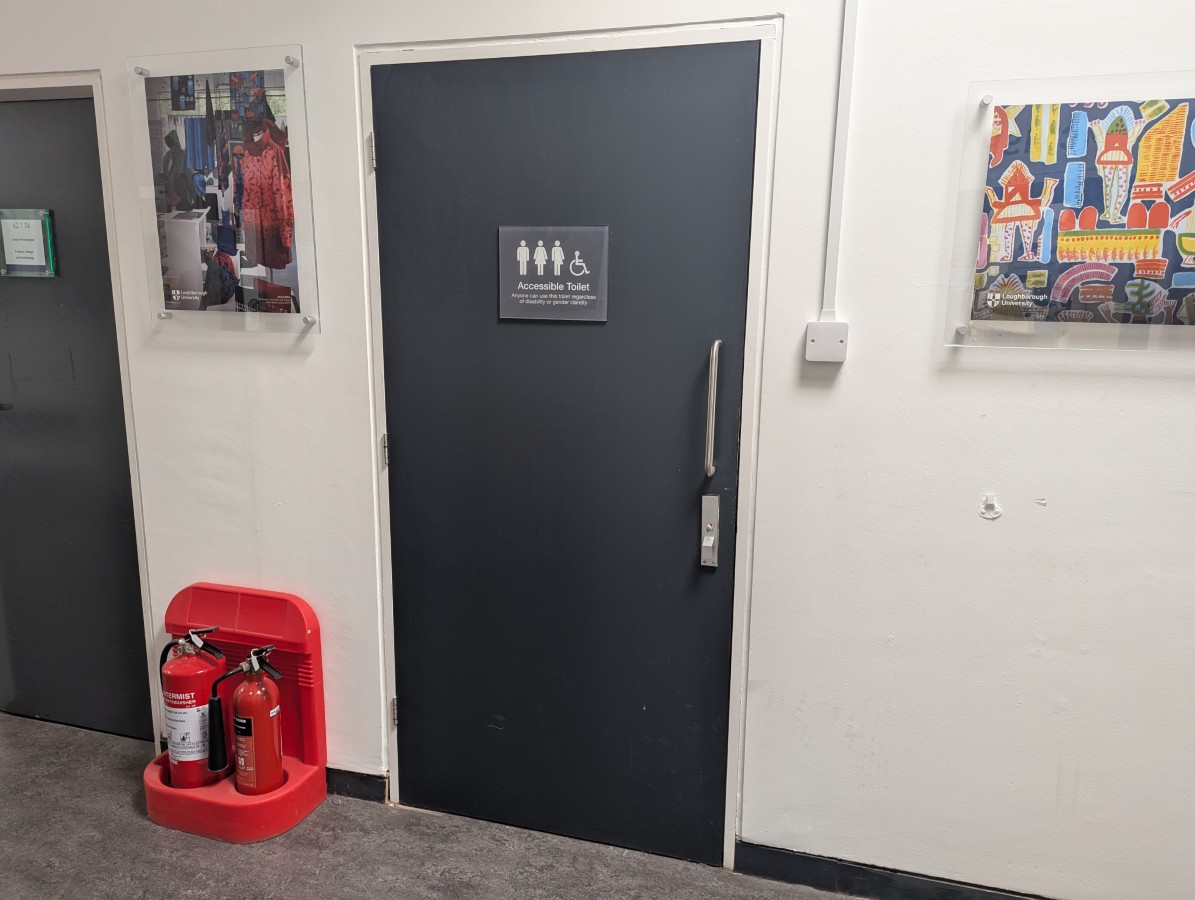

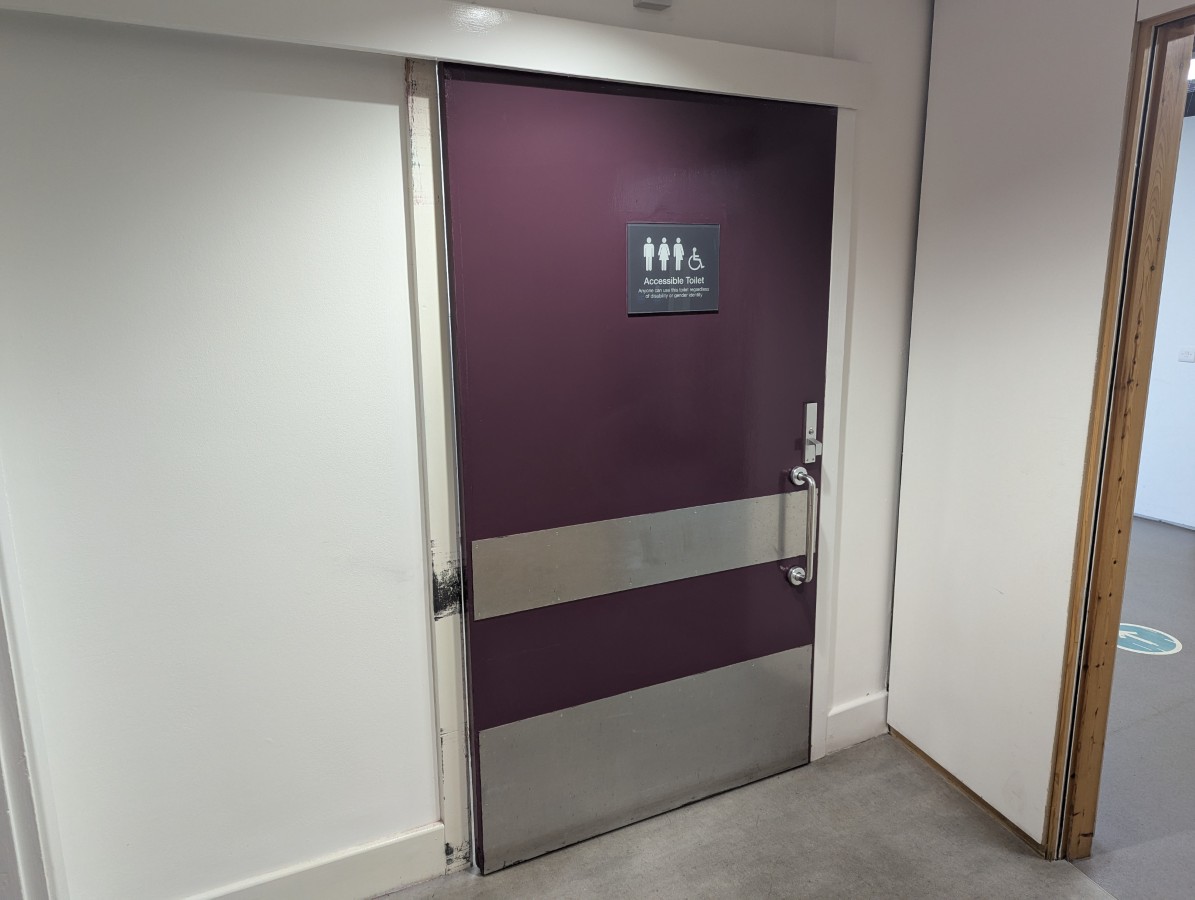

    • Accessible toilet facilities are located on the ground and first floors.
    • Female standard toilet facilities are located on all floors.
    • Male standard toilet facilities are located on all floors.

Rooms and Spaces Links

Getting Here

Useful Information

Building Parking

  • The building does have its own dedicated parking.
  • Building Car Park View
    • The car park can be used by staff and students.
    • There are no parking charges that apply on the day.
    • The car park is located to the front of the building.
    • The car park type is open air/surface.
    • The car park does not have a height restriction barrier.
    • Designated Blue Badge parking bays are available.
    • There is/are 2 designated parking bay(s) within the car park.
    • The Blue Badge bay(s) is/are signposted but have no markings.
    • The dimensions of the designated parking bay(s) are 300cm x 440cm.
    • The Blue Badge parking bays do not have a marked zone around them.
    • The dimensions of the designated bays do not vary in size.
    • Parking spaces for Blue Badge holders do not need to be booked in advance.
    • The nearest designated bay is 15m (16yd 1ft) from the Edward Barnsley main entrance.
    • The route from the car park to the building is accessible to a wheelchair user with assistance.
    • Assistance may be required because there is / are uneven surfaces.
    • The dropped kerb between the car park and the building does have tactile paving.
    • The car park surface is tarmac.
  • Site/Campus Car Parks View
    • There is a site/campus car park for staff, students and visitors within approximately 200m.
    • The name of the car park is Car Park 16.
    • The car park is located in front of the Cope Auditorium.
  • On Street Parking View
    • Clearly signed and/or standard marked parking bays are not available.
  • Drop Off Point View
    • There is not a designated drop off point.

Site/Campus Car Park (Car Park 16)

  • Car Park View
    • The car park is located in front of the Cope Auditorium.
    • The nearest building(s) to this car park is/are Cope Auditorium.
    • The car park type is open air/surface.
    • The car park does not have a height restriction barrier.
    • The car park surface is tarmac.
    • Designated Blue Badge parking bays are available.
    • The Blue Badge bay(s) markings are faded.
    • There is/are 1 designated Blue Badge parking bay(s) within this car park.
    • The dimensions of the designated parking bay(s) are 230cm x 490cm.
    • The Blue Badge parking bays do not have a marked zone around them.
  • Charges and Restrictions View
    • This car park can be used by staff, students and visitors.
    • There are no parking charges that apply on the day.
    • Signs are not provided to give information on parking charges/restrictions.
  • Drop Off Point View
    • There is not a designated drop off point in this car park.
  • Car Park Access View
    • There is step free access from this car park.
    • Buildings are clearly signposted from this car park.
    • There is not a campus map available within the car park.
    • The nearest designated bay is 20m (21yd 2ft) from the Cope Auditorium Main Entrance.
  • Comments View
    • Blue Badge holders are required to register to ensure they receive free parking. For further information click here.

Outside Access (Main Entrance)

  • Entrance View
    • This information is for the entrance located at the front of the building.
    • This entrance gives access to the ground floor entrance foyer.
    • The entrance area/door is clearly signed.
    • This entrance is signed with 'Edward Barnsley'.
    • There is step-free access at this entrance.
    • There is a canopy or recess which provides weather protection at this entrance.
    • The entrance door(s) does not/do not contrast visually with its immediate surroundings.
    • There is not a bell/buzzer.
    • There is not an intercom.
    • The main door(s) open(s) automatically (towards you).
    • There is a push pad/button to enter the main automatic doors.
    • The entry push pad or push button is 68cm from floor level.
    • The door(s) is/are double width.
    • The width of the door opening is 124cm.
    • There is a small lip on the threshold of the entrance, with a height of 2cm or below.
  • Comments View
    • There are a set of manual, heavy doors that open towards you adjacent to the doors detailed above. They both have the same width.

Outside Access (Rear Entrance)

  • Entrance View
    • This information is for the entrance located at the rear of the building.
    • The entrance area/door is clearly signed.
    • This entrance is signed with 'Edward Barnsley'.
    • There is ramped/sloped access at this entrance.
    • There is not a canopy or recess which provides weather protection at this entrance.
    • The entrance door(s) does not/do not contrast visually with its immediate surroundings.
    • There is not a bell/buzzer.
    • There is not an intercom.
    • The main door(s) open(s) automatically.
    • The door(s) is/are double width.
    • The width of the door opening is 109cm.
    • There is a small lip on the threshold of the entrance, with a height of 2cm or below.
  • Ramp/Slope View
    • The ramp/slope is located in front of the entrance.
    • The gradient of the ramp/slope is slight.
    • The ramp/slope is permanent.
    • There is not a level landing at the top of the ramp/slope.

Getting Around

  • Access View
    • There is step-free access throughout the majority of the building, via lift.
  • Circulation View
    • There are doors in corridors/walkways which have to be opened manually.
    • The type of flooring in corridors/walkways is carpet and vinyl.
    • There is some flooring in corridors/walkways which is shiny and could cause issues with glare or look slippery to some people.
    • Handrails with a rounded or oval profile are not provided in corridors/walkways.
    • There is high colour contrast between the walls and floor in all areas.
    • There is a mixture of seating with and without armrests at regular intervals.
    • The lighting levels are varied.
  • Signage View
    • Wayfinding signage is provided.
    • The colour, design and typeface of signs is consistent throughout the building.
    • Dementia friendly signage is not provided.
  • Safe Place(s) View
    • There is not a designated place of safety which can be used by people with dementia, autism or learning disabilities.
  • Audio View
    • This venue does not play background music in communal areas.
    • There is not a hearing assistance system in the communal areas of the building.

Art Shop

  • The Art Shop is located on the ground floor, approximately 35m from the main entrance.
  • There is level access to the shop from the main entrance.
  • There is a single door, with an open extension, that opens away from you to a width of 116cm to enter the shop.
  • The door is permanently held open during opening hours.
  • The counter within the shop is 100cm high with a lowered section at a height of 77cm.
  • There is a moveable card machine at the counter.
  • There is a glazed screen at the reception.
  • There is clear manoeuvring space around the shop.
  • The flooring is vinyl.

Other Floors (Main Entrance)

  • Stairs View
    • Stairs can be used to access other floors.
    • The stairs are located to the left as you enter the main entrance, through the double doors.
    • The stairs are approximately 6m from the main entrance.
    • Signs indicating the location of the stairs are not available from the entrance.
    • There are manual, heavy, double doors to enter and exit the stairwell on all floors.
    • The floors which are accessible by the stairs are G, 1, 2.
    • There are 15+ steps between floors.
    • The height of the step(s) is/are between the recommended 15cm and 18cm.
    • The depth of the step(s) is/are between the recommended 30cm and 45cm.
    • The steps are not clearly marked.
    • There is a/are handrail(s) at the step(s).
    • The steps have a handrail on both sides.
    • Handrails are not at the recommended height (90cm-100cm).
    • Handrails do cover the flight of stairs throughout its length.
    • Handrails are easy to grip.
    • Handrails do not extend horizontally beyond the first and last steps.
    • There is a landing.
    • Clear signs indicating the facilities on each floor are provided on landings.
    • The lighting levels at the steps are good.

Other Floors (First Floor to Second Floor)

  • Stairs View
    • Stairs can be used to access other floors.
    • The stairs are located to the right as you exit the lift on the first floor, along the main corridor and to the right.
    • The stairs are approximately 50m from the lift.
    • Signs indicating the location of the stairs are not available from the entrance.
    • The floors which are accessible by the stairs are 1, 2.
    • There are 15+ steps between floors.
    • The height of the step(s) is/are between the recommended 15cm and 18cm.
    • The depth of the step(s) is/are not between the recommended 30cm and 45cm.
    • The steps are not clearly marked.
    • There is a/are handrail(s) at the step(s).
    • The steps have a handrail on both sides.
    • Handrails are not at the recommended height (90cm-100cm).
    • Handrails do cover the flight of stairs throughout its length.
    • Handrails are easy to grip.
    • Handrails do not extend horizontally beyond the first and last steps.
    • There is a landing.
    • Clear signs indicating the facilities on each floor are not provided on landings.
    • The lighting levels at the steps are good.

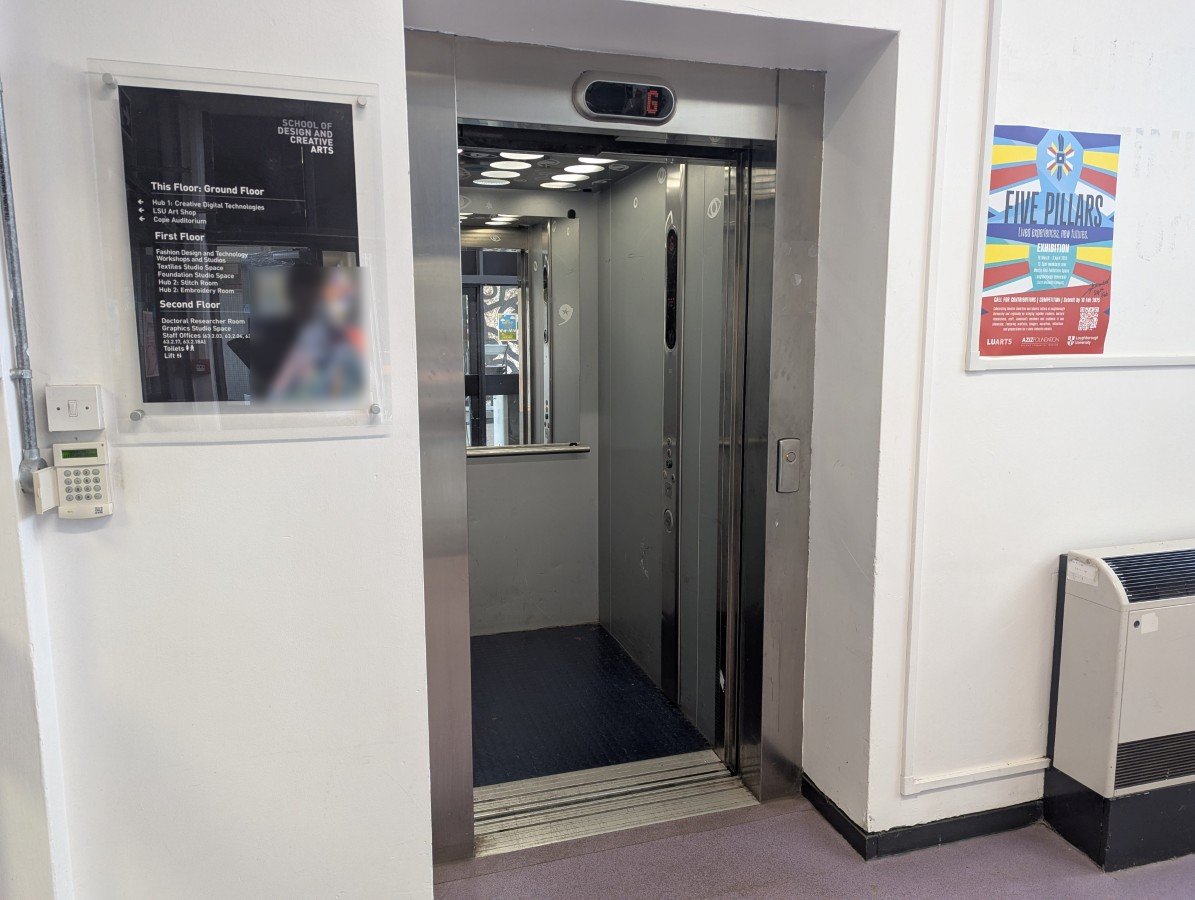

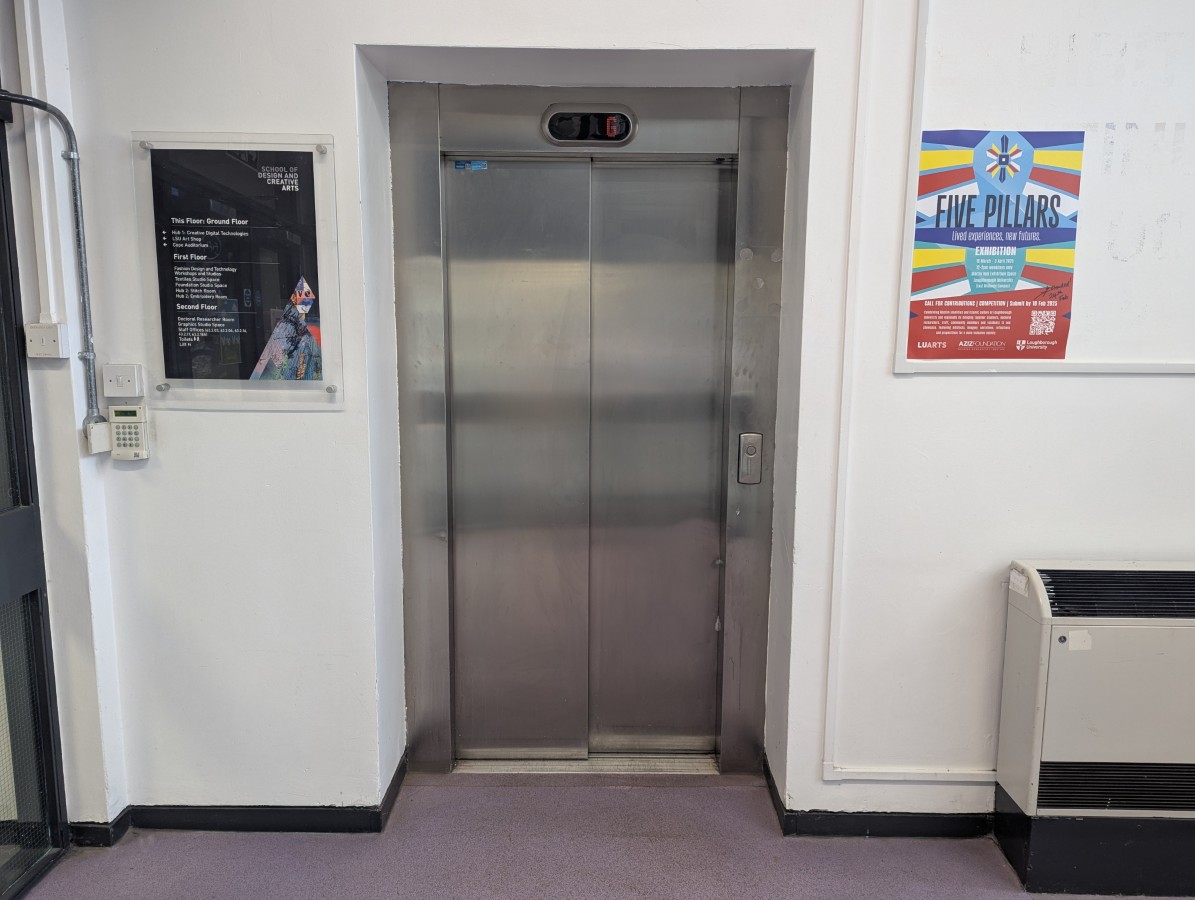

Lift (Main)

  • The lift is located to the left of the main entrance, through the double doors.
  • Signs indicating the location of the lift are not available from the entrance.
  • The lift is approximately 8m (8yd 2ft) from the main entrance.
  • The lift is a standard lift.
  • A member of staff does not need to be notified for use of the lift.
  • The floors which are accessible by this lift are G, 1 and 2.
  • The weight limit for the lift is 630kg.
  • Clear signs indicating the facilities on each floor are provided on lift lobby landings.
  • There is a clear level manoeuvring space of 150cm × 150cm in front of the lift.
  • Lift doors do contrast visually with lift lobby walls.
  • The external controls for the lift are within 90cm - 110cm from the floor.
  • The colour contrast between the external lift controls and the control plate is low.
  • The colour contrast between the external lift control plate and the wall is low.
  • The clear door width is 90cm (2ft 11in).
  • The dimensions of the lift are 110cm x 140cm (3ft 7in x 4ft 7in).
  • There are not separate entry and exit doors in the lift.
  • There is a mirror to aid reversing out of the lift.
  • There is not a list of floor services available within the lift.
  • The lift does have a visual floor indicator.
  • The lift does not have an audible announcer.
  • The internal controls for the lift are within 90cm - 120cm from the floor.
  • There is not a hearing loop system.
  • The lift does not have Braille markings.
  • The lift does have tactile markings.
  • The lighting levels in the lift are low to moderate.

Step(s) (First Floor)

  • Stepped Level Change 1 View
    • There is a/are step(s) located in the corridor straight ahead as you exit the main lift on the first floor.
    • The step(s) is/are used to access the Textiles Studio Space Part B/C, Staff Offices, Study Support Service and Standard Toilets.
    • There is/are 5 step(s).
    • The step(s) is/are clearly marked.
    • The height of the step(s) is/are not between the recommended 15cm and 18cm.
    • The height of the step(s) is/are 14cm.
    • The depth of the step(s) is/are not between 30cm and 45cm.
    • The depth of the steps are 28cm.
    • There is a/are handrail(s) at the step(s).
    • The handrail(s) is/are on both sides.
    • Handrails are not at the recommended height (90cm-100cm).
    • Handrails do cover the flight of stairs throughout its length.
    • Handrails are easy to grip.
    • Handrails do not extend horizontally beyond the first and last steps.
    • The lighting levels at the step(s) are moderate to good.
    • There is a platform lift to overcome the step(s).
    • The steps are show in photographs 1 and 2.
  • Stepped Level Change 2 View
    • There is a/are step(s) located on the first floor at the end of the right hand corridor from the standard lift.
    • The step(s) is/are used to access the archive area.
    • There is/are 4 step(s).
    • The step(s) is/are clearly marked.
    • The height of the step(s) is/are between the recommended 15cm and 18cm.
    • The height of the step(s) is/are 16cm.
    • The depth of the step(s) is/are between 30cm and 45cm.
    • There is a/are handrail(s) at the step(s).
    • The handrail(s) is/are on the left going up.
    • Handrails are at the recommended height (90cm-100cm).
    • Handrails do cover the flight of stairs throughout its length.
    • Handrails are easy to grip.
    • Handrails do not extend horizontally beyond the first and last steps.
    • The lighting levels at the step(s) are good.
    • There is a stair lift to overcome the step(s).
    • The steps are shown in photographs 3, 4 and 5.

Lift (First Floor - Textiles: Innovation and Design Area - Platform Lift)

  • The lift is located straight ahead as you exit the main lift on the first floor.
  • The lift is approximately 17m (18yd 1ft) from the main lift.
  • The lift is a platform lift.
  • A member of staff does not need to be notified for use of the lift.
  • The platform lift accesses a small level change.
  • The weight limit for the lift is 300kg.
  • Clear signs indicating the facilities on each floor are not provided on lift lobby landings.
  • There is not a clear level manoeuvring space of 150cm × 150cm in front of the lift.
  • Lift doors do not contrast visually with lift lobby walls.
  • The external controls for the lift are not within 90cm - 110cm from the floor.
  • The colour contrast between the external lift controls and the control plate is medium.
  • The colour contrast between the external lift control plate and the wall is high.
  • The clear door width is 101cm (3ft 4in).
  • The dimensions of the lift are 114cm x 140cm (3ft 9in x 4ft 7in).
  • There are separate entry and exit doors in the lift.
  • There is not a mirror to aid reversing out of the lift.
  • There is not a list of floor services available within the lift.
  • The lift does not have a visual floor indicator.
  • The lift does not have an audible announcer.
  • The internal controls for the lift are not within 90cm - 120cm from the floor.
  • The controls are below 90cm from the floor.
  • There is not a hearing loop system.
  • The lift does not have Braille markings.
  • The lift does not have tactile markings.
  • The lighting levels in the lift are low to moderate.

Lift (First Floor - Stair Lift)

  • The lift is located to the right as you exit the main lift on the first floor, along the corridor and to the left.
  • Signs indicating the location of the lift are not available from the entrance.
  • The lift is approximately 50m (54yd 2ft) from the main lift.
  • The lift is a stair lift.
  • A member of staff does not need to be notified for use of the lift.
  • The platform lift accesses a small level change.
  • The weight limit for the lift is 300kg.
  • There are manual, heavy, double doors to access the lift lobby on the first floor.
  • Clear signs indicating the facilities on each floor are not provided on lift lobby landings.
  • There is not a clear level manoeuvring space of 150cm × 150cm in front of the lift.
  • The external controls for the lift are within 90cm - 110cm from the floor.
  • The colour contrast between the external lift controls and the control plate is high.
  • The colour contrast between the external lift control plate and the wall is high.
  • The dimensions of the lift are 101cm x 91cm (3ft 4in x 2ft 12in).
  • There is not a list of floor services available within the lift.
  • The lift does not have a visual floor indicator.
  • The lift does not have an audible announcer.
  • The internal controls for the lift are not within 90cm - 120cm from the floor.
  • The controls are below 90cm from the floor.
  • There is not a hearing loop system.
  • The lift does not have Braille markings.
  • The lift does have tactile markings.
  • The lighting levels in the lift are good.

Accessible Toilet(s) (Ground Floor - Transfer Both Sides)

  • There is an/are accessible toilet(s) available.
  • Location and Access View
    • This accessible toilet is located to the left as you enter and at the end corridor on the left.
    • This accessible toilet is approximately 55m (60yd 5in) from the main entrance.
    • There is step-free access into the accessible toilet.
    • This is a gender neutral toilet.
    • A key is not required for the accessible toilet.
    • There is pictorial and written text signage on or near the toilet door.
    • The contrast between the external door and wall is good.
    • The door opens by sliding.
    • The door is heavy.
    • The door is locked by a locking handle.
    • The width of the accessible toilet opening is 82cm.
    • The contrast between the internal door and wall is good.
    • The door does not have a horizontal grab rail.
  • Toilet Features View
    • The dimensions of the accessible toilet are 190cm x 232cm (6ft 3in x 7ft 7in).
    • The accessible toilet does have an unobstructed minimum turning space of 150cm x 150cm.
    • The lighting levels are good.
    • There is a lateral transfer space.
    • As you face the toilet pan the transfer space is on both sides.
    • The lateral transfer space on the left is 98cm.
    • The lateral transfer space on the right is 72cm.
    • The transfer space is obstructed by a female sanitary bin and a waste disposal bin.
    • There is a flush on the transfer side.
    • There is a spatula type lever flush.
    • There is a dropdown rail on the transfer side.
    • The contrast between the dropdown rail(s) and wall is fair.
    • There is not a/are not wall-mounted grab rail(s) available.
    • The contrast between the walls and floor is poor.
    • There is an emergency alarm.
    • The emergency pull cord alarm is fully functional.
    • There is a red flashing fire alarm beacon within the toilet.
    • Disposal facilities are available in the toilet.
    • There is a/are female sanitary and general waste (with no lid) disposal units.
    • There is not a/are not coat hook(s).
  • Additional Fixtures View
    • There is a mirror.
    • The mirror is not placed at a lower level or at an angle for ease of use.
    • There is not a shelf within the accessible toilet.
    • The toilet has a cistern.
    • The height of the toilet seat above floor level is 48cm (1ft 7in).
    • The toilet seat colour contrast is good.
    • There is a toilet roll holder.
    • The toilet roll holder is on the dropdown rail.
    • There is a wash basin.
    • The wash basin and tap(s) cannot be reached from seated on the toilet.
    • The wash basin is not placed higher than 74cm (2ft 5in).
    • The height of the wash basin is 69cm (2ft 3in).
    • There are vertical wall-mounted grab rails on both sides of the wash basin.
    • The contrast between the wash basin wall-mounted grab rail(s) and wall is fair.
    • The wash basin tap type is lever.
    • There is a wall fixed soap dispenser.
    • The soap dispenser cannot be reached from seated on the toilet.
    • The height of the soap dispenser is 96cm.
    • There is not a towel dispenser.
    • There is a hand dryer.
    • The hand dryer is not placed higher than 100cm (3ft 3in).
    • The height of the hand dryer is 89cm (2ft 11in).
    • The contrast between the hand dryer and the wall is good.
  • Comments View
    • This facility also serves as the standard male toilet.

Accessible Toilet(s) (First Floor Textiles: Innovation and Design - Left Hand Transfer)

  • There is an/are accessible toilet(s) available.
  • Location and Access View
    • This accessible toilet is located to the left as you exit the platform lift on the first floor.
    • This accessible toilet is approximately 2m (2yd 7in) from the lift.
    • There is step-free access into the accessible toilet, via lift.
    • This is a gender neutral toilet.
    • A key is not required for the accessible toilet.
    • There is pictorial and written text signage on or near the toilet door.
    • The contrast between the external door and wall is good.
    • The door opens outwards.
    • The door is light.
    • The door is locked by a locking handle.
    • The width of the accessible toilet opening is 89cm.
    • The contrast between the internal door and wall is good.
    • The door has a horizontal grab rail.
    • The contrast between the horizontal grab rail and internal door is poor.
  • Toilet Features View
    • The dimensions of the accessible toilet are 270cm x 275cm (8ft 10in x 9ft).
    • The accessible toilet does have an unobstructed minimum turning space of 150cm x 150cm.
    • The lighting levels are good.
    • There is a lateral transfer space.
    • As you face the toilet pan the transfer space is on the left.
    • The lateral transfer space is 220cm (7ft 3in).
    • The transfer space is obstructed by a female sanitary bin.
    • There is a flush on the transfer side.
    • There is not a spatula type lever flush.
    • There is a lever flush.
    • There is a dropdown rail on the transfer side.
    • The contrast between the dropdown rail(s) and wall is good.
    • There is a/are wall-mounted grab rail(s) available.
    • As you face the toilet the wall-mounted grab rail(s) is/are on both sides.
    • There is a vertical wall-mounted grab rail on the transfer side.
    • There is a horizontal wall-mounted grab rail on the opposite side of the seat to the transfer space.
    • The contrast between the wall-mounted grab rail(s) and wall is good.
    • The contrast between the walls and floor is good.
    • There is an emergency alarm.
    • The emergency pull cord alarm was out of reach (higher than 10cm (4") from floor) when surveyed.
    • There is a red flashing fire alarm beacon within the toilet.
    • Disposal facilities are available in the toilet.
    • There is a/are female sanitary and general waste (with no lid) disposal units.
    • There is not a/are not coat hook(s).
  • Additional Fixtures View
    • There is a mirror.
    • The mirror is placed at a lower level or at an angle for ease of use.
    • There is not a shelf within the accessible toilet.
    • The toilet has a backrest.
    • The height of the toilet seat above floor level is 48cm (1ft 7in).
    • The toilet seat colour contrast is good.
    • There is a toilet roll holder.
    • The toilet roll holder can be reached from seated on the toilet.
    • The toilet roll holder is placed higher than 100cm (3ft 3in).
    • The height of the toilet roll holder is 111cm (3ft 8in).
    • The contrast between the toilet roll holder and the wall is good.
    • There is a wash basin.
    • The wash basin and tap(s) can be reached from seated on the toilet.
    • The wash basin is not placed higher than 74cm (2ft 5in).
    • The height of the wash basin is 72cm (2ft 4in).
    • There are vertical wall-mounted grab rails on both sides of the wash basin.
    • The contrast between the wash basin wall-mounted grab rail(s) and wall is good.
    • The wash basin tap type is lever mixer.
    • There is a wall fixed soap dispenser.
    • The soap dispenser cannot be reached from seated on the toilet.
    • The height of the soap dispenser is 104cm.
    • There is a towel dispenser.
    • The towel dispenser cannot be reached from seated on the toilet.
    • The towel dispenser is placed higher than 100cm (3ft 3in).
    • The height of the towel dispenser is 120cm (3ft 11in).
    • The contrast between the towel dispenser and the wall is fair.
    • There is not a hand dryer.

Standard Toilet(s) (First Floor Textiles: Innovation and Design)

  • Standard toilet facilities are available.
  • Toilet Facilities View
    • The female and male toilets are located straight ahead as you exit the main lift on the first floor and then to the left.
    • There is step-free access into the toilet(s).
    • The standard toilet(s) is/are approximately 20m from the main lift.
    • The colour contrast between the external toilet door(s) and wall(s) is good.
    • There is Braille and pictorial signage on or near the toilet door.
    • An ambulant toilet cubicle is not available.
    • The height of the wash basin(s) is 80cm.
    • The wash basin(s) tap type is lever.
    • Lighting levels are good.
