Elm Unit - Woodland

Trafford General Hospital, Moorside Road, Davyhulme, Manchester, M41 5SL

View Accessibility Symbols

Accessibility Symbols

For more information about what these symbols mean, view our Accessibility Symbols Guide.

Close this popup window.

Access Guide

Show Easy Read

Getting To (Elm Unit - Woodland)

Parking (Hospital Entrance 5 - Accessible Parking and Drop-Off)

  • Car Park View
    • The car park is located next to Hospital Entrance 5.
    • The car park is open air/surface.
    • The car park surface consists of tarmac and block paving.
    • There are 2 designated Blue Badge parking bays available.
    • The Blue Badge bays are clearly marked.
    • The surveyed Blue Badge parking bay dimensions are 240cm (width) x 460cm (depth).
    • There is a marked zone to both sides but not at the rear.
    • The width of the marked zone is 123cm.
    • The nearest designated bay is 13m from Hospital Entrance 5.
    • The most accessible route from the Blue Badge parking has step-free level access.
    • There is a dropped kerb without tactile paving from the designated Blue Badge parking.
  • Charges and Restrictions View
    • This car park is for Blue Badge holders only.
    • Parking is free for Blue Badge holders.
    • Clearly presented parking signs are available.
    • View information on parking policies/charges (opens new tab).
    • Free parking is available for up to 3 hours.
      If more time is required, please register at reception just inside the main entrance.
  • Drop-off Point View
    • There is a designated drop-off point available.
    • The designated drop-off point is located in front of Entrance 5.
    • There is a dropped kerb without tactile paving from the drop-off point.

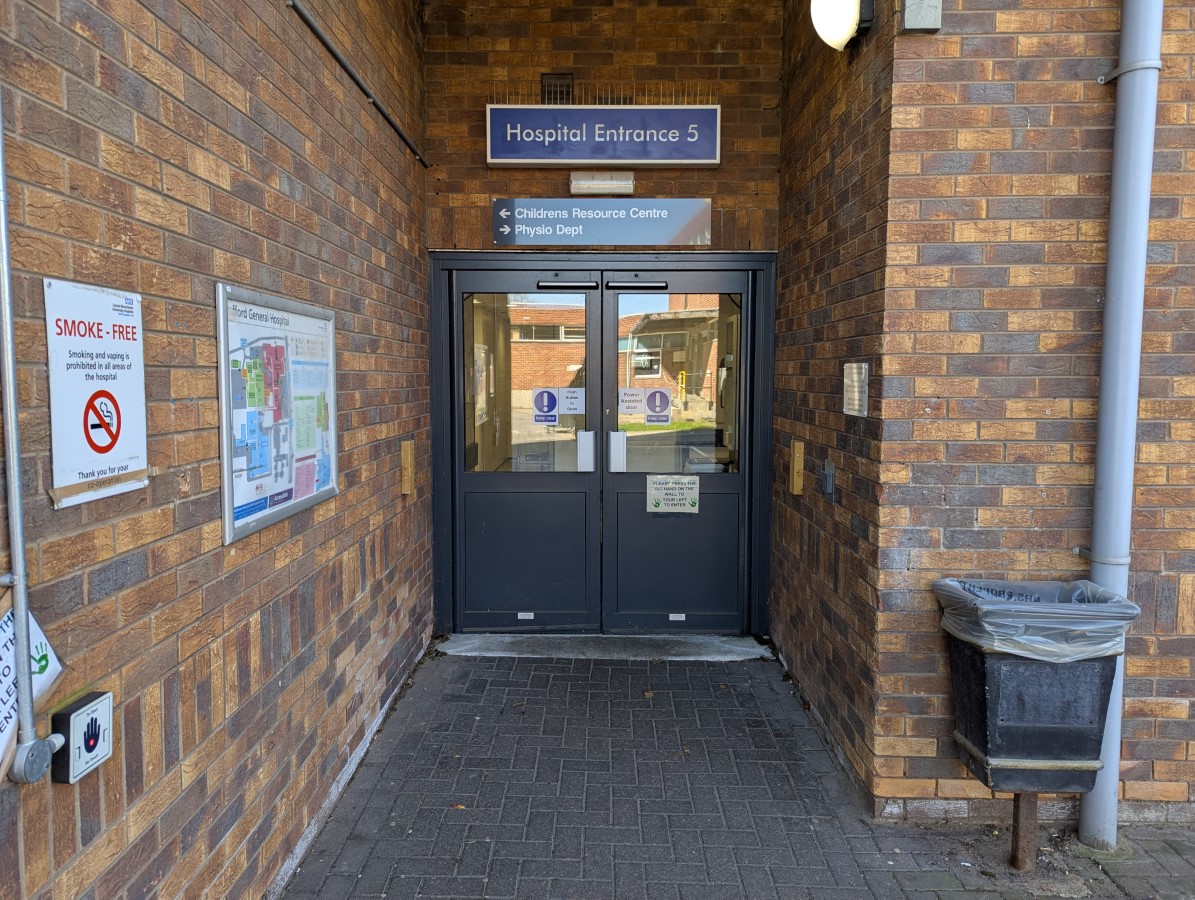

Entrance (Hospital Entrance 5)

  • This entrance is located on the eastern side of the hospital.
  • The entrance area is clearly signed.
  • There is a canopy or recess which provides weather protection at the entrance.
  • There is step-free access via ramp at the entrance.
  • The ramp has a steep gradient.
  • The ramp is between 75cm and 150cm wide .
  • There is a key fob/card reader at a height of 110cm.
  • The height of the hand sanitiser is 136cm.
  • There are double automatic doors at this entrance.
  • The doors open towards you.
  • There is a push pad at a height of 92cm.
  • The width of the opening is 142cm.
  • There is a small lip on the threshold of the opening.
  • The doors have a high visual contrast.
  • There is a push pad or push button to exit at a height of 100cm.
  • There is step-free level access as you enter.

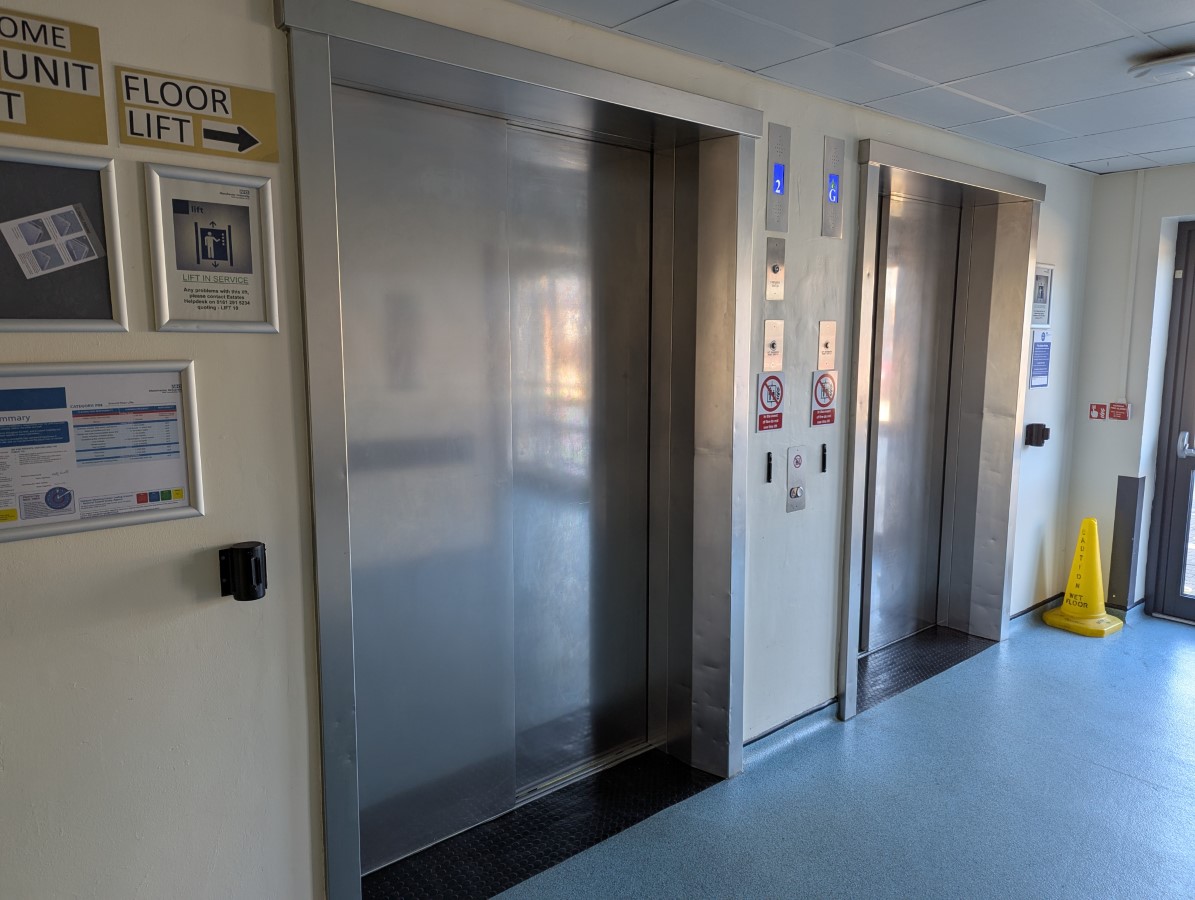

Lift (Green Zone - Hospital Entrance 5)

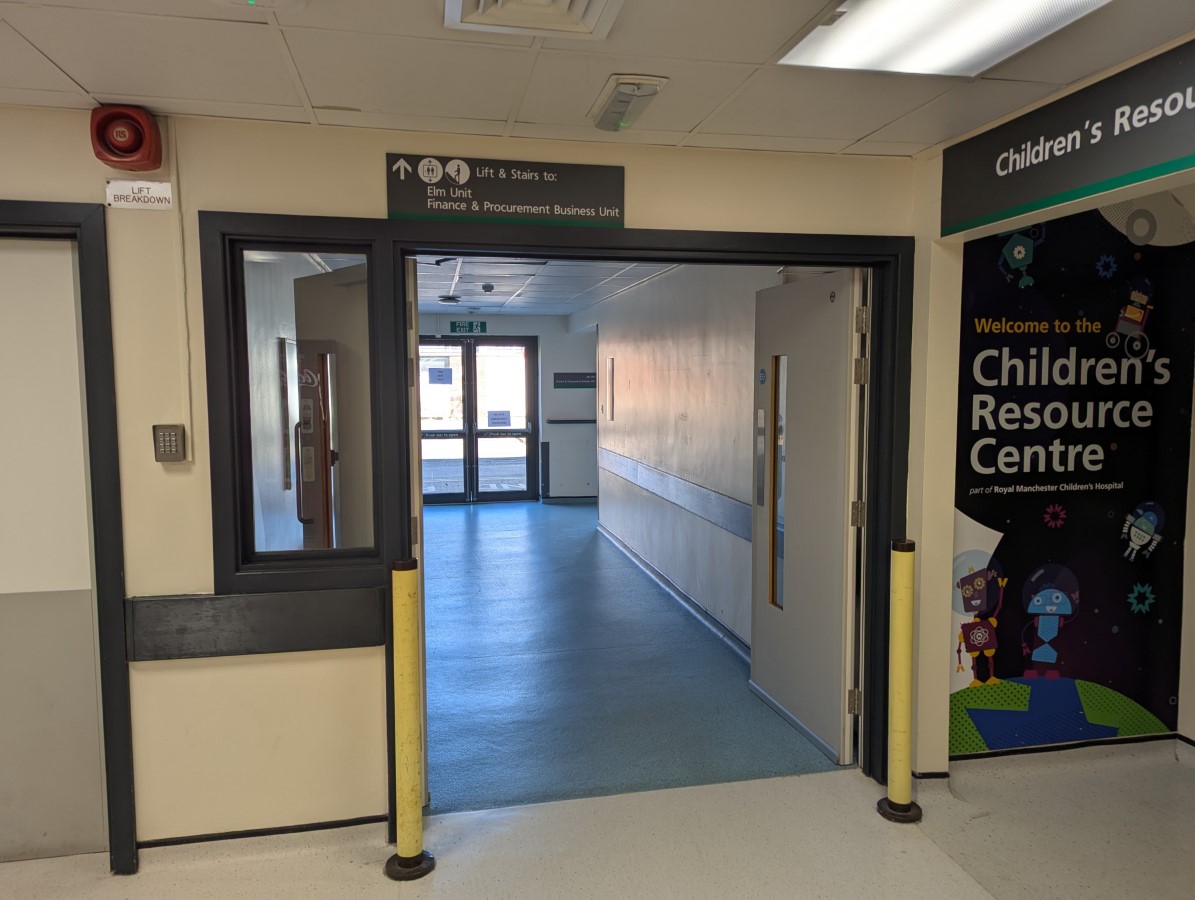

  • The lift surveyed is located along the Green Zone corridor to Hospital Entrance 5 and the Children's Resource Centre.
  • The distance from Hospital Entrance 5 is 17m.
  • The most accessible route to the lift has step-free level access and doors permanently held open.
  • Floors G and 1 are accessed by this lift.
  • The lift door has a high visual contrast.
  • The lift has a level manoeuvring space in front of it for a wheelchair user (150cm x 150cm).
  • The external lift control buttons have tactile markings and a medium visual contrast.
  • All of the external lift controls are at a suitable height for a wheelchair user.
  • The lift door opening width is 130cm.
  • The internal dimensions of the lift are 143cm (width) x 268cm (depth).
  • The internal lift control buttons have tactile markings, Braille markings and a medium visual contrast.
  • The majority of the internal controls are at a suitable height for a wheelchair user.
  • Internally the lift has: a mirror to aid reversing, a hearing assistance alarm system, a visual floor indicator and an audible announcer.
  • Lighting levels were even at the time of the survey, with unshaded light sources.
  • There are other lifts available at this location which are of a similar size.

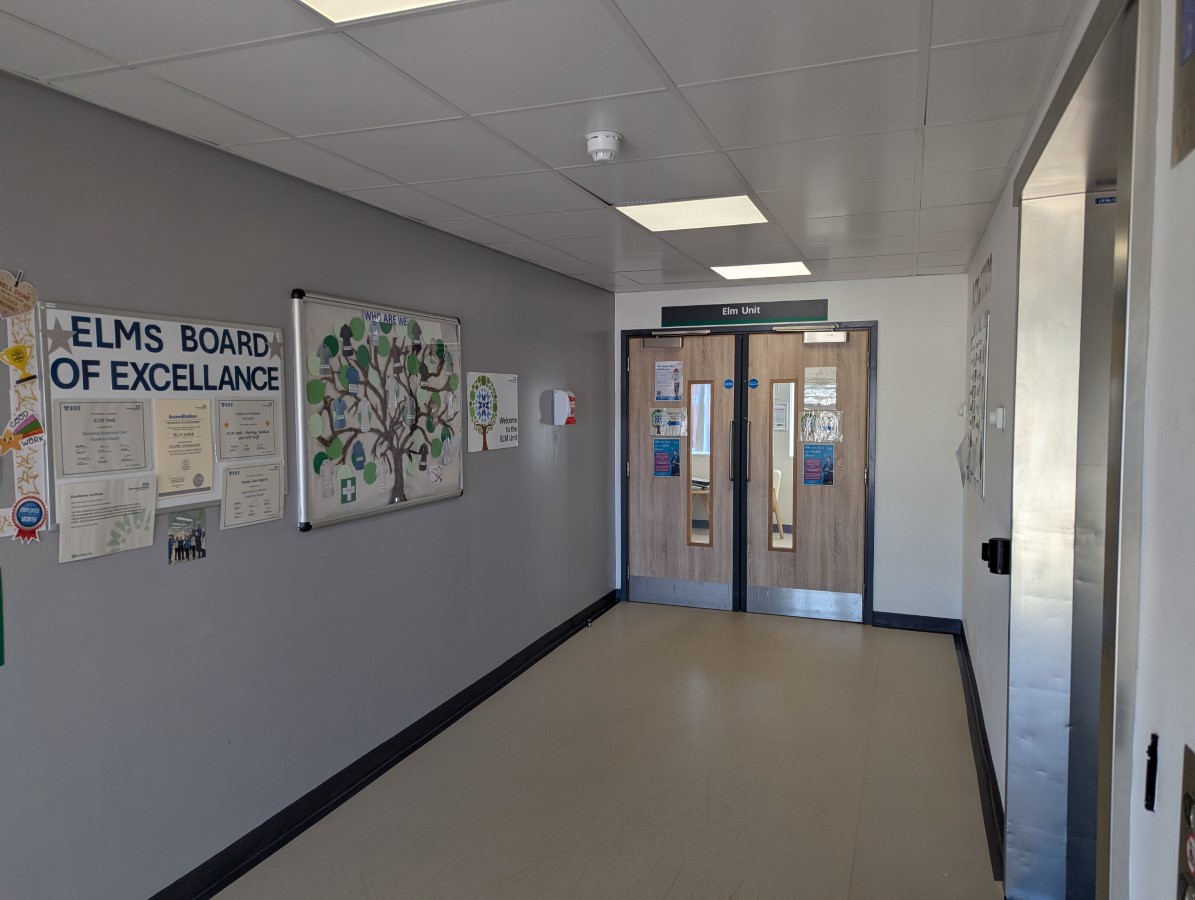

Entrance (Elm Unit Entrance)

  • This entrance is located on Floor 1 of the Gren Zone.
  • The entrance area is clearly signed.
  • There is step-free level access at the entrance.
  • The height of the hand sanitiser is 145cm.
  • There are double manual doors at this entrance.
  • The doors open towards you.
  • The width of the opening is 160cm.
  • The doors have a high visual contrast.

Ward (Woodland)

  • Ward Information View
    • This is a Rehabilitation ward.
    • This is a shared ward.
    • There are 3 bays available.
    • There are 3 side rooms available.
    • There are 15 beds in total on the ward.

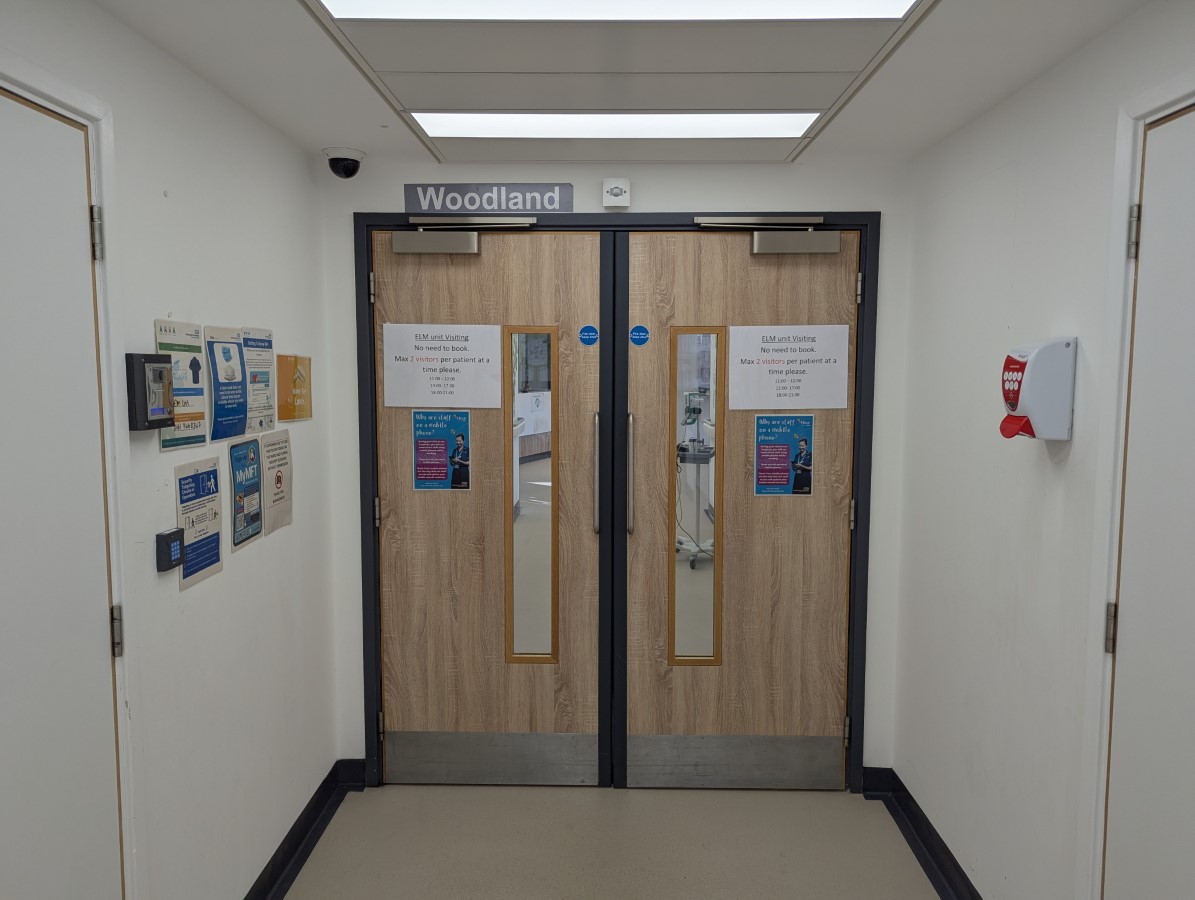

  • Location and Access View
    • There is written text signage on or near the door.
    • There is step-free level access into this ward.
    • There is an intercom at a height of 149cm.
    • The height of the hand sanitiser is 145cm.
    • There are double manual doors with a high visual contrast.
    • The doors open towards you.
    • The width of the opening is 160cm.
    • There is a push pad or push button to exit at a height of 116cm.
  • Getting Around View
    • There is step-free level access throughout.
    • Access throughout may include manual doors.
    • The walls and floor have a high visual contrast.
    • There may be background noise in this area.
    • Wayfinding signage is provided.
    • Signage is clearly visible with high contrasting colours.
    • Lighting levels were even at the time of the survey.
  • Reception / Nurses' Station View
    • The height of the desk is 112cm.
    • There is not a lowered section at the desk.
    • The desk has windows.
    • There is not a hearing assistance system.
  • Facilities and Services View
    • Seating available on the ward includes: chairs with armrests and riser recliner chairs.
    • There is not a hearing assistance system.
    • The hoist is powered overhead.
    • There is not a relatives' room for the ward.
    • The following facilities are available for patients: washrooms.
    • The following facilities are available for visitors: toilets with adaptations.
    • There is also a portable hoist in the ward.
  • Visiting Hours View

Toilet and Changing Facilities (Patients)

Toilet and Changing Facilities (Visitors)

  • Toilet Facilities View
    • There are 2 toilets with adaptations.
    • Toilets with adaptations are located ahead from the Woodland Ward entrance, next to the nurses station.
    • The transfer space varies between left and right in the toilets with adaptations.

Lounge (Day Room)

  • The lounge is located ahead from the ward entrance and to the right of the nurses station.
  • There is step-free level access into the lounge.
  • There is room for a wheelchair user to manoeuvre (150cm x 150cm).
  • The walls and floor have a high visual contrast.
  • Seating available in the lounge includes: chairs with armrests and riser recliner chairs.
  • Furniture available in the lounge includes: tables and coffee tables.
  • Some seating is fixed.
  • The surface height of the tables is suitable for wheelchair users.
  • The clear height under the tables is suitable for wheelchair users.
  • There is a TV with subtitles.
  • Lighting levels were even at the time of the survey.

Gym (Gymnasium)

  • The gym is located ahead from the ward entrance after the nurses station.
  • There is step-free level access into the gym.
  • There are double manual doors with a low visual contrast.
  • One of the doors was locked at the time of the survey.
  • The doors open away from you.
  • The width of the opening is 82cm.
  • There is step-free level access throughout.
  • There is some room for a wheelchair user to manoeuvre (150cm x 150cm).
  • The gym is staffed when open.
  • The walls and floor have a high visual contrast.
  • There is clear manoeuvring space between equipment (150cm x 150cm).
  • Seating available in this area includes: chairs with armrests.
  • There is not a hearing assistance system.
  • Lighting levels were even at the time of the survey.
  • There is a powered overhead hoist with access to all areas.

Bathroom with Adaptations (Bridge Bay)

  • Location and Access View
    • The bathroom surveyed is located in Bridge Bay.
    • The most accessible route to the bathroom has step-free level access and manual doors.
    • There is step-free level access into the bathroom.
    • There is pictorial signage on or near the door.
    • The door opens outwards and has a high visual contrast.
    • The width of the door opening is 87cm.
    • The door has a lever twist lock.
    • Internally the door has a high visual contrast.
    • There is not a grab rail on the internal door.
  • Dimensions and Features View
    • The dimensions of the bathroom are 189cm (width) x 287cm (depth) and there is room for a wheelchair user to manoeuvre (150cm x 150cm).
    • There is a lateral transfer space to the right as you face the toilet, however it is obstructed.
    • The lateral transfer space is 120cm (from the side of the toilet pan).
    • There is a lever flush on the transfer side.
    • There is a horizontal grab rail on the non-transfer side.
    • The horizontal grab rail has a high visual contrast.
    • There is no vertical grab rail for the toilet.
    • There is a dropdown rail on the transfer side.
    • The dropdown rail has a high visual contrast.
    • The toilet seat is 48cm from the floor.
    • The toilet seat has a low visual contrast.
    • The toilet has a padded backrest.
    • There is a wall mounted toilet roll holder which can be reached when seated on the toilet.
    • The toilet roll holder has a high visual contrast.
    • The toilet roll holder is 91cm from the floor.
    • The wash basin and taps cannot be reached when seated on the toilet.
    • The wash basin is 78cm from the floor.
    • The wash basin has a lever mixer tap.
    • The vertical grab rails are on both sides of the wash basin.
    • The wash basin rails have a high visual contrast.
    • There is a wall mounted soap dispenser which cannot be reached when seated on the toilet.
    • The soap dispenser has a high visual contrast.
    • The soap dispenser is 100cm from the floor.
    • There is a wall mounted towel dispenser which can be reached when seated on the toilet.
    • The towel dispenser has a medium visual contrast.
    • The towel dispenser is 125cm from the floor.
    • There is not a hand dryer.
    • There is a pull cord emergency alarm within 10cm from the floor.
    • There is a mirror.
    • There is no shelf.
    • The bathroom has a pedal bin.
    • There are multiple coat hooks.
    • The coat hooks are 174cm from the floor.
    • The walls and floor have a medium visual contrast.
    • Lighting levels were even at the time of the survey.
    • The bathroom has a wheel-in shower.
    • There is room for a wheelchair user to manoeuvre in the shower (150cm x 150cm).
    • There is an adjustable shower head.
    • The shower controls are twist turn mixer.
    • There is a shower seat.
    • The shower seat is 61cm from the floor.
    • There are grab rails and a dropdown rail for the shower.
    • The shower grab rails have a high visual contrast.
    • The shower dropdown rail has a high visual contrast.
    • There is a pull cord emergency alarm for the shower within 10cm from the floor.

Toilet with Adaptations (Left Hand Transfer)

  • Location and Access View
    • The toilet surveyed is located ahead from the ward entrance and on the left, before the nurses station .
    • The distance from the Woodland Ward entrance is 7m.
    • The most accessible route to the toilet has step-free level access.
    • There is step-free level access into the facility.
    • There is pictorial signage on or near the door.
    • The door opens outwards and has a high visual contrast.
    • The width of the door opening is 88cm.
    • The door has a locking handle.
    • Internally the door has a high visual contrast.
    • There is not a grab rail on the internal door.
  • Dimensions and Features View
    • The dimensions of the cubicle are 180cm (width) x 189cm (depth) and there is not room for a wheelchair user to manoeuvre (150cm x 150cm).
    • There is a lateral transfer space to the left as you face the toilet, however it is obstructed.
    • The lateral transfer space is 114cm (from the side of the toilet pan).
    • There is a lever flush on the non-transfer side.
    • There is a horizontal grab rail on the non-transfer side.
    • The horizontal grab rail has a high visual contrast.
    • There is no vertical grab rail for the toilet.
    • There is a dropdown rail on the transfer side.
    • The dropdown rail has a high visual contrast.
    • The toilet seat is 48cm from the floor.
    • The toilet seat has a low visual contrast.
    • The toilet has a padded backrest.
    • There is a wall mounted toilet roll holder which can be reached when seated on the toilet.
    • The toilet roll holder has a high visual contrast.
    • The toilet roll holder is 94cm from the floor.
    • The wash basin and taps can be reached when seated on the toilet.
    • The wash basin is 72cm from the floor.
    • The wash basin has a lever mixer tap.
    • The vertical grab rails are on both sides of the wash basin.
    • The wash basin grab rails have a high visual contrast.
    • There is a wall mounted soap dispenser which cannot be reached when seated on the toilet.
    • The soap dispenser has a high visual contrast.
    • The soap dispenser is 98cm from the floor.
    • There is a wall mounted towel dispenser which cannot be reached when seated on the toilet.
    • The towel dispenser has a medium visual contrast.
    • The towel dispenser is 128cm from the floor.
    • There is not a hand dryer.
    • There is a pull cord emergency alarm within 10cm from the floor.
    • There is a full length mirror.
    • There is no shelf.
    • The cubicle has a sanitary bin and a pedal bin.
    • There are no coat hooks.
    • The walls and floor have a medium visual contrast.
    • Lighting levels were even at the time of the survey.
