Red Outpatients

Trafford General Hospital, Moorside Road, Davyhulme, Manchester, M41 5SL

View Accessibility Symbols

Accessibility Symbols

For more information about what these symbols mean, view our Accessibility Symbols Guide.

Close this popup window.

Access Guide

Show Easy Read

Getting To (Red Outpatients)

Parking (Car Park A - Standard and Accessible Parking and Drop Off)

  • Car Park View
    • The car park is located opposite Entrance 9 and the Urgent Treatment Centre entrance.
    • The car park is open air/surface.
    • The car park surface consists of tarmac.
    • There are 6 designated Blue Badge parking bays available.
    • The Blue Badge bays are clearly marked.
    • The surveyed Blue Badge parking bay dimensions are 224cm (width) x 478cm (depth).
    • There is a marked zone to both sides and rear.
    • The width of the marked zone is 130cm.
    • The nearest designated bay is 11m from the Urgent Treatment Centre entrance.
    • The most accessible route from the Blue Badge parking has a very easy slope.
  • Charges and Restrictions View
    • This car park is for visitors and Blue Badge holders only.
    • Parking is free for all users.
    • Clearly presented parking signs are available.
    • View information on parking policies/charges (opens new tab).
    • Free parking for all users is available for up to 3 hours.
      If more time is required, please register at reception just inside the main entrance.
  • Electric Vehicle Charging Points View
    • There are 2 electric vehicle charging points.
    • The dimensions of the surveyed electric vehicle charging bay are 230cm (width) x 400cm (depth).
    • The controls are at a suitable height for a wheelchair user.
    • The nozzle holster is not at a suitable height for a wheelchair user.
    • The charging points require an online account.
    • There are no electric vehicle charging points designated for Blue Badge holders.

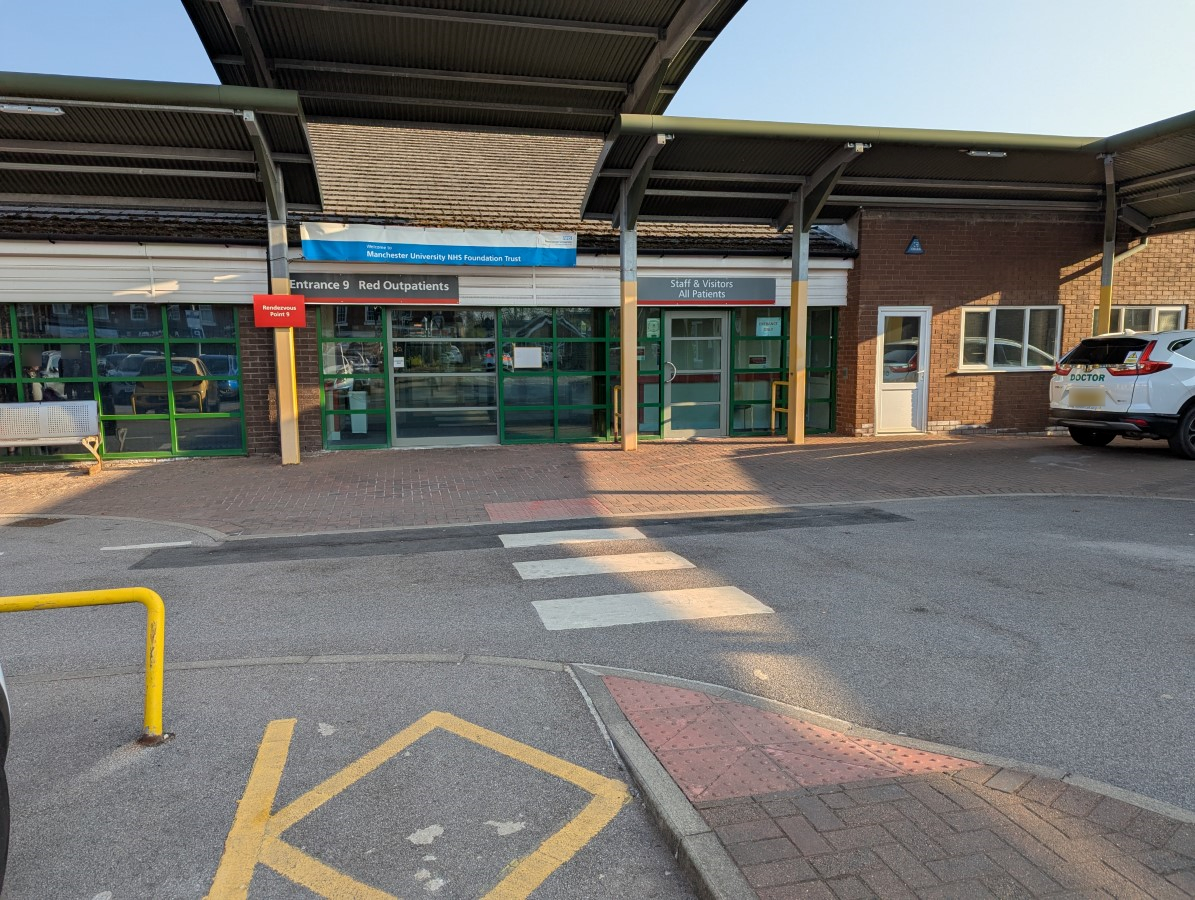

  • Drop-off Point View
    • There is a designated drop-off point available.
    • The designated drop-off point is located opposite entrance 9 and the Urgent Treatment Centre entrances.

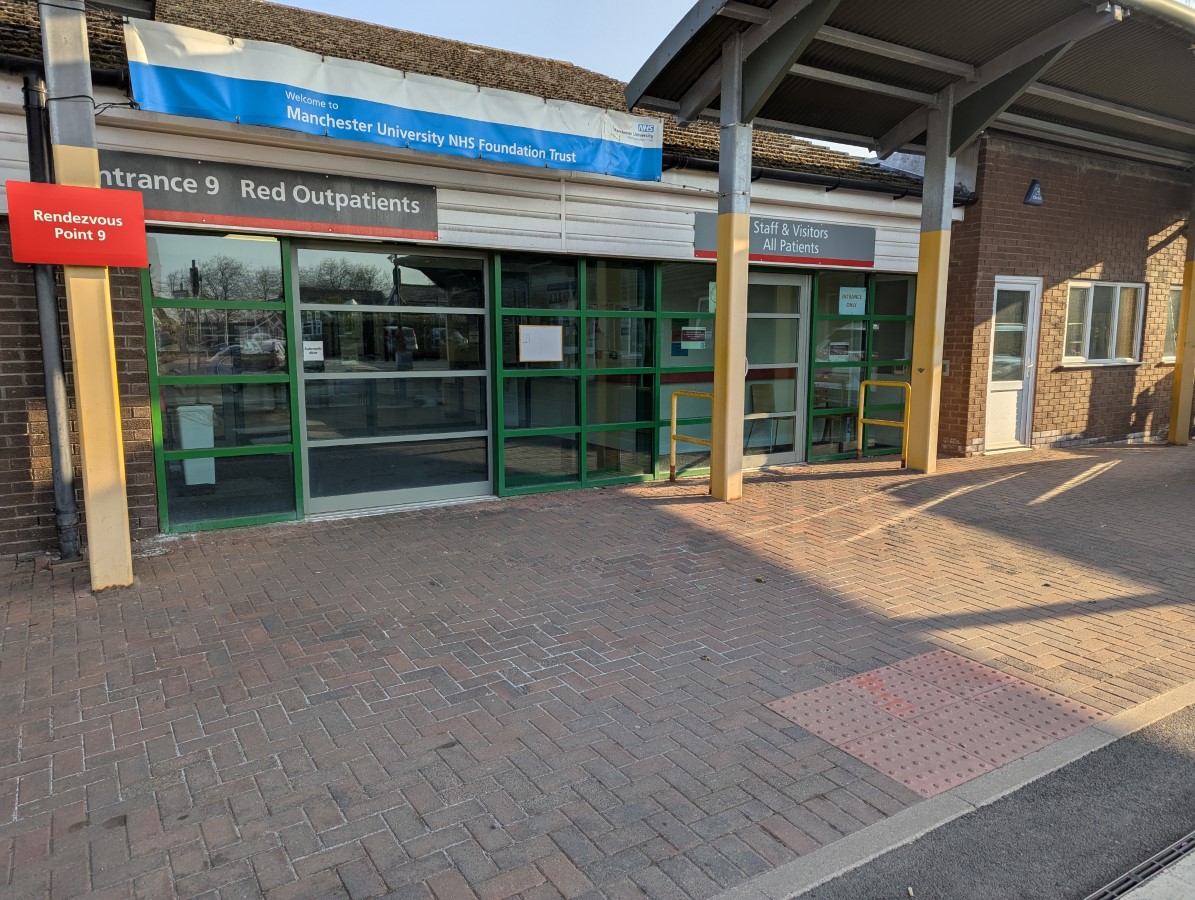

Entrance (Entrance 9 - Red Outpatients)

  • This entrance is located opposite car park A.
  • The entrance area is clearly signed.
  • There is a canopy or recess which provides weather protection at the entrance.
  • There is step-free access via a very easy slope at the entrance.
  • The height of the hand sanitiser is 143cm.
  • There is a single automatic door at this entrance.
  • The door opens by sliding.
  • The width of the opening is 150cm.
  • There is a small lip on the threshold of the opening.
  • The door has a medium visual contrast.
  • There is a second single automatic door.
  • The second door opens by sliding.
  • The width of the opening is 150cm.
  • The second door has a high visual contrast.
  • There is step-free level access as you enter.

Department / Service (Red Outpatients)

  • Location and Access View
  • Getting Around View
    • There is step-free level access throughout.
    • Access throughout may include doors permanently held open.
    • The walls and floor have a high visual contrast.
    • There may be background noise in this area.
    • Wayfinding signage is provided.
    • Signage is clearly visible with high contrasting colours.
    • Lighting levels were even at the time of the survey.
  • Facilities and Services View
    • There are 10+ consultation/medical rooms available.
    • Seating available in this area includes: chairs with armrests and chairs without armrests.
    • Furniture available in this area includes: tables and coffee tables.
    • Some seating is fixed.
    • There is not a hearing assistance system.
    • The following facilities are available for patients: toilets with adaptations and standard toilets.

Toilet and Changing Facilities (Red Outpatients)

  • Toilet Facilities View
    • There are 2 toilets with adaptations.
    • Toilets with adaptations are located in the OPD 2 and OPD 3 waiting areas.
    • The transfer space varies between left and right in the toilets with adaptations.
    • The shared step-free toilet facilities are located in the OPD 3 area.
  • Changing Places and Changing Facilities View
    • Parent and baby changing facilities are located in the OPD Area 3 waiting area.

Reception (Red Outpatients Reception)

  • The reception is located on the left as you enter Red Outpatients.
  • The distance from Entrance 9 - Red Outpatients is 8m.
  • There is step-free level access to reception.
  • The height of the reception desk is 110cm.
  • There is a lowered section at the desk.
  • The height of the lowered section is 73cm.
  • The reception has patterned/distracting backgrounds.
  • There is a clearly signed fixed hearing assistance system.
  • The hearing assistance system was tested, however it was not working at the time of the survey.

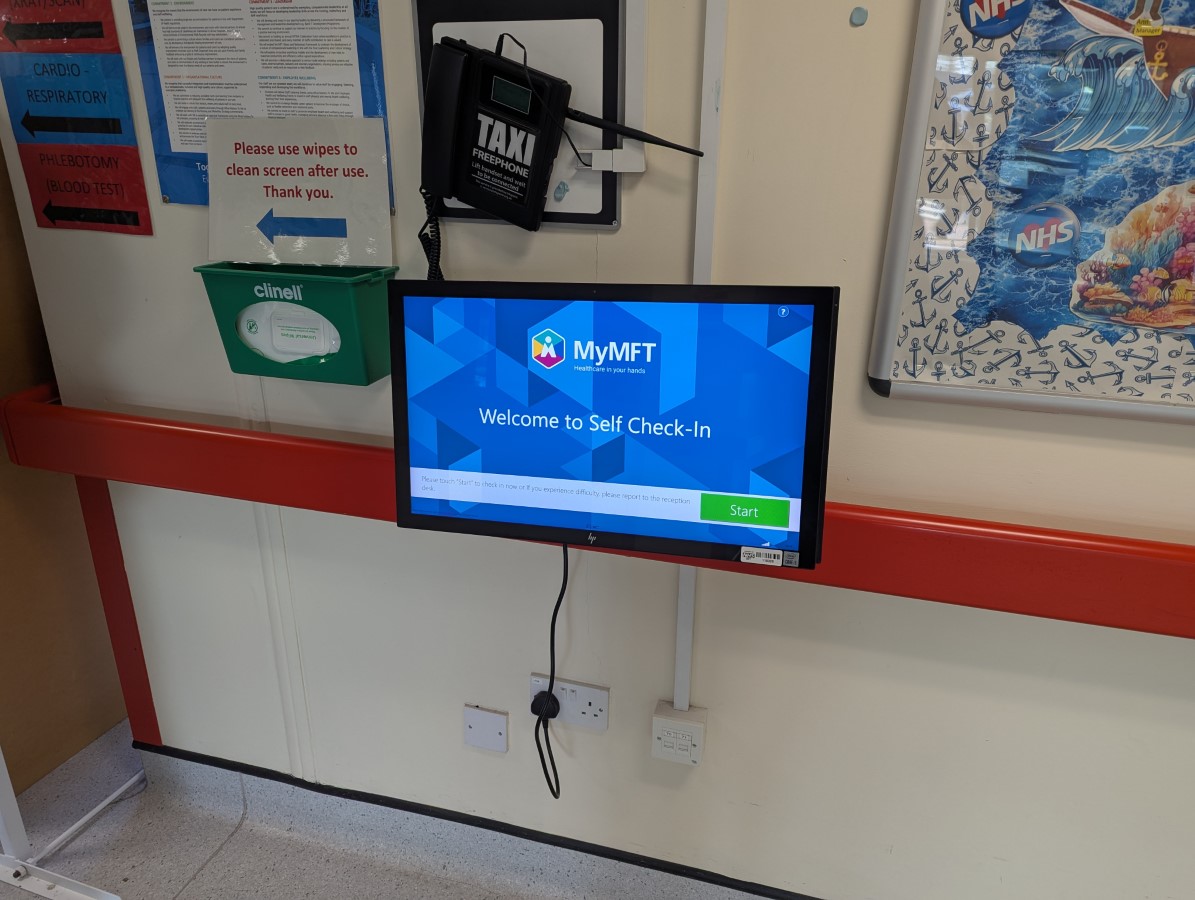

  • The height of the touchscreen display ranges from 100cm to 125cm from the floor.
  • There may be background noise in this area.
  • Some flooring is shiny.
  • Lighting levels were even at the time of the survey.
  • There is some room for a wheelchair user to manoeuvre in the seating area (150cm x 150cm).
  • There is space for an assistance dog to rest in the seating area.
  • Seating available in this area includes: chairs without armrests.
  • Furniture available in this area includes: tables.

Consultation / Medical Room (Consultation Room 1)

  • There are 10+ consultation/medical rooms available.
  • The room surveyed was; Consultation Room 1.
  • The room is located along the treatment corridor on the left.
  • The most accessible route to the room has step-free level access and doors permanently held open.
  • There is written text signage on or near the door.
  • There is step-free level access into the room.
  • There is a single manual door with a high visual contrast.
  • The door opens inwards.
  • The width of the opening is 87cm.
  • There is step-free level access throughout the room.
  • There is room for a wheelchair user to manoeuvre (150cm x 150cm).
  • There is space for an assistance dog to rest.
  • The walls and floor have a high visual contrast.
  • The treatment table is free standing and height adjustable.
  • The length of the treatment table is 186cm.
  • Seating available in the room includes: chairs without armrests.
  • Furniture available in the room includes: desks.
  • Some furniture is fixed.
  • There is not a hearing assistance system.
  • There is no (or very little) background noise in this room.
  • Lighting levels were even at the time of the survey.

Consultation / Medical Room (Booking-in Room - Area One)

  • There are 4 consultation/medical rooms available.
  • The room surveyed was; Booking-in Room - Area One.
  • The room is located on the right along the treatment corridor.
  • The most accessible route to the room has step-free level access and doors permanently held open.
  • There is written text signage on or near the door.
  • There is step-free level access into the room.
  • There is a single manual door with a high visual contrast.
  • The door opens inwards.
  • The width of the opening is 87cm.
  • There is step-free level access throughout the room.
  • Furniture can be moved to enable a manoeuvring space for a wheelchair user (150cm x 150cm).
  • There is space for an assistance dog to rest.
  • The walls and floor have a high visual contrast.
  • Seating available in the room includes: chairs with armrests.
  • Furniture available in the room includes: tables and desks.
  • Some furniture is fixed.
  • There is not a hearing assistance system.
  • There is no (or very little) background noise in this room.
  • Lighting levels were even at the time of the survey.

Consultation / Medical Room (Minor Ops Room)

  • There is 1 consultation/medical room available.
  • The room surveyed was; Minor Ops Room.
  • The room is located on the left along the treatment corridor.
  • The most accessible route to the room has step-free level access and doors permanently held open.
  • There is written text signage on or near the door.
  • There is step-free level access into the room.
  • There is a single manual door with a high visual contrast.
  • The door opens inwards.
  • The width of the opening is 87cm.
  • There is step-free level access throughout the room.
  • There is room for a wheelchair user to manoeuvre (150cm x 150cm).
  • There is space for an assistance dog to rest.
  • The walls and floor have a high visual contrast.
  • The treatment table is free standing and height adjustable.
  • The length of the treatment table is 196cm.
  • Seating available in the room includes: chairs with armrests.
  • There is not a hearing assistance system.
  • There is no (or very little) background noise in this room.
  • Lighting levels were even at the time of the survey.

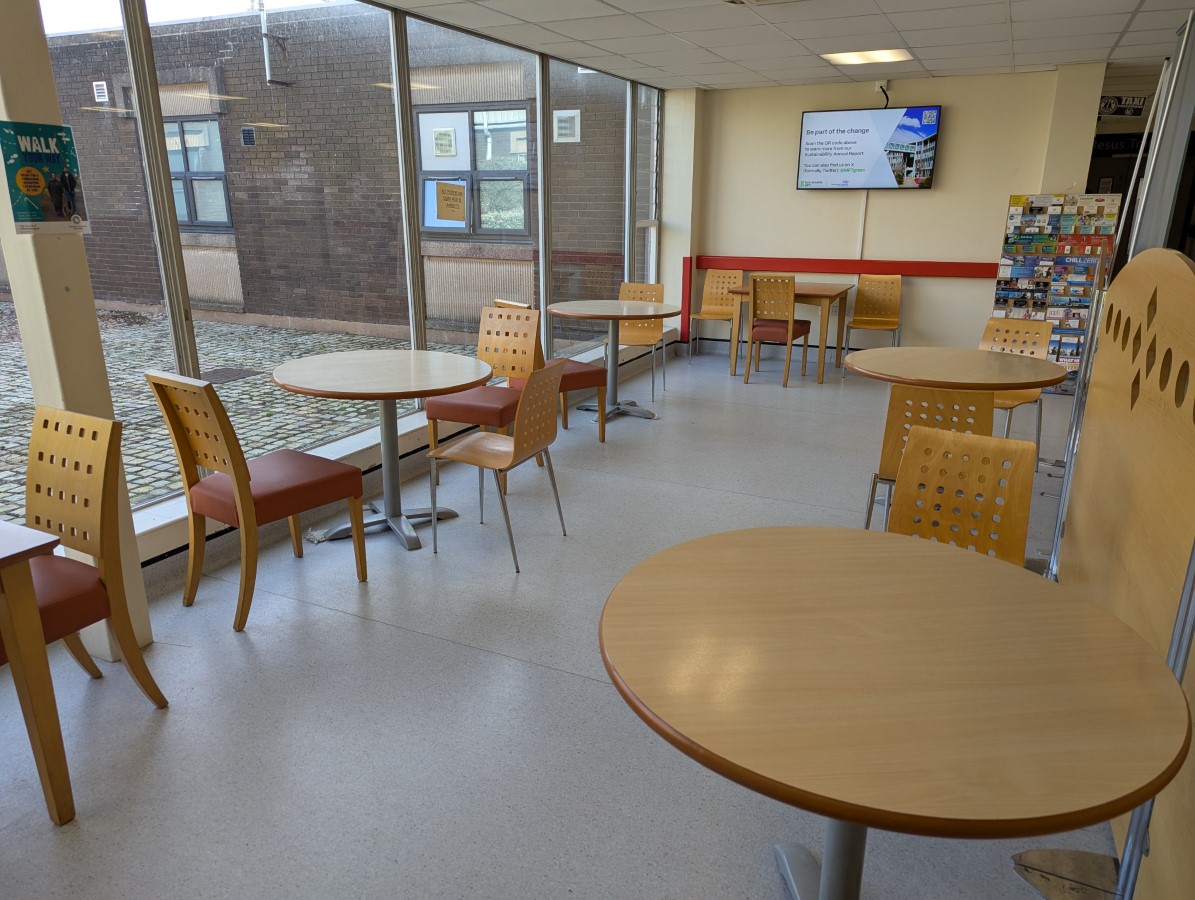

Seating Area (OPD Area 1 Waiting Area)

  • The OPD Area 1 waiting area is located along the treatment corridor, immediately after entering Red Outpatients.
  • The most accessible route has step-free level access and doors permanently held open.
  • There is step-free level access into this area.
  • Seating Area View
    • There is step-free level access throughout the seating area.
    • There is not room for a wheelchair user to manoeuvre (150cm x 150cm).
    • There is not space for an assistance dog to rest.
    • The walls and floor have a high visual contrast.
    • Seating available in this area includes: chairs with armrests and chairs without armrests.
    • Furniture available in this area includes: coffee tables.
    • Some chairs are fixed.
    • The surface height of the tables is not suitable for wheelchair users.
    • The clear height under the tables is not suitable for wheelchair users.
    • There may be background noise in this area.
    • Lighting levels were even at the time of the survey.

Seating Area (OPD Area 4 Waiting Area)

  • The OPD Area 4 Waiting Area is located at the end of the Red Outpatients corridor.
  • The most accessible route has step-free level access and doors permanently held open.
  • There is step-free level access into this area.
  • Seating Area View
    • There is step-free level access throughout the seating area.
    • There is some room for a wheelchair user to manoeuvre (150cm x 150cm).
    • There is space for an assistance dog to rest.
    • The walls and floor have a high visual contrast.
    • Seating available in this area includes: chairs with armrests and chairs without armrests.
    • Furniture available in this area includes: coffee tables.
    • Some chairs are fixed.
    • The surface height of the tables is not suitable for wheelchair users.
    • The clear height under the tables is not suitable for wheelchair users.
    • There may be background noise in this area.
    • Lighting levels were even at the time of the survey.
    • There are similar waiting areas in OPD 2 and OPD 3.

Toilet with Adaptations (OPD Area 3 - Left Hand Transfer)

  • Location and Access View
    • The toilet surveyed is located in the OPD Area 3 waiting area.
    • The distance from Entrance 9 - Red Outpatients is 50m.
    • The most accessible route to the toilet has step-free level access and doors permanently held open.
    • There is step-free level access into the facility.
    • There is tactile, pictorial, written text and dementia friendly signage on or near the door.
    • The door opens inwards and has a high visual contrast.
    • The width of the door opening is 87cm.
    • The door has a lever twist lock.
    • Internally the door has a high visual contrast.
    • There is not a grab rail on the internal door .
  • Dimensions and Features View
    • The dimensions of the cubicle are 262cm (width) x 237cm (depth) and there is room for a wheelchair user to manoeuvre (150cm x 150cm).
    • There is a lateral transfer space to the left as you face the toilet, however it is obstructed.
    • The lateral transfer space is 197cm (from the side of the toilet pan).
    • There is a lever flush on the non-transfer side.
    • There is a horizontal grab rail on the non-transfer side.
    • The horizontal grab rail has a high visual contrast.
    • There is a vertical grab rail on the transfer side.
    • The vertical grab rail has a high visual contrast.
    • There is a dropdown rail on the transfer side.
    • The dropdown rail has a high visual contrast.
    • The toilet seat is 48cm from the floor.
    • The toilet seat has a low visual contrast.
    • The toilet has a padded backrest.
    • There is a wall mounted toilet roll holder which can be reached when seated on the toilet.
    • The toilet roll holder has a high visual contrast.
    • The toilet roll holder is 103cm from the floor.
    • The wash basin and taps can be reached when seated on the toilet.
    • The wash basin is 79cm from the floor.
    • The wash basin has a lever mixer tap.
    • There are no vertical grab rails at the wash basin.
    • There is a wall mounted soap dispenser which cannot be reached when seated on the toilet.
    • The soap dispenser has a high visual contrast.
    • The soap dispenser is 131cm from the floor.
    • There is a wall mounted towel dispenser which cannot be reached when seated on the toilet.
    • The towel dispenser has a medium visual contrast.
    • The towel dispenser is 121cm from the floor.
    • There is not a hand dryer.
    • There is a pull cord emergency alarm, however it is not within 10cm from the floor.
    • There is no mirror.
    • There is no shelf.
    • The cubicle has a nappy/incontinence items bin and a pedal bin.
    • There are no coat hooks.
    • The height of the baby change facility when in use is 91cm.
    • The walls and floor have a high visual contrast.
    • Lighting levels were even at the time of the survey.
