Ward 9 - Trafford High Care Unit

Trafford General Hospital, Moorside Road, Davyhulme, Manchester, M41 5SL

View Accessibility Symbols

Accessibility Symbols

For more information about what these symbols mean, view our Accessibility Symbols Guide.

Close this popup window.

Access Guide

Show Easy Read

Getting To (Ward 9 - Trafford High Care Unit)

  • The most accessible route from main entrance - accessible parking has a very easy slope, a dropped kerb with tactile paving, bollards and a pedestrian crossing.
  • View further information about parking at the hospital (opens new tab)
  • Access to Ward 9 - Trafford High Care Unit is via the main entrance - entrance 1.
  • There is not a drop-off point at this entrance.
  • View further information about entrances (opens new tab)
  • Ward 9 - Trafford High Care Unit is located on floor G of the hospital in the Green Zone.
  • Ward 9 - Trafford High Care Unit is approximately 70m from the main entrance - entrance 1.
  • Enter the hospital via the main entrance - entrance 1 and immediately turn left.
    Follow the corridor to the end then turn right into the Green Zone.
    Follow the corridor until the shared entrance to Ward 9 - Trafford High Care Unit and Clinical Engineering is seen on the right.
    Pass through these doors and the entrance to Ward 9 - Trafford High Care Unit will be straight ahead.
  • Internally the most accessible route has step-free level access and doors permanently held open.
  • Some flooring along the route is shiny .
  • There are not resting areas along the route.
  • Wayfinding signage is provided.
  • Signage is clearly visible with high contrasting colours.
  • The following toilet facilities are available along the route; a toilet with adaptations (with right hand transfer) and standard toilets.
  • View information about accessible toilet facilities in public areas (opens new tab).
  • View more information on getting to and around the hospital (opens new tab)

Parking (Main Entrance - Accessible Parking)

  • Car Park View

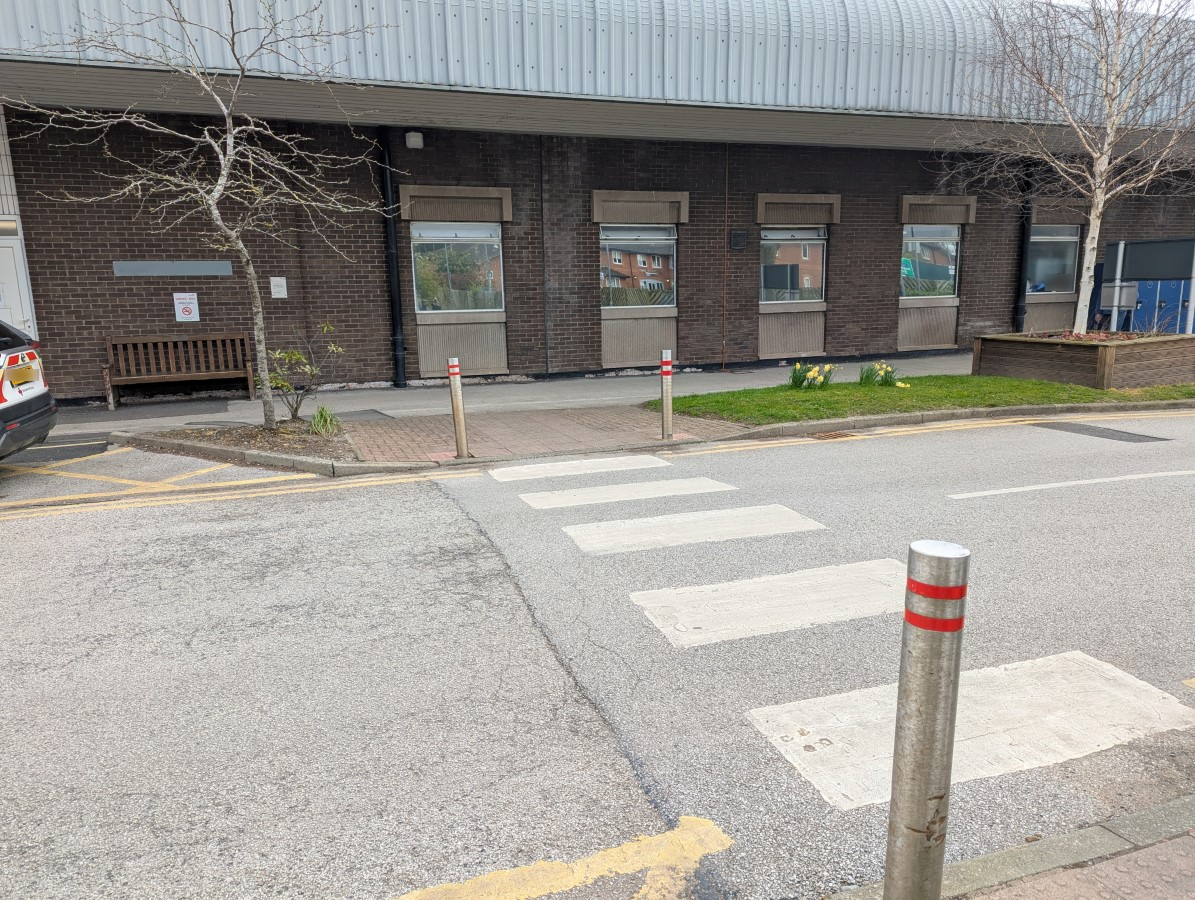

    • The car park is located in the centre of the site, across the road from car park B.
    • The car park is open air/surface.
    • The car park surface consists of tarmac.
    • There are 9 designated Blue Badge parking bays available.
    • The Blue Badge bays are clearly marked.
    • The surveyed Blue Badge parking bay dimensions are 230cm (width) x 480cm (depth).
    • The hatched/marked zones vary between bays.
    • The width of the marked zone is 132cm.
    • The dimensions of the designated Blue Badge parking bays vary in size.
    • The nearest designated bay is 42m from the main entrance (Entrance 1).
    • The most accessible route from the Blue Badge parking has a very easy slope and bollards.
    • There is a dropped kerb without tactile paving from the designated Blue Badge parking.
  • Charges and Restrictions View
    • This car park is for Blue Badge holders only.
    • Parking is free for all users.
    • Clearly presented parking signs are not available.
    • View information on parking policies/charges (opens new tab).
    • Parking is free for 3 hours. If more than 3 hours parking is required, please pay £5.00 at the main hospital reception.
  • Drop-off Point View
    • There is not a designated drop-off point available.

Entrance (Main Entrance - Entrance 1)

  • This entrance is located in the centre of the hospital complex.
  • The approach to the entrance has bollards.
  • The entrance area is clearly signed.
  • There is a canopy or recess which provides weather protection at the entrance.
  • There is step-free access via a very easy ramp at the entrance.
  • There is an intercom at a height of 144cm.
  • There is a key fob/card reader at a height of 144cm.
  • The height of the hand sanitiser is 139cm.
  • There are double automatic doors at this entrance.
  • The doors open towards you.
  • The width of the opening is 157cm.
  • There is a small lip on the threshold of the opening.
  • The doors have a high visual contrast.
  • There is a push pad or push button to exit at a height of 137cm.
  • There is a second set of double automatic doors .
  • The second set of doors open towards you.
  • The width of the opening is 164cm.
  • The second set of doors have a high visual contrast.
  • There is a push pad or push button to exit at a height of 112cm.
  • The minimum width between the bollards is 154cm.
  • There is step-free level access as you enter.

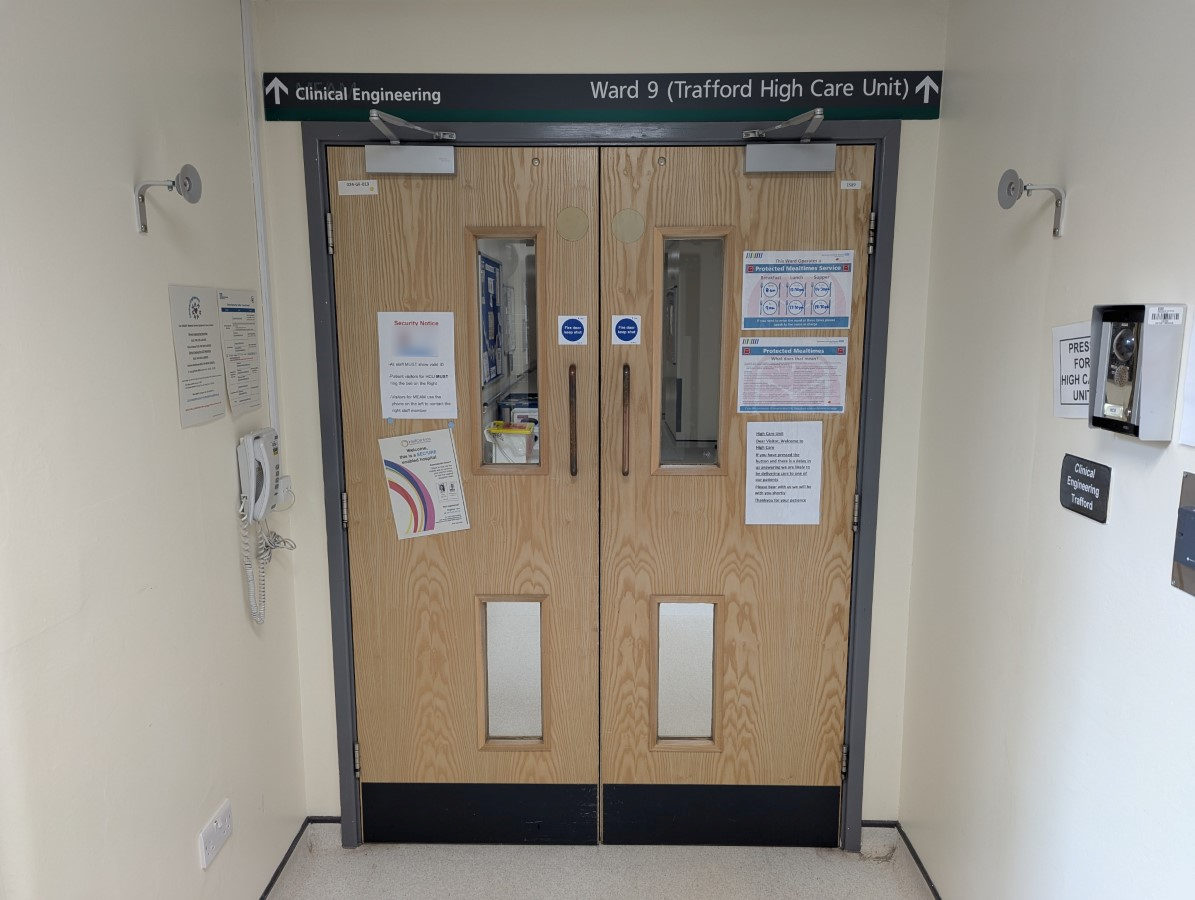

Entrance (Ward 9 - Trafford High Care Unit/Clinical Engineering)

  • This entrance is located on floor G of the Green Zone.
  • The entrance area is clearly signed.
  • There is step-free level access at the entrance.
  • There is an intercom at a height of 145cm.
  • There is a key fob/card reader at a height of 127cm.
  • The height of the hand sanitiser is 137cm.
  • There are double manual doors at this entrance.
  • The doors are permanently held open.
  • The width of the opening is 154cm.
  • The doors have a high visual contrast.
  • There is a second set of double manual doors .
  • The second set of doors open towards you.
  • The width of the opening is 134cm.
  • The second set of doors have a high visual contrast.
  • There is a push pad or push button to exit at a height of 129cm.

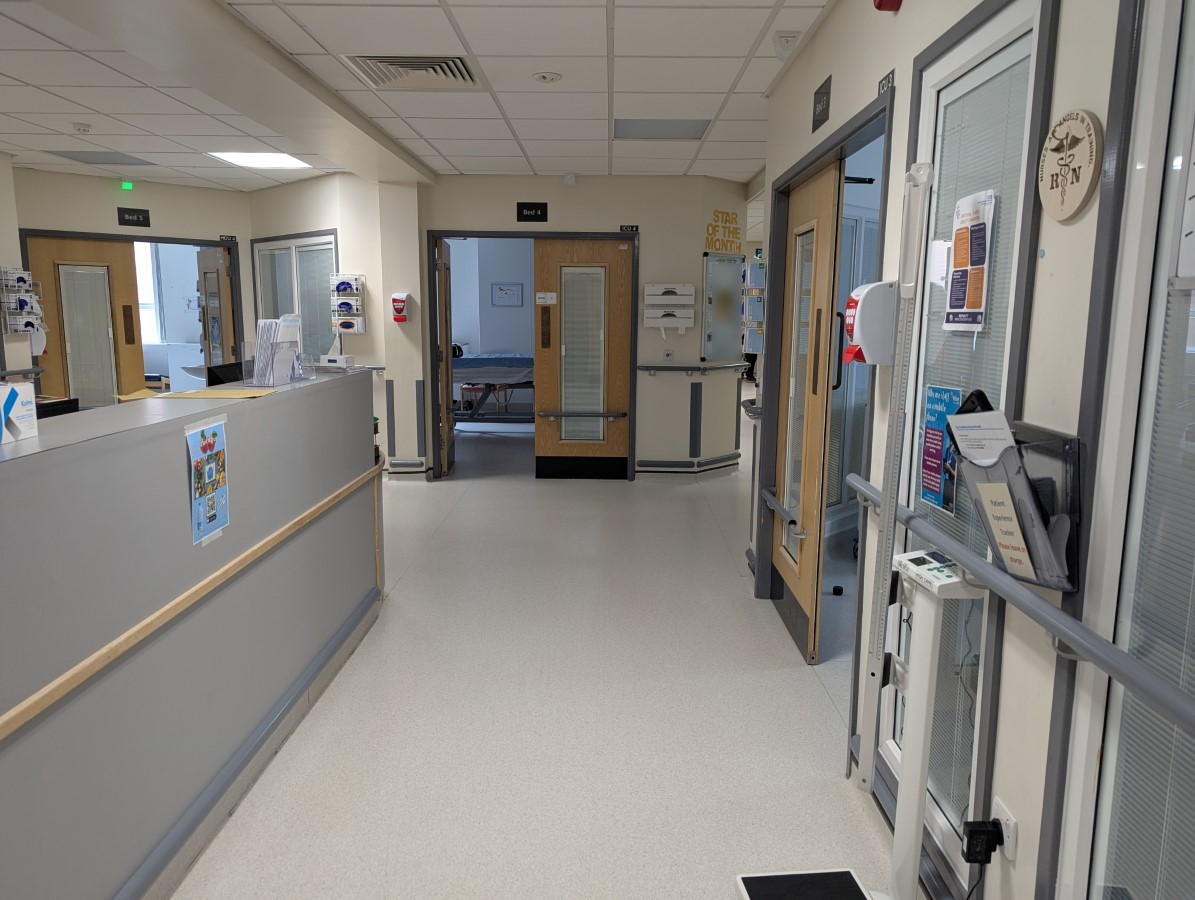

Ward (Ward 9 - Trafford High Care Unit)

  • Ward Information View
    • This is a shared ward.
    • There are 8 side rooms available.
    • There are 8 beds in total on the ward.
  • Location and Access View
    • There is written text signage on or near the door.
    • There is step-free level access into this ward.
    • There is an intercom at a height of 140cm.
    • There is a key fob/card reader at a height of 119cm.
    • The height of the hand sanitiser is 133cm.
    • There are double manual doors with a high visual contrast.
    • The doors open towards you.
    • The width of the opening is 149cm.
    • There is a push pad or push button to exit at a height of 119cm.
  • Getting Around View
    • There is step-free level access throughout.
    • Some flooring is shiny.
    • The walls and floor have a low visual contrast.
    • There is no (or very little) background noise in this area.
    • Wayfinding signage is not provided.
    • Signage is clearly visible with high contrasting colours.
    • Lighting levels were uneven at the time of the survey, with pools of light and shade.

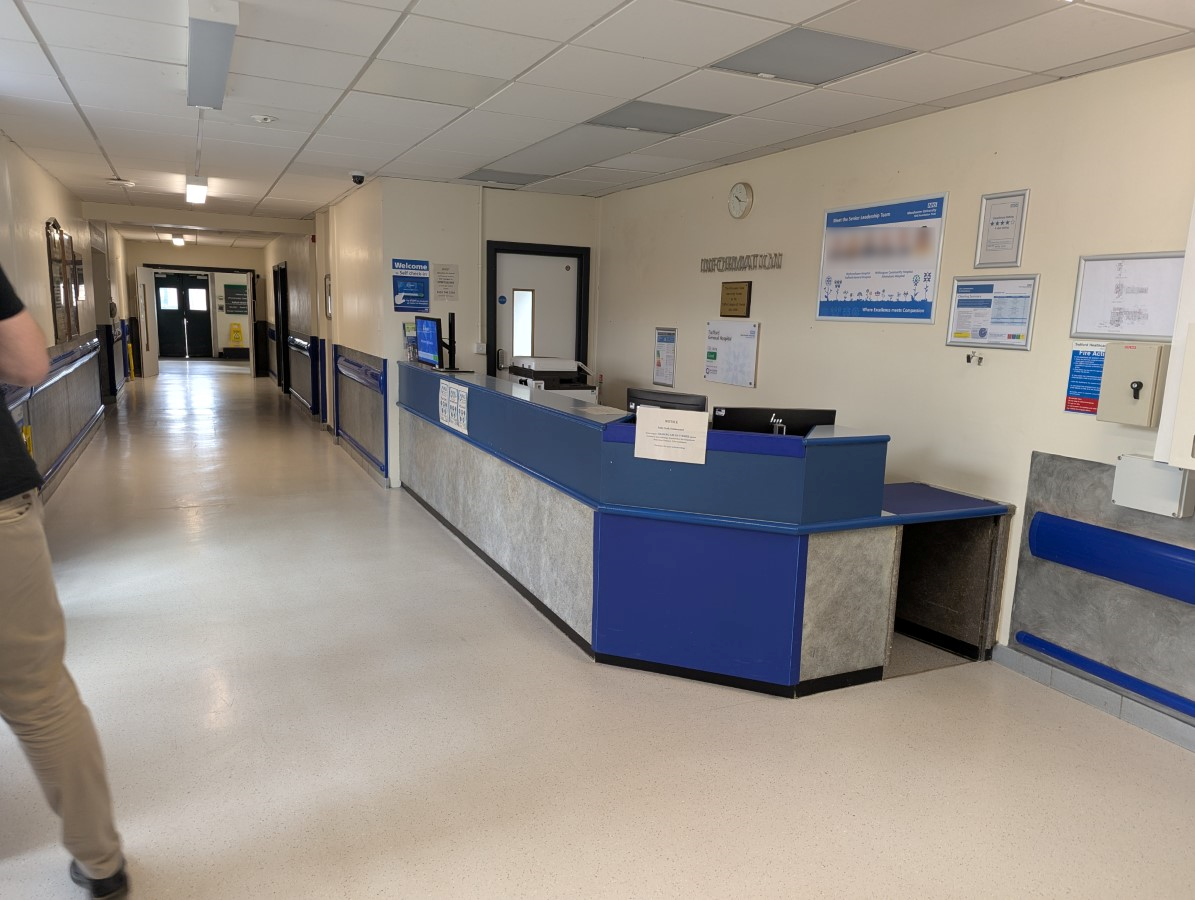

  • Reception / Nurses' Station View
    • The height of the desk is 121cm.
    • There is a lowered section at the desk.
    • The height of the lowered section is 76cm.
    • The desk has patterned/distracting backgrounds.
    • There is not a hearing assistance system.
  • Facilities and Services View
    • Seating available on the ward includes: chairs with armrests and chairs without armrests.
    • There is not a hearing assistance system.
    • The hoist is mobile.
    • There is a relatives' room for the ward.
    • The following facilities are available for patients: washrooms.
    • The following facilities are available for visitors: toilets with adaptations.
  • Visiting Hours View

Toilet and Changing Facilities (Ward 9 - Trafford High Care Unit - Patients)

  • Toilet Facilities View
    • There are 3 toilets with adaptations.
    • Toilets with adaptations are located in bedrooms 5, 6, 7 and 8.
    • The toilets with adaptations have no transfer space available.

Toilet and Changing Facilities (Ward 9 - Trafford High Care Unit - Visitors)

  • Toilet Facilities View
    • There are 2 toilets with adaptations.
    • Toilets with adaptations are located on the corridor just outside the ward entrance.
    • The transfer space varies between left and right in the toilets with adaptations.

Room (Waiting Room)

  • The room is located on the corridor outside the ward 9 - Trafford High Care Unit entrance.
  • The distance from the ward 9 - Trafford High Care Unit entrance is 4m.
  • The most accessible route to the room has step-free level access and manual doors.
  • There is written text signage on or near the door.
  • There is step-free level access into the room.
  • There is a single manual door with a high visual contrast.
  • The door opens inwards.
  • The width of the opening is 89cm.
  • There is step-free level access throughout the room.
  • Furniture can be moved to enable a manoeuvring space for a wheelchair user (150cm x 150cm).
  • There is space for an assistance dog to rest.
  • The walls and floor have a medium visual contrast.
  • Seating available in the room includes: chairs with armrests.
  • Furniture available in the room includes: tables and coffee tables.
  • Some surface heights are suitable for wheelchair users.
  • The clear underside space of some surfaces is suitable for wheelchair users.
  • There is not a hearing assistance system.
  • There is no (or very little) background noise in this room.
  • Announcements are in person.
  • Lighting levels were even at the time of the survey.

Bedroom and Ensuite with Adaptations (Bed 5)

  • Bedroom Access View
    • The bedroom surveyed is located to the right of reception.
    • The most accessible route to the bedroom has step-free level access.
    • There is step-free level access into the bedroom.
    • There is written text signage on or near the door.
    • The door opens inwards and has a high visual contrast.
    • The width of the door opening is 129cm.
  • Bedroom Features View
    • The bedroom has a single bed.
    • The top of the mattress is 77cm from the floor.
    • The space under the bed is 19cm from the floor.
    • There is room for a wheelchair user to manoeuvre next to the bed (150cm x 150cm).
    • The following is available in this bedroom: a mixture of chairs with and without armrests.
    • Lighting levels were even at the time of the survey.
  • Ensuite Access View
    • There is step-free level access into the ensuite.
    • The ensuite door opens outwards and has a high visual contrast.
    • The width of the door opening to the ensuite is 87cm.
    • Internally the door has a high visual contrast.
    • There is not a grab rail on the internal door.
  • Ensuite Dimensions and Features View
    • The dimensions of the ensuite are 128cm (width) x 206cm (depth) and there is not room for a wheelchair user to manoeuvre (150cm x 150cm).
    • There is not a lateral transfer space next to the toilet.
    • There is a lever flush on the right as you face the toilet.
    • There is no horizontal grab rail for the toilet.
    • There is no vertical grab rail for the toilet.
    • There are dropdown rails on both sides of the toilet.
    • The dropdown rails have a high visual contrast.
    • The toilet seat is 52cm from the floor.
    • The toilet seat has a high visual contrast.
    • There is a wall mounted toilet roll holder which can be reached when seated on the toilet.
    • The toilet roll holder has a high visual contrast.
    • The toilet roll holder is 85cm from the floor.
    • The wash basin and taps cannot be reached when seated on the toilet.
    • The wash basin is 78cm from the floor.
    • The wash basin has a lever mixer tap.
    • There are no vertical grab rails at the wash basin.
    • There is a wall mounted soap dispenser which cannot be reached when seated on the toilet.
    • The soap dispenser has a high visual contrast.
    • The soap dispenser is 98cm from the floor.
    • There is a pull cord emergency alarm within 10cm from the floor.
    • There is no mirror.
    • There is no shelf.
    • The ensuite has a pedal bin.
    • There are no coat hooks.
    • The walls and floor have a high visual contrast.
    • Lighting levels were even at the time of the survey, with unshaded light sources.

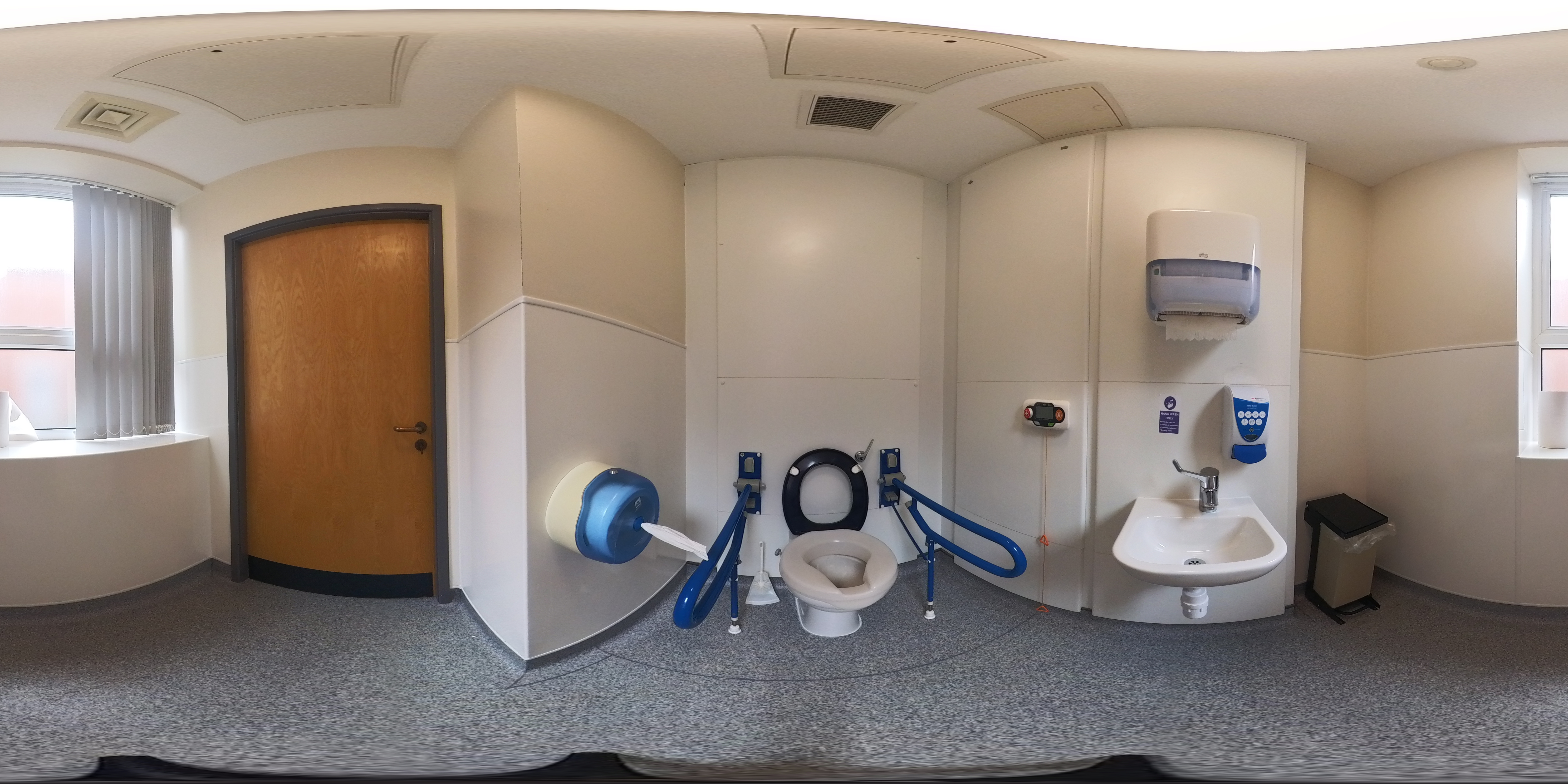

Toilet with Adaptations (Visitor Toilet - Male - Right Hand Transfer)

  • Location and Access View
    • The toilet surveyed is located on the corridor just outside the Ward 9 - Trafford High Care Unit entrance.
    • The distance from the Ward 9 - Trafford High Care Unit entrance is 14m.
    • The most accessible route to the toilet has step-free level access.
    • There is step-free level access into the facility.
    • There is pictorial, written text and dementia friendly signage on or near the door.
    • The door opens outwards and has a high visual contrast.
    • The width of the door opening is 88cm.
    • The door has a lever twist lock.
    • Internally the door has a high visual contrast.
    • There is a grab rail on the internal door with a high visual contrast.
  • Dimensions and Features View
    • The dimensions of the cubicle are 197cm (width) x 230cm (depth) and there is room for a wheelchair user to manoeuvre (150cm x 150cm).
    • There is a lateral transfer space to the right as you face the toilet.
    • The lateral transfer space is 141cm (from the side of the toilet pan).
    • There is a lever flush on the transfer side.
    • There is a horizontal grab rail on the non-transfer side.
    • The horizontal grab rail has a high visual contrast.
    • There is a vertical grab rail on the transfer side.
    • The vertical grab rail has a high visual contrast.
    • There is a dropdown rail on the transfer side.
    • The dropdown rail has a high visual contrast.
    • The toilet seat is 48cm from the floor.
    • The toilet seat has a high visual contrast.
    • The toilet has a padded backrest.
    • There is a wall mounted toilet roll holder which can be reached when seated on the toilet.
    • The toilet roll holder has a high visual contrast.
    • The toilet roll holder is 103cm from the floor.
    • The wash basin and taps can be reached when seated on the toilet.
    • The wash basin is 72cm from the floor.
    • The wash basin has a lever mixer tap.
    • The vertical grab rails are on both sides of the wash basin.
    • The wash basin grab rails have a high visual contrast.
    • There is a wall mounted soap dispenser which cannot be reached when seated on the toilet.
    • The soap dispenser has a high visual contrast.
    • The soap dispenser is 105cm from the floor.
    • There is a wall mounted towel dispenser which cannot be reached when seated on the toilet.
    • The towel dispenser has a medium visual contrast.
    • The towel dispenser is 100cm from the floor.
    • There is not a hand dryer.
    • There is a pull cord emergency alarm within 10cm from the floor.
    • There is no mirror.
    • There is no shelf.
    • The cubicle has a pedal bin.
    • There is one coat hook.
    • The coat hook is 173cm from the floor.
    • The walls and floor have a high visual contrast.
    • Lighting levels were even at the time of the survey.

Toilet with Adaptations (Visitor Toilet - Female - Left Hand Transfer)

  • Location and Access View
    • The toilet surveyed is located on the corridor just outside the Ward 9 - Trafford High Care Unit entrance.
    • The distance from the Ward 9 - Trafford High Care Unit entrance is 17m.
    • The most accessible route to the toilet has step-free level access.
    • There is step-free level access into the facility.
    • There is pictorial, written text and dementia friendly signage on or near the door.
    • The door opens outwards and has a high visual contrast.
    • The width of the door opening is 87cm.
    • The door has a lever twist lock.
    • Internally the door has a high visual contrast.
    • There is a grab rail on the internal door with a high visual contrast.
  • Dimensions and Features View
    • The dimensions of the cubicle are 173cm (width) x 231cm (depth) and there is room for a wheelchair user to manoeuvre (150cm x 150cm).
    • There is a lateral transfer space to the left as you face the toilet, however it is obstructed.
    • The lateral transfer space is 120cm (from the side of the toilet pan).
    • There is a lever flush on the transfer side.
    • There is a horizontal grab rail on the non-transfer side.
    • The horizontal grab rail has a high visual contrast.
    • There is a vertical grab rail on the transfer side.
    • The vertical grab rail has a high visual contrast.
    • There is a dropdown rail on the transfer side.
    • The dropdown rail has a high visual contrast.
    • The toilet seat is 48cm from the floor.
    • The toilet seat has a high visual contrast.
    • The toilet has a padded backrest.
    • There is a wall mounted toilet roll holder which can be reached when seated on the toilet.
    • The toilet roll holder has a high visual contrast.
    • The toilet roll holder is 100cm from the floor.
    • The wash basin and taps can be reached when seated on the toilet.
    • The wash basin is 72cm from the floor.
    • The wash basin has a lever mixer tap.
    • The vertical grab rails are on both sides of the wash basin.
    • The wash basin grab rails have a high visual contrast.
    • There is a wall mounted soap dispenser which can be reached when seated on the toilet.
    • The soap dispenser has a high visual contrast.
    • The soap dispenser is 103cm from the floor.
    • There is a wall mounted towel dispenser which cannot be reached when seated on the toilet.
    • The towel dispenser has a medium visual contrast.
    • The towel dispenser is 100cm from the floor.
    • There is not a hand dryer.
    • There is a pull cord emergency alarm within 10cm from the floor.
    • There is no mirror.
    • There is no shelf.
    • The cubicle has a waste bin and a sanitary bin.
    • There is one coat hook.
    • The coat hook is 172cm from the floor.
    • The walls and floor have a high visual contrast.
    • Lighting levels were even at the time of the survey.
