Access Guide
Toilet and Changing Facilities
-
Toilet Facilities
View
- There are 8 toilets with adaptations.
- Toilets with adaptations are located next to Central Café, in the Garden Kitchen, Blue Zone, Orange Zone, Green Zone and Red Zone.
- The transfer space varies between left and right in the toilets with adaptations.
- Ambulant toilet facilities are located within some of the standard toilet facilties.

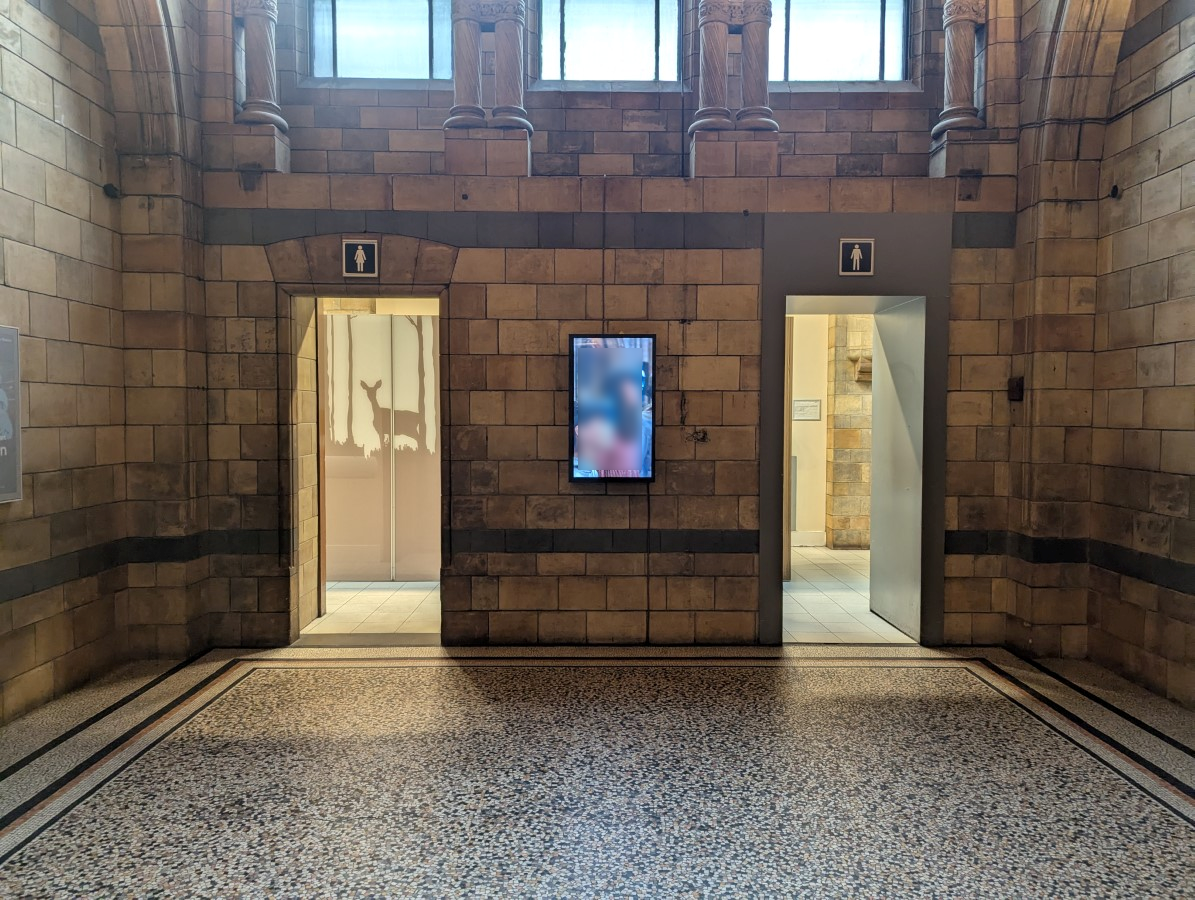

- The male and female step-free toilet facilities are located next to Central Café, in the Garden Kitchen, the Blue Zone, Orange Zone, Green Zone and Red Zone.
-
Changing Places and Changing Facilities
View
- The Changing Places toilet facilities are located in the Blue Zone along the corridor between the Mammals and Marine Life.
- Parent and baby changing facilities are located on the third floor near the lift, in adapted toilet in the Garden Kitchen, the picnic area on the basement floor, in standard toilets in the Orange Zone, in the Red Zone shared toilets on the ground floor, and on the mezzanine floor.
Changing Places (Both Sides Transfer)
-
Location and Access
View
- The Changing Places facility surveyed is located on the corridor near Mammals and Marine Life.
- The Changing Places toilet is in addition to other toilet facilities.
- The most accessible route to the Changing Places facility has step-free level access.
- There is step-free level access into the facility.
- A RADAR key is required for access to this facility.
- There is a RADAR key available to use in the lock box near the door (code 5888).
- Alternatively, a RADAR key is stored at the information desk in Hintze Hall. Please ask a member of staff if you need assistance.
- There is pictorial signage on or near the door.
- The door opens outwards and has a low visual contrast.
- The width of the door opening is 109cm.
- The door has a locking handle.
- Internally the door has a high visual contrast.
- There is a grab rail on the internal door with a high visual contrast.
- The dimensions of the facility are 290cm (width) x 470cm (depth) and there is room for a wheelchair user to manoeuvre (180cm x 180cm).
-
Toilet Details
View
- There is lateral transfer space on both sides of the toilet, however the right side is obstructed.
- The transfer space on the right as you face the toilet is 250cm.
- The transfer space on the left as you face the toilet is 180cm.
- There is a push button flush in the centre of the cistern.
- There are vertical grab rails on both sides of the toilet.
- The vertical grab rails have a high visual contrast.
- There are dropdown rails on both sides of the toilet.
- The dropdown rails have a high visual contrast.
- The toilet seat is 48cm from the floor.
- The toilet seat has a low visual contrast.
- There is a wall mounted toilet roll holder.
- The toilet roll holder has a high visual contrast.
- The toilet roll holder is 80cm from the floor.
-
Changing Bench and Hoist Details
View
- The changing bench is wall mounted and height adjustable.
- The length of the changing bench is 180cm.
- The facility hoist is powered overhead and accesses all areas.
-
Shower Details
View
- There is an adjustable shower head which can also be detached.
- The shower controls are push.
-
Other Facilities
View
- There is a height adjustable wash basin.
- The wash basin has a lever mixer tap.
- The vertical grab rails are on both sides of the wash basin.
- The wash basin grab rails have a high visual contrast.
- There is a wall mounted soap dispenser.
- The soap dispenser has a high visual contrast.
- There is a wall mounted towel dispenser.
- The towel dispenser has a high visual contrast.
- The towel dispenser is 83cm from the floor.
- A wide paper roll dispenser is available.
- The height of the wide paper roll dispenser is 100cm.
- There is a wall mounted hand dryer.
- The hand dryer has a high visual contrast.
- The hand dryer is 91cm from the floor.
- There is a pull cord emergency alarm within 10cm from the floor.
- There is a full length mirror.
- There is a shelf, however there is an obstruction in front of it.
- The shelf does not meet the AccessAble criteria for Stoma Friendly Toilets.
- The facility has a nappy/incontinence items bin and a sanitary bin.
- There are multiple coat hooks.
- The coat hooks are 95cm and 130cm from the floor.
- A privacy screen is available.
- The walls and floor have a high visual contrast.
- Lighting levels were even at the time of the survey.
Toilet with Adaptations (Near Mammals Exhibition - Left Hand Transfer)
-
Location and Access
View
- The toilet surveyed is located at the rear of the Mammals Exhibition.
- The most accessible route to the toilet has step-free level access and doors permanently held open.
- There is step-free level access into the facility.
- There is pictorial signage on or near the door.
- The door opens outwards and has a low visual contrast.
- The width of the door opening is 84cm.
- The door has a locking handle.
- Internally the door has a low visual contrast.
- There is a grab rail on the internal door with a low visual contrast.
-
Dimensions and Features
View
- The dimensions of the cubicle are 180cm (width) x 200cm (depth) and there is not room for a wheelchair user to manoeuvre (150cm x 150cm).
- There is a lateral transfer space to the left as you face the toilet, however it is obstructed.
- The lateral transfer space is 110cm (from the side of the toilet pan).
- There is a spatula flush on the transfer side.
- There is no horizontal grab rail for the toilet.
- There is a vertical grab rail on the transfer side.
- The vertical grab rail has a high visual contrast.
- There is a dropdown rail on the transfer side.
- The dropdown rail has a high visual contrast.
- The toilet seat is 46cm from the floor.
- The toilet seat has a low visual contrast.
- The toilet has a padded backrest.
- There is a wall mounted toilet roll holder which can be reached when seated on the toilet.
- The toilet roll holder has a high visual contrast.
- The toilet roll holder is 90cm from the floor.
- The wash basin and taps can be reached when seated on the toilet.
- The wash basin is 69cm from the floor.
- The wash basin has a lever mixer tap.
- The vertical grab rail is on the left as you face the wash basin.
- The wash basin grab rail has a high visual contrast.
- There is a wall mounted soap dispenser which can be reached when seated on the toilet.
- The soap dispenser has a high visual contrast.
- The soap dispenser is 95cm from the floor.
- There is not a towel dispenser.
- There is a wall mounted hand dryer.
- The hand dryer has a low visual contrast.
- The hand dryer is 121cm from the floor.
- There is a pull cord emergency alarm within 10cm from the floor.
- There is no mirror.
- There is no shelf.
- The cubicle has a sanitary bin.
- There are no coat hooks.
- The walls and floor visual contrast varies between low and high.
- Lighting levels were even at the time of the survey.
Toilet with Adaptations (Lower Ground Floor - Transfer Both Sides)
-
Location and Access
View
- The toilet surveyed is located on the lower ground floor of the Red Zone.
- The most accessible route to the toilet has step-free level access.
- There is step-free level access into the facility.
- There is pictorial and written text signage on or near the door.
- The door opens outwards and has a high visual contrast.
- The width of the door opening is 88cm.
- The door has a lever twist lock.
-
Dimensions and Features
View
- The dimensions of the cubicle are 240cm (width) x 200cm (depth) and there is room for a wheelchair user to manoeuvre (150cm x 150cm).
- There is lateral transfer space on both sides of the toilet .
- The lateral transfer space is 100cm (from the side of the toilet pan).
- The lateral transfer space on the right is 105cm (from the side of the toilet pan).
- There is a wall sensor flush on the right transfer side.
- There is no horizontal grab rail for the toilet.
- There are vertical grab rails on both sides of the toilet.
- The vertical grab rails have a high visual contrast.
- There are dropdown rails on both sides of the toilet.
- The dropdown rails have a high visual contrast.
- The toilet seat is 48cm from the floor.
- The toilet seat has a low visual contrast.
- There is a wall mounted toilet roll holder which can be reached when seated on the toilet.
- The toilet roll holder has a high visual contrast.
- The toilet roll holder is 95cm from the floor.
- The wash basin and taps cannot be reached when seated on the toilet.
- The wash basin is 76cm from the floor.
- The wash basin has a lever mixer tap.
- There are no vertical grab rails at the wash basin.
- There is a wall mounted soap dispenser which can be reached when seated on the toilet.
- The soap dispenser has a high visual contrast.
- The soap dispenser is 100cm from the floor.
- There is not a hand dryer.
- The hand dryer has a low visual contrast.
- The hand dryer is 87cm from the floor.
- There is a pull cord emergency alarm within 10cm from the floor.
- There is a full length mirror.
- There is no shelf.
- The cubicle has a nappy/incontinence items bin and a sanitary bin.
- There are no coat hooks.
- The walls and floor have a high visual contrast.
- Lighting levels were even at the time of the survey.
Toilet with Adaptations (Lower Ground Floor - Right Hand Transfer)
-
Location and Access
View
- The toilet surveyed is located off the picnic area on the basement floor.
- The distance from the lift is 70m.
- The most accessible route to the toilet has step-free level access.
- There is step-free level access into the facility.
- There is a permanently held open door leading to the toilet with an opening width of 83cm.
- There is pictorial and tactile signage on or near the door.
- The door opens inwards and has a high visual contrast.
- The width of the door opening is 82cm.
- The door has a twist lock.
- Internally the door has a high visual contrast.
- There is a grab rail on the internal door with a high visual contrast.
-
Dimensions and Features
View
- The dimensions of the cubicle are 255cm (width) x 178cm (depth) and there is room for a wheelchair user to manoeuvre (150cm x 150cm).
- There is a lateral transfer space to the right as you face the toilet.
- The lateral transfer space is 177cm (from the side of the toilet pan).
- There is a wall sensor flush on the wall above the cistern.
- There is a horizontal grab rail on the non-transfer side.
- The horizontal grab rail has a low visual contrast.
- There is a vertical grab rail on the transfer side.
- The vertical grab rail has a medium visual contrast.
- There is a dropdown rail on the transfer side.
- The dropdown rail has a medium visual contrast.
- The toilet seat is 48cm from the floor.
- The toilet seat has a high visual contrast.
- There is a wall mounted toilet roll holder which can be reached when seated on the toilet.
- The toilet roll holder has a high visual contrast.
- The toilet roll holder is 87cm from the floor.
- The wash basin and taps cannot be reached when seated on the toilet.
- The wash basin is 78cm from the floor.
- The wash basin has a lever mixer tap.
- The vertical grab rail is on the right as you face the wash basin.
- The wash basin grab rail has a low visual contrast.
- There is a wall mounted soap dispenser which cannot be reached when seated on the toilet.
- The soap dispenser has a high visual contrast.
- The soap dispenser is 92cm from the floor.
- There is a wall mounted hand dryer.
- The hand dryer has a low visual contrast.
- The hand dryer is 94cm from the floor.
- There is a pull cord emergency alarm within 10cm from the floor.
- There is a mirror.
- There is an unobstructed shelf.
- The shelf does not meet the AccessAble criteria for Stoma Friendly Toilets.
- The cubicle has a sanitary bin and a nappy/incontinence items bin.
- There are no coat hooks.
- The height of the baby change facility when in use is 85cm.
- The walls and floor have a high visual contrast.
- Lighting levels were even at the time of the survey.
Toilet with Adaptations (Ground Floor - Left Hand Transfer)
-
Location and Access
View
- The toilet surveyed is located to the right, after entering the Orange Zone from Blue Zone.
- The most accessible route to the toilet has step-free level access.
- There is step-free level access into the facility.
- There is pictorial signage on or near the door.
- The door opens outwards and has a low visual contrast.
- The width of the door opening is 82cm.
- The door has a lever twist lock.
- Internally the door has a low visual contrast.
- There is a grab rail on the internal door with a high visual contrast.
-
Dimensions and Features
View
- The dimensions of the cubicle are 145cm (width) x 215cm (depth) and there is not room for a wheelchair user to manoeuvre (150cm x 150cm).
- There is a lateral transfer space to the left as you face the toilet, however it is obstructed.
- The lateral transfer space is 77cm (from the side of the toilet pan).
- There is a push button flush on the non-transfer side.
- There is a horizontal grab rail on the non-transfer side.
- The horizontal grab rail has a low visual contrast.
- There is a vertical grab rail on the transfer side.
- The vertical grab rail has a low visual contrast.
- There is a dropdown rail on the left as you face the toilet.
- The dropdown rail has a low visual contrast.
- The toilet seat is 48cm from the floor.
- The toilet seat has a low visual contrast.
- There is a wall mounted toilet roll holder which can be reached when seated on the toilet.
- The toilet roll holder has a high visual contrast.
- The toilet roll holder is 95cm from the floor.
- The wash basin and taps can be reached when seated on the toilet.
- The wash basin is 83cm from the floor.
- The wash basin has a sensor tap.
- The vertical grab rails are on both sides of the wash basin.
- The wash basin grab rails have a high visual contrast.
- There is a wall mounted soap dispenser which can be reached when seated on the toilet.
- The soap dispenser has a high visual contrast.
- The soap dispenser is 100cm from the floor.
- There is not a towel dispenser.
- There is a wall mounted hand dryer.
- The hand dryer has a high visual contrast.
- The hand dryer is 110cm from the floor.
- There is a pull cord emergency alarm within 10cm from the floor.
- There is a full length mirror.
- There is no shelf.
- The cubicle has a waste bin and a sanitary bin.
- There are no coat hooks.
- The walls and floor have a low visual contrast.
- Lighting levels were even at the time of the survey.
Toilet with Adaptations (Garden Kitchen - Right Hand Transfer)
-
Location and Access
View
- The toilet surveyed is located to the right of the payment counter.
- The distance from the entrance is 4m.
- The most accessible route to the toilet has step-free level access and manual doors.
- There is step-free level access into the facility.
- There is pictorial signage on or near the door.
- The door opens outwards and has a high visual contrast.
- The width of the door opening is 86cm.
- The door has a lever twist lock.
- Internally the door has a high visual contrast.
- There is not a grab rail on the internal door.
-
Dimensions and Features
View
- The dimensions of the cubicle are 146cm (width) x 220cm (depth) and there is not room for a wheelchair user to manoeuvre (150cm x 150cm).
- There is a lateral transfer space to the right as you face the toilet, however it is obstructed.
- The lateral transfer space is 75cm (from the side of the toilet pan).
- There is a spatula flush on the transfer side.
- There is no horizontal grab rail for the toilet.
- There is a vertical grab rail on the transfer side.
- The vertical grab rail has a high visual contrast.
- There is a dropdown rail on the transfer side.
- The dropdown rail has a high visual contrast.
- The toilet seat is 48cm from the floor.
- The toilet seat has a low visual contrast.
- There is a wall mounted toilet roll holder which can be reached when seated on the toilet.
- The toilet roll holder has a high visual contrast.
- The toilet roll holder is 78cm from the floor.
- The wash basin and taps can be reached when seated on the toilet.
- The wash basin is 70cm from the floor.
- The wash basin has a lever mixer tap.
- The vertical grab rails are on both sides of the wash basin.
- The wash basin grab rails have a high visual contrast.
- There is a soap dispenser, however it is not wall mounted.
- There is a wall mounted hand dryer.
- The hand dryer has a high visual contrast.
- The hand dryer is 105cm from the floor.
- There is a pull cord emergency alarm within 10cm from the floor.
- There is a mirror.
- There is no shelf.
- The cubicle has a waste bin and a nappy/incontinence items bin.
- There are no coat hooks.
- The height of the baby change facility when in use is 85cm.
- The walls and floor have a low visual contrast.
- Lighting levels were even at the time of the survey.
