Emily Wilding Davison Building

Royal Holloway University of London, Egham Hill, Egham, Surrey, TW20 0EX

View Accessibility Symbols

Accessibility Symbols

For more information about what these symbols mean, view our Accessibility Symbols Guide.

Close this popup window.

Access Guide

Show Easy Read

Overview

Getting Inside

  • The approach to the building is stepped or ramped (steep) from the Founder's Building side.
  • The approach to the building is step-free and level from the campus side.
  • The Emily Wilding Davison Building has two entrances.
    The main entrance provides step-free level access into floor G.
    The rear entrance provides stepped or ramped access (steep) into floor G.
  • The entrances are not signed.

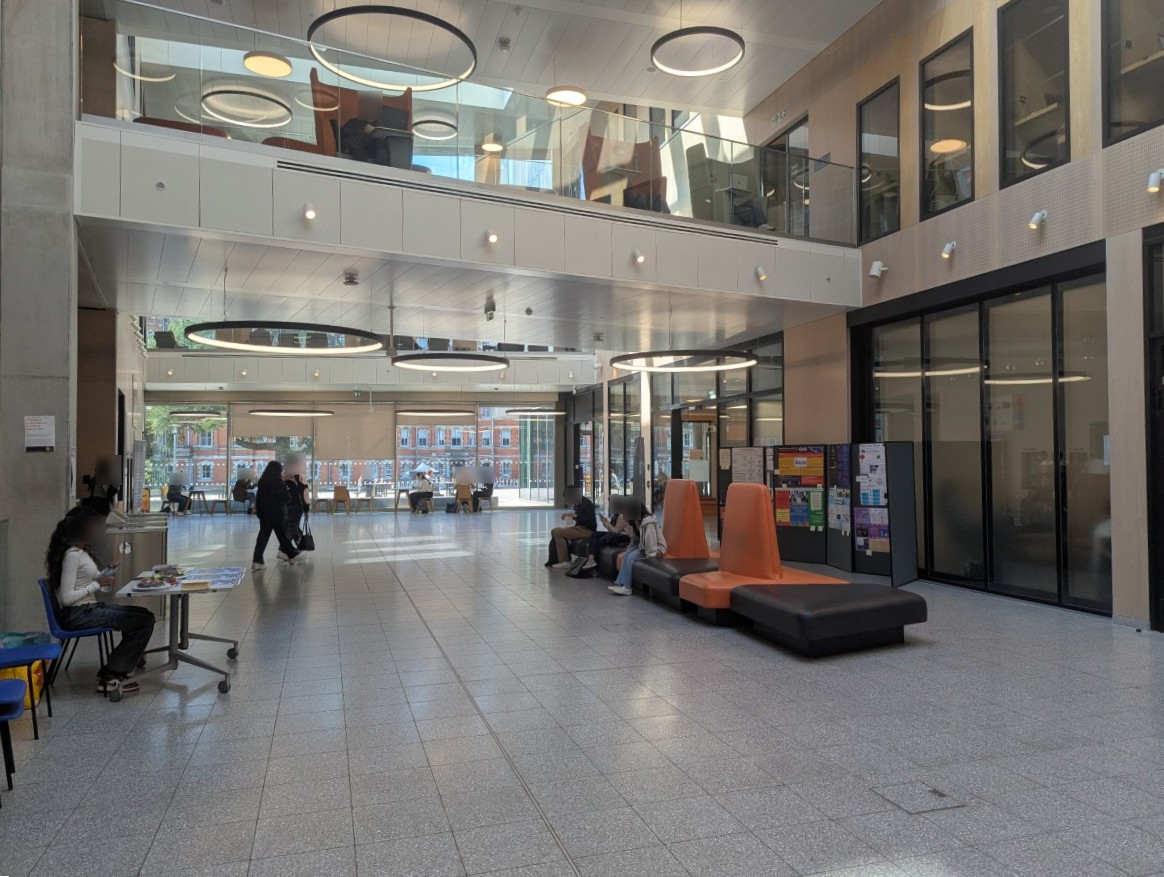

Getting Around

  • There is step-free level access throughout the majority of the building via the use of a lift.
  • There is stepped access to floor M only.
  • Floor surfaces along all circulation routes are hard and smooth, with some having a shiny finish.
  • There are resting areas in some circulation and lobby areas with a mixture of seating.
  • Wall mounted wayfinding signage is provided throughout the building.
  • There are not manual doors in circulation corridors, only to access library spaces.

Toilet and Changing Facilities

  • Toilet Facilities View
    • There are 4 toilets with adaptations.
    • Toilets with adaptations are located on floors LG, G, 1 and 2.
    • All toilets with adaptations have a left hand transfer space.
    • The male and female step-free toilet facilities are located on floors LG, G, 1 and 2.

Rooms and Services in the Building

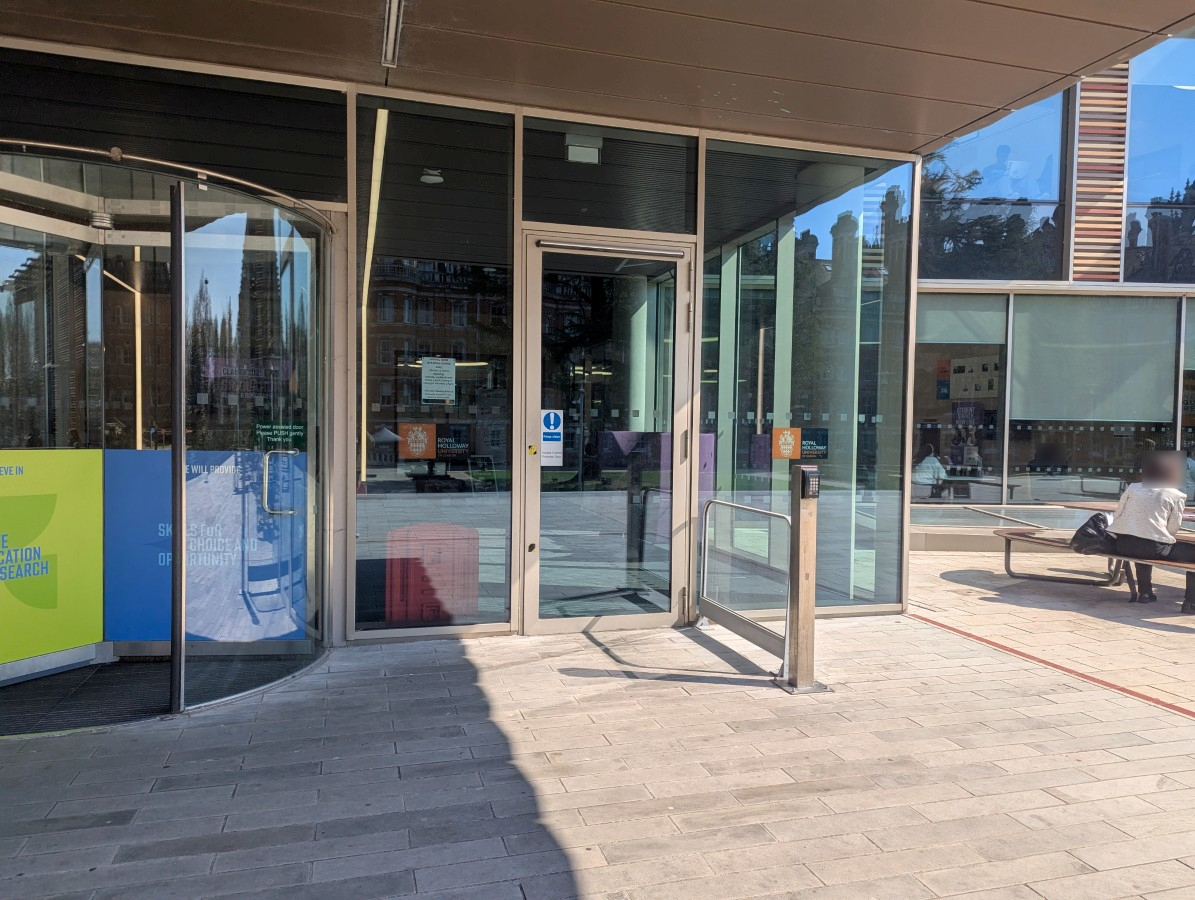

Entrance (Main)

  • This entrance is located at the front of the building.
  • The entrance area is not clearly signed.
  • There is a canopy or recess which provides weather protection at the entrance.
  • There is step-free level access at the entrance.
  • There is a key pad at a height of 112cm.
  • There is a single automatic door at this entrance.
  • The door opens towards you.
  • The width of the opening is 110cm.
  • There is a small lip on the threshold of the opening.
  • The door has a high visual contrast.
  • There is a push pad or push button to exit at a height of 99cm.
  • A key card or access code is required for this door to open.

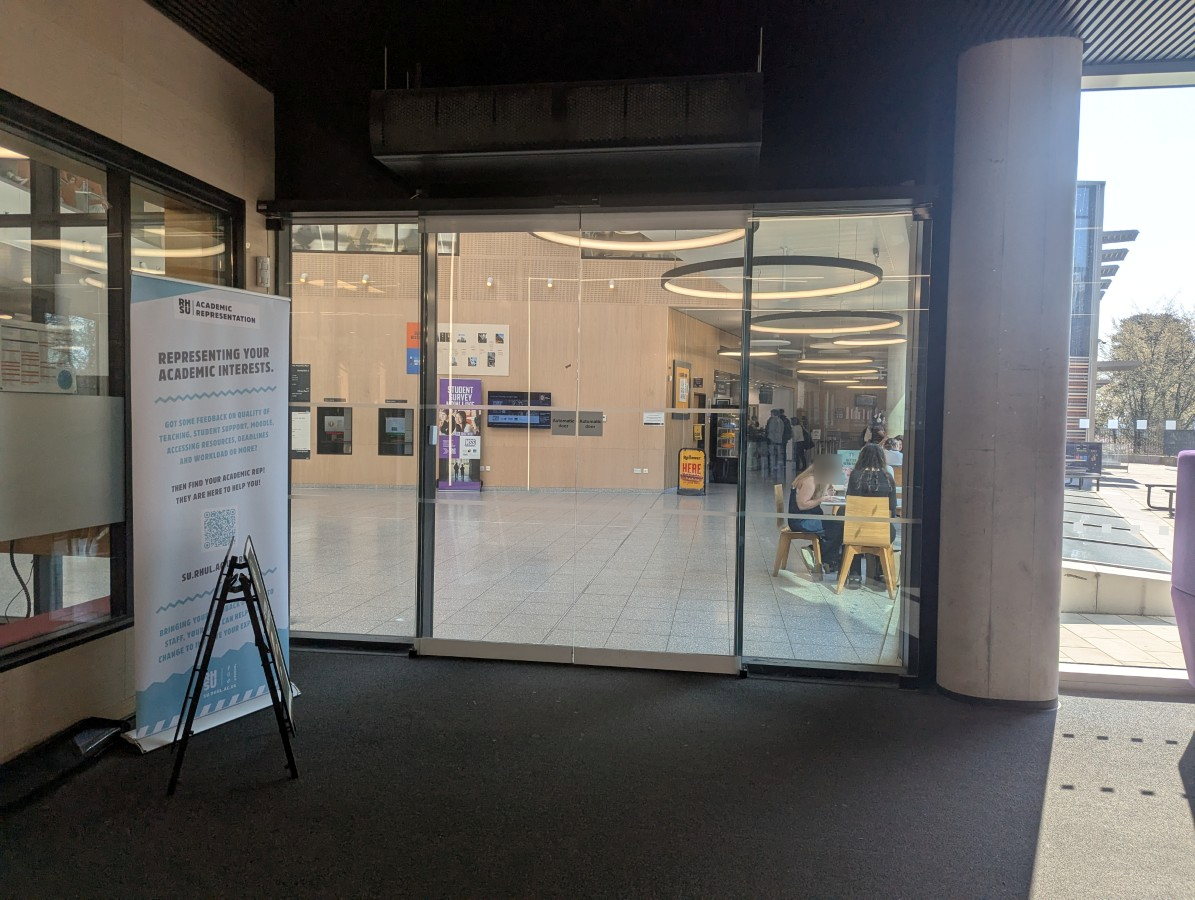

  • There is a second set of double automatic doors .
  • The second set of doors open by sliding.
  • The width of the opening is 157cm.
  • The second set of doors have a high visual contrast.
  • There are additional revolving doors with a minimum width of 100cm that do not require key cards for access.

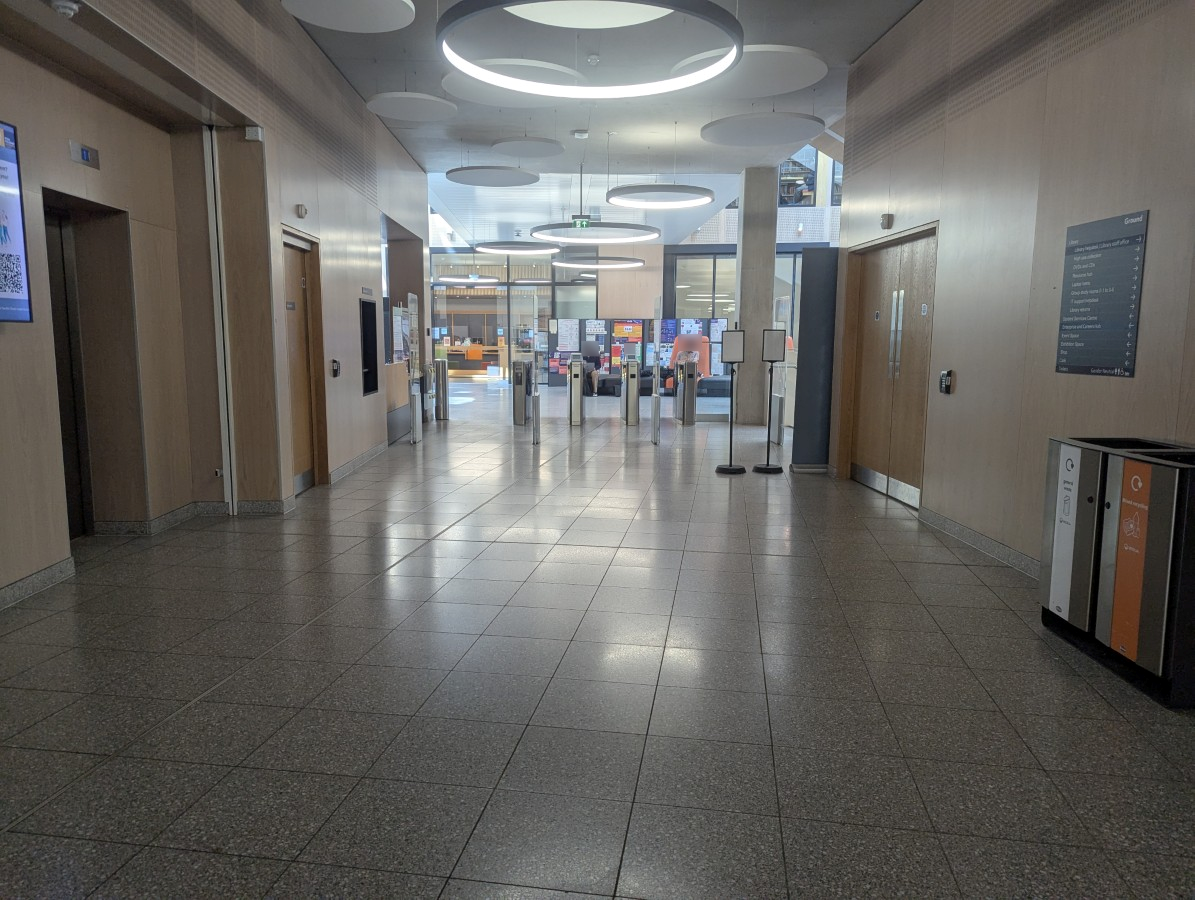

Reception (Helpdesk)

  • The reception is located ahead and to the right as you enter the building.
  • The distance from the main entrance is 25m.
  • There is step-free level access to reception.
  • The height of the reception desk is 97cm.
  • There is a lowered section at the desk.
  • The height of the lowered section is 76cm.
  • The reception has a television, windows and patterned/distracting backgrounds.
  • There is a clearly signed fixed hearing assistance system.
  • The hearing assistance system was tested and working at the time of the survey.
  • There is no (or very little) background noise in this area.
  • Lighting levels vary due to the use of large glazed walls.
  • Though there is no designated seating for this reception there is a variety of general seating available in close proximity within the area.

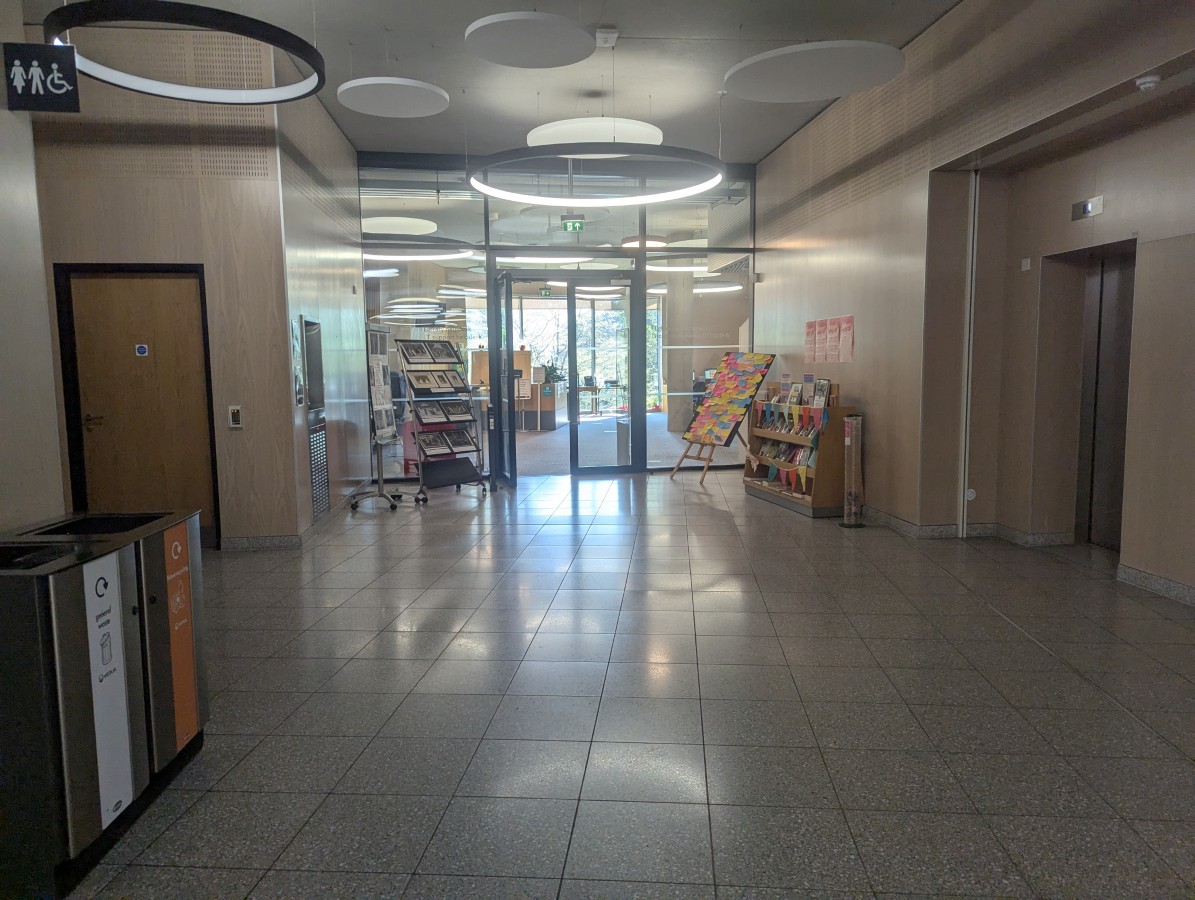

Access To (Library)

  • The library is located on floor G of the Emily Wilding Davison Building.
  • The most accessible route has step-free level access.
  • There is no signage on or near the entrance.
  • There is step-free level access into the library.
  • The width of the opening is 65cm.
  • There are wider security barriers with a minimum width of 95cm.

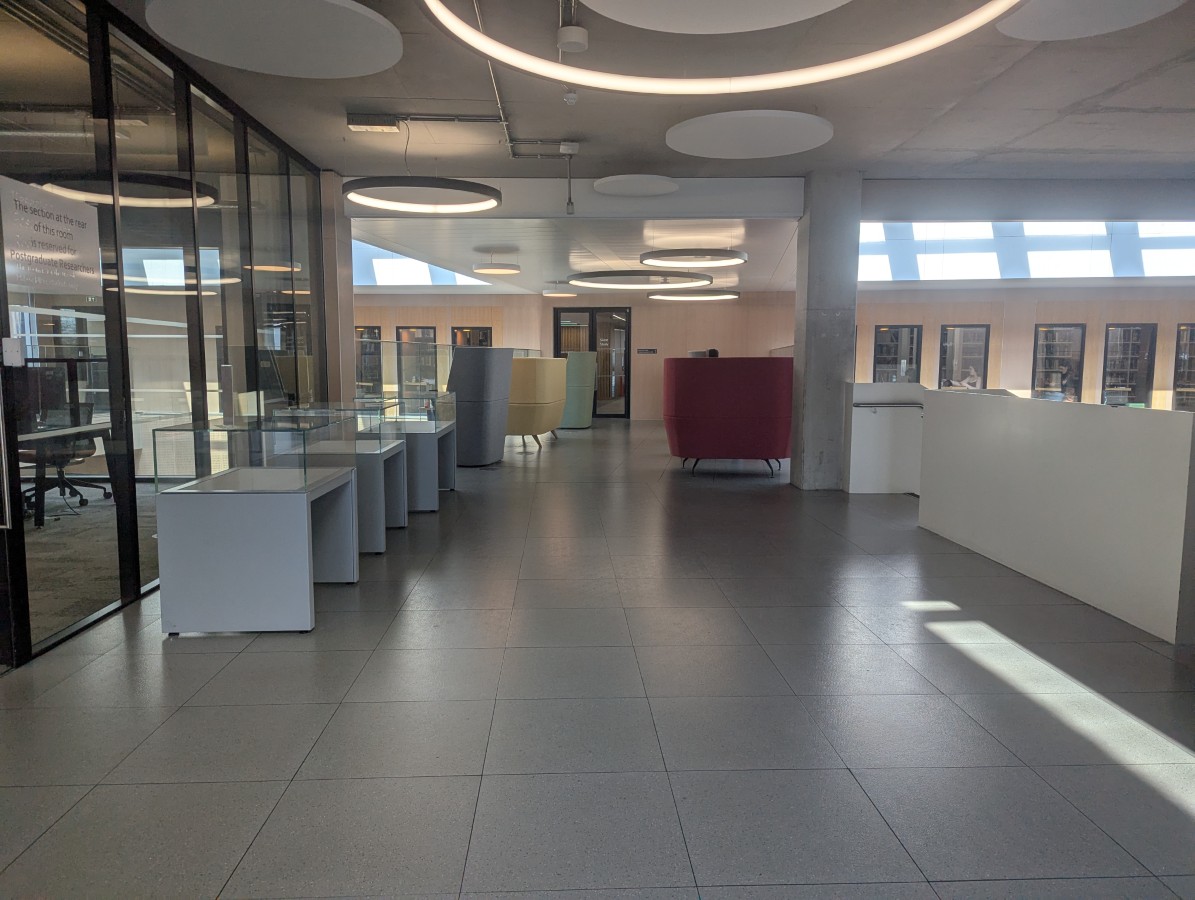

Library

  • There is step-free level access throughout the library, this may include the use of a lift.
  • The following areas have stepped access: floor M.
  • Access throughout the library may include manual doors, doors permanently held open and narrow walkways.
  • There is room for a wheelchair user to manoeuvre (150cm x 150cm).
  • There is space for an assistance dog to rest in the seating area.
  • Some flooring is shiny.
  • The walls and floor visual contrast varies between low and high.
  • Seating available in the library includes: chairs with armrests, chairs without armrests, armchairs, riser recliner chairs and sofas.
  • Furniture available in the library includes: tables, coffee tables, desks and booths.
  • Some chairs and tables are fixed.
  • Some surface heights are suitable for wheelchair users.
  • The clear underside space of some surfaces is suitable for wheelchair users.
  • Lighting levels vary due to the size of the space.
  • There is a clearly signed fixed hearing assistance system.
  • The hearing assistance system was tested and working at the time of the survey.
  • The height of the touchscreen display ranges from 100cm to 150cm from the floor.
  • The touchscreen has the following accessibility aids: large text.
  • This library is able to provide material in the following formats: ebook and ejournal.
  • Auxiliary aids available in this library include: high visibility/contrast keyboards and headsets.
  • RoboBraille is available in the library.

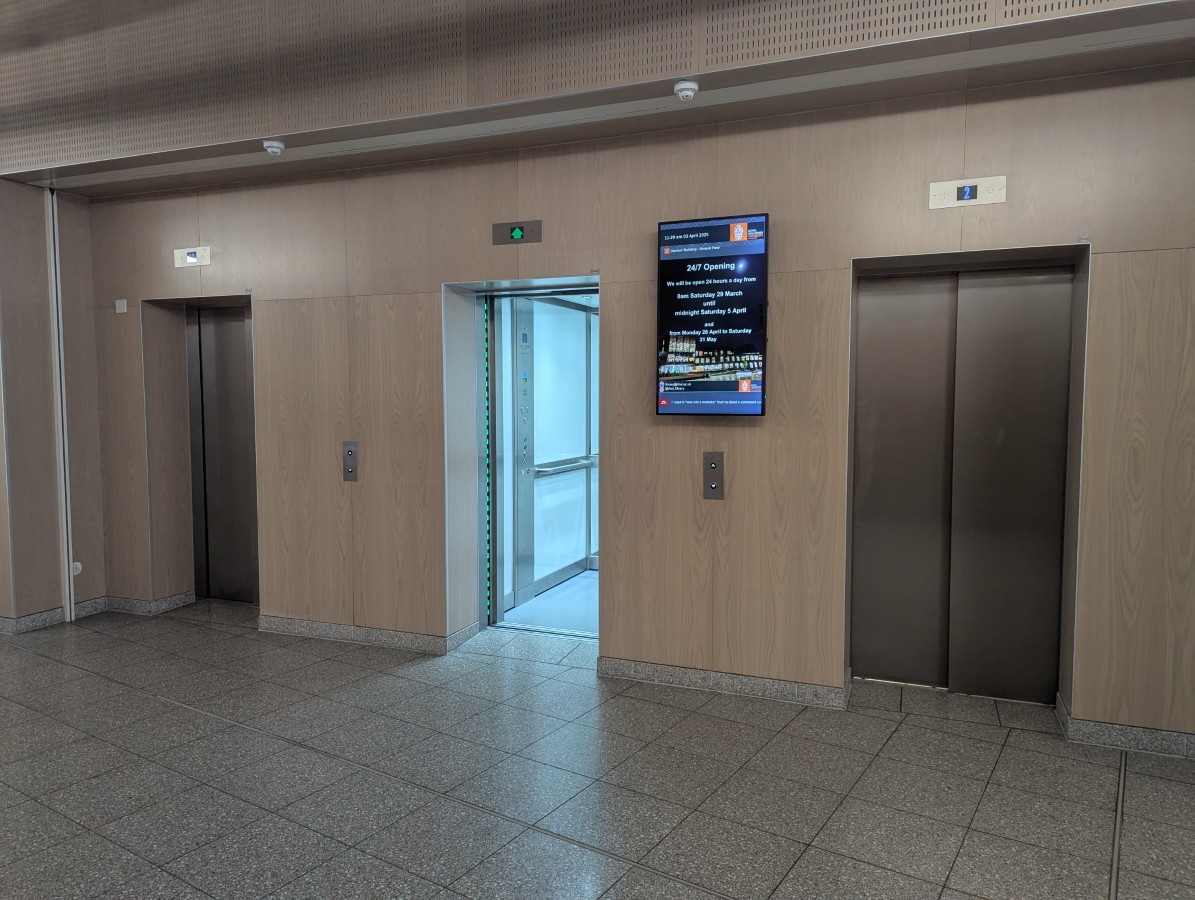

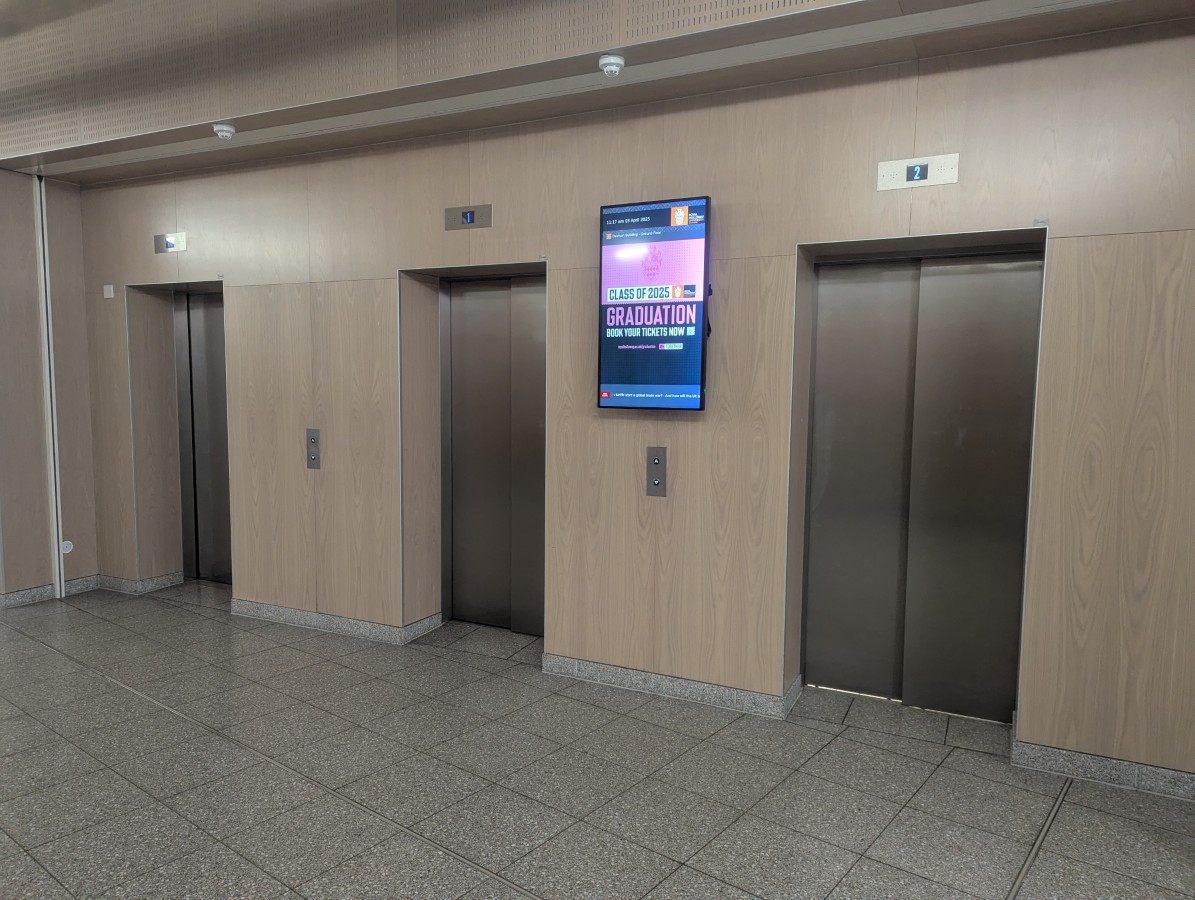

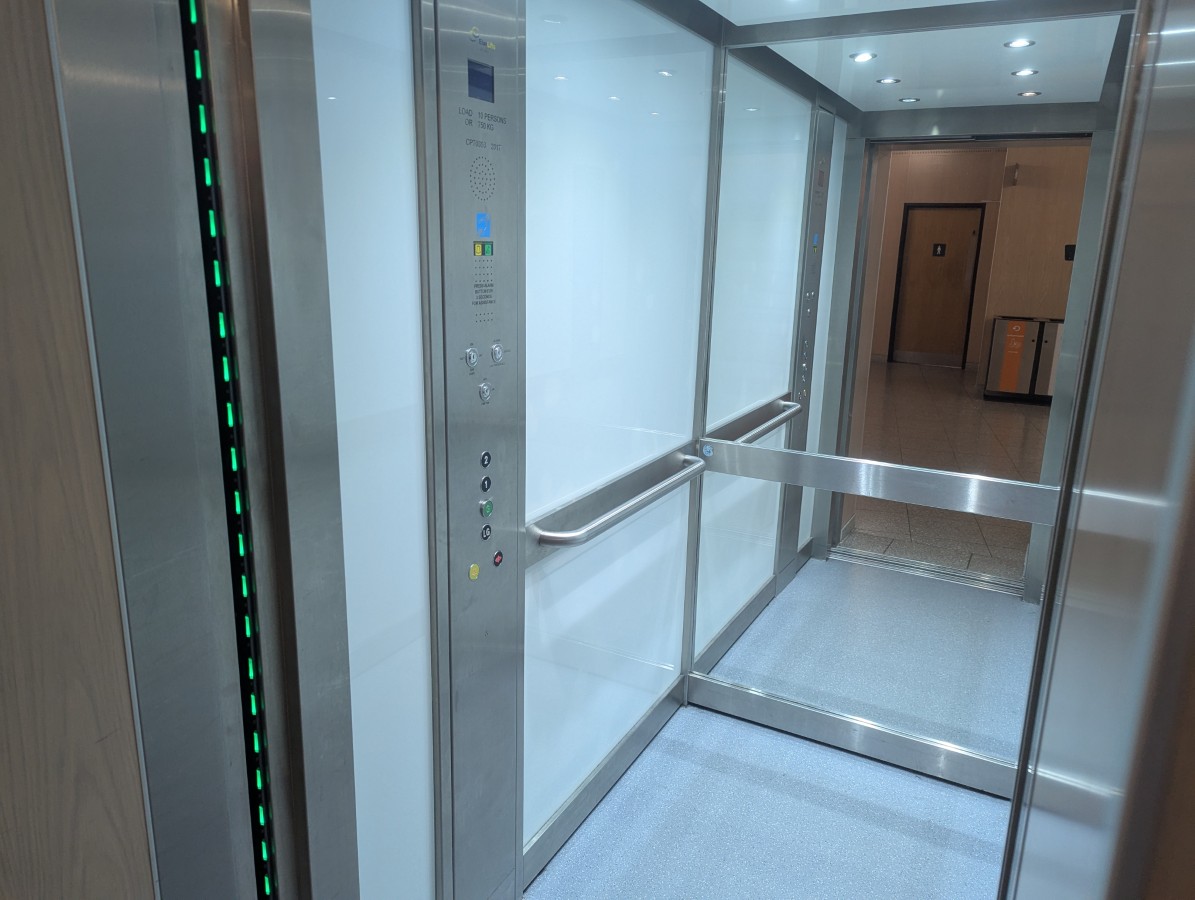

Lift

  • The lift surveyed is located ahead and to the right as you enter.
  • The distance from the main entrance is 15m.
  • The most accessible route to the lift has step-free level access.
  • The floors LG, G, 1 and 2 are accessed by this lift.
  • The lift door has a high visual contrast.
  • The lift has a level manoeuvring space in front of it for a wheelchair user (150cm x 150cm).
  • The external lift control buttons have tactile markings and a high visual contrast.
  • Some of the external lift controls are at a suitable height for a wheelchair user.
  • The lift door opening width is 88cm.
  • The internal dimensions of the lift are 100cm (width) x 162cm (depth).
  • The internal lift control buttons have tactile markings and a high visual contrast.
  • The majority of the internal controls are at a suitable height for a wheelchair user.
  • Internally the lift has: a mirror to aid reversing, a visual floor indicator, an audible announcer and a list of floor services/facilities.
  • Lighting levels were even at the time of the survey, with unshaded light sources.
  • There are other lifts available at this location which are of a similar size.

Stairs (Main Staircase)

  • The stairs surveyed are located ahead and to the right as you enter.
  • The floors LG, G, 1 and 2 can be accessed by these stairs.
  • There are 20+ steps between floors.
  • The steps are clearly marked and have handrails on both sides.
  • The handrails are easy to grip.
  • The handrails cover the flight of stairs throughout its length.
  • The handrails do not extend horizontally beyond the first and last step.
  • The height of the steps is between 15cm and 18cm.
  • The height of the highest step is 17cm.
  • The depth of the steps is between 30cm and 45cm.
  • Lighting levels vary due to the size of the space.

Stairs (To Floor M)

  • The stairs surveyed are located on the second floor of the library, to the left as you exit the lift.
  • There is a single manual door to access the stairwell.
  • The floors 2 and M can be accessed by these stairs.
  • There are 20+ steps between floors.
  • The steps are clearly marked and have handrails on both sides.
  • The handrails are easy to grip.
  • The handrails cover the flight of stairs throughout its length.
  • The handrails extend horizontally beyond the first and last step.
  • The height of the steps is between 15cm and 18cm.
  • The height of the highest step is 16cm.
  • The depth of the steps is not between 30cm and 45cm.
  • Lighting levels were uneven at the time of the survey, with pools of light and shade.

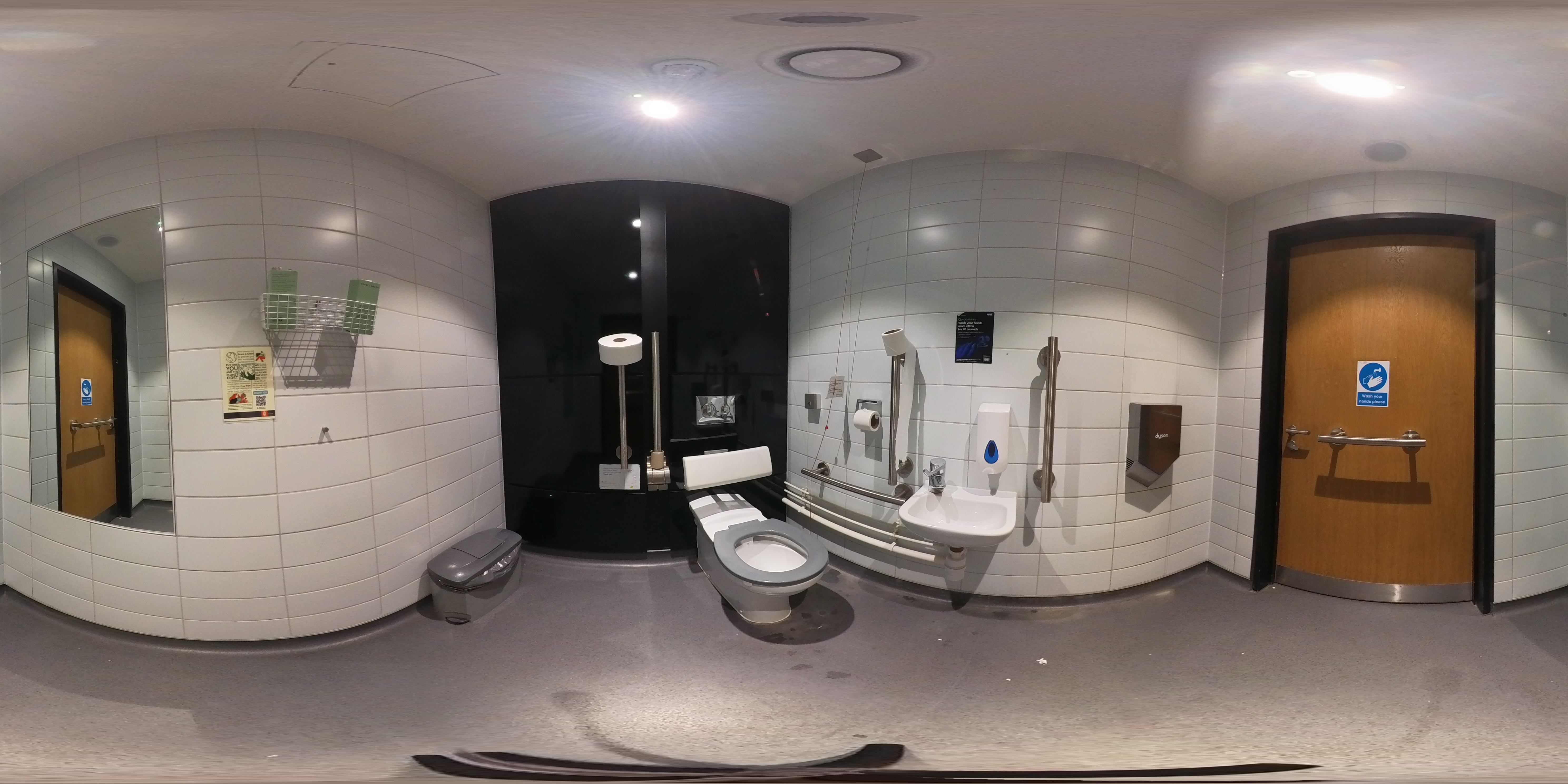

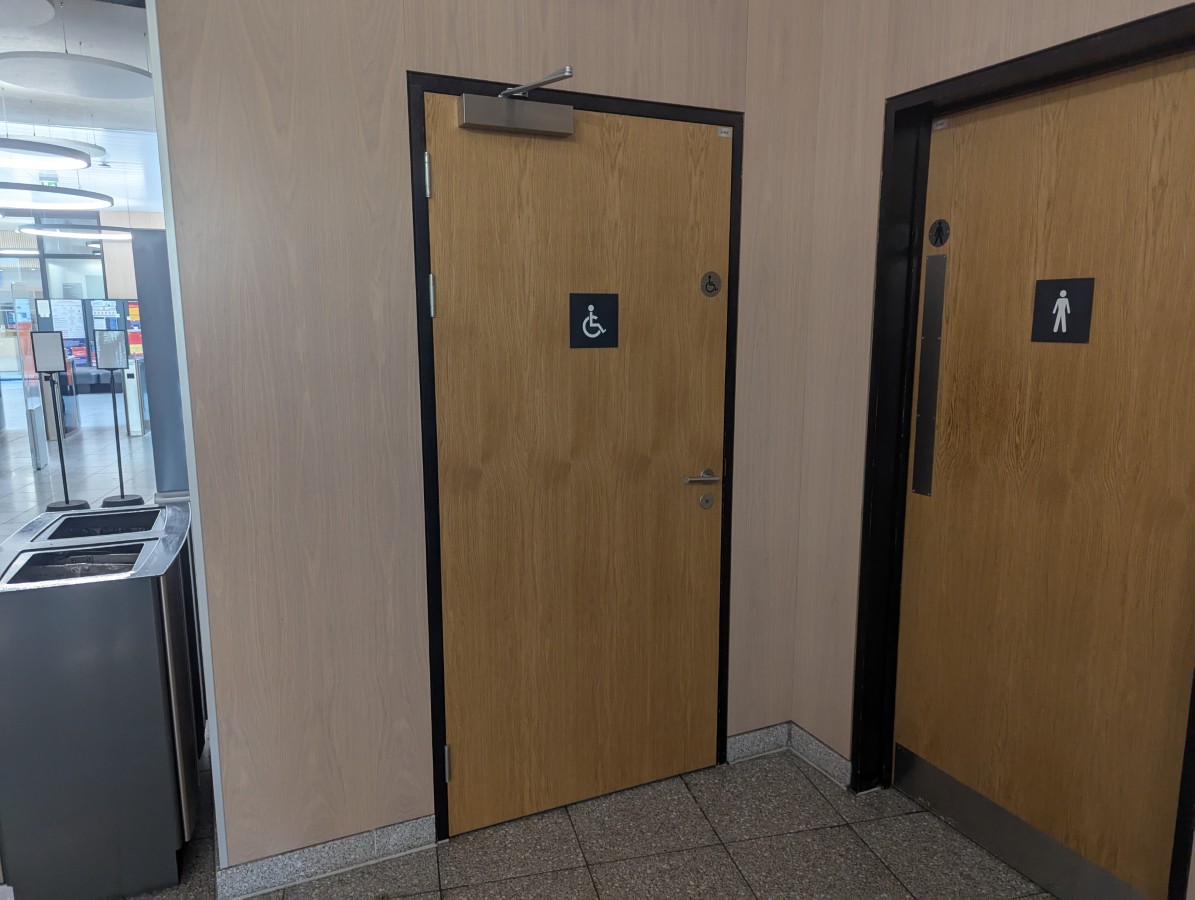

Toilet with Adaptations (Floor G - Left Hand Transfer)

  • Location and Access View
    • The toilet surveyed is located on floor G, opposite the lifts.
    • The distance from the main entrance is 19m.
    • The most accessible route to the toilet has step-free level access.
    • There is step-free level access into the facility.
    • There is pictorial signage on or near the door.
    • The door opens outwards and has a high visual contrast.
    • The width of the door opening is 80cm.
    • The door has a lever twist lock.
    • Internally the door has a high visual contrast.
    • There is a grab rail on the internal door with a high visual contrast.
  • Dimensions and Features View
    • The dimensions of the cubicle are 163cm (width) x 226cm (depth) and there is room for a wheelchair user to manoeuvre (150cm x 150cm).
    • There is a lateral transfer space to the left as you face the toilet, however it is obstructed.
    • The lateral transfer space is 98cm (from the side of the toilet pan).
    • There is a push button flush on the wall above the cistern.
    • There is a horizontal grab rail on the non-transfer side.
    • The horizontal grab rail has a medium visual contrast.
    • There is a vertical grab rail on the transfer side.
    • The vertical grab rail has a high visual contrast.
    • There is a dropdown rail on the transfer side.
    • The dropdown rail has a high visual contrast.
    • The toilet seat is 50cm from the floor.
    • The toilet seat has a high visual contrast.
    • The toilet has a padded backrest.
    • There is a wall mounted toilet roll holder which can be reached when seated on the toilet.
    • The toilet roll holder has a medium visual contrast.
    • The toilet roll holder is 104cm from the floor.
    • The wash basin and taps can be reached when seated on the toilet.
    • The wash basin is 72cm from the floor.
    • The wash basin has a lever mixer tap.
    • The vertical grab rails are on both sides of the wash basin.
    • The wash basin grab rails have a medium visual contrast.
    • There is a wall mounted soap dispenser which can be reached when seated on the toilet.
    • The soap dispenser has a low visual contrast.
    • The soap dispenser is 86cm from the floor.
    • There is not a towel dispenser.
    • There is a wall mounted hand dryer.
    • The hand dryer has a medium visual contrast.
    • The hand dryer is 90cm from the floor.
    • There is a pull cord emergency alarm within 10cm from the floor.
    • There is a full length mirror.
    • There is no shelf.
    • The cubicle has a sanitary bin.
    • There are no coat hooks.
    • The walls and floor have a high visual contrast.
    • Lighting levels were uneven at the time of the survey, with pools of light and shade and unshaded light sources.
