Evacuation and Fire Safety Provisions

• Please note: If booking a space where level access is required, please first contact UCL’s Fire Safety team for building-specific evacuation and safety information at [email protected] / Telephone Number: (0)20 7679 7234.
• View Fire Safety and Personal Emergency Evacuation Plans (opens new tab) .

You are on Overview. Skip to the next section.

Overview

Collapse all Expand all

• About View
  • Courtauld Building is a large building with 8 floors.
  • There are 2 lifts and 2 staircases within the building.
  • The floors are signed as Sub Basement, Basement, Ground, First, Second, Third, Fourth and Fifth.
• Parking and Public Transport View
  • The venue does not have its own car park.
  • There is on-street Blue Badge Bay parking and on-street standard parking.
  • The nearest train station is Euston Train Station.
  • The nearest underground station is Goodge Street Underground Station.
  • For the latest travel options and information you can plan your travel using Google Maps (opens new tab).

You are on Getting Inside. Skip to the next section.

Getting Inside

• The approach to the building is step-free.
• Courtauld Building has three entrances. The main entrance provides step-free level access via a platform lift. The right hand side entrance (Goods Entrance) has a ramp. The left hand side entrance is stepped access.
• The main entrance provides step-free level access via a platform lift to the reception foyer on the ground floor.
• The goods entrance is located on Foley Street and has step-free access via a slight ramp.
  The entrance on Riding House Street has stepped access.

You are on Getting Around. Skip to the next section.

Getting Around

• There is step-free level access throughout the building on all floors.
• Floor surfaces along all circulation routes are hard and smooth with a shiny finish.
• There are no resting areas along the circulation routes.
• There is wayfinding signage throughout the building.
• There manual doors along circulation routes throughout the building.

You are on Toilet and Changing Facilities. Skip to the next section.

Toilet and Changing Facilities

Collapse all Expand all

• Toilet Facilities View
  • There are 8 toilets with adaptations.
  • Toilets with adaptations are located on each floor.
  • All toilets with adaptations have a left hand transfer space.
  • The shared step-free toilet facilities are located on the basement and fifth floor next to the passenger lift.

You are on Parking (On-Street Parking). Skip to the next section.

Parking (On-Street Parking)

Collapse all Expand all

• Drop-off Point View
  • There is not a designated drop-off point available.
• On-street Parking View
  • On-street designated Blue Badge parking and standard parking is available .
  • The on-street designated Blue Badge parking bays are located on Cleveland Street and Foley Street.
  • The Blue Badge bays are clearly marked and signposted.
  • The on street parking on Foley Street is pay by phone or text. Maximum stay of 4 hours with no return within 1 hour.

You are on Entrance (Main Entrance). Skip to the next section.

Entrance (Main Entrance)

• This entrance is located at the front of the building on Cleveland Street.
• The entrance area is clearly signed.
• There is a canopy or recess which provides weather protection at the entrance.
• There is step-free level access via lift at the entrance.
• The lift bypasses the steps.
• There are 3 steps with handrails on both sides.
• The handrails are easy to grip.
• The handrails cover the flight of stairs throughout its length.
• The handrails do not extend horizontally beyond the first and last step.
• The steps are clearly marked.
• The height of the steps is not between 15cm and 18cm.
• The height of the highest step is 12cm.
• The depth of the steps is between 30cm and 45cm.
• There is a key fob/card reader at a height of 110cm.
• There is an intercom at a height of 136cm.
• There is a single manual door at this entrance.
• The door opens towards you.
• The width of the opening is 104cm.
• There is a small lip on the threshold of the opening.
• The door has a low visual contrast.
• There is a push pad or push button to exit at a height of 110cm.
• There is a second set of double manual doors .
• The second set of doors open towards you.
• The width of the opening is 166cm.
• The second set of doors have a high visual contrast.
• There is step-free level access as you enter.

You are on Lift (Main Entrance - Platform Lift). Skip to the next section.

Lift (Main Entrance - Platform Lift)

• The lift surveyed is located in front of the main entrance.
• This lift is a platform lift.
• The most accessible route to the lift has a slight ramp or slope.
• The lift door has a low visual contrast.
• The lift has a level manoeuvring space in front of it for a wheelchair user (150cm x 150cm).
• The external lift control buttons have tactile markings and a low visual contrast.
• All of the external lift controls are at a suitable height for a wheelchair user.
• The lift door opening width is 80cm.
• The internal dimensions of the lift are 80cm (width) x 132cm (depth).
• The internal lift control buttons have tactile markings and a low visual contrast.
• All of the internal lift controls are at a suitable height for a wheelchair user.
• The lift is slow moving and the button needs to be pressed constantly when in use.
• Internally the lift has: a separate door to exit.
• A keycard is required to operate the lift. The door to enter the building from the platform lift is single and opens automatically away from you. The width of the door is 104cm. The height of the button to exit is 110cm.

You are on Reception. Skip to the next section.

Reception

• The reception is located ahead from the platform lift.
• The distance from the platform lift is 2m.
• There is step-free level access to reception.
• The height of the reception desk is 110cm.
• There is a lowered section at the desk.
• The height of the lowered section is 75cm.
• There is not a hearing assistance system.
• There is no (or very little) background noise in this area.
• Lighting levels were even at the time of the survey, with unshaded light sources.
• There is room for a wheelchair user to manoeuvre in the seating area (150cm x 150cm).
• There is space for an assistance dog to rest in the seating area.
• Seating available in this area includes: chairs with armrests.
• There are security barriers with a wider opening which are operated by key card.
• The width of the wide barrier is 96cm.
  The width of the narrow barrier is 61cm.
  The height of the card reader is 100cm.

You are on Lift (Passenger Lift). Skip to the next section.

Lift (Passenger Lift)

• The lift was out of service at the time of the survey (March 2025).

You are on Lift (Goods Lift). Skip to the next section.

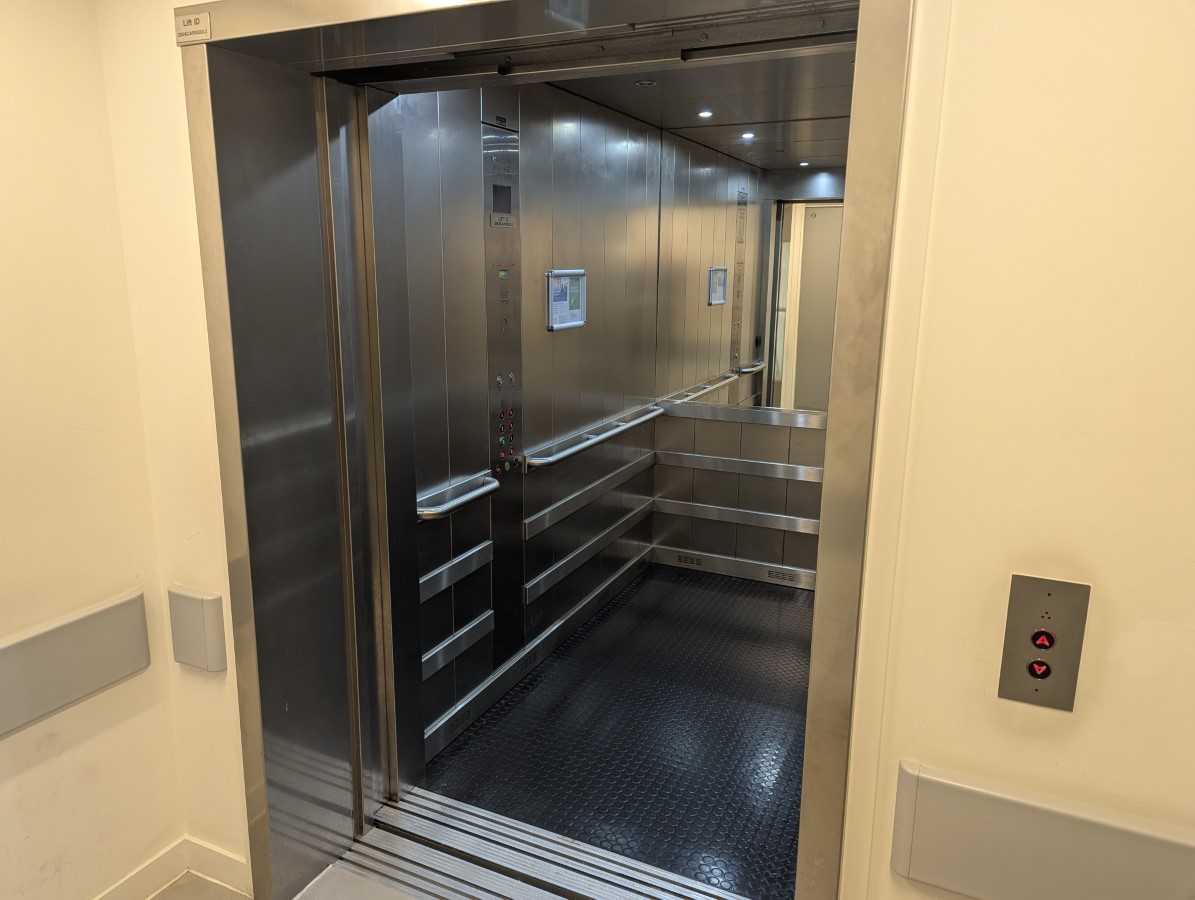

Lift (Goods Lift)

• The lift surveyed is located to the right from the main entrance.
• The distance from the main entrance is 12m.
• The most accessible route to the lift has step-free level access.
• The sub basement, basement, ground, first, second, third, fourth and fifth floors are accessed by this lift.
• The lift door has a high visual contrast.
• The lift has a level manoeuvring space in front of it for a wheelchair user (150cm x 150cm).
• The external lift control buttons have tactile markings and a high visual contrast.
• All of the external lift controls are at a suitable height for a wheelchair user.
• The lift door opening width is 130cm.
• The internal dimensions of the lift are 140cm (width) x 215cm (depth).
• The internal lift control buttons have tactile markings and a high visual contrast.
• All of the internal lift controls are at a suitable height for a wheelchair user.
• Internally the lift has: a mirror to aid reversing, a hearing assistance alarm system, a visual floor indicator and an audible announcer.
• Lighting levels were even at the time of the survey.

You are on Stairs. Skip to the next section.

Stairs

• The stairs surveyed are located on either side of the building.
• There is a single manual door to access the stairwell.
• The sub basement, basement, ground, first, second, third, fourth and fifth floors can be accessed by these stairs.
• There are 20+ steps between floors.
• The steps are clearly marked and have handrails on both sides.
• The handrails are easy to grip.
• The handrails cover the flight of stairs throughout its length.
• The handrails extend horizontally beyond the first and last step.
• The height of the steps is between 15cm and 18cm.
• The height of the highest step is 17cm.
• The depth of the steps is not between 30cm and 45cm.
• Lighting levels were even at the time of the survey, with unshaded light sources.

You are on Kitchen/Dining (Clarkey's). Skip to the next section.

Kitchen/Dining (Clarkey's)

• The kitchen/dining area is located on the fifth floor.
• There is step-free level access into the kitchen/dining area.
• There is a single manual door with a high visual contrast.
• The door opens inwards.
• The width of the opening is 86cm.
• There is room for a wheelchair user to manoeuvre (150cm x 150cm).
• The walls and floor have a high visual contrast.
• The work surface is 90cm from the floor.
• Overhead and under counter cupboards are available.
• The sink is 90cm from the floor.
• The sink has a lever mixer tap.
• Facilities within the kitchen include a fridge and a microwave.
• Seating available in the kitchen includes: chairs without armrests, armchairs, sofas and benches.
• Furniture available in the kitchen includes: tables, coffee tables and long tables.
• The surface height of some of the tables is suitable for wheelchair users.
• The clear height under some of the tables is suitable for wheelchair users.
• Lighting levels vary due to the use of large glazed walls.

You are on Shower with Adaptations (Basement). Skip to the next section.

Shower with Adaptations (Basement)

Collapse all Expand all

• Location and Access View
  • The shower surveyed is located on the basement within the locker room.
  • The distance from the passenger lift is 12m.
  • The most accessible route to the shower has step-free level access, a lift and manual doors.
  • There is step-free level access into the facility.
  • There is pictorial signage on or near the door.
  • The door opens outwards and has a high visual contrast.
  • The width of the door opening is 96cm.
  • The door has a lever twist lock.
  • Internally the door has a high visual contrast.
  • There is a grab rail on the internal door with a high visual contrast.
• Dimensions and Features View
  • There is room for a wheelchair user to manoeuvre in the shower (150cm x 150cm).
  • There is a detachable shower head.
  • The shower controls are lever mixer.
  • There is a flip-down shower seat.
  • The shower seat is 50cm from the floor.
  • There are grab rails and a dropdown rail for the shower.
  • The grab rails have a high visual contrast.
  • The dropdown rail has a high visual contrast.
  • There is no emergency alarm for the shower.
  • There is a full length mirror.
  • There is no shelf.
  • The facility has a sanitary bin.
  • There are multiple coat hooks.
  • The coat hooks are 129cm and 158cm from the floor.
  • The walls and floor have a high visual contrast.
  • Lighting levels were even at the time of the survey, with unshaded light sources.
  • A keycode is required to access the locker room.

You are on Toilet with Adaptations (Basement 1 - Left Hand Transfer). Skip to the next section.

Toilet with Adaptations (Basement 1 - Left Hand Transfer)

Collapse all Expand all

• Location and Access View
  • The toilet surveyed is located along the basement corridor.
  • The distance from the passenger lift is 9m.
  • The most accessible route to the toilet has step-free level access, a lift and manual doors.
  • There is step-free level access into the facility.
  • There is pictorial signage on or near the door.
  • The door opens inwards and has a high visual contrast.
  • The width of the door opening is 97cm.
  • The door has a lever twist lock.
  • Internally the door has a high visual contrast.
  • There is a grab rail on the internal door with a high visual contrast.
• Dimensions and Features View
  • The dimensions of the cubicle are 127cm (width) x 236cm (depth) and there is not room for a wheelchair user to manoeuvre (150cm x 150cm).
  • There is a lateral transfer space to the left as you face the toilet, however it is obstructed.
  • The lateral transfer space is 63cm (from the side of the toilet pan).
  • There is a lever flush on the non-transfer side.
  • There is a horizontal grab rail on the non-transfer side.
  • The horizontal grab rail has a high visual contrast.
  • There is a vertical grab rail on the transfer side.
  • The vertical grab rail has a low visual contrast.
  • There is a dropdown rail on the transfer side.
  • The dropdown rail has a low visual contrast.
  • The toilet seat is 44cm from the floor.
  • The toilet seat has a low visual contrast.
  • There is a wall mounted toilet roll holder which cannot be reached when seated on the toilet.
  • The toilet roll holder has a medium visual contrast.
  • The toilet roll holder is 81cm from the floor.
  • The wash basin and taps can be reached when seated on the toilet.
  • The wash basin is 75cm from the floor.
  • The wash basin has a lever mixer tap.
  • The vertical grab rails are on both sides of the wash basin.
  • The wash basin grab rails have a high visual contrast.
  • There is a wall mounted soap dispenser which can be reached when seated on the toilet.
  • The soap dispenser has a low visual contrast.
  • The soap dispenser is 110cm from the floor.
  • There is not a towel dispenser.
  • There is a wall mounted hand dryer.
  • The hand dryer has a low visual contrast.
  • The hand dryer is 92cm from the floor.
  • There is a pull cord emergency alarm, however it is not within 10cm from the floor.
  • There is a full length mirror.
  • There is no shelf.
  • The cubicle has a sanitary bin.
  • There is one coat hook.
  • The coat hook is 159cm from the floor.
  • The walls and floor have a high visual contrast.
  • Lighting levels were even at the time of the survey, with unshaded light sources.

You are on Toilet with Adaptations (Basement 2 - Left Hand Transfer). Skip to the next section.

Toilet with Adaptations (Basement 2 - Left Hand Transfer)

Collapse all Expand all

• Location and Access View
  • The toilet surveyed is located on the basement within the locker room.
  • The distance from the passenger lift is 12m.
  • The most accessible route to the toilet has step-free level access, a lift and manual doors.
  • There is step-free level access into the facility.
  • There is pictorial signage on or near the door.
  • The door opens outwards and has a high visual contrast.
  • The width of the door opening is 96cm.
  • The door has a lever twist lock.
  • Internally the door has a high visual contrast.
  • There is a grab rail on the internal door with a high visual contrast.
• Dimensions and Features View
  • The dimensions of the cubicle are 236cm (width) x 206cm (depth) and there is room for a wheelchair user to manoeuvre (150cm x 150cm).
  • There is a lateral transfer space to the left as you face the toilet, however it is obstructed.
  • The lateral transfer space is 162cm (from the side of the toilet pan).
  • There is a spatula flush on the non-transfer side.
  • There is no horizontal grab rail for the toilet.
  • There is a vertical grab rail on the transfer side.
  • The vertical grab rail has a low visual contrast.
  • There is a dropdown rail on the transfer side.
  • The dropdown rail has a low visual contrast.
  • The toilet seat is 49cm from the floor.
  • The toilet seat has a high visual contrast.
  • The toilet has a padded backrest.
  • There is a wall mounted toilet roll holder which can be reached when seated on the toilet.
  • The toilet roll holder has a high visual contrast.
  • The toilet roll holder is 82cm from the floor.
  • The wash basin and taps can be reached when seated on the toilet.
  • The wash basin is 71cm from the floor.
  • The wash basin has a lever mixer tap.
  • The vertical grab rails are on both sides of the wash basin.
  • The wash basin grab rails have a low visual contrast.
  • There is a wall mounted soap dispenser which can be reached when seated on the toilet.
  • The soap dispenser has a high visual contrast.
  • The soap dispenser is 108cm from the floor.
  • There is a wall mounted towel dispenser which can be reached when seated on the toilet.
  • The towel dispenser has a high visual contrast.
  • The towel dispenser is 102cm from the floor.
  • There is a wall mounted hand dryer.
  • The hand dryer has a high visual contrast.
  • The hand dryer is 108cm from the floor.
  • There is a pull cord emergency alarm, however it is not within 10cm from the floor.
  • There is a full length mirror.
  • There is no shelf.
  • The cubicle has a sanitary bin.
  • There are multiple coat hooks.
  • The coat hooks are 129cm and 158cm from the floor.
  • The walls and floor have a high visual contrast.
  • Lighting levels were even at the time of the survey, with unshaded light sources.
  • A keycode is required to access the locker room.

You are on Toilet with Adaptations (Ground Floor - Left Hand Transfer). Skip to the next section.

Toilet with Adaptations (Ground Floor - Left Hand Transfer)

Collapse all Expand all

• Location and Access View
  • The toilet surveyed is located along the ground floor corridor.
  • The distance from the main entrance is 9m.
  • The most accessible route to the toilet has step-free level access, a platform lift and manual doors.
  • There is step-free level access into the facility.
  • There is pictorial signage on or near the door.
  • The door opens inwards and has a high visual contrast.
  • The width of the door opening is 97cm.
  • The door has a twist lock.
  • Internally the door has a high visual contrast.
  • There is a grab rail on the internal door with a high visual contrast.
• Dimensions and Features View
  • The dimensions of the cubicle are 127cm (width) x 253cm (depth) and there is not room for a wheelchair user to manoeuvre (150cm x 150cm).
  • There is a lateral transfer space to the left as you face the toilet, however it is obstructed.
  • The lateral transfer space is 63cm (from the side of the toilet pan).
  • There is a lever flush on the non-transfer side.
  • There is a horizontal grab rail on the non-transfer side.
  • The horizontal grab rail has a high visual contrast.
  • There is a vertical grab rail on the transfer side.
  • The vertical grab rail has a low visual contrast.
  • There is a dropdown rail on the transfer side.
  • The dropdown rail has a low visual contrast.
  • The toilet seat is 44cm from the floor.
  • The toilet seat has a low visual contrast.
  • There is a wall mounted toilet roll holder which cannot be reached when seated on the toilet.
  • The toilet roll holder has a medium visual contrast.
  • The toilet roll holder is 82cm from the floor.
  • The wash basin and taps can be reached when seated on the toilet.
  • The wash basin is 74cm from the floor.
  • The wash basin has a lever mixer tap.
  • The vertical grab rails are on both sides of the wash basin.
  • The wash basin grab rails have a high visual contrast.
  • There is a wall mounted soap dispenser which can be reached when seated on the toilet.
  • The soap dispenser has a low visual contrast.
  • The soap dispenser is 110cm from the floor.
  • There is not a towel dispenser.
  • There is a wall mounted hand dryer.
  • The hand dryer has a low visual contrast.
  • The hand dryer is 92cm from the floor.
  • There is a pull cord emergency alarm, however it is not within 10cm from the floor.
  • There is a full length mirror.
  • There is no shelf.
  • The cubicle has a sanitary bin.
  • There are no coat hooks.
  • The walls and floor have a high visual contrast.
  • Lighting levels were even at the time of the survey, with unshaded light sources.

You are on Toilet with Adaptations (First Floor - Left Hand Transfer). Skip to the next section.

Toilet with Adaptations (First Floor - Left Hand Transfer)

Collapse all Expand all

• Location and Access View
  • The toilet surveyed is located along the first floor corridor.
  • The distance from the passenger lift is 9m.
  • The most accessible route to the toilet has step-free level access, a lift and manual doors.
  • There is step-free level access into the facility.
  • There is pictorial signage on or near the door.
  • The door opens inwards and has a high visual contrast.
  • The width of the door opening is 97cm.
  • The door has a twist lock.
  • Internally the door has a high visual contrast.
  • There is a grab rail on the internal door with a high visual contrast.
• Dimensions and Features View
  • The dimensions of the cubicle are 127cm (width) x 200cm (depth) and there is not room for a wheelchair user to manoeuvre (150cm x 150cm).
  • There is a lateral transfer space to the left as you face the toilet, however it is obstructed.
  • The lateral transfer space is 63cm (from the side of the toilet pan).
  • There is a spatula flush on the non-transfer side.
  • There is a horizontal grab rail on the non-transfer side.
  • The horizontal grab rail has a high visual contrast.
  • There is a vertical grab rail on the transfer side.
  • The vertical grab rail has a low visual contrast.
  • There is a dropdown rail on the transfer side.
  • The dropdown rail has a low visual contrast.
  • The toilet seat is 44cm from the floor.
  • The toilet seat has a low visual contrast.
  • There is a wall mounted toilet roll holder which cannot be reached when seated on the toilet.
  • The toilet roll holder has a medium visual contrast.
  • The toilet roll holder is 82cm from the floor.
  • The wash basin and taps can be reached when seated on the toilet.
  • The wash basin is 74cm from the floor.
  • The wash basin has a lever mixer tap.
  • The vertical grab rails are on both sides of the wash basin.
  • The wash basin grab rails have a high visual contrast.
  • There is a wall mounted soap dispenser which can be reached when seated on the toilet.
  • The soap dispenser has a low visual contrast.
  • The soap dispenser is 110cm from the floor.
  • There is not a towel dispenser.
  • There is a wall mounted hand dryer.
  • The hand dryer has a low visual contrast.
  • The hand dryer is 92cm from the floor.
  • There is a pull cord emergency alarm, however it is not within 10cm from the floor.
  • There is a full length mirror.
  • There is no shelf.
  • The cubicle has a sanitary bin.
  • There is one coat hook.
  • The coat hook is 156cm from the floor.
  • The walls and floor have a high visual contrast.
  • Lighting levels were even at the time of the survey, with unshaded light sources.

You are on Toilet with Adaptations (Second Floor - Left Hand Transfer). Skip to the next section.

Toilet with Adaptations (Second Floor - Left Hand Transfer)

Collapse all Expand all

• Location and Access View
  • The toilet surveyed is located along the second floor corridor.
  • The distance from the passenger lift is 9m.
  • The most accessible route to the toilet has step-free level access, a lift and manual doors.
  • There is step-free level access into the facility.
  • There is pictorial signage on or near the door.
  • The door opens inwards and has a high visual contrast.
  • The width of the door opening is 97cm.
  • The door has a twist lock.
  • Internally the door has a high visual contrast.
  • There is a grab rail on the internal door with a high visual contrast.
• Dimensions and Features View
  • The dimensions of the cubicle are 127cm (width) x 203cm (depth) and there is not room for a wheelchair user to manoeuvre (150cm x 150cm).
  • There is a lateral transfer space to the left as you face the toilet, however it is obstructed.
  • The lateral transfer space is 63cm (from the side of the toilet pan).
  • There is a spatula flush on the non-transfer side.
  • There is a horizontal grab rail on the non-transfer side.
  • The horizontal grab rail has a high visual contrast.
  • There is a vertical grab rail on the transfer side.
  • The vertical grab rail has a low visual contrast.
  • There is a dropdown rail on the transfer side.
  • The dropdown rail has a low visual contrast.
  • The toilet seat is 44cm from the floor.
  • The toilet seat has a low visual contrast.
  • There is a wall mounted toilet roll holder which cannot be reached when seated on the toilet.
  • The toilet roll holder has a medium visual contrast.
  • The toilet roll holder is 82cm from the floor.
  • The wash basin and taps can be reached when seated on the toilet.
  • The wash basin is 74cm from the floor.
  • The wash basin has a lever mixer tap.
  • The vertical grab rails are on both sides of the wash basin.
  • The wash basin grab rails have a high visual contrast.
  • There is a wall mounted soap dispenser which can be reached when seated on the toilet.
  • The soap dispenser has a low visual contrast.
  • The soap dispenser is 110cm from the floor.
  • There is not a towel dispenser.
  • There is a wall mounted hand dryer.
  • The hand dryer has a low visual contrast.
  • The hand dryer is 92cm from the floor.
  • There is a pull cord emergency alarm, however it is not within 10cm from the floor.
  • There is a full length mirror.
  • There is no shelf.
  • The cubicle has a sanitary bin.
  • There is one coat hook.
  • The coat hook is 156cm from the floor.
  • The walls and floor have a high visual contrast.
  • Lighting levels were even at the time of the survey, with unshaded light sources.

You are on Toilet with Adaptations (Third Floor - Left Hand Transfer). Skip to the next section.

Toilet with Adaptations (Third Floor - Left Hand Transfer)

Collapse all Expand all

• Location and Access View
  • The toilet surveyed is located along the third floor corridor.
  • The distance from the passenger lift is 9m.
  • The most accessible route to the toilet has step-free level access, a lift and manual doors.
  • There is step-free level access into the facility.
  • There is pictorial signage on or near the door.
  • The door opens inwards and has a high visual contrast.
  • The width of the door opening is 97cm.
  • The door has a twist lock.
  • Internally the door has a high visual contrast.
  • There is a grab rail on the internal door with a high visual contrast.
• Dimensions and Features View
  • The dimensions of the cubicle are 127cm (width) x 200cm (depth) and there is not room for a wheelchair user to manoeuvre (150cm x 150cm).
  • There is a lateral transfer space to the left as you face the toilet, however it is obstructed.
  • The lateral transfer space is 63cm (from the side of the toilet pan).
  • There is a spatula flush on the non-transfer side.
  • There is a horizontal grab rail on the non-transfer side.
  • The horizontal grab rail has a high visual contrast.
  • There is a vertical grab rail on the transfer side.
  • The vertical grab rail has a low visual contrast.
  • There is a dropdown rail on the transfer side.
  • The dropdown rail has a low visual contrast.
  • The toilet seat is 44cm from the floor.
  • The toilet seat has a low visual contrast.
  • There is a wall mounted toilet roll holder which cannot be reached when seated on the toilet.
  • The toilet roll holder has a medium visual contrast.
  • The toilet roll holder is 83cm from the floor.
  • The wash basin and taps can be reached when seated on the toilet.
  • The wash basin is 74cm from the floor.
  • The wash basin has a lever mixer tap.
  • The vertical grab rails are on both sides of the wash basin.
  • The wash basin grab rails have a high visual contrast.
  • There is a wall mounted soap dispenser which can be reached when seated on the toilet.
  • The soap dispenser has a low visual contrast.
  • The soap dispenser is 110cm from the floor.
  • There is not a towel dispenser.
  • There is a wall mounted hand dryer.
  • The hand dryer has a low visual contrast.
  • The hand dryer is 91cm from the floor.
  • There is a pull cord emergency alarm, however it is not within 10cm from the floor.
  • There is a full length mirror.
  • There is no shelf.
  • The cubicle has a sanitary bin.
  • There is one coat hook.
  • The coat hook is 156cm from the floor.
  • The walls and floor have a high visual contrast.
  • Lighting levels were even at the time of the survey, with unshaded light sources.

You are on Toilet with Adaptations (Fourth Floor - Left Hand Transfer). Skip to the next section.

Toilet with Adaptations (Fourth Floor - Left Hand Transfer)

Collapse all Expand all

• Location and Access View
  • The toilet surveyed is located along the fourth floor corridor.
  • The distance from the passenger lift is 9m.
  • The most accessible route to the toilet has step-free level access, a lift and manual doors.
  • There is step-free level access into the facility.
  • There is pictorial signage on or near the door.
  • The door opens inwards and has a high visual contrast.
  • The width of the door opening is 97cm.
  • The door has a twist lock.
  • Internally the door has a high visual contrast.
  • There is a grab rail on the internal door with a high visual contrast.
• Dimensions and Features View
  • The dimensions of the cubicle are 127cm (width) x 200cm (depth) and there is not room for a wheelchair user to manoeuvre (150cm x 150cm).
  • There is a lateral transfer space to the left as you face the toilet, however it is obstructed.
  • The lateral transfer space is 63cm (from the side of the toilet pan).
  • There is a spatula flush on the non-transfer side.
  • There is a horizontal grab rail on the non-transfer side.
  • The horizontal grab rail has a high visual contrast.
  • There is a vertical grab rail on the transfer side.
  • The vertical grab rail has a low visual contrast.
  • There is a dropdown rail on the transfer side.
  • The dropdown rail has a low visual contrast.
  • The toilet seat is 44cm from the floor.
  • The toilet seat has a low visual contrast.
  • There is a wall mounted toilet roll holder which cannot be reached when seated on the toilet.
  • The toilet roll holder has a medium visual contrast.
  • The toilet roll holder is 82cm from the floor.
  • The wash basin and taps can be reached when seated on the toilet.
  • The wash basin is 75cm from the floor.
  • The wash basin has a lever mixer tap.
  • The vertical grab rails are on both sides of the wash basin.
  • The wash basin grab rails have a high visual contrast.
  • There is a wall mounted soap dispenser which can be reached when seated on the toilet.
  • The soap dispenser has a low visual contrast.
  • The soap dispenser is 110cm from the floor.
  • There is not a towel dispenser.
  • There is a wall mounted hand dryer.
  • The hand dryer has a low visual contrast.
  • The hand dryer is 90cm from the floor.
  • There is a pull cord emergency alarm, however it is not within 10cm from the floor.
  • There is a full length mirror.
  • There is no shelf.
  • The cubicle has a sanitary bin.
  • There is one coat hook.
  • The coat hook is 156cm from the floor.
  • The walls and floor have a high visual contrast.
  • Lighting levels were even at the time of the survey, with unshaded light sources.

You are on Toilet with Adaptations (Fifth Floor - Left Hand Transfer). Skip to the next section.

Toilet with Adaptations (Fifth Floor - Left Hand Transfer)

Collapse all Expand all

• Location and Access View
  • The toilet surveyed is located on the fifth floor.
  • The distance from the passenger lift is 9m.
  • The most accessible route to the toilet has step-free level access, a lift and manual doors.
  • There is step-free level access into the facility.
  • There is pictorial signage on or near the door.
  • The door opens inwards and has a high visual contrast.
  • The width of the door opening is 96cm.
  • The door has a twist lock.
  • Internally the door has a high visual contrast.
  • There is a grab rail on the internal door with a high visual contrast.
• Dimensions and Features View
  • The dimensions of the cubicle are 127cm (width) x 200cm (depth) and there is not room for a wheelchair user to manoeuvre (150cm x 150cm).
  • There is a lateral transfer space to the left as you face the toilet, however it is obstructed.
  • The lateral transfer space is 63cm (from the side of the toilet pan).
  • There is a spatula flush on the non-transfer side.
  • There is a horizontal grab rail on the non-transfer side.
  • The horizontal grab rail has a high visual contrast.
  • There is a vertical grab rail on the transfer side.
  • The vertical grab rail has a low visual contrast.
  • There is a dropdown rail on the transfer side.
  • The dropdown rail has a low visual contrast.
  • The toilet seat is 44cm from the floor.
  • The toilet seat has a low visual contrast.
  • There is a wall mounted toilet roll holder which cannot be reached when seated on the toilet.
  • The toilet roll holder has a medium visual contrast.
  • The toilet roll holder is 82cm from the floor.
  • The wash basin and taps cannot be reached when seated on the toilet.
  • The wash basin is 75cm from the floor.
  • The wash basin has a lever mixer tap.
  • The vertical grab rails are on both sides of the wash basin.
  • The wash basin grab rails have a high visual contrast.
  • There is a wall mounted soap dispenser which can be reached when seated on the toilet.
  • The soap dispenser has a low visual contrast.
  • The soap dispenser is 106cm from the floor.
  • There is not a towel dispenser.
  • There is a wall mounted hand dryer.
  • The hand dryer has a low visual contrast.
  • The hand dryer is 90cm from the floor.
  • There is a pull cord emergency alarm, however it is not within 10cm from the floor.
  • There is a full length mirror.
  • There is no shelf.
  • The cubicle has a sanitary bin.
  • There is one coat hook.
  • The coat hook is 156cm from the floor.
  • The walls and floor have a high visual contrast.
  • Lighting levels were even at the time of the survey, with unshaded light sources.
