Evacuation and Fire Safety Provisions

• Please note: If booking a space where level access is required, please first contact UCL’s Fire Safety team for building-specific evacuation and safety information at [email protected] / Telephone Number: (0)20 7679 7234.
• View Fire Safety and Personal Emergency Evacuation Plans (opens new tab) .

You are on Overview. Skip to the next section.

Overview

Collapse all Expand all

• About View
  • The Cruciform Building is a very large building with 6 floors.
  • There are 2 lifts and 3 staircases within the building.
  • The floors are signed as Basement, Ground, First, Second, Third and Fourth floors.
• Parking and Public Transport View
  • The venue does not have its own car park.
  • There is on-street Blue Badge Bay parking and on-street standard parking.
  • The nearest train station is Euston Train Station.
  • The nearest underground station is Euston Square Underground Station.
  • For the latest travel options and information you can plan your travel using Google Maps (opens new tab).

You are on Getting Inside. Skip to the next section.

Getting Inside

• The approach to the building is step-free level access.
• Cruciform Building has one entrance. The main entrance provides step-free access to the reception foyer on the ground floor. The doors are manual.
• The main entrance is signed as Cruciform Building.

You are on Getting Around. Skip to the next section.

Getting Around

• There is step-free access throughout the building on all floors via the lifts.
• In the basement, there are 2 ramps, 1 slight and 1 steep with handrails on both sides to access the toilets, lecture theatre 1 and 2, and rooms B.3.01 - B.3.08, and B.4.01 - B.4.04.
• Access to the wet and dry labs on the ground floor is via 8 clearly marked steps with a handrail on the left. Alternatively, there is a lift to overcome the steps.
• Floor surfaces along the majority of circulation routes are hard and smooth, with some having a shiny, patterned finish. There are also floor surfaces that are carpeted.
• There are resting areas in some circulation areas with a mixture of seating.

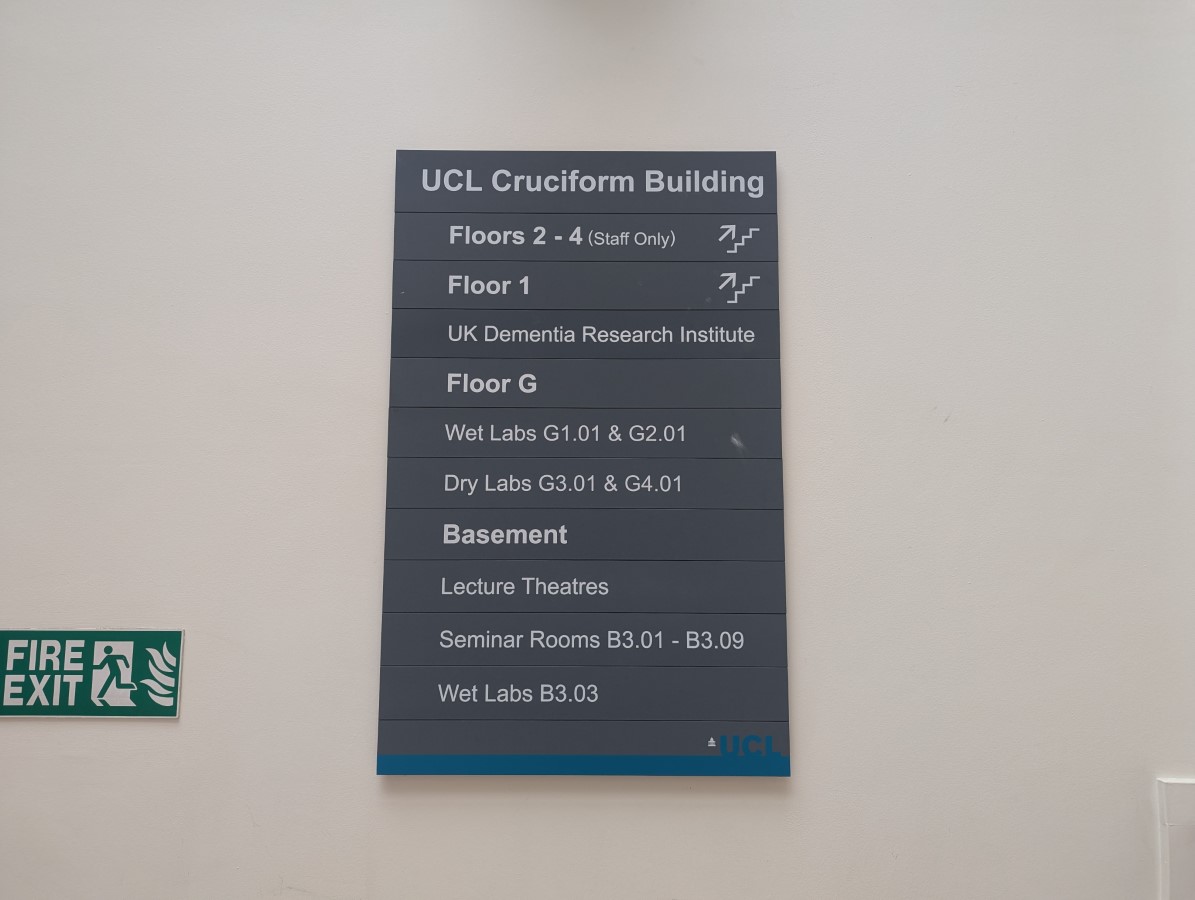

• Overhead and wall mounted wayfinding signage is provided throughout the building.
• There are manual doors in some corridor and lobby areas.

You are on Toilet and Changing Facilities. Skip to the next section.

Toilet and Changing Facilities

Collapse all Expand all

• Toilet Facilities View
  • There are 8 toilets with adaptations.
  • Toilets with adaptations are located on each floor.
  • The transfer space varies between left and right in the toilets with adaptations.
  • Ambulant toilet facilities are located within the standard toilets on the basement and ground floors.
  • The male and female step-free toilet facilities are located on the basement, ground, first, second, third and fourth floors.
  • The gender inclusive step-free toilet facilities are located in the basement.
• Washroom and Shower Facilities View

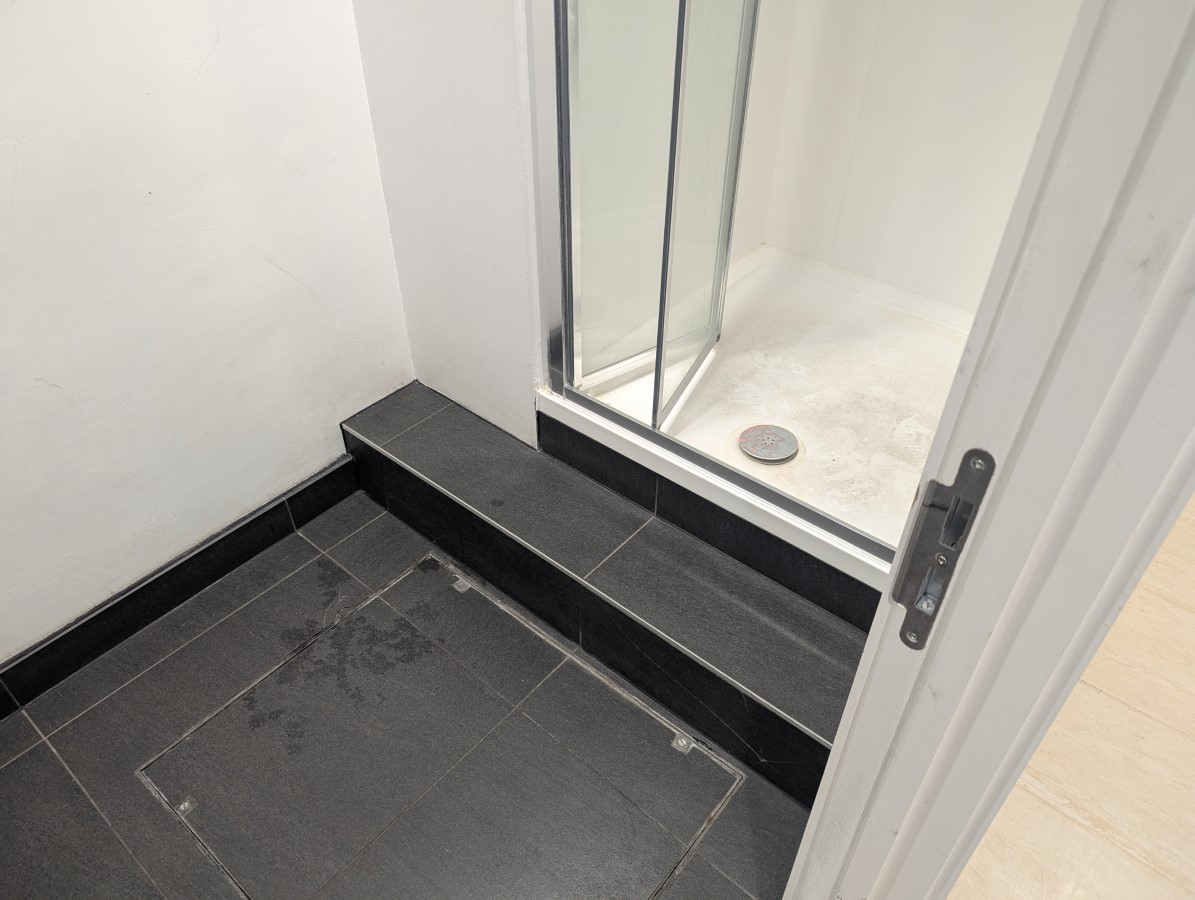

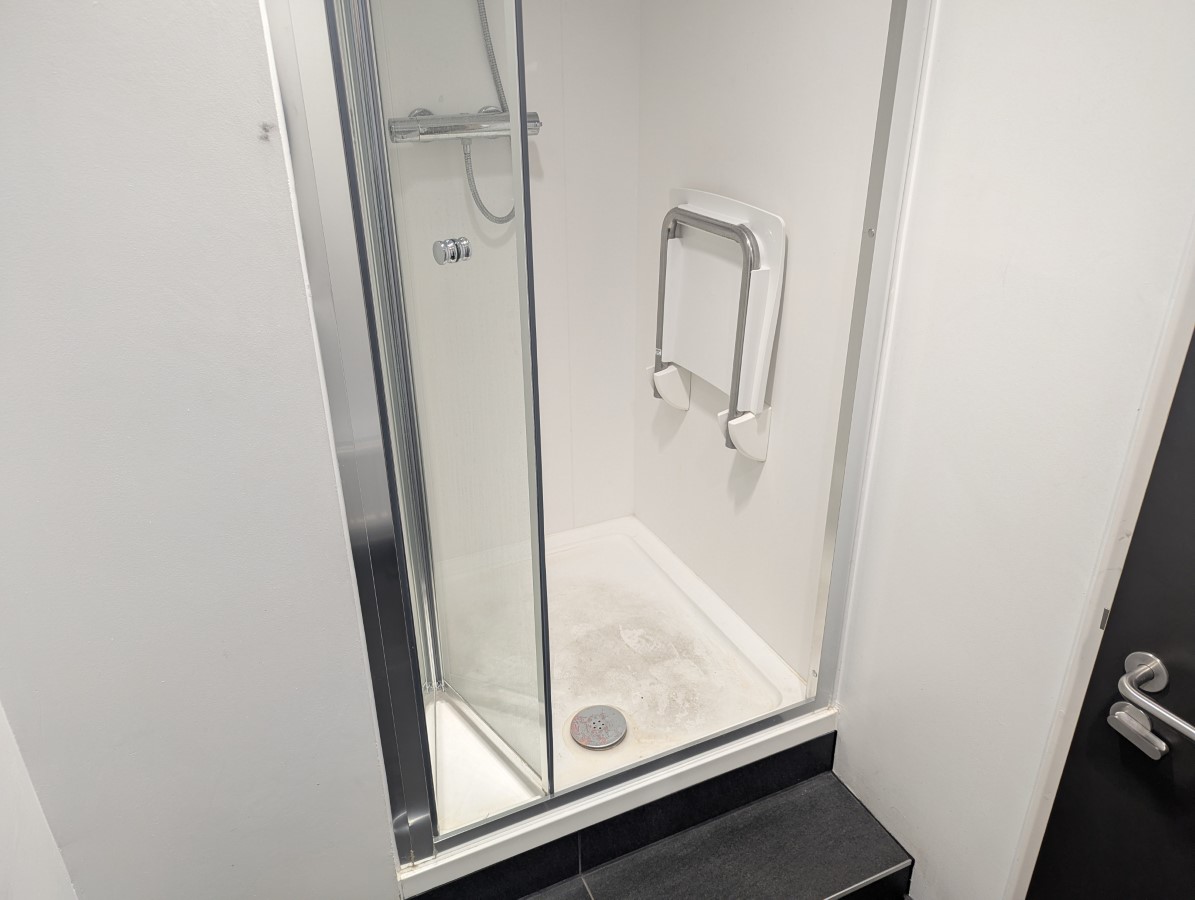

  • Standard shower facilities are located on the basement and within the male standard toilet on the fourth floor.
  • The height of the step to access the standard shower in the basement is 20cm.
    The height of the step to access the standard shower on the fourth floor is 22cm.

You are on Rooms and Services in the Building. Skip to the next section.

Rooms and Services in the Building

Collapse all Expand all

• Lecture Theatres View
  • View information on Cruciform Building, B304 - Lecture Theatre 1 (opens new tab).
  • View information on Cruciform Building, B404 - Lecture Theatre 2 (opens new tab).
• Seminar Rooms View
  • View information on Cruciform Building, Foyer 101, Seminar Room 1 (opens new tab).
  • View information on Cruciform Building, Foyer 102, Seminar Room 2 (opens new tab).
  • View information on Cruciform Building, Foyer 201, Seminar Room 3 (opens new tab).
  • View information on Cruciform Building, Seminar Room B.1.03 (opens new tab).
  • View information on Cruciform Building, Seminar Room B.1.04 (opens new tab).
  • View information on Cruciform Building, Seminar Room B.1.05 (opens new tab).
  • View information on Cruciform Building, Seminar Room B.1.06 (opens new tab).
  • View information on Cruciform Building, Seminar Room B.1.07 (opens new tab).
  • View information on Cruciform Building, Seminar Room B.3.01 (opens new tab).
  • View information on Cruciform Building, Seminar Room B.3.05 (opens new tab).
  • View information on Cruciform Building, Seminar Room B.3.06 (opens new tab).
  • View information on Cruciform Building, Seminar Room B.3.07 (opens new tab).
  • View information on Cruciform Building, Seminar Room B.3.08 (opens new tab).
  • View information on Cruciform Building, Seminar Room B.4.01 (opens new tab).
• Computer Rooms View
  • View information on Cruciform Building, Computer Cluster B155A (opens new tab).
• Eating and Drinking View
  • View information on Dr Coffee Café (opens new tab).
• Other Areas View
  • View information on UCL Cruciform Hub (opens new tab).

You are on Parking (On-street Parking). Skip to the next section.

Parking (On-street Parking)

Collapse all Expand all

• Drop-off Point View
  • There is not a designated drop-off point available.

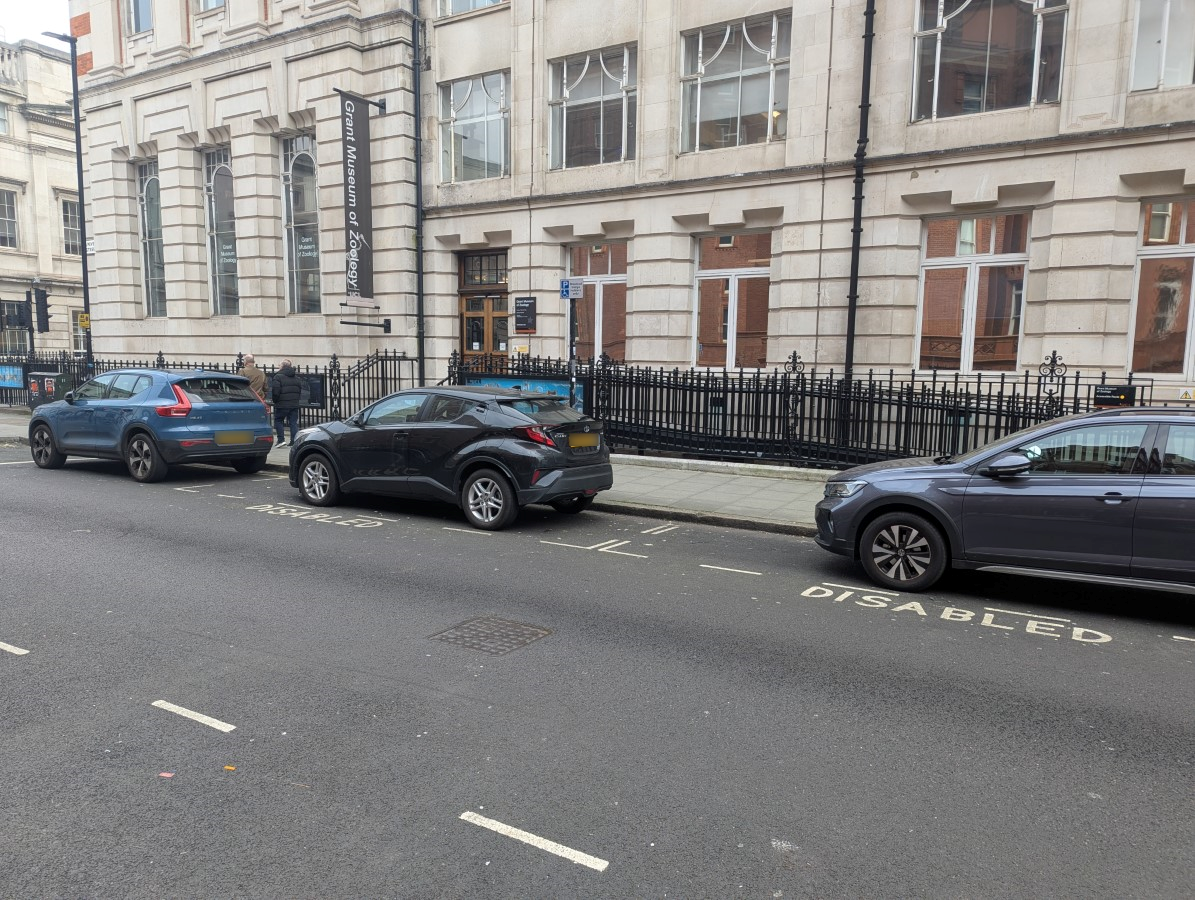

• On-street Parking View
  • On-street designated Blue Badge parking and standard parking is available .
  • The on-street designated Blue Badge parking bays are located on University Street.
  • The Blue Badge bays are clearly marked and signposted.
  • Standard on-street parking is between Monday to Saturday, 8.30am to 6.30pm and charges apply. Maximum stay is 4 hours.

You are on Entrance (Main Entrance). Skip to the next section.

Entrance (Main Entrance)

• This entrance is located at the front of the building on Gower Street.
• The entrance area is clearly signed.
• There is a canopy or recess which provides weather protection at the entrance.
• There is ramped and stepped access at the entrance.
• The ramp has a slight gradient.
• The ramp is between 75cm and 150cm wide with handrails on both sides.
• The ramp bypasses the steps.
• There are 3 steps with handrails on both sides.
• The handrails are easy to grip.
• The handrails cover the flight of stairs throughout its length.
• The handrails do not extend horizontally beyond the first and last step.
• The steps are unmarked.
• The height of the steps is between 15cm and 18cm.
• The height of the highest step is 15cm.
• The depth of the steps is between 30cm and 45cm.
• There is a key fob/card reader at a height of 100cm.
• There is an intercom at a height of 100cm.
• There are double manual doors at this entrance.
• The doors open both ways.
• The width of the opening is 168cm.
• The doors have a high visual contrast.
• There is a push pad or push button to exit at a height of 95cm.
• There is a second set of double manual doors .
• The second set of doors open towards you.
• The width of the opening is 174cm.
• The second set of doors have a high visual contrast.
• There is step-free level access as you enter.

You are on Reception. Skip to the next section.

Reception

• The reception is located to the left from the main entrance.
• The distance from the main entrance is 3m.
• There is step-free level access to reception.
• The height of the reception desk is 105cm.
• There is not a lowered section at the desk.
• There is not a hearing assistance system.
• There is no (or very little) background noise in this area.
• Lighting levels were even at the time of the survey.
• There is room for a wheelchair user to manoeuvre in the seating area (150cm x 150cm).
• There is space for an assistance dog to rest in the seating area.
• Seating available in this area includes: chairs with armrests and sofas.
• Furniture available in this area includes: coffee tables.

You are on Lift (Disabled Lift). Skip to the next section.

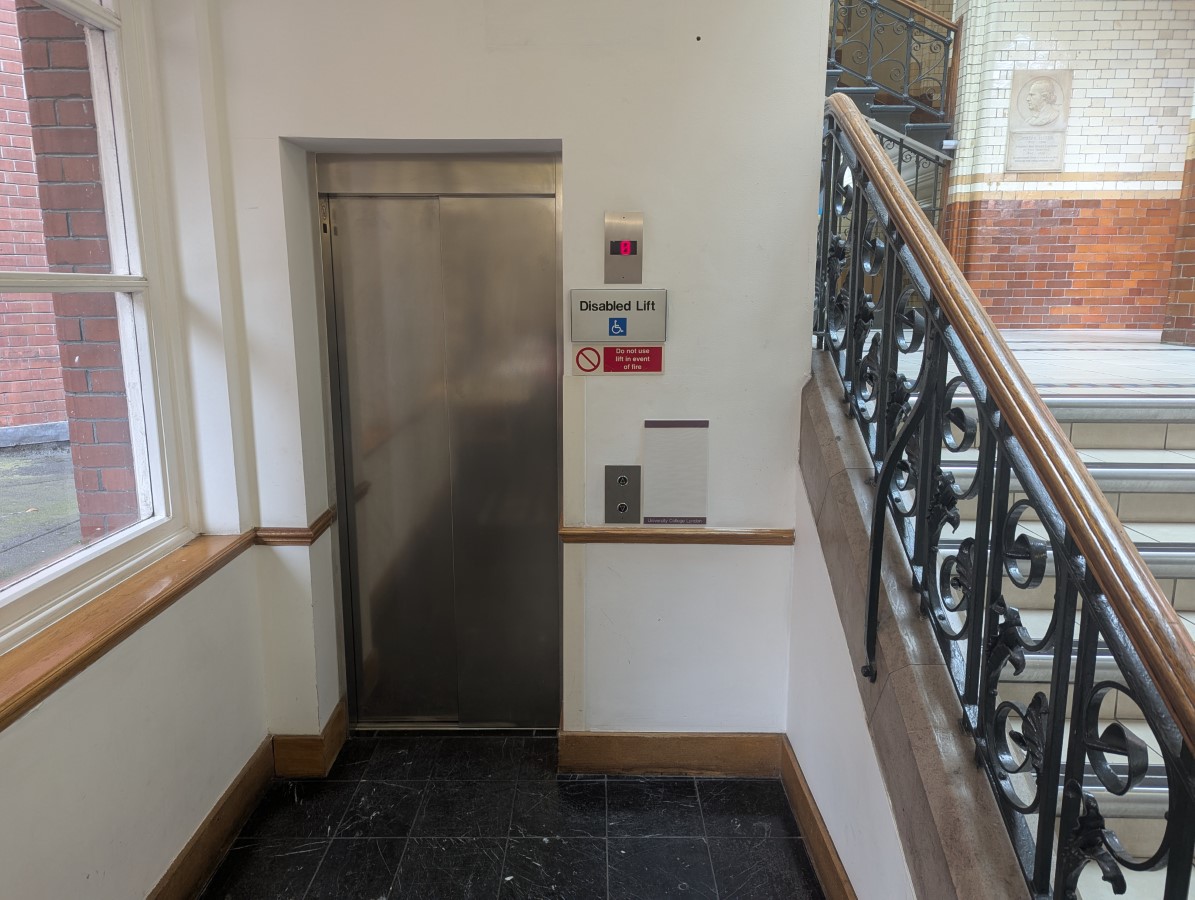

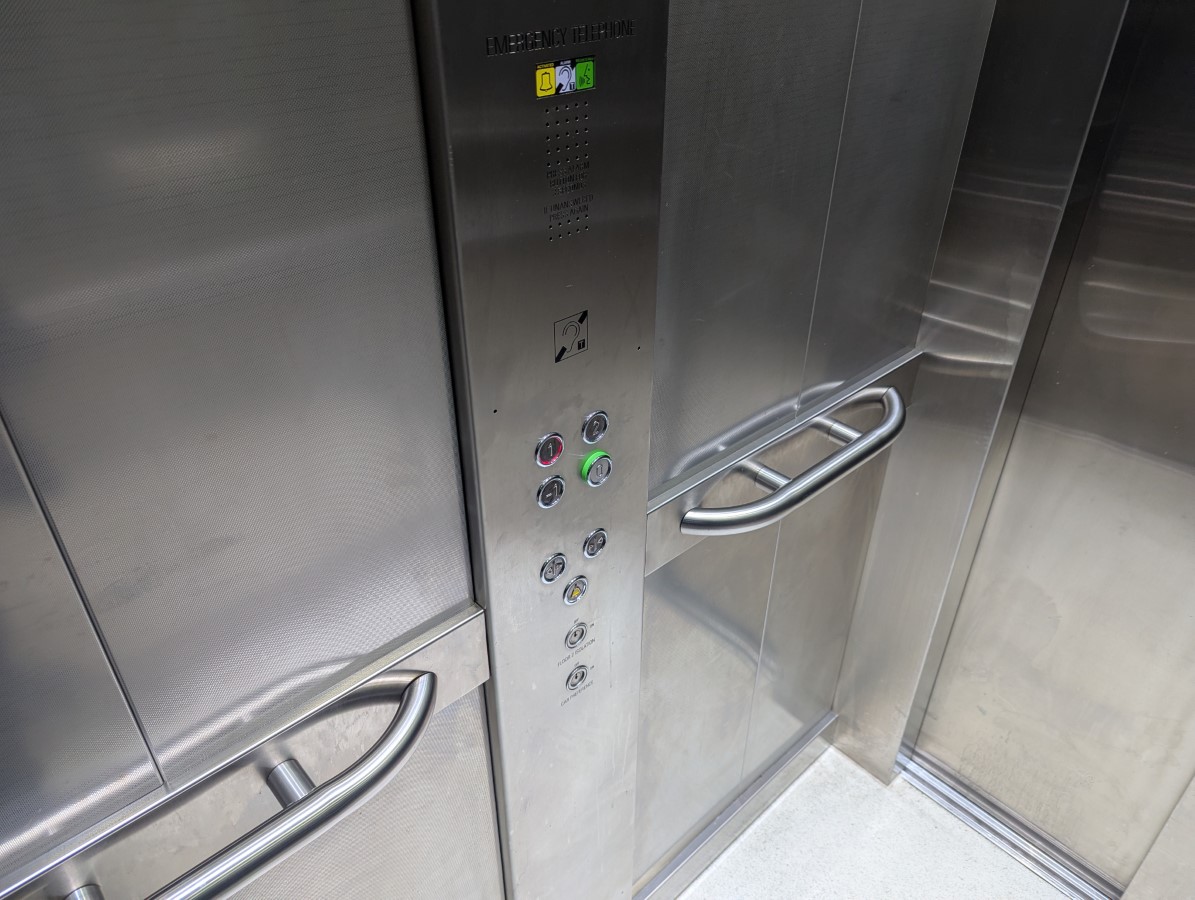

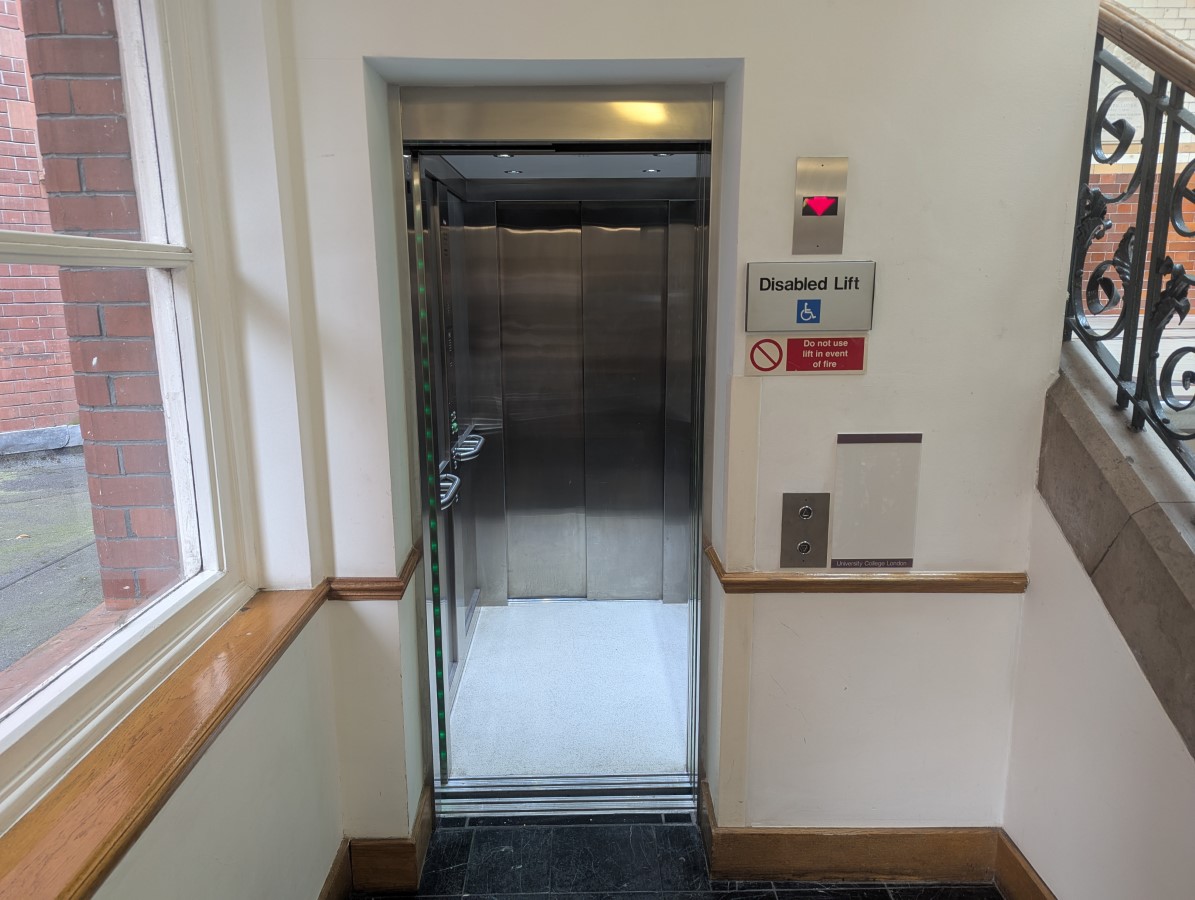

Lift (Disabled Lift)

• The lift surveyed is located ahead from the main entrance.
• The distance from the main entrance is 17m.
• The most accessible route to the lift has step-free level access.
• The basement and ground floors are accessed by this lift.
• The lift door has a high visual contrast.
• The lift has a level manoeuvring space in front of it for a wheelchair user (150cm x 150cm).
• The external lift control buttons have tactile markings and a high visual contrast.
• All of the external lift controls are at a suitable height for a wheelchair user.
• The lift door opening width is 80cm.
• The internal dimensions of the lift are 106cm (width) x 145cm (depth).
• The internal lift control buttons have tactile markings and a high visual contrast.
• All of the internal lift controls are at a suitable height for a wheelchair user.
• Internally the lift has: a separate door to exit, a hearing assistance alarm system, a visual floor indicator and an audible announcer.
• Lighting levels were even at the time of the survey.
• There are manual doors to exit the lift lobby in the basement.

You are on Lift (Main Lifts). Skip to the next section.

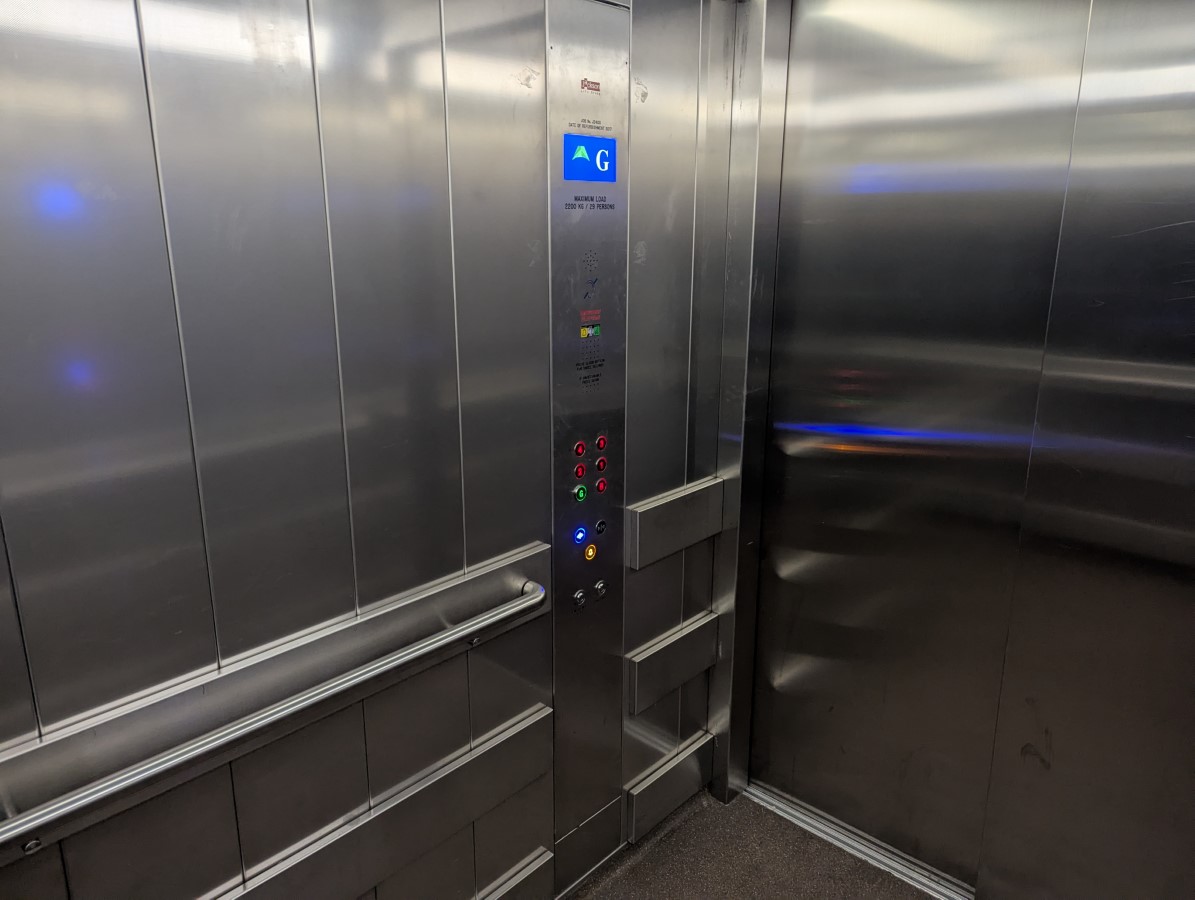

Lift (Main Lifts)

• The lift surveyed is located on the left hand side of the building.
• The distance from the disabled lift is 22m.
• The most accessible route to the lift has step-free level access, a lift and manual doors.
• The basement, ground, first, second, third and fourth floors are accessed by this lift.
• The lift door has a high visual contrast.
• The lift has a level manoeuvring space in front of it for a wheelchair user (150cm x 150cm).
• The external lift control buttons have tactile markings and a high visual contrast.
• All of the external lift controls are at a suitable height for a wheelchair user.
• The lift door opening width is 130cm.
• The internal dimensions of the lift are 154cm (width) x 270cm (depth).
• The internal lift control buttons have tactile markings and a high visual contrast.
• The majority of the internal controls are at a suitable height for a wheelchair user.
• Internally the lift has: a mirror to aid reversing, a hearing assistance alarm system, a visual floor indicator and an audible announcer.
• Lighting levels were low at the time of the survey.
• The main lifts are located in a staff only area. A key card is required to access the main lifts.

You are on Stairs (Ground Floor to Basement). Skip to the next section.

Stairs (Ground Floor to Basement)

• The stairs surveyed are located to the right from the main entrance.
• There is a single manual door to access the stairwell.
• The basement and ground floor can be accessed by these stairs.
• There are 18 steps between floors.
• The steps have some clear markings and have handrails on both sides.
• The handrails are easy to grip.
• The handrails cover the flight of stairs throughout its length.
• The handrails extend horizontally beyond the first and last step.
• The height of the steps is between 15cm and 18cm.
• The height of the highest step is 15cm.
• The depth of the steps is between 30cm and 45cm.
• Lighting levels vary due to the use of large glazed walls.

You are on Stairs (Central). Skip to the next section.

Stairs (Central)

• The stairs surveyed are located in the centre of the building.
• The basement, ground, first, second, third and fourth floors can be accessed by these stairs.
• There are 20+ steps between floors.
• The steps are clearly marked and have handrails on both sides.
• The handrails are easy to grip.
• The handrails do not cover the flight of stairs throughout its length.
• The handrails do not extend horizontally beyond the first and last step.
• The height of the steps is between 15cm and 18cm.
• The height of the highest step is 15cm.
• The depth of the steps is between 30cm and 45cm.
• Lighting levels were even at the time of the survey.
• Access to the stairs from the first floor upwards is via a key card.

You are on Stairs (Foyer Seminar Rooms). Skip to the next section.

Stairs (Foyer Seminar Rooms)

• The stairs surveyed are located to the left from the main entrance.
• There is a single manual door to access the stairwell.
• The ground, first and second floors can be accessed by these stairs.
• There are 19 steps between floors.
• The steps are clearly marked and have a handrail on the right going up.
• The handrail is easy to grip.
• The handrail covers the flight of stairs throughout its length.
• The handrail extends horizontally beyond the first and last step.
• The height of the steps is between 15cm and 18cm.
• The height of the highest step is 18cm.
• The depth of the steps is not between 30cm and 45cm.
• Lighting levels vary due to the use of large glazed walls.

You are on Entrance (UCL School of Life and Medical Sciences - First Floor). Skip to the next section.

Entrance (UCL School of Life and Medical Sciences - First Floor)

• This entrance is located on the first floor.
• The entrance area is clearly signed.
• There is step-free level access at the entrance.
• There is a key fob/card reader at a height of 92cm.
• There are double manual doors at this entrance.
• The doors open towards you.
• The width of the opening is 172cm.
• The doors have a low visual contrast.
• There is a push pad or push button to exit at a height of 96cm.

You are on Toilet with Adaptations (Basement - Lecture Theatres - Left Hand Transfer). Skip to the next section.

Toilet with Adaptations (Basement - Lecture Theatres - Left Hand Transfer)

Collapse all Expand all

• Location and Access View
  • The toilet surveyed is located on the basement.
  • The distance from the disabled lift is 25m.
  • The most accessible route to the toilet has a lift, a slight ramp or slope and manual doors.
  • There is step-free level access into the facility.
  • There is pictorial signage on or near the door.
  • The door opens outwards and has a high visual contrast.
  • The width of the door opening is 88cm.
  • The door has a lever twist lock.
  • Internally the door has a high visual contrast.
  • There is a grab rail on the internal door with a high visual contrast.
• Dimensions and Features View
  • The dimensions of the cubicle are 180cm (width) x 220cm (depth) and there is room for a wheelchair user to manoeuvre (150cm x 150cm).
  • There is a lateral transfer space to the left as you face the toilet, however it is obstructed.
  • The lateral transfer space is 120cm (from the side of the toilet pan).
  • There is a spatula flush on the transfer side.
  • There is a horizontal grab rail on the non-transfer side.
  • The horizontal grab rail has a high visual contrast.
  • There is a vertical grab rail on the transfer side.
  • The vertical grab rail has a high visual contrast.
  • There is a dropdown rail on the transfer side.
  • The dropdown rail has a high visual contrast.
  • The toilet seat is 48cm from the floor.
  • The toilet seat has a high visual contrast.
  • The toilet has a padded backrest.
  • There is a wall mounted toilet roll holder which can be reached when seated on the toilet.
  • The toilet roll holder has a high visual contrast.
  • The toilet roll holder is 90cm from the floor.
  • The wash basin and taps can be reached when seated on the toilet.
  • The wash basin is 73cm from the floor.
  • The wash basin has a sensor tap.
  • The vertical grab rails are on both sides of the wash basin.
  • The wash basin grab rails have a high visual contrast.
  • There is a wall mounted soap dispenser which can be reached when seated on the toilet.
  • The soap dispenser has a high visual contrast.
  • The soap dispenser is 86cm from the floor.
  • There is a wall mounted towel dispenser which can be reached when seated on the toilet.
  • The towel dispenser has a high visual contrast.
  • The towel dispenser is 90cm from the floor.
  • There is a wall mounted hand dryer.
  • The hand dryer has a high visual contrast.
  • The hand dryer is 88cm from the floor.
  • There is a pull cord emergency alarm, however it is not within 10cm from the floor.
  • There is a full length mirror.
  • There is no shelf.
  • The cubicle has a waste bin and a sanitary bin.
  • There are multiple coat hooks.
  • The coat hooks are 106cm and 144cm from the floor.
  • The walls and floor have a high visual contrast.
  • Lighting levels were even at the time of the survey.

You are on Toilet with Adaptations (Basement - Lecture Theatres - Right Hand Transfer). Skip to the next section.

Toilet with Adaptations (Basement - Lecture Theatres - Right Hand Transfer)

Collapse all Expand all

• Location and Access View
  • The toilet surveyed is located in the basement.
  • The distance from the disabled lift is 48m.
  • The most accessible route to the toilet has a lift, a slight ramp or slope and manual doors.
  • There is step-free level access into the facility.
  • There is pictorial signage on or near the door.
  • The door opens outwards and has a high visual contrast.
  • The width of the door opening is 87cm.
  • The door has a lever twist lock.
  • Internally the door has a high visual contrast.
  • There is a grab rail on the internal door with a high visual contrast.
• Dimensions and Features View
  • The dimensions of the cubicle are 140cm (width) x 210cm (depth) and there is not room for a wheelchair user to manoeuvre (150cm x 150cm).
  • There is a lateral transfer space to the right as you face the toilet, however it is obstructed.
  • The lateral transfer space is 72cm (from the side of the toilet pan).
  • There is a spatula flush on the transfer side.
  • There is a horizontal grab rail on the non-transfer side.
  • The horizontal grab rail has a high visual contrast.
  • There is a vertical grab rail on the transfer side.
  • The vertical grab rail has a high visual contrast.
  • There is a dropdown rail on the transfer side.
  • The dropdown rail has a high visual contrast.
  • The toilet seat is 47cm from the floor.
  • The toilet seat has a high visual contrast.
  • The toilet has a padded backrest.
  • There is a wall mounted toilet roll holder which can be reached when seated on the toilet.
  • The toilet roll holder has a high visual contrast.
  • The toilet roll holder is 88cm from the floor.
  • The wash basin and taps can be reached when seated on the toilet.
  • The wash basin is 73cm from the floor.
  • The wash basin has a sensor tap.
  • The vertical grab rail is on the left as you face the wash basin.
  • The wash basin grab rails have a high visual contrast.
  • There is a wall mounted soap dispenser which cannot be reached when seated on the toilet.
  • The soap dispenser has a high visual contrast.
  • The soap dispenser is 85cm from the floor.
  • There is a wall mounted towel dispenser which can be reached when seated on the toilet.
  • The towel dispenser has a high visual contrast.
  • The towel dispenser is 94cm from the floor.
  • There is a wall mounted hand dryer.
  • The hand dryer has a high visual contrast.
  • The hand dryer is 90cm from the floor.
  • There is no emergency alarm.
  • There is no mirror.
  • There is no shelf.
  • The cubicle has a waste bin and a sanitary bin.
  • There is one coat hook.
  • The coat hook is 106cm from the floor.
  • The walls and floor have a high visual contrast.
  • Lighting levels were even at the time of the survey.

You are on Toilet with Adaptations (Basement - Left Hand Transfer). Skip to the next section.

Toilet with Adaptations (Basement - Left Hand Transfer)

Collapse all Expand all

• Location and Access View
  • The toilet surveyed is located along the basement corridor.
  • The distance from the disabled lift is 14m.
  • The most accessible route to the toilet has a lift, a slight ramp or slope, a steep ramp or slope and manual doors.
  • There is step-free level access into the facility.
  • There is pictorial signage on or near the door.
  • The door opens outwards and has a high visual contrast.
  • The width of the door opening is 88cm.
  • The door has a lever twist lock.
  • Internally the door has a high visual contrast.
  • There is a grab rail on the internal door with a high visual contrast.
• Dimensions and Features View
  • The dimensions of the cubicle are 140cm (width) x 200cm (depth) and there is not room for a wheelchair user to manoeuvre (150cm x 150cm).
  • There is a lateral transfer space to the left as you face the toilet, however it is obstructed.
  • The lateral transfer space is 100cm (from the side of the toilet pan).
  • There is a spatula flush on the transfer side.
  • There is a horizontal grab rail on the non-transfer side.
  • The horizontal grab rail has a high visual contrast.
  • There is a vertical grab rail on the transfer side.
  • The vertical grab rail has a high visual contrast.
  • There is a dropdown rail on the transfer side.
  • The dropdown rail has a high visual contrast.
  • The toilet seat is 48cm from the floor.
  • The toilet seat has a high visual contrast.
  • The toilet has a padded backrest.
  • There is a wall mounted toilet roll holder which can be reached when seated on the toilet.
  • The toilet roll holder has a high visual contrast.
  • The toilet roll holder is 88cm from the floor.
  • The wash basin and taps can be reached when seated on the toilet.
  • The wash basin is 72cm from the floor.
  • The wash basin has a sensor tap.
  • The vertical grab rails are on both sides of the wash basin.
  • The wash basin grab rails have a high visual contrast.
  • There is a wall mounted soap dispenser which can be reached when seated on the toilet.
  • The soap dispenser has a high visual contrast.
  • The soap dispenser is 88cm from the floor.
  • There is a wall mounted towel dispenser which cannot be reached when seated on the toilet.
  • The towel dispenser has a high visual contrast.
  • The towel dispenser is 95cm from the floor.
  • There is a wall mounted hand dryer.
  • The hand dryer has a high visual contrast.
  • The hand dryer is 90cm from the floor.
  • There is a pull cord emergency alarm, however it is not within 10cm from the floor.
  • There is a full length mirror.
  • There is an unobstructed shelf.
  • The shelf does not meet the AccessAble criteria for Stoma Friendly Toilets.
  • The cubicle has a waste bin and a sanitary bin.
  • There are multiple coat hooks.
  • The coat hooks are 107cm and 144cm from the floor.
  • The walls and floor have a high visual contrast.
  • Lighting levels were even at the time of the survey.

You are on Toilet with Adaptations (Ground Floor - Right Hand Transfer). Skip to the next section.

Toilet with Adaptations (Ground Floor - Right Hand Transfer)

Collapse all Expand all

• Location and Access View
  • The toilet surveyed is located along the ground floor corridor.
  • The distance from the disabled lift is 11m.
  • The most accessible route to the toilet has step-free level access and a lift.
  • There is step-free level access into the facility.
  • There is pictorial signage on or near the door.
  • The door opens outwards and has a high visual contrast.
  • The width of the door opening is 87cm.
  • The door has a lever twist lock.
  • Internally the door has a high visual contrast.
  • There is a grab rail on the internal door with a high visual contrast.
• Dimensions and Features View
  • The dimensions of the cubicle are 300cm (width) x 164cm (depth) and there is not room for a wheelchair user to manoeuvre (150cm x 150cm).
  • There is a lateral transfer space to the right as you face the toilet, however it is obstructed.
  • The lateral transfer space is 260cm (from the side of the toilet pan).
  • There is a spatula flush on the transfer side.
  • There is a horizontal grab rail on the non-transfer side.
  • The horizontal grab rail has a high visual contrast.
  • There is a vertical grab rail on the transfer side.
  • The vertical grab rail has a high visual contrast.
  • There is a dropdown rail on the transfer side.
  • The dropdown rail has a high visual contrast.
  • The toilet seat is 48cm from the floor.
  • The toilet seat has a high visual contrast.
  • The toilet has a padded backrest.
  • There is a wall mounted toilet roll holder which can be reached when seated on the toilet.
  • The toilet roll holder has a high visual contrast.
  • The toilet roll holder is 88cm from the floor.
  • The wash basin and taps can be reached when seated on the toilet.
  • The wash basin is 72cm from the floor.
  • The wash basin has a sensor tap.
  • The vertical grab rails are on both sides of the wash basin.
  • The wash basin grab rails have a high visual contrast.
  • There is a wall mounted soap dispenser which can be reached when seated on the toilet.
  • The soap dispenser has a high visual contrast.
  • The soap dispenser is 89cm from the floor.
  • There is a wall mounted towel dispenser which can be reached when seated on the toilet.
  • The towel dispenser has a high visual contrast.
  • The towel dispenser is 94cm from the floor.
  • There is a wall mounted hand dryer.
  • The hand dryer has a high visual contrast.
  • The hand dryer is 90cm from the floor.
  • There is a pull cord emergency alarm but it was tied up at the time of the survey.
  • There is a full length mirror.
  • There is an unobstructed shelf.
  • The shelf meets the AccessAble criteria for Stoma Friendly Toilets.
  • The cubicle has a waste bin and a sanitary bin.
  • There is one coat hook.
  • The coat hook is 106cm from the floor.
  • The walls and floor have a high visual contrast.
  • Lighting levels were even at the time of the survey.

You are on Toilet with Adaptations (First Floor - Right Hand Transfer). Skip to the next section.

Toilet with Adaptations (First Floor - Right Hand Transfer)

Collapse all Expand all

• Location and Access View
  • The toilet surveyed is located on the first floor.
  • The distance from the main lifts is 13m.
  • The most accessible route to the toilet has step-free level access, a lift and manual doors.
  • There is step-free level access into the facility.
  • There is pictorial signage on or near the door.
  • The door opens outwards and has a high visual contrast.
  • The width of the door opening is 88cm.
  • The door has a twist lock.
  • Internally the door has a high visual contrast.
  • There is a grab rail on the internal door with a high visual contrast.
• Dimensions and Features View
  • The dimensions of the cubicle are 157cm (width) x 160cm (depth) and there is not room for a wheelchair user to manoeuvre (150cm x 150cm).
  • There is a lateral transfer space to the right as you face the toilet, however it is obstructed.
  • The lateral transfer space is 88cm (from the side of the toilet pan).
  • There is a lever flush on the transfer side.
  • There is a horizontal grab rail on the non-transfer side.
  • The horizontal grab rail has a low visual contrast.
  • There is a vertical grab rail on the transfer side.
  • The vertical grab rail has a low visual contrast.
  • There is a dropdown rail on the transfer side.
  • The dropdown rail has a low visual contrast.
  • The toilet seat is 45cm from the floor.
  • The toilet seat has a low visual contrast.
  • The toilet has a padded backrest.
  • There is a wall mounted toilet roll holder which can be reached when seated on the toilet.
  • The toilet roll holder has a medium visual contrast.
  • The toilet roll holder is 90cm from the floor.
  • The wash basin and taps can be reached when seated on the toilet.
  • The wash basin is 74cm from the floor.
  • The wash basin has a lever mixer tap.
  • The vertical grab rail is on the right as you face the wash basin.
  • The wash basin grab rail has a low visual contrast.
  • There is a wall mounted soap dispenser which cannot be reached when seated on the toilet.
  • The soap dispenser has a low visual contrast.
  • The soap dispenser is 90cm from the floor.
  • There is not a towel dispenser.
  • There is a wall mounted hand dryer.
  • The hand dryer has a low visual contrast.
  • The hand dryer is 102cm from the floor.
  • There is a pull cord emergency alarm but it was tied up at the time of the survey.
  • There is a mirror.
  • There is no shelf.
  • The cubicle has a waste bin and a sanitary bin.
  • There are no coat hooks.
  • The walls and floor have a high visual contrast.
  • Lighting levels were even at the time of the survey.

You are on Toilet with Adaptations (Second Floor - Right Hand Transfer). Skip to the next section.

Toilet with Adaptations (Second Floor - Right Hand Transfer)

Collapse all Expand all

• Location and Access View
  • The toilet surveyed is located on the second floor.
  • The distance from the main lifts is 13m.
  • The most accessible route to the toilet has step-free level access, a lift and manual doors.
  • There is step-free level access into the facility.
  • There is pictorial signage on or near the door.
  • The door opens outwards and has a high visual contrast.
  • The width of the door opening is 87cm.
  • The door has a lever twist lock.
  • Internally the door has a high visual contrast.
  • There is a grab rail on the internal door with a high visual contrast.
• Dimensions and Features View
  • The dimensions of the cubicle are 155cm (width) x 153cm (depth) and there is not room for a wheelchair user to manoeuvre (150cm x 150cm).
  • There is a lateral transfer space to the right as you face the toilet, however it is obstructed.
  • The lateral transfer space is 90cm (from the side of the toilet pan).
  • There is a spatula flush on the transfer side.
  • There is a horizontal grab rail on the non-transfer side.
  • The horizontal grab rail has a low visual contrast.
  • There is a vertical grab rail on the transfer side.
  • The vertical grab rail has a low visual contrast.
  • There is a dropdown rail on the transfer side.
  • The dropdown rail has a low visual contrast.
  • The toilet seat is 45cm from the floor.
  • The toilet seat has a low visual contrast.
  • The toilet has a padded backrest.
  • There is a wall mounted toilet roll holder which can be reached when seated on the toilet.
  • The toilet roll holder has a medium visual contrast.
  • The toilet roll holder is 110cm from the floor.
  • The wash basin and taps can be reached when seated on the toilet.
  • The wash basin is 74cm from the floor.
  • The wash basin has a lever mixer tap.
  • The vertical grab rail is on the right as you face the wash basin.
  • The wash basin grab rail has a low visual contrast.
  • There is a wall mounted soap dispenser which cannot be reached when seated on the toilet.
  • The soap dispenser has a low visual contrast.
  • The soap dispenser is 95cm from the floor.
  • There is a wall mounted towel dispenser which cannot be reached when seated on the toilet.
  • The towel dispenser has a low visual contrast.
  • The towel dispenser is 110cm from the floor.
  • There is not a hand dryer.
  • There is a pull cord emergency alarm but it was tied up at the time of the survey.
  • There is a mirror.
  • There is no shelf.
  • The cubicle has a waste bin and a sanitary bin.
  • There are no coat hooks.
  • The walls and floor have a high visual contrast.
  • Lighting levels were even at the time of the survey.

You are on Toilet with Adaptations (Third Floor - Right Hand Transfer). Skip to the next section.

Toilet with Adaptations (Third Floor - Right Hand Transfer)

Collapse all Expand all

• Location and Access View
  • The toilet surveyed is located on the third floor.
  • The distance from the main lifts is 13m.
  • The most accessible route to the toilet has step-free level access, a lift and manual doors.
  • There is step-free level access into the facility.
  • There is pictorial signage on or near the door.
  • The door opens outwards and has a high visual contrast.
  • The width of the door opening is 87cm.
  • The door has a twist lock.
  • Internally the door has a high visual contrast.
  • There is a grab rail on the internal door with a high visual contrast.
• Dimensions and Features View
  • The dimensions of the cubicle are 130cm (width) x 150cm (depth) and there is not room for a wheelchair user to manoeuvre (150cm x 150cm).
  • There is a lateral transfer space to the right as you face the toilet, however it is obstructed.
  • The lateral transfer space is 70cm (from the side of the toilet pan).
  • There is a spatula flush on the transfer side.
  • There is a horizontal grab rail on the non-transfer side.
  • The horizontal grab rail has a low visual contrast.
  • There is a vertical grab rail on the transfer side.
  • The vertical grab rail has a low visual contrast.
  • There is a dropdown rail on the transfer side.
  • The dropdown rail has a low visual contrast.
  • The toilet seat is 45cm from the floor.
  • The toilet seat has a low visual contrast.
  • The toilet has a padded backrest.
  • There is a wall mounted toilet roll holder which can be reached when seated on the toilet.
  • The toilet roll holder has a medium visual contrast.
  • The toilet roll holder is 110cm from the floor.
  • The wash basin and taps can be reached when seated on the toilet.
  • The wash basin is 75cm from the floor.
  • The wash basin has a lever mixer tap.
  • The vertical grab rail is on the right as you face the wash basin.
  • The wash basin grab rail has a low visual contrast.
  • There is a wall mounted soap dispenser which cannot be reached when seated on the toilet.
  • The soap dispenser has a low visual contrast.
  • The soap dispenser is 90cm from the floor.
  • There is a wall mounted towel dispenser which cannot be reached when seated on the toilet.
  • The towel dispenser has a low visual contrast.
  • The towel dispenser is 96cm from the floor.
  • There is not a hand dryer.
  • There is a pull cord emergency alarm, however it is not within 10cm from the floor.
  • There is a mirror.
  • There is no shelf.
  • The cubicle has a waste bin and a sanitary bin.
  • There are no coat hooks.
  • The walls and floor have a high visual contrast.
  • Lighting levels were even at the time of the survey, with unshaded light sources.

You are on Toilet with Adaptations (Fourth Floor - Right Hand Transfer). Skip to the next section.

Toilet with Adaptations (Fourth Floor - Right Hand Transfer)

Collapse all Expand all

• Location and Access View
  • The toilet surveyed is located on the fourth floor.
  • The distance from the main lifts is 13m.
  • The most accessible route to the toilet has step-free level access and manual doors.
  • There is step-free level access into the facility.
  • There is pictorial signage on or near the door.
  • The door opens outwards and has a high visual contrast.
  • The width of the door opening is 87cm.
  • The door has a lever twist lock.
  • Internally the door has a high visual contrast.
  • There is a grab rail on the internal door with a high visual contrast.
• Dimensions and Features View
  • The dimensions of the cubicle are 152cm (width) x 153cm (depth) and there is not room for a wheelchair user to manoeuvre (150cm x 150cm).
  • There is a lateral transfer space to the right as you face the toilet, however it is obstructed.
  • The lateral transfer space is 80cm (from the side of the toilet pan).
  • There is a lever flush on the transfer side.
  • There is a horizontal grab rail on the non-transfer side.
  • The horizontal grab rail has a low visual contrast.
  • There is a vertical grab rail on the transfer side.
  • The vertical grab rail has a low visual contrast.
  • There is a dropdown rail on the transfer side.
  • The dropdown rail has a low visual contrast.
  • The toilet seat is 45cm from the floor.
  • The toilet seat has a low visual contrast.
  • The toilet has a padded backrest.
  • There is a wall mounted toilet roll holder which can be reached when seated on the toilet.
  • The toilet roll holder has a medium visual contrast.
  • The toilet roll holder is 110cm from the floor.
  • The wash basin and taps can be reached when seated on the toilet.
  • The wash basin is 75cm from the floor.
  • The wash basin has a lever mixer tap.
  • The vertical grab rail is on the right as you face the wash basin.
  • The wash basin grab rail has a low visual contrast.
  • There is a wall mounted soap dispenser which cannot be reached when seated on the toilet.
  • The soap dispenser has a low visual contrast.
  • The soap dispenser is 109cm from the floor.
  • There is a wall mounted towel dispenser which cannot be reached when seated on the toilet.
  • The towel dispenser has a low visual contrast.
  • The towel dispenser is 104cm from the floor.
  • There is not a hand dryer.
  • There is a pull cord emergency alarm, however it is not within 10cm from the floor.
  • There is a mirror.
  • There is no shelf.
  • The cubicle has a waste bin and a sanitary bin.
  • There are no coat hooks.
  • The walls and floor have a high visual contrast.
  • Lighting levels were even at the time of the survey, with unshaded light sources.
