Access Guide
Summary
-
Service
View
- PEARL (Person Environment Activity Research Laboratory) is located within londoneast-UK Business & Technical Park in Dagenham, London.
-
Building
View
- Services / Facilities within the building include; open collaboration spaces and meeting rooms, workshops, a pop-up theatre, virtual reality studios, a life-sized urban environment physical simulation space ('Space'), and a facility named Spin, the micromobility unit of Ford Motor Company.
- PEARL is a part of the UK's national research facility for infrastructure and cities, called the UK Collaboratorium for Research on Infrastructure and Cities (UKCRIC).
-
Location of Toilet/Changing Facilities
View

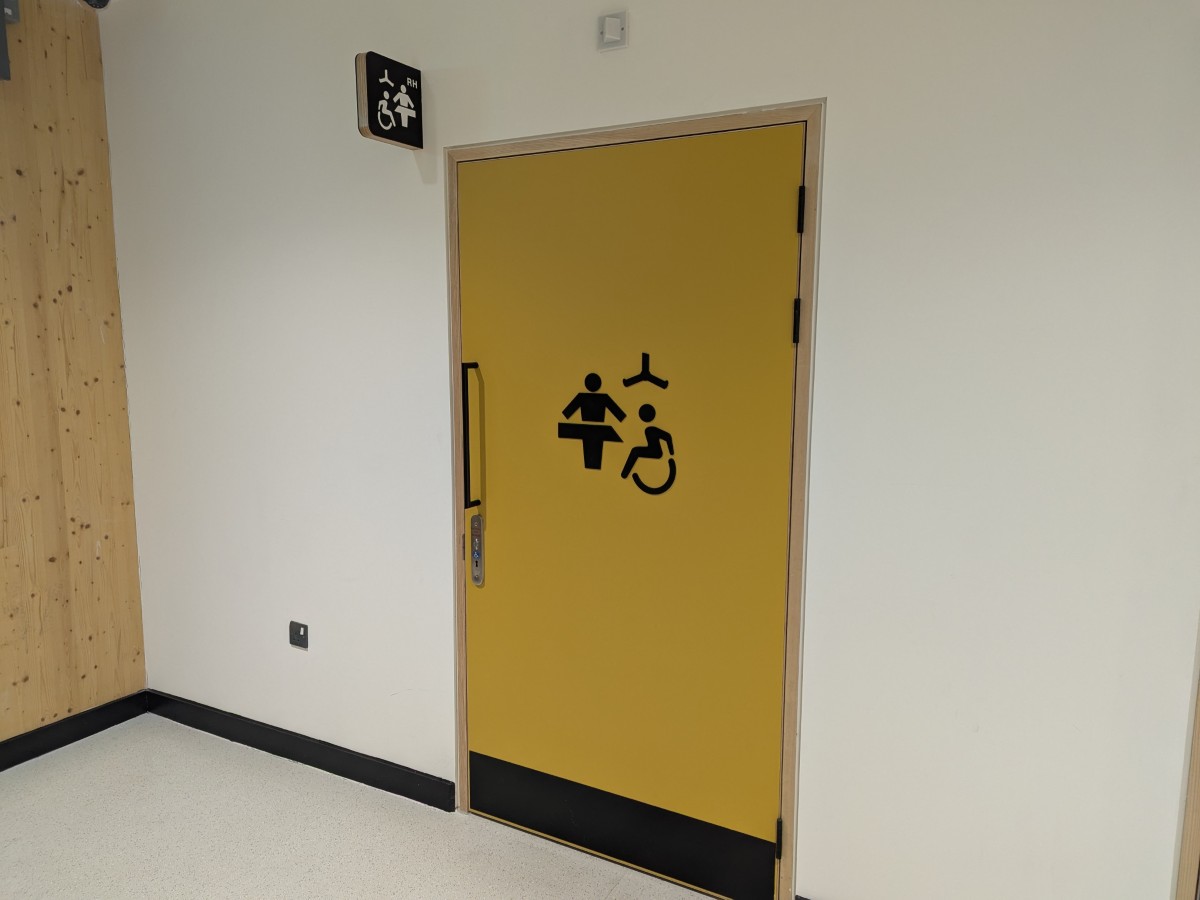

- There is a/are Changing Places toilet(s) located on the ground floor off the main access corridor.

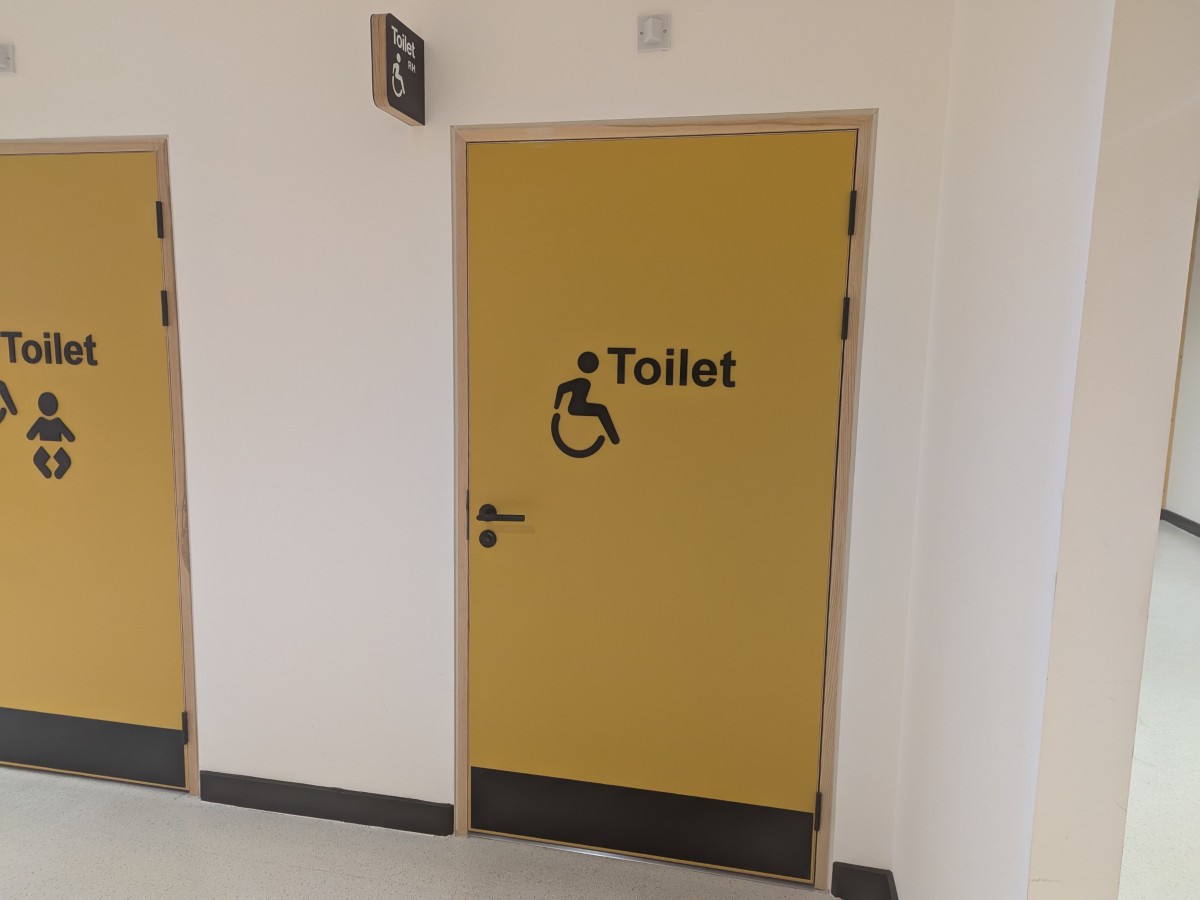

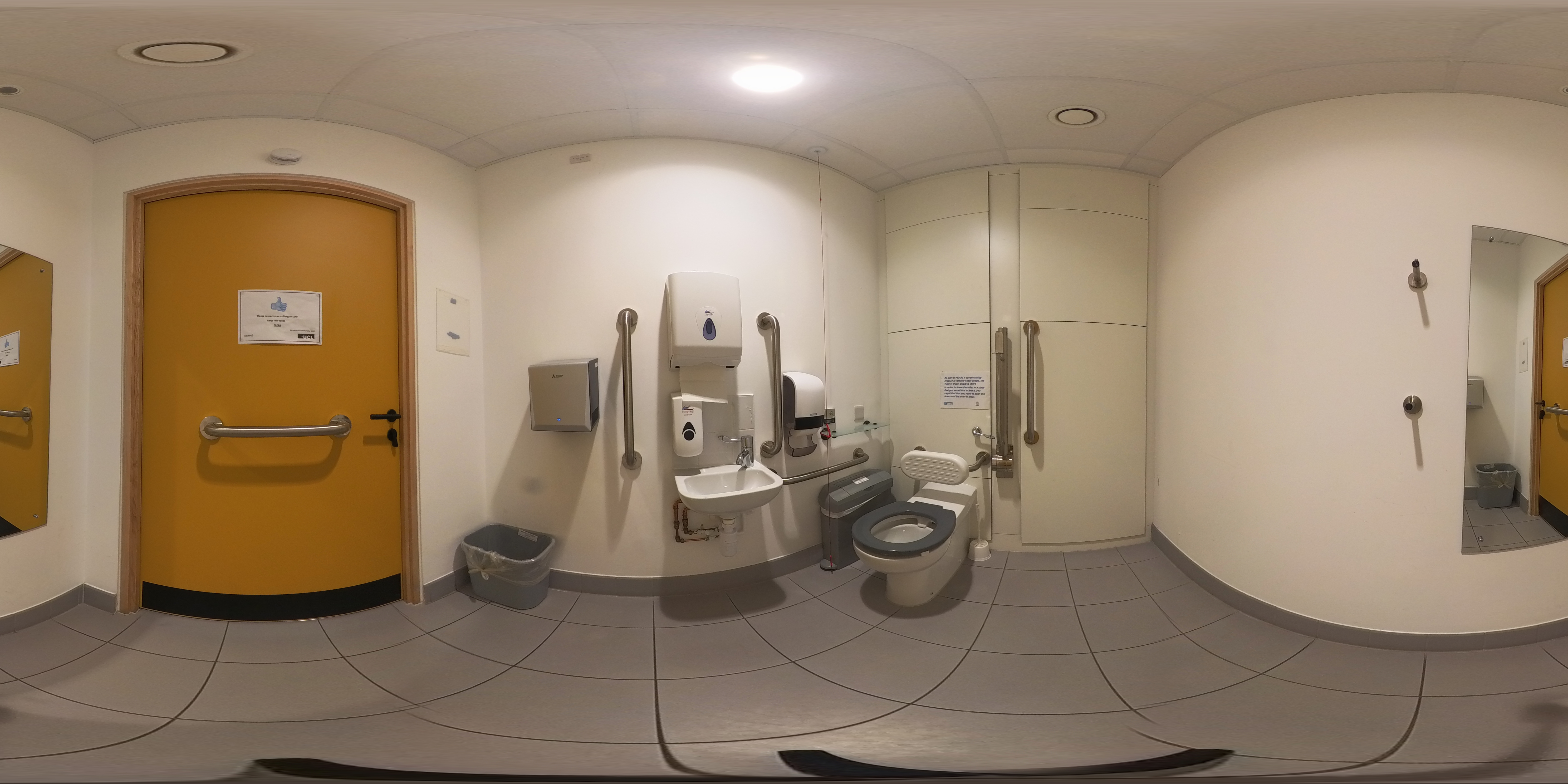

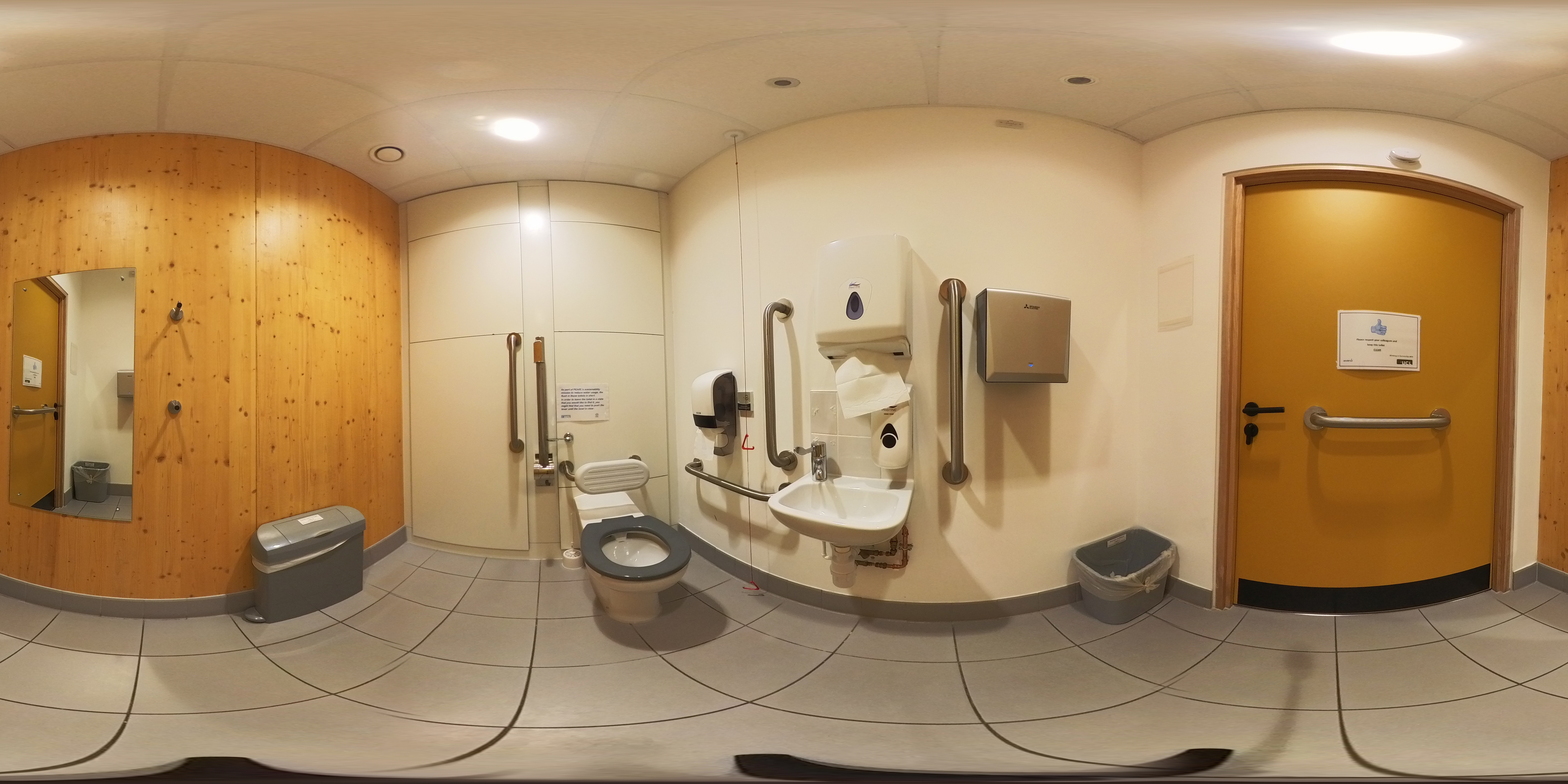

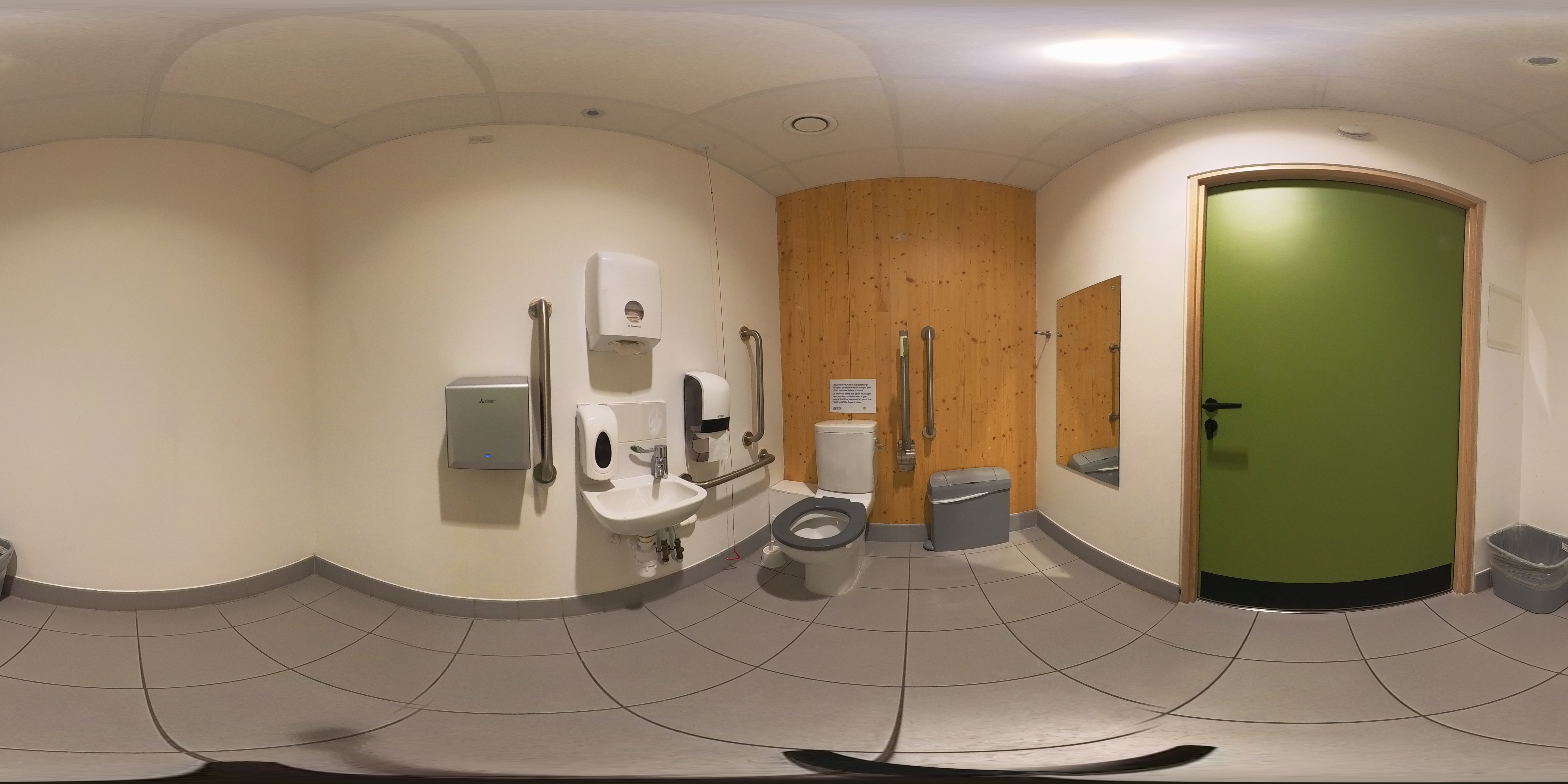

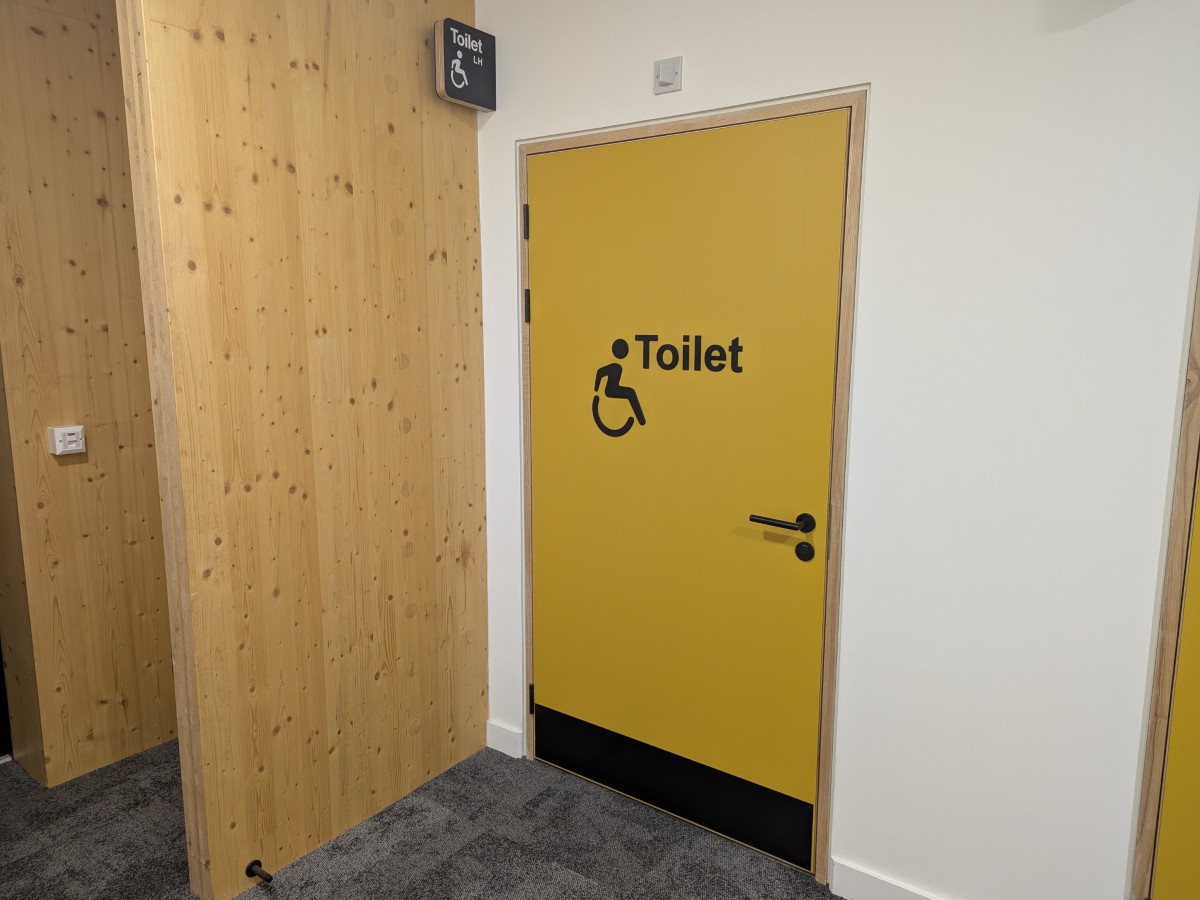

- Accessible toilet facilities are located on the ground and first floors off the main access corridors.

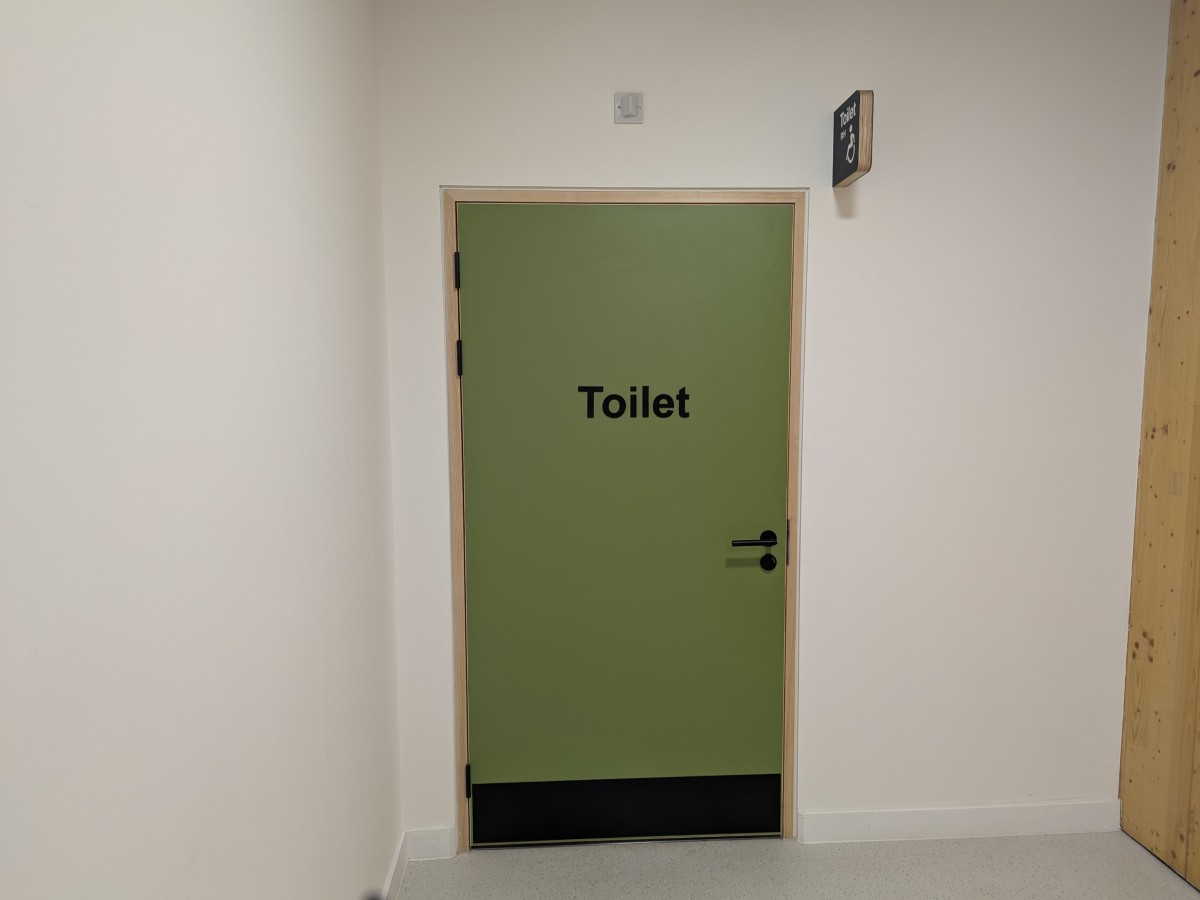

- Shared standard toilet facilities are located on the ground and first floors off the main access corridors.
- Baby changing facilities are located on the ground floor off the main access corridor.

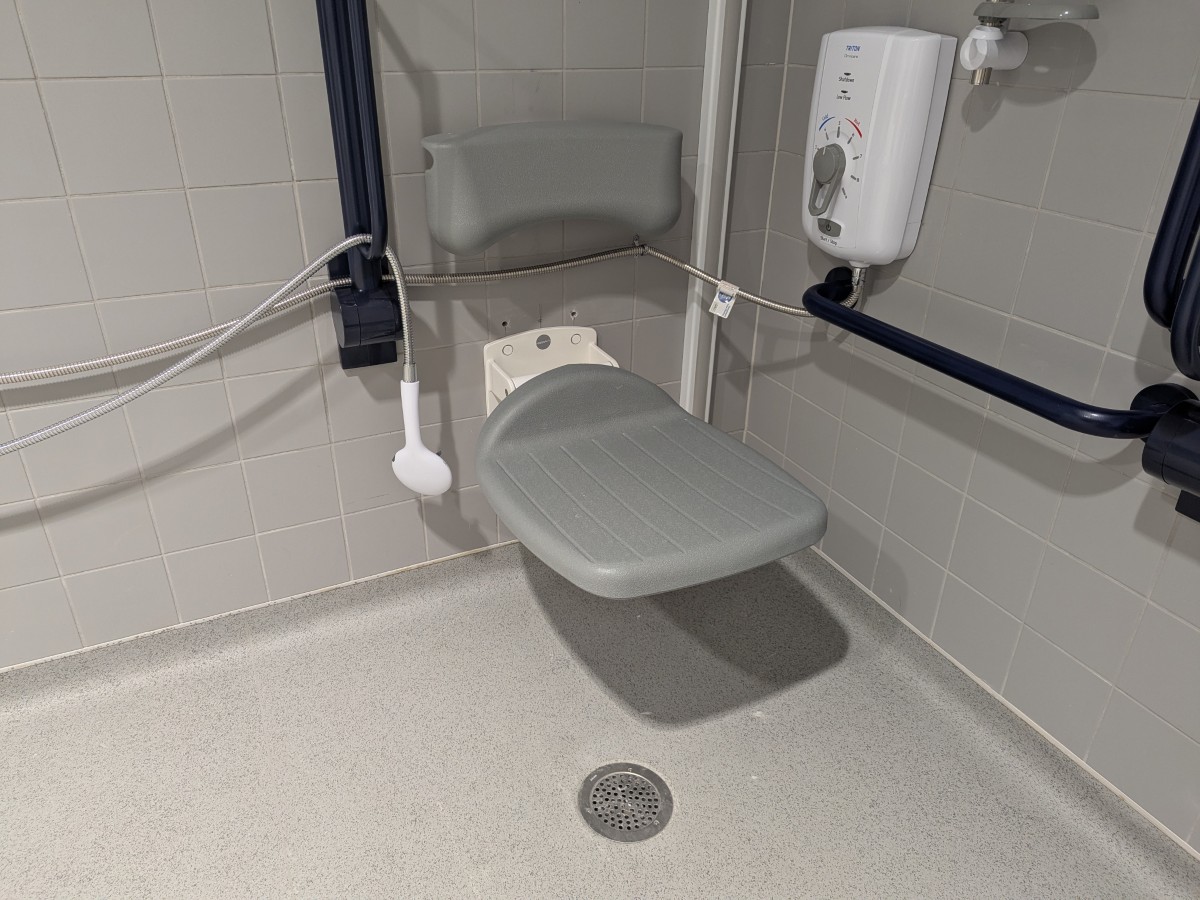

- Accessible shower facilities are located on the ground floor off the main access corridor.
- Standard shower facilities are located on the ground floor off the main access corridor.
Getting Here
-
By Road
View
- Londoneast-UK Business & Technical Park is off Yew Tree Avenue, A1112 Rainham Road South, just north of the A13 at Rainham and Dagenham, and just south of the A12 at Romford.
- There are Blue Badge parking bays outside the venue.
Standard parking bays are not available on site and visitors are recommended to arrive by public transport. - For more information on directions for visiting PEARL please click here (opens new tab).
-
By Bus
View
- There is not a bus stop within 150 metres of the venue.
- The nearest bus stops are 450m from the venue.
TfL route 364 serves Reede Road Dagenham (Stop P), and TfL routes 103 and 364 serve Dagenham East Station (Stops C and N). - For more information on bus routes stopping near Dagenham East Station please click here (opens new tab).
-
By Train
View
- The nearest Railway Station is Romford.
- Romford Rail Station is served by London Overground and Elizabeth Line.
- For more information on trains to Romford Rail Station please click here (opens new tab).
-
By Underground
View
- The nearest underground station is Dagenham East.
- Dagenham East is served by the District Line.
- For more information on Dagenham East Underground Station please click here (opens new tab).
Useful Information
- To see more information on Student Disability Services please click here (opens new tab).
- Telephone Number: 020 7679 0100.
- Email: [email protected].
- To see more information on Student Centre please click here (opens new tab).
- Telephone Number: 020 7679 2036.
- Email: [email protected].
- To see more information on Undergraduate Admissions please click here (opens new tab).
- Email: [email protected].
- To see more information on Graduate Admissions please click here (opens new tab).
- Telephone Number: 020 7679 7381.
- Email: [email protected].
- To see more information on Accommodation please click here (opens new tab).
- Telephone Number: 020 7679 6322.
- Email: [email protected].
Building Parking
- The building does have its own dedicated parking.
-
Building Car Park
View
- The car park can be used by staff, students and visitors.
- There are no parking charges that apply on the day.
- The car park is located at the front of the building.
- The car park type is open air/surface.
- The car park does not have a height restriction barrier.
- Designated Blue Badge parking bays are available.
- There is/are 4 designated parking bay(s) within the car park.
- The Blue Badge bay(s) is/are clearly marked and signposted.
- The dimensions of the designated parking bay(s) are 240cm x 480cm.
- The Blue Badge parking bays have a marked zone to both sides and rear.
- The marked zone is 120cm wide.
- The dimensions of the designated bays do not vary in size.
- Parking spaces for Blue Badge holders do not need to be booked in advance.
- The nearest designated bay is 17m (18yd 1ft) from the main entrance.
- The route from the car park to the building is accessible to a wheelchair user.
- The car park surface is tarmac.
-
Site/Campus Car Parks
View
- There is not a site/campus car park within approximately 200m.
-
Public Car Parks
View
- There is not a car park for public use within 200m (approx).
-
Drop Off Point
View
- There is not a designated drop off point.
-
Comments
View
- There are 2 electric vehicle charging points available.
- The height of the electric vehicle charging point nozzle slots is 105 cm.
- It is free to charge your vehicle at these charging points.
Outside Access (Main Entrance)
-
Entrance
View

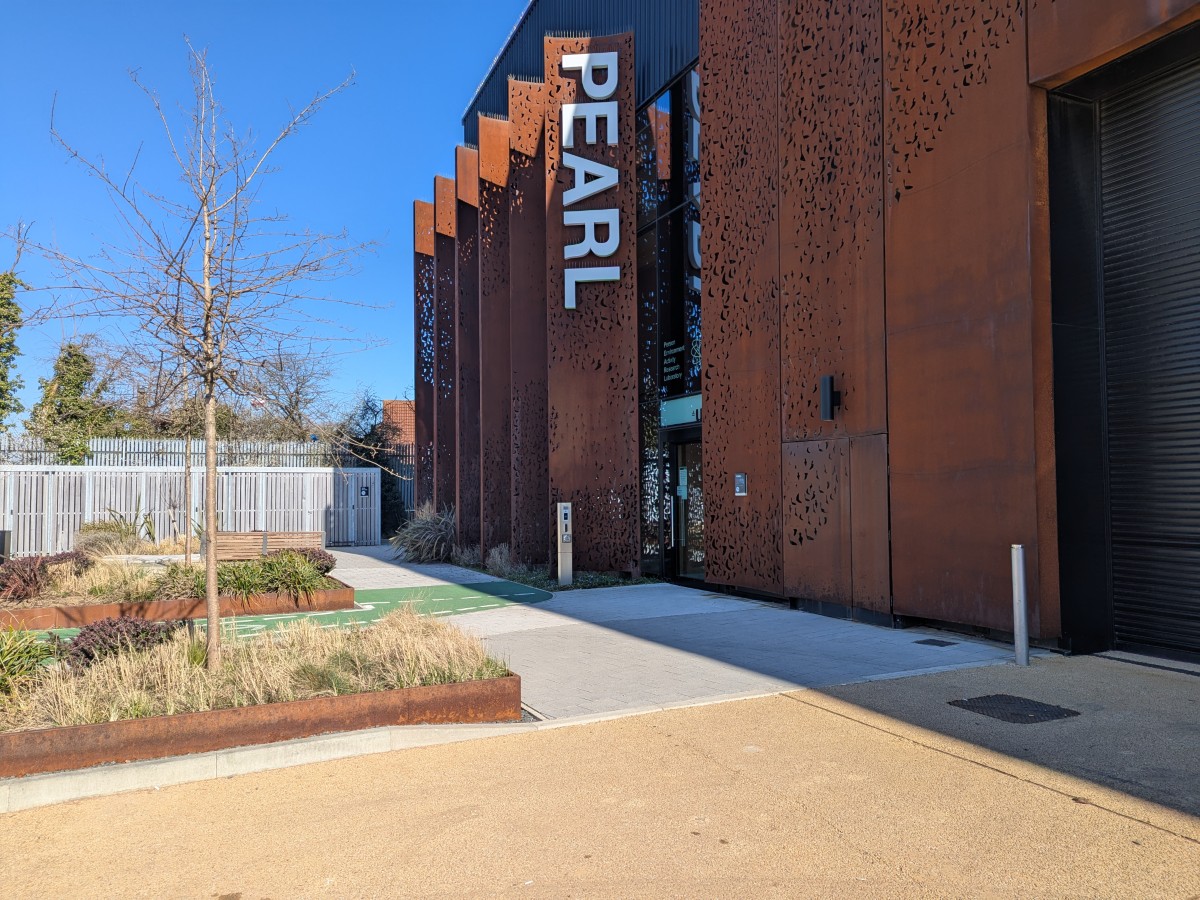

- This information is for the entrance located to the left of the building.
- This entrance gives access to reception.
- The entrance area/door is clearly signed.
- This entrance is signed with 'Person Environment Activity Research Laboratory'.
- There is step-free access at this entrance.
- There is not a canopy or recess which provides weather protection at this entrance.
- There is a dark mat or floor marking at this entrance that might be perceived as a hole.
- The entrance door(s) does/do contrast visually with its immediate surroundings.
- There is a bell/buzzer.
- The height of the bell/buzzer is 120cm (3ft 11in).
- There is an intercom.
- The height of the intercom is 125cm (4ft 1in).
- A key card is required for access at this entrance.
- The height of the key card reader is 95cm.
- The main door(s) open(s) automatically (towards you).
- There is a push pad/button to enter and exit the main automatic doors.
- The entry push pad or push button is 75cm from floor level.
- The exit push pad or push button is 95cm from floor level.
- The door(s) is/are single width.
- The width of the door opening is 114cm.
- There is a small lip on the threshold of the entrance, with a height of 2cm or below.
- There is a second set of doors.
- The door(s) open(s) automatically (towards you).
- There is a push pad/button to enter and exit the main automatic doors.
- The entry push pad or push button is 100cm from floor level.
- The exit push pad or push button is 110cm from floor level.
- The door(s) is/are single width.
- The width of the door opening is 111cm.
Reception
-
Reception
View
- The reception point is located straight ahead from the main entrance.
- The reception point is approximately 7m (7yd 1ft) from the main entrance.
- The reception area/desk is clearly visible from the entrance.
- There is step-free access to the reception point.
- There is a clear unobstructed route to the reception point.
- There are no windows, TVs, glazed screens or mirrors at/behind the reception point which could adversely affect the ability of someone to lip read.
- The reception counter is not placed in front of a background which is patterned.
- The lighting levels at the reception point are good.
- The height of the reception counter is 100cm.
- There is sufficient space to write or sign documents on the counter.
- There is a lowered section of the counter.
- The height of the lowered section at the counter is 84cm.
- There is sufficient space to write or sign documents on the lowered section of the counter.
- There is a clear knee recess beneath the counter.
- The counter is staffed.
- There is not a hearing assistance system at the reception point.
- There is a/are quick check in system(s) available.
- The touchscreen(s) is/are between the heights of 103cm and 106cm.
- There is wayfinding signage available at/close to the reception.
- The type of flooring in the reception area is vinyl and tiles.
-
Reception Waiting Area
View
- There is a waiting area close to the reception point.
- Access to the waiting area is unobstructed.
- There is bench seating and single seats with armrests.
- There is sufficient space for a wheelchair user to use the waiting area.
-
Comments
View
- There is a tactile Braille wayfinding map on the reception counter top.
Getting Around
-
Access
View
- There is step-free access throughout the majority of the building, via lift.
-
Circulation
View
- There are doors in corridors/walkways which have to be opened manually.
- The type of flooring in corridors/walkways is carpet, vinyl, concrete and tiles.
- There is some flooring in corridors/walkways which is shiny and could cause issues with glare or look slippery to some people.
- There is high colour contrast between the walls and floor in all corridors/walkways.
- There are no seats/chairs at regular intervals.
- The lighting levels are good.
-
Signage
View
- Wayfinding signage is provided.
- Floor plans/maps are available.
- The colour, design and typeface of signs is consistent throughout the building.
-
Safe Place(s)
View
- There is a designated place of safety which can be used by people with dementia, autism or learning disabilities.
- The designated place of safety in the Nest room on the first floor.
-
Audio
View
- This venue does not play background music in communal areas.
- There is not a hearing assistance system in the communal areas of the building.
Lift
- The lift is located to the right after the main entrance, along the corridor, on the left.
- Signs indicating the location of the lift are clearly visible from the entrance.
- The lift is approximately 15m (16yd 1ft) from the main entrance.
- The lift is a standard lift.
- A member of staff does not need to be notified for use of the lift.
- The floors which are accessible by this lift are G and 1.
- The weight limit for the lift is 1000kg.
- Clear signs indicating the facilities on each floor are provided on lift lobby landings.
- There is a clear level manoeuvring space of 150cm × 150cm in front of the lift.
- Lift doors do contrast visually with lift lobby walls.
- The external controls for the lift are not within 90cm - 110cm from the floor.
- The colour contrast between the external lift controls and the control plate is high.
- The colour contrast between the external lift control plate and the wall is high.
- The clear door width is 90cm (2ft 11in).
- The dimensions of the lift are 154cm x 138cm (5ft 1in x 4ft 6in).
- There are not separate entry and exit doors in the lift.
- There is a mirror to aid reversing out of the lift.
- There is not a list of floor services available within the lift.
- The lift does have a visual floor indicator.
- The lift does have an audible announcer.
- The internal controls for the lift are not within 90cm - 120cm from the floor.
- The internal controls for the lift are 85cm - 100cm from the floor.
- There is a hearing loop system.
- The lift does not have Braille markings.
- The lift does have tactile markings.
- The lighting levels in the lift are good.
Other Floors
-
Stairs
View
- Stairs can be used to access other floors.
- The stairs are located to the left of the reception area.
- The stairs are approximately 7m from the main entrance.
- The stairs are clearly visible from the entrance.
- The floors which are accessible by the stairs are G and 1.
- There are 15+ steps between floors.
- The height of the step(s) is/are between the recommended 15cm and 18cm.
- The depth of the step(s) is/are not between the recommended 30cm and 45cm.
- The depth of the steps is 25cm.
- The steps are clearly marked.
- There is a/are handrail(s) at the step(s).
- The steps have a handrail on both sides.
- Handrails are at the recommended height (90cm-100cm).
- Handrails do cover the flight of stairs throughout its length.
- Handrails are easy to grip.
- Handrails do not extend horizontally beyond the first and last steps.
- There is a landing.
- Clear signs indicating the facilities on each floor are provided on landings.
- The lighting levels at the steps are good.
-
Comments
View
- There is another set of stairs towards the rear of the building inside the first set of doors for the entrance to Space - Door C.
Breakout Area
- There is a kitchen, dining table and seating available.
- There are no chairs with armrests on both sides within the breakout area.
- Chairs with armrests are available within the wider room.
- The kitchen worktop counter is 80cm high.
- There is a clear knee recess beneath the counter.
- The height for the underside of the dining table is 72cm.
- There are also coffee tables, sofas and stools.
- The surface height of the lowest table is 39cm.
Entrance (Space - Door A)
-
Entrance
View
- This information is for the entrance located on the right after the main entrance.
- This entrance gives access to Space.
- The entrance area/door is clearly signed.
- This entrance is signed with 'Door A Space'.
- There is step-free access at this entrance.
- The entrance door(s) does/do contrast visually with its immediate surroundings.
- A key card is required for access at this entrance.
- The height of the key card reader is 115cm.
- The main door(s) open(s) away from you (push).
- The door(s) is/are single width.
- The door(s) is/are heavy.
- The width of the door opening is 96cm.
- There is a second set of doors.
- The door(s) open(s) away from you (push).
- The door(s) is/are single width.
- The door(s) is/are heavy.
- The width of the door opening is 96cm.
- There is a small lip on the threshold of the entrance, with a height of 2cm or below.
-
Comments
View

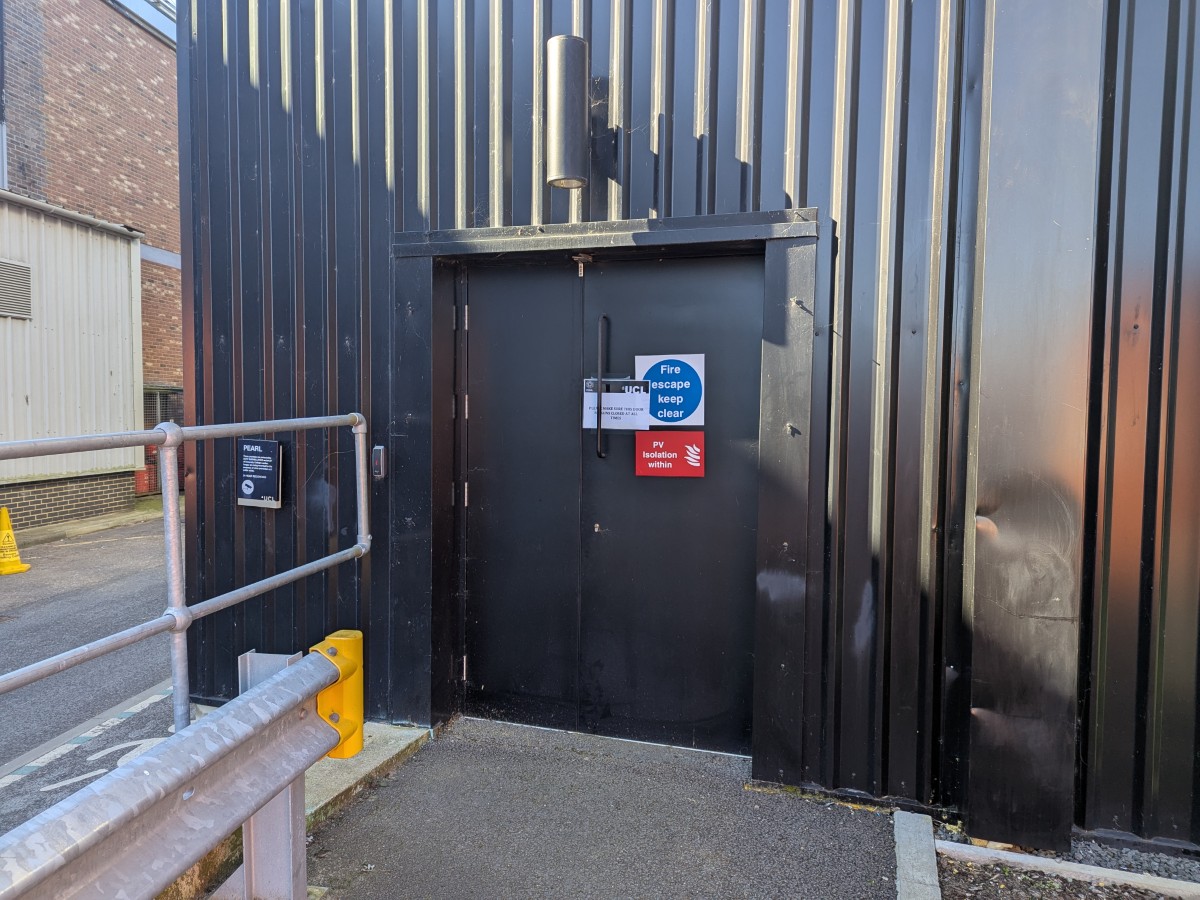

- There are 2 further entrances into Space towards the middle and the rear of the main corridor.
- Space - Door B is 20m from the main entrance.
- Space - Door C is 53m from the main entrance.
Space
- Space is a warehouse sized space with highly configurable modular moveable floor raised "Babcock" platforms that are used to simulate real-world floor environments.
- There are also several retractable tiered seating units that can be configured according to specific events.
- Lighting levels are good, but may vary considerably according to research configurations or events.
- There may also be lighting effects and mechanically generated mist or haze as required for research or events.
- Access into Space via Door A, Door B or Door C opens out into a protected promenade marked by bollards for side access along Space.
- The bollards along the promenade provide a clear access width of 144cm.
- The raised Babcock platforms may be accessed by moveable platform lifts, or integrated steps.
- The platforms have access gates 98cm wide that are secured with a sliding bolt.
- There is also a first floor viewing area called 'View' that is accessed from the main open space on the first floor.
Lift (Babcock Platforms)
- The lift is located as positioned to the corners of the Babcock platforms.
- The lift is a platform lift.
- A member of staff needs to be notified for use of the lift.
- A member of staff is required to operate the lift.
- The platform lift accesses a small level change.
- The weight limit for the lift is 250kg.
- The clear door width is 76cm (2ft 6in).
- The dimensions of the lift are 84cm x 140cm (2ft 9in x 4ft 7in).
- There are separate entry and exit doors in the lift.
-
Comments
View
- There were 5 lifts available for positioning at the time of survey (December 2023).
Step(s) (Babcock Platforms)
-
Stepped Level Change 1
View
- There is a/are step(s) located at the corners of the Babcock platforms.
- The step(s) is/are used to access the raised areas of the Babcock platforms.
- There is/are 5 step(s).
- The step(s) is/are clearly marked.
- The height of the step(s) is/are between the recommended 15cm and 18cm.
- The height of the step(s) is/are 18cm.
- The depth of the step(s) is/are not between 30cm and 45cm.
- The depth of the steps are 25cm.
- There is a/are handrail(s) at the step(s).
- The handrail(s) is/are on both sides.
- Handrails are not at the recommended height (90cm-100cm).
- Handrails do cover the flight of stairs throughout its length.
- Handrails are easy to grip.
- Handrails do not extend horizontally beyond the first and last steps.
- There is a platform lift to overcome the step(s).
Step(s) (Retractable Seating)
-
Stepped Level Change 1
View
- The step(s) is/are used to access the retractable seating.
- The step(s) is/are clearly marked.
- The height of the step(s) is/are between the recommended 15cm and 18cm.
- The height of the step(s) is/are 18cm.
- The depth of the step(s) is/are between 30cm and 45cm.
- The depth of the steps are 30cm.
- There is a/are handrail(s) at the step(s).
- Handrails are not at the recommended height (90cm-100cm).
- Handrails do not cover the flight of stairs throughout its length.
- Handrails are easy to grip.
- Handrails do not extend horizontally beyond the first and last steps.
- There are designated spaces for wheelchair users when the seating is in use. The designated spaces for wheelchairs users are located at the front (bottom level).
Other Floors (Spin Facility)
-
Stairs
View
- Stairs can be used to access other floors.
- The stairs are located to the rear right of the building.
- The stairs are approximately 110m from the main entrance.
- Signs indicating the location of the stairs are not available from the entrance.
- There are manual, heavy, single doors to enter and exit the stairwell on the ground floor and on the first floor.
- The floors which are accessible by the stairs are G and 1.
- There are 15+ steps between floors.
- The height of the step(s) is/are between the recommended 15cm and 18cm.
- The depth of the step(s) is/are not between the recommended 30cm and 45cm.
- The depth of the steps is 27cm.
- The steps are clearly marked.
- There is a/are handrail(s) at the step(s).
- The steps have a handrail on both sides.
- Handrails are not at the recommended height (90cm-100cm).
- Handrails do cover the flight of stairs throughout its length.
- Handrails are easy to grip.
- Handrails do extend horizontally beyond the first and last steps.
- There is a landing.
- Clear signs indicating the facilities on each floor are not provided on landings.
- The lighting levels at the steps are moderate to good.
-
Other Information
View
- The area(s) on the floors which are not accessible is/are the Spin facility.
-
Comments
View
- Due to access restrictions staff do need to be notified for access to these stairs.
Changing Places (Ground Floor)
-
Location and Access
View

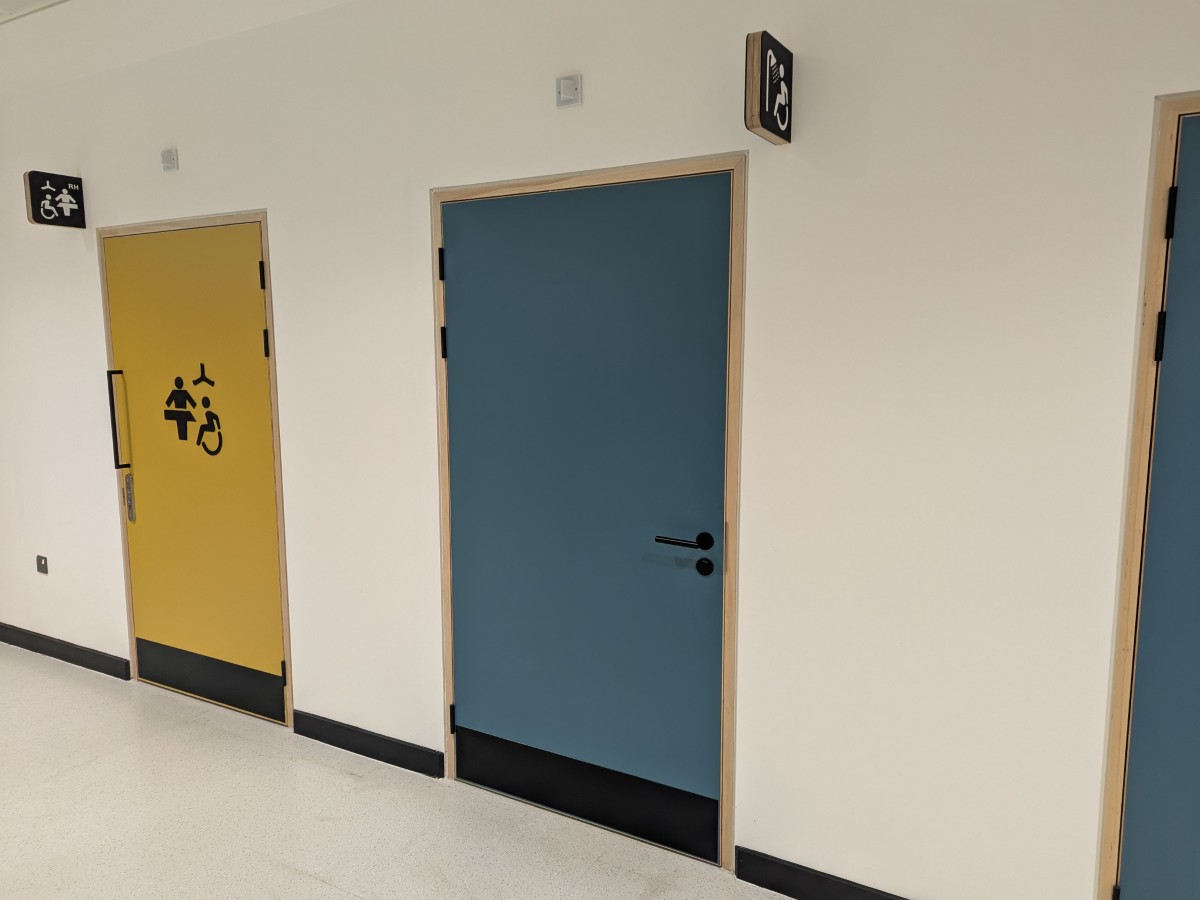

- The facility is located to the right after the main entrance, along the corridor, then left along the next short corridor, on the right.
- The facility is approximately 27m (29yd 1ft) from the main entrance.
- The facility is in addition to standard and accessible toilets.
- The facility is not located close to other managed facilities (e.g. reception or service counter).
- There is level access into the facility.
- The facility surveyed is for the sole use of disabled people.
- The colour contrast between the external door and wall is high.
- The colour contrast between the internal door and wall is high.
- You do need a key for the facility.
- The key is a radar key.
- The key can be obtained from reception.
- There is a sign at the entrance to the Changing Places facility indicating the location of the nearest toilets and baby changing facilities.
- There is tactile and pictorial signage on or near the door.
- The door opens outwards.
- The door is light.
- The door is locked by a locking handle.
- The door has a horizontal grab rail.
- The width of the door is 96cm (3ft 2in).

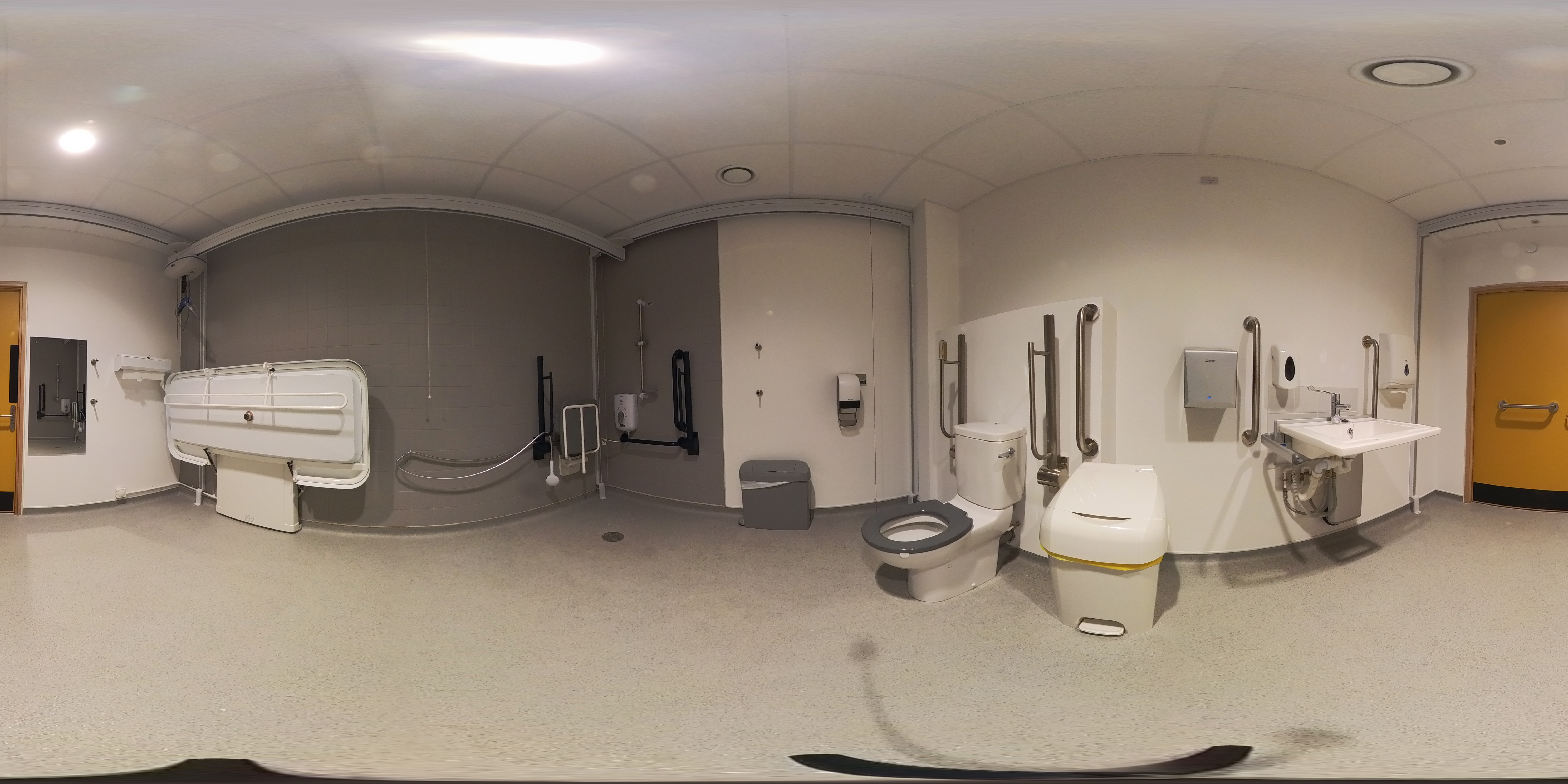

- The dimensions of the facility are 396cm x 275cm.
- The ceiling height is at a minimum of 2.4m.
- There is a clear 200cm x 180cm manoeuvring space in the facility.
- The facility has a non-slip floor.
- The colour contrast between the walls and floor is high.
-
Toilet Details
View
- The facility toilet has a transfer space on both sides.
- The transfer space on the right as you face the toilet is 82cm (2ft 8in).
- The transfer space on the left as you face the toilet is 270cm (8ft 10in).
- Dropdown rails are provided.
- As you face the toilet the dropdown rail(s) is/are on both sides.
- The colour contrast between the dropdown rail(s) and wall is high.
- As you face the toilet the vertical grab rail is on the right.
- The colour contrast between the wall-mounted grab rails to the right of the toilet and wall is high.
- The height of the toilet seat above floor level is 48cm (1ft 7in).
- There is a spatula flush.
- There is a toilet roll holder.
- The height of the toilet roll holder is 92cm.
- The toilet has a cistern.
- The toilet seat colour contrast is high.
- There is an emergency alarm for the toilet.
- The emergency pull cord alarm was not working at the time of the survey.
-
Changing Bench and Hoist Details
View
- The facility changing bench is wall mounted.
- The facility changing bench height is adjustable.
- The length of the facility changing bench is 180cm (5ft 11in).
- The facility hoist is powered overhead.
- The overhead hoist covers all areas in the cubicle.
-
Shower Details
View
- There is a shower unit with a detachable shower head.
- The shower head is height adjustable.
- There is a flip-down/tip-up seat for the shower.
- The seat/chair is not height adjustable.
- The height of the flip-down/tip-up or fixed seat is 52cm (1ft 8in).
- Horizontal and/or dropdown rails are available on both sides of the shower seat.
- The colour contrast between the shower rails and wall is high.
- There is a vertical grab rail for the shower.
- The colour contrast between the vertical grab rail(s) for the shower and wall is high.
-
Other Facilities
View
- A privacy screen is not available.
- The type of wash basin is adjustable.
- The wash basin tap type is lever.
- There is a mixer tap.
- Wall mounted grab rails are available at the wash basin.
- As you face the wash basin, the wall mounted grab rails are on both sides.
- The colour contrast between the wash basin grab rail(s) and wall is high.
- There is a soap dispenser.
- The soap dispenser is not at the recommended height of 80cm-100cm.
- The height of the soap dispenser is 106cm.
- Wide tear off paper roll is available.
- The wide paper roll dispenser is not at the recommended height of 80cm-100cm.
- The height of the wide paper roll dispenser is 133cm.
- There is a hand dryer.
- The hand dryer is at the recommended height of 80cm-100cm.
- The height of the hand dryer is 98cm.
- There is a towel dispenser.
- The towel dispenser is not at the recommended height of 80cm-100cm.
- The height of the towel dispenser is 112cm.
- There is a mirror.
- The mirror is placed at a lower level or at an angle for ease of use.
- There is a/are female sanitary and nappy/incontinence items bin disposal units.
- There is not a shelf next to the toilet.
- There is an emergency alarm for the facility.
- The emergency pull cord alarm was not working at the time of the survey.
- There is a coat hook.
- There are coat hooks in the toilet at 105cm and 140cm from the floor.
- There is a flashing fire alarm beacon within the toilet.
- The lighting levels are varied.
Accessible Shower (Ground Floor)
-
Location and Access
View
- This accessible shower is located to the right after the main entrance, along the corridor, then left along the next short corridor, on the right.
- This accessible shower is approximately 25m from the main entrance.
- There is step-free access into the accessible shower.
- There is pictorial signage on or near the shower door.
-
Accessible Shower
View

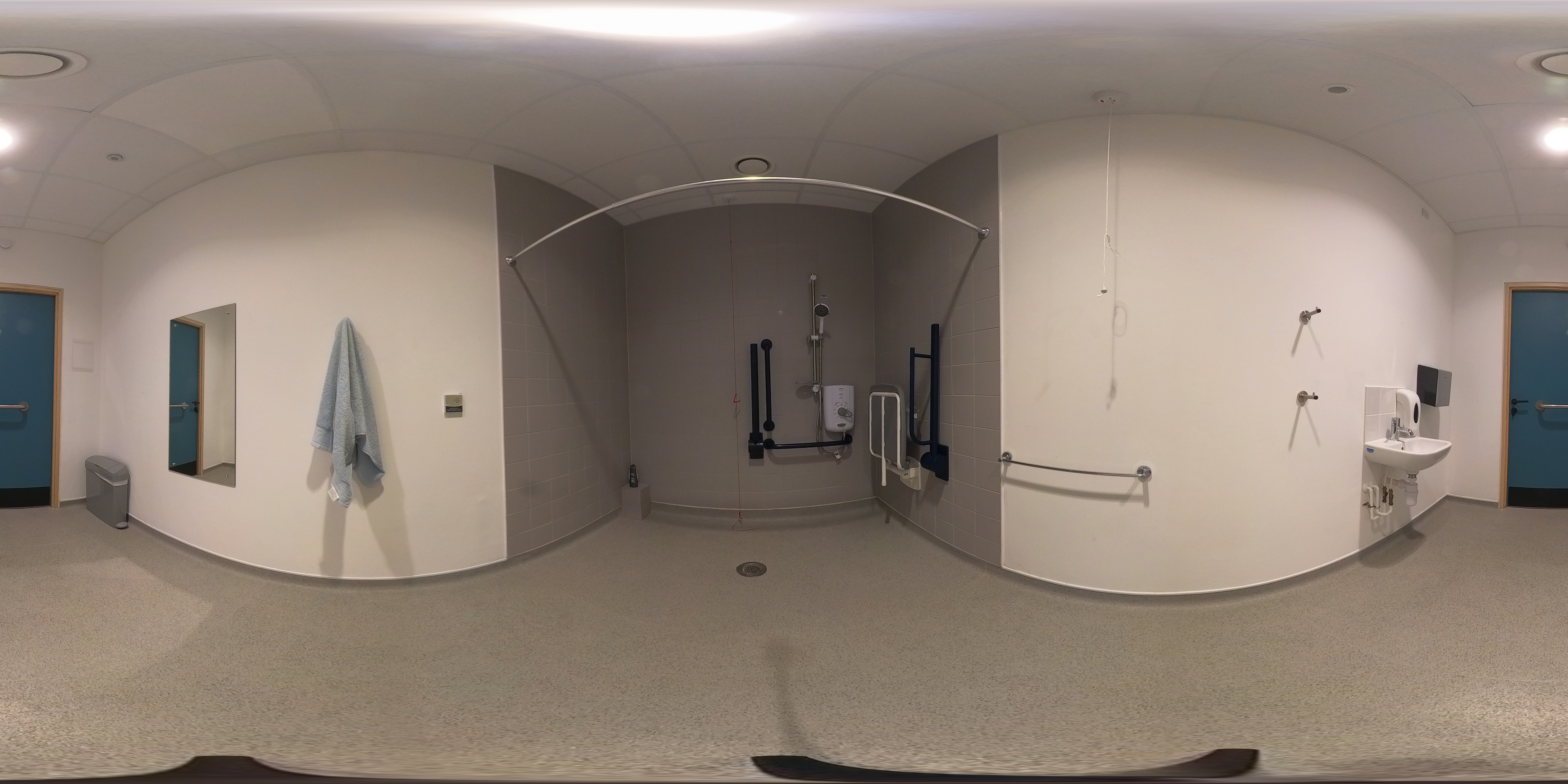

- The shower does have an unobstructed minimum 150cm x 150cm turning space.
- There is a shower unit with a detachable shower head.
- The shower head is height adjustable.
- The adjustable shower head can be placed between 105cm and 185cm when mounted.

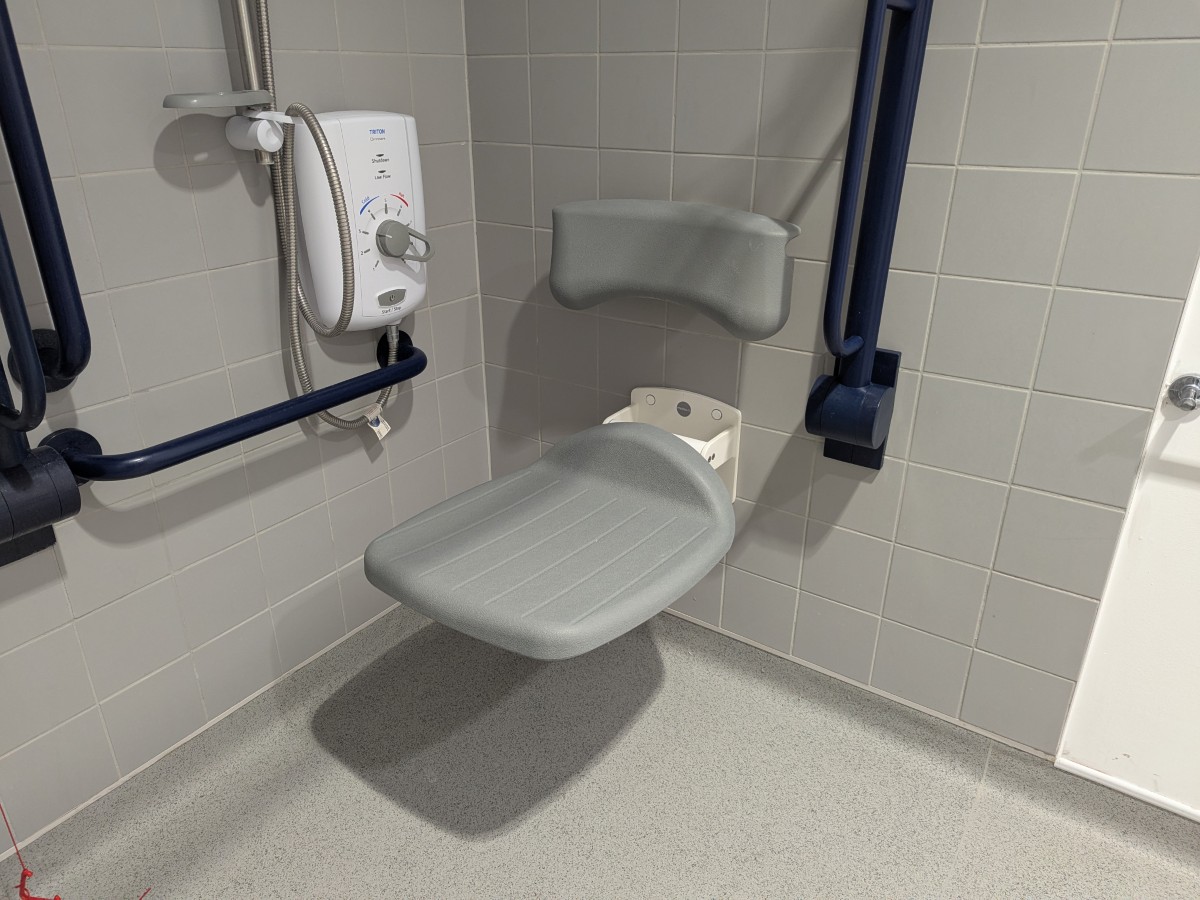

- There is a flip-down/tip-up seat for the shower.
- The seat/chair is not height adjustable.
- The height of the flip-down/tip-up or fixed seat is 54cm (1ft 9in).
- Horizontal and/or dropdown rails are available on both sides of the shower seat.
- The colour contrast between the shower rails and wall is high.
- There is a vertical grab rail for the shower.
- The colour contrast between the vertical grab rail(s) for the shower and wall is high.
- There is an emergency alarm for the shower.
- The emergency pull cord alarm is fully functional.
Standard Shower
- Shower facilities are available.
- The shower(s) surveyed is/are located to the right after the main entrance, along the corridor, then left along the next short corridor, on the right.
- There is level access to the shower facilities.

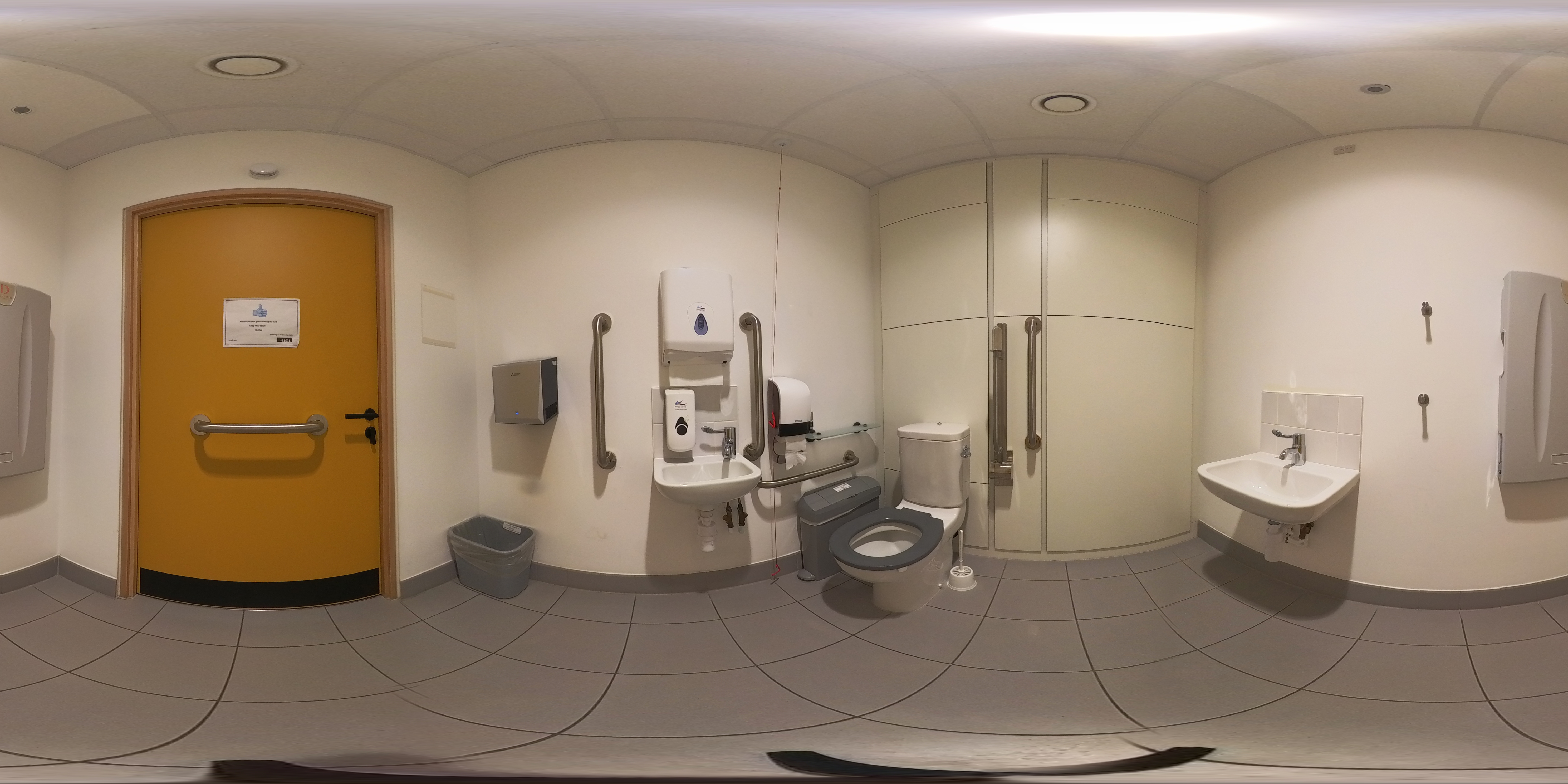

- There is also a shared standard toilet within the standard shower facility.
Accessible Toilet(s) (Ground Floor Left - Right Hand Transfer)
- There is an/are accessible toilet(s) available.
-
Location and Access
View

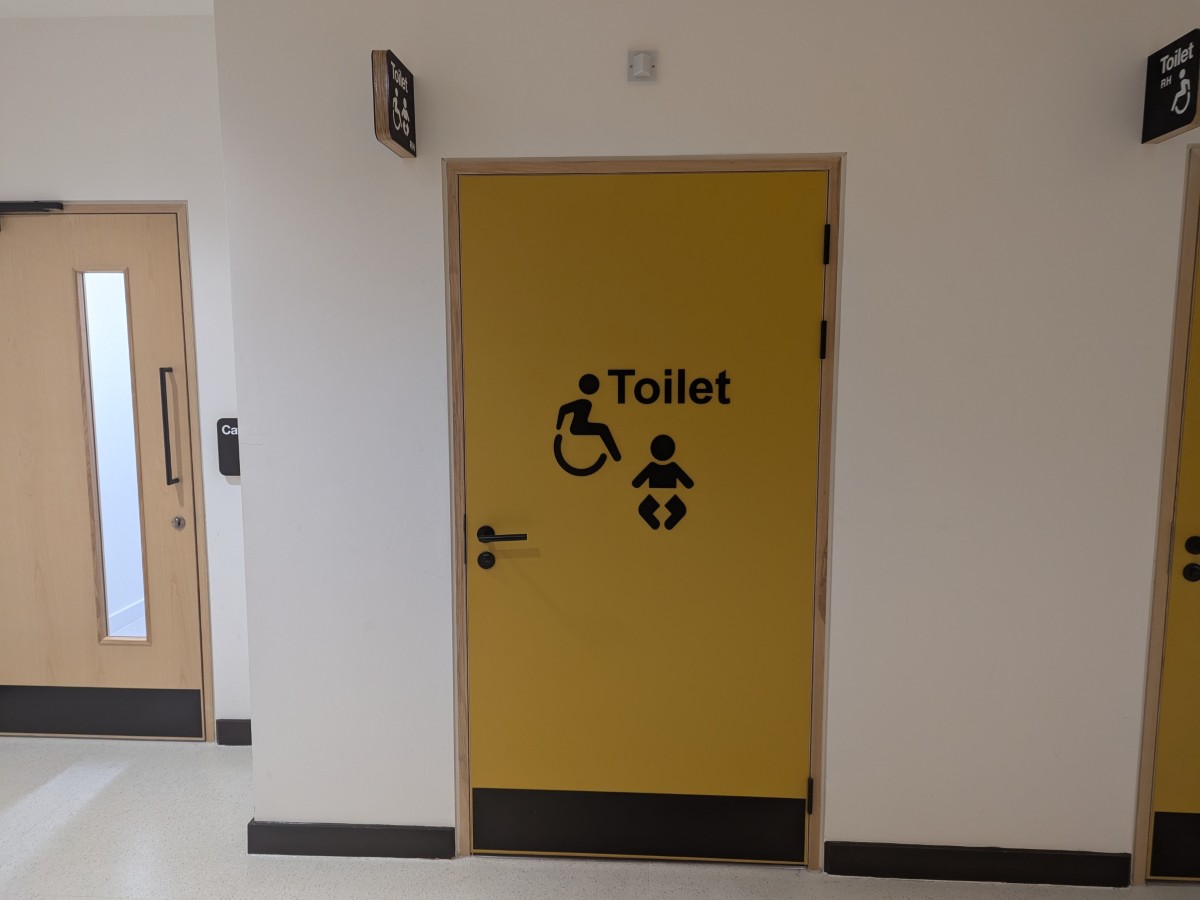

- This accessible toilet is located to the right after the main entrance, along the corridor, on the left.
- This accessible toilet is approximately 18m (19yd 2ft) from the main entrance.
- There is step-free access into the accessible toilet.
- This is a shared toilet.
- A key is not required for the accessible toilet.
- There is tactile, pictorial and written text signage on or near the toilet door.
- The contrast between the external door and wall is high.
- The door opens outwards.
- The door is light.
- The door is locked by a lever twist.
- The width of the accessible toilet opening is 95cm (3ft 1in).
- The contrast between the internal door and wall is high.
- The door has a horizontal grab rail.
- The contrast between the horizontal grab rail and internal door is high.
-
Toilet Features
View
- The dimensions of the accessible toilet are 195cm x 215cm (6ft 5in x 7ft 1in).
- The accessible toilet does have an unobstructed minimum turning space of 150cm x 150cm.
- The lighting levels are good.
- There is a lateral transfer space.
- As you face the toilet pan the transfer space is on the right.
- The lateral transfer space is 90cm (2ft 11in).
- There is a flush on the transfer side.
- There is a spatula type lever flush.
- There is a dropdown rail on the transfer side.
- The contrast between the dropdown rail(s) and wall is high.
- There is a/are wall-mounted grab rail(s) available.
- As you face the toilet the wall-mounted grab rail(s) is/are on both sides.
- There is a vertical wall-mounted grab rail on the transfer side.
- There is a horizontal wall-mounted grab rail on the opposite side of the seat to the transfer space.
- The contrast between the wall-mounted grab rail(s) and wall is high.
- The contrast between the walls and floor is high.
- There is an emergency alarm.
- The emergency pull cord alarm is fully functional.
- There is not a red flashing fire alarm beacon within the toilet.
- Disposal facilities are available in the toilet.
- There is a/are female sanitary disposal units.
- There is a/are coat hook(s).
- There are coat hooks in the toilet at 105cm and 140cm from the floor.
-
Additional Fixtures
View
- There is not a mirror.
- There is not a shelf within the accessible toilet.
- The toilet has a cistern.
- The height of the toilet seat above floor level is 48cm (1ft 7in).
- The toilet seat colour contrast is high.
- There is a toilet roll holder.
- The toilet roll holder can be reached from seated on the toilet.
- The toilet roll holder is not placed higher than 100cm (3ft 3in).
- The height of the toilet roll holder is 88cm (2ft 11in).
- The contrast between the toilet roll holder and the wall is medium.
- There is a wash basin.
- The wash basin and tap(s) can be reached from seated on the toilet.
- The wash basin is placed higher than 74cm (2ft 5in).
- The height of the wash basin is 80cm (2ft 7in).
- There are vertical wall-mounted grab rails on both sides of the wash basin.
- The contrast between the wash basin wall-mounted grab rail(s) and wall is high.
- The wash basin tap type is lever mixer.
- There is a wall fixed soap dispenser.
- The soap dispenser can be reached from seated on the toilet.
- The height of the soap dispenser is 86cm.
- There is a towel dispenser.
- The contrast between the towel dispenser and the wall is low.
- There is a hand dryer.
- The hand dryer is not placed higher than 100cm (3ft 3in).
- The height of the hand dryer is 96cm (3ft 2in).
- The contrast between the hand dryer and the wall is high.
-
Baby Changing Facilities
View
- Baby changing facilities are located within the accessible toilet.
- There is a flip down baby change table available.
- The height of the baby change table is 84cm.
Accessible Toilet(s) (Ground Floor Right - Right Hand Transfer)
- There is an/are accessible toilet(s) available.
-
Location and Access
View
- This accessible toilet is located to the right after the main entrance, along the corridor, on the left.
- This accessible toilet is approximately 20m (21yd 2ft) from the main entrance.
- There is step-free access into the accessible toilet.
- This is a shared toilet.
- A key is not required for the accessible toilet.
- There is tactile, pictorial and written text signage on or near the toilet door.
- The contrast between the external door and wall is high.
- The door opens outwards.
- The door is light.
- The door is locked by a lever twist.
- The width of the accessible toilet opening is 96cm (3ft 2in).
- The contrast between the internal door and wall is high.
- The door has a horizontal grab rail.
- The contrast between the horizontal grab rail and internal door is high.
-
Toilet Features
View
- The dimensions of the accessible toilet are 166cm x 215cm (5ft 5in x 7ft 1in).
- The accessible toilet does have an unobstructed minimum turning space of 150cm x 150cm.
- The lighting levels are good.
- There is a lateral transfer space.
- As you face the toilet pan the transfer space is on the right.
- The lateral transfer space is 97cm (3ft 2in).
- There is a flush on the transfer side.
- There is a spatula type lever flush.
- There is a dropdown rail on the transfer side.
- The contrast between the dropdown rail(s) and wall is high.
- There is a/are wall-mounted grab rail(s) available.
- As you face the toilet the wall-mounted grab rail(s) is/are on both sides.
- There is a vertical wall-mounted grab rail on the transfer side.
- There is a horizontal wall-mounted grab rail on the opposite side of the seat to the transfer space.
- The contrast between the wall-mounted grab rail(s) and wall is high.
- The contrast between the walls and floor is high.
- There is an emergency alarm.
- The emergency pull cord alarm is fully functional.
- There is not a red flashing fire alarm beacon within the toilet.
- Disposal facilities are available in the toilet.
- There is a/are female sanitary disposal units.
- There is a/are coat hook(s).
- There are coat hooks in the toilet at 106cm and 141cm from the floor.
-
Additional Fixtures
View
- There is not a mirror.
- There is not a shelf within the accessible toilet.
- The toilet has a backrest.
- The height of the toilet seat above floor level is 48cm (1ft 7in).
- The toilet seat colour contrast is high.
- There is a toilet roll holder.
- The toilet roll holder can be reached from seated on the toilet.
- The toilet roll holder is not placed higher than 100cm (3ft 3in).
- The height of the toilet roll holder is 88cm (2ft 11in).
- The contrast between the toilet roll holder and the wall is high.
- There is a wash basin.
- The wash basin and tap(s) can be reached from seated on the toilet.
- The wash basin is placed higher than 74cm (2ft 5in).
- The height of the wash basin is 74cm (2ft 5in).
- There are vertical wall-mounted grab rails on both sides of the wash basin.
- The contrast between the wash basin wall-mounted grab rail(s) and wall is high.
- The wash basin tap type is lever mixer.
- There is a wall fixed soap dispenser.
- The soap dispenser can be reached from seated on the toilet.
- The height of the soap dispenser is 84cm.
- There is a towel dispenser.
- The contrast between the towel dispenser and the wall is low.
- There is a hand dryer.
- The hand dryer is not placed higher than 100cm (3ft 3in).
- The height of the hand dryer is 94cm (3ft 1in).
- The contrast between the hand dryer and the wall is high.
Accessible Toilet(s) (Ground Floor Side Corridor - No Lateral Transfer)
- There is an/are accessible toilet(s) available.
-
Location and Access
View
- This accessible toilet is located to the right after the main entrance, along the corridor, then left along the next short corridor, on the left.
- This accessible toilet is approximately 25m (27yd 1ft) from the main entrance.
- There is step-free access into the accessible toilet.
- This is a shared toilet.
- A key is not required for the accessible toilet.
- There is tactile, pictorial and written text signage on or near the toilet door.
- The contrast between the external door and wall is high.
- The door opens outwards.
- The door is light.
- The door is locked by a lever twist.
- The width of the accessible toilet opening is 86cm (2ft 10in).
- The contrast between the internal door and wall is high.
- The door does not have a horizontal grab rail.
-
Toilet Features
View
- The dimensions of the accessible toilet are 114cm x 2225cm (3ft 9in x 72ft 12in).
- The accessible toilet does not have an unobstructed minimum turning space of 150cm x 150cm.
- The lighting levels are good.
- There is not a lateral transfer space.
- There is not a spatula type lever flush.
- There is a lever flush.
- There is a dropdown rail.
- The contrast between the dropdown rail(s) and wall is high.
- There is a/are wall-mounted grab rail(s) available.
- As you face the toilet the wall-mounted grab rail(s) is/are on the right.
- The contrast between the wall-mounted grab rail(s) and wall is high.
- The contrast between the walls and floor is high.
- There is not an emergency alarm.
- There is not a red flashing fire alarm beacon within the toilet.
- Disposal facilities are available in the toilet.
- There is a/are female sanitary disposal units.
- There is not a/are not coat hook(s).
-
Additional Fixtures
View
- There is a mirror.
- The mirror is not placed at a lower level or at an angle for ease of use.
- There is not a shelf within the accessible toilet.
- The toilet has a wall which acts as a backrest.
- The height of the toilet seat above floor level is 48cm (1ft 7in).
- The toilet seat colour contrast is high.
- There is a toilet roll holder.
- The toilet roll holder can be reached from seated on the toilet.
- The toilet roll holder is not placed higher than 100cm (3ft 3in).
- The height of the toilet roll holder is 88cm (2ft 11in).
- The contrast between the toilet roll holder and the wall is medium.
- There is a wash basin.
- The wash basin and tap(s) cannot be reached from seated on the toilet.
- The wash basin is placed higher than 74cm (2ft 5in).
- The height of the wash basin is 78cm (2ft 7in).
- There are vertical wall-mounted grab rails on both sides of the wash basin.
- The contrast between the wash basin wall-mounted grab rail(s) and wall is high.
- The wash basin tap type is lever mixer.
- There is a wall fixed soap dispenser.
- The soap dispenser cannot be reached from seated on the toilet.
- The height of the soap dispenser is 82cm.
- There is a towel dispenser.
- The towel dispenser cannot be reached from seated on the toilet.
- The towel dispenser is placed higher than 100cm (3ft 3in).
- The height of the towel dispenser is 110cm (3ft 7in).
- The contrast between the towel dispenser and the wall is low.
- There is a hand dryer.
- The hand dryer can be reached from seated on the toilet.
- The hand dryer is placed higher than 100cm (3ft 3in).
- The height of the hand dryer is 103cm (3ft 5in).
- The contrast between the hand dryer and the wall is high.
Accessible Toilet(s) (Ground Floor Rear - Right Hand Transfer)
- There is an/are accessible toilet(s) available.
-
Location and Access
View
- This accessible toilet is located towards the rear of the building, near Space - Door C.
- This accessible toilet is approximately 53m (57yd 2ft) from the main entrance.
- There is step-free access into the accessible toilet.
- This is a shared toilet.
- A key is not required for the accessible toilet.
- There is tactile, pictorial and written text signage on or near the toilet door.
- The contrast between the external door and wall is high.
- The door opens outwards.
- The door is light.
- The door is locked by a lever twist.
- The width of the accessible toilet opening is 96cm (3ft 2in).
- The contrast between the internal door and wall is high.
- The door does not have a horizontal grab rail.
-
Toilet Features
View
- The dimensions of the accessible toilet are 166cm x 244cm (5ft 5in x 8ft).
- The accessible toilet does have an unobstructed minimum turning space of 150cm x 150cm.
- The lighting levels are good.
- There is a lateral transfer space.
- As you face the toilet pan the transfer space is on the right.
- The lateral transfer space is 100cm (3ft 3in).
- The transfer space is obstructed by a female sanitary bin.
- There is a flush on the transfer side.
- There is a spatula type lever flush.
- There is a dropdown rail on the transfer side.
- The contrast between the dropdown rail(s) and wall is medium.
- There is a/are wall-mounted grab rail(s) available.
- As you face the toilet the wall-mounted grab rail(s) is/are on both sides.
- There is a vertical wall-mounted grab rail on the transfer side.
- There is a horizontal wall-mounted grab rail on the opposite side of the seat to the transfer space.
- The contrast between the wall-mounted grab rail(s) to the left of the toilet and wall is high.
- The contrast between the wall-mounted grab rail(s) to the right of the toilet and wall is medium.
- The contrast between the walls and floor is high.
- There is an emergency alarm.
- The emergency pull cord alarm is fully functional.
- There is not a red flashing fire alarm beacon within the toilet.
- Disposal facilities are available in the toilet.
- There is a/are female sanitary disposal units.
- There is a/are coat hook(s).
- The height of the coat hook is 140cm from the floor.
-
Additional Fixtures
View
- There is a mirror.
- The mirror is placed at a lower level or at an angle for ease of use.
- There is not a shelf within the accessible toilet.
- The toilet has a cistern.
- The height of the toilet seat above floor level is 48cm (1ft 7in).
- The toilet seat colour contrast is high.
- There is a toilet roll holder.
- The toilet roll holder can be reached from seated on the toilet.
- The toilet roll holder is not placed higher than 100cm (3ft 3in).
- The height of the toilet roll holder is 90cm (2ft 11in).
- The contrast between the toilet roll holder and the wall is medium.
- There is a wash basin.
- The wash basin and tap(s) can be reached from seated on the toilet.
- The wash basin is not placed higher than 74cm (2ft 5in).
- The height of the wash basin is 74cm (2ft 5in).
- There is a vertical wall-mounted grab rail on the left hand side of the wash basin.
- The contrast between the wash basin wall-mounted grab rail(s) and wall is high.
- The wash basin tap type is lever mixer.
- There is a wall fixed soap dispenser.
- The soap dispenser cannot be reached from seated on the toilet.
- The height of the soap dispenser is 80cm.
- There is not a towel dispenser.
- There is a hand dryer.
- The hand dryer is not placed higher than 100cm (3ft 3in).
- The height of the hand dryer is 86cm (2ft 10in).
- The contrast between the hand dryer and the wall is high.
Accessible Toilet(s) (First Floor Left - Left Hand Transfer)
- There is an/are accessible toilet(s) available.
-
Location and Access
View
- This accessible toilet is located to the left out of the lift, then left again, on the right.
- This accessible toilet is approximately 10m (10yd 2ft) from the lift.
- There is step-free access into the accessible toilet.
- This is a shared toilet.
- A key is not required for the accessible toilet.
- There is tactile, pictorial and written text signage on or near the toilet door.
- The contrast between the external door and wall is high.
- The door opens outwards.
- The door is light.
- The door is locked by a lever twist.
- The width of the accessible toilet opening is 96cm (3ft 2in).
- The contrast between the internal door and wall is high.
- The door has a horizontal grab rail.
- The contrast between the horizontal grab rail and internal door is high.
-
Toilet Features
View
- The dimensions of the accessible toilet are 167cm x 217cm (5ft 6in x 7ft 1in).
- The accessible toilet does have an unobstructed minimum turning space of 150cm x 150cm.
- The lighting levels are good.
- There is a lateral transfer space.
- As you face the toilet pan the transfer space is on the left.
- The lateral transfer space is 100cm (3ft 3in).
- The transfer space is obstructed by a female sanitary bin.
- There is a flush on the transfer side.
- There is a spatula type lever flush.
- There is a dropdown rail on the transfer side.
- The contrast between the dropdown rail(s) and wall is high.
- There is a/are wall-mounted grab rail(s) available.
- As you face the toilet the wall-mounted grab rail(s) is/are on both sides.
- There is a vertical wall-mounted grab rail on the transfer side.
- There is a horizontal wall-mounted grab rail on the opposite side of the seat to the transfer space.
- The contrast between the wall-mounted grab rail(s) and wall is high.
- The contrast between the walls and floor is high.
- There is an emergency alarm.
- The emergency pull cord alarm is fully functional.
- There is not a red flashing fire alarm beacon within the toilet.
- Disposal facilities are available in the toilet.
- There is a/are female sanitary disposal units.
- There is a/are coat hook(s).
- There are coat hooks in the toilet at 105cm and 140cm from the floor.
-
Additional Fixtures
View
- There is a mirror.
- The mirror is placed at a lower level or at an angle for ease of use.
- There is not a shelf within the accessible toilet.
- The toilet has a backrest.
- The height of the toilet seat above floor level is 48cm (1ft 7in).
- The toilet seat colour contrast is high.
- There is a toilet roll holder.
- The toilet roll holder can be reached from seated on the toilet.
- The toilet roll holder is not placed higher than 100cm (3ft 3in).
- The height of the toilet roll holder is 88cm (2ft 11in).
- The contrast between the toilet roll holder and the wall is medium.
- There is a wash basin.
- The wash basin and tap(s) can be reached from seated on the toilet.
- The wash basin is placed higher than 74cm (2ft 5in).
- The height of the wash basin is 77cm (2ft 6in).
- There are vertical wall-mounted grab rails on both sides of the wash basin.
- The contrast between the wash basin wall-mounted grab rail(s) and wall is high.
- The wash basin tap type is lever mixer.
- There is a wall fixed soap dispenser.
- The soap dispenser cannot be reached from seated on the toilet.
- The height of the soap dispenser is 84cm.
- There is a towel dispenser.
- The contrast between the towel dispenser and the wall is low.
- There is a hand dryer.
- The hand dryer is placed higher than 100cm (3ft 3in).
- The height of the hand dryer is 108cm (3ft 7in).
- The contrast between the hand dryer and the wall is high.
Accessible Toilet(s) (First Floor Right - Left Hand Transfer)
- There is an/are accessible toilet(s) available.
-
Location and Access
View
- This accessible toilet is located to the left out of the lift, then left again, on the right.
- This accessible toilet is approximately 9m (9yd 2ft) from the lift.
- There is step-free access into the accessible toilet.
- This is a shared toilet.
- A key is not required for the accessible toilet.
- There is tactile, pictorial and written text signage on or near the toilet door.
- The contrast between the external door and wall is high.
- The door opens outwards.
- The door is light.
- The door is locked by a lever twist.
- The width of the accessible toilet opening is 86cm (2ft 10in).
- The contrast between the internal door and wall is high.
- The door has a horizontal grab rail.
- The contrast between the horizontal grab rail and internal door is high.
-
Toilet Features
View
- The dimensions of the accessible toilet are 116cm x 225cm (3ft 10in x 7ft 5in).
- The accessible toilet does not have an unobstructed minimum turning space of 150cm x 150cm.
- The lighting levels are good.
- There is a lateral transfer space.
- As you face the toilet pan the transfer space is on the left.
- The lateral transfer space is 60cm (1ft 12in).
- The transfer space is obstructed by a female sanitary bin.
- There is a flush on the transfer side.
- There is not a spatula type lever flush.
- There is a lever flush.
- There is a dropdown rail on the transfer side.
- The contrast between the dropdown rail(s) and wall is high.
- There is a/are wall-mounted grab rail(s) available.
- As you face the toilet the wall-mounted grab rail(s) is/are on the right.
- There is not a vertical wall-mounted grab rail on the transfer side.
- There is a horizontal wall-mounted grab rail on the opposite side of the seat to the transfer space.
- The contrast between the wall-mounted grab rail(s) and wall is high.
- The contrast between the walls and floor is high.
- There is not an emergency alarm.
- There is not a red flashing fire alarm beacon within the toilet.
- Disposal facilities are available in the toilet.
- There is a/are female sanitary disposal units.
- There is a/are coat hook(s).
- There are coat hooks in the toilet at 107cm and 141cm from the floor.
-
Additional Fixtures
View
- There is a mirror.
- The mirror is not placed at a lower level or at an angle for ease of use.
- There is not a shelf within the accessible toilet.
- The toilet has a wall which acts as a backrest.
- The height of the toilet seat above floor level is 48cm (1ft 7in).
- The toilet seat colour contrast is high.
- There is a toilet roll holder.
- The toilet roll holder can be reached from seated on the toilet.
- The toilet roll holder is not placed higher than 100cm (3ft 3in).
- The height of the toilet roll holder is 88cm (2ft 11in).
- The contrast between the toilet roll holder and the wall is medium.
- There is a wash basin.
- The wash basin and tap(s) cannot be reached from seated on the toilet.
- The wash basin is placed higher than 74cm (2ft 5in).
- The height of the wash basin is 78cm (2ft 7in).
- There are vertical wall-mounted grab rails on both sides of the wash basin.
- The contrast between the wash basin wall-mounted grab rail(s) and wall is high.
- The wash basin tap type is lever mixer.
- There is a wall fixed soap dispenser.
- The soap dispenser cannot be reached from seated on the toilet.
- The height of the soap dispenser is 82cm.
- There is a towel dispenser.
- The towel dispenser cannot be reached from seated on the toilet.
- The towel dispenser is placed higher than 100cm (3ft 3in).
- The height of the towel dispenser is 112cm (3ft 8in).
- The contrast between the towel dispenser and the wall is low.
- There is a hand dryer.
- The hand dryer is placed higher than 100cm (3ft 3in).
- The height of the hand dryer is 106cm (3ft 6in).
- The contrast between the hand dryer and the wall is high.
Standard Toilet(s)
- Standard toilet facilities are available.
-
Toilet Facilities
View
- The shared toilet is located to the right after the main entrance, along the corridor, then left along the next short corridor, on the left.
- There is step-free access into the toilet(s).
- The standard toilet(s) is/are approximately 27m from the main entrance.
- The colour contrast between the external toilet door(s) and wall(s) is high.
- There is tactile and written text signage on or near the toilet door.
- An ambulant toilet cubicle is not available.
- The height of the wash basin(s) is 78cm.
- The wash basin(s) tap type is lever mixer.
- Lighting levels are good.
- There are similar facilities off the main access corridor on the first floor.
-
Toilet Facilities 2
View
- The shared toilet is located on the ground floor within the standard shower facility.
- There is step-free access into the toilet(s).
- The standard toilet(s) is/are approximately 23m from the main entrance.
- The colour contrast between the external toilet door(s) and wall(s) is high.
- There is no signage on or near the toilet door.
- An ambulant toilet cubicle is not available.
- The height of the wash basin(s) is 82cm.
- The wash basin(s) tap type is lever mixer.
- Lighting levels are good.
