Introduction

  • Services / facilities within the building include a common room, computer and multimedia unit, laboratories including teaching laboratories, lecture theatres, library, lounge, offices, quiet room, refectory, seminar rooms, teaching rooms and a workshop.
  • Faculties include Clinical Skills, Commercial Development, Nuclear Magnetic Resonance (NMR), Mass Spectroscopy, and Student Support.
  • Comments View
    • Where appropriate, this guide may refer to services to the left side of the building facing the entrance as being west, and services to the right side of the building facing the entrance as being east.

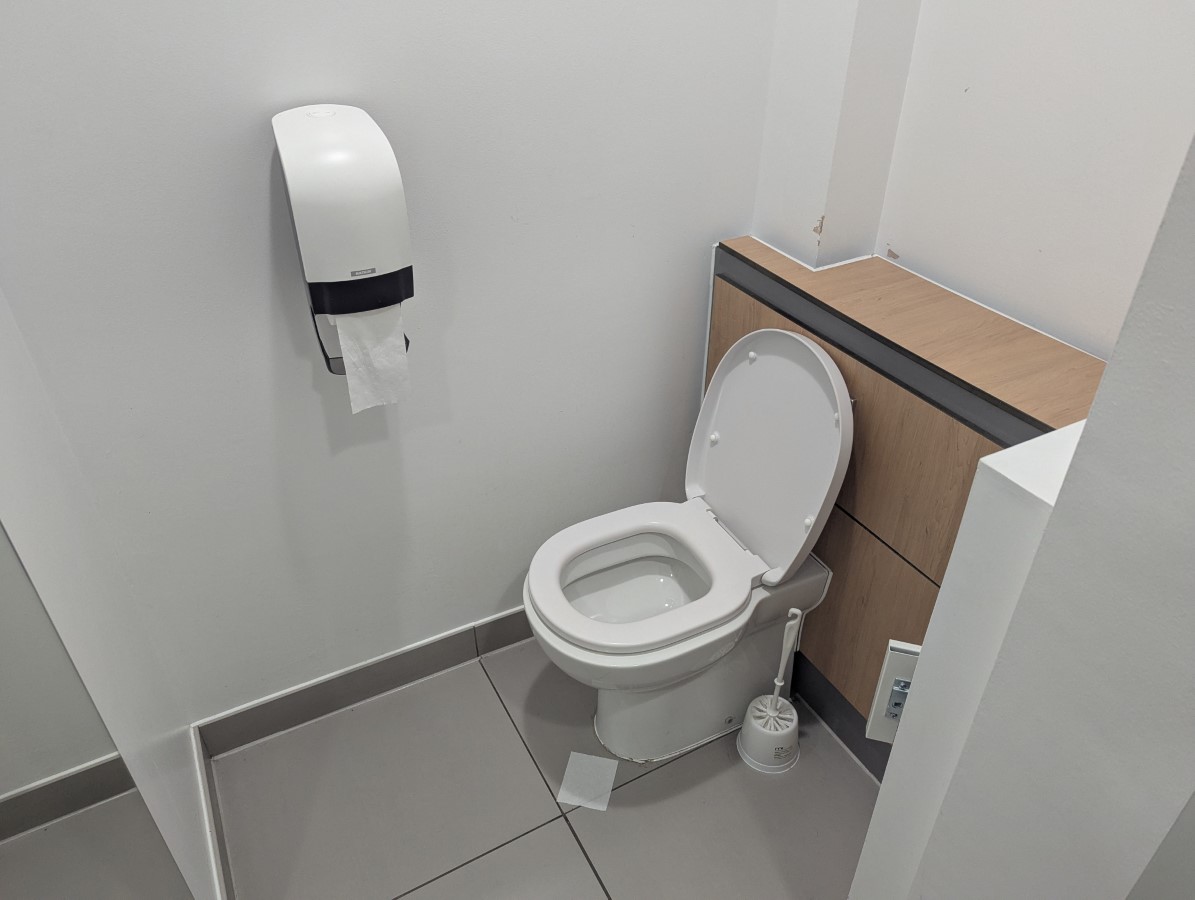

Location of Toilet/Changing Facilities

  • Accessible toilet facilities are located on all floors.
  • Female and male standard toilet facilities are located on all floors, except the first floor.
  • Shared standard toilet facilities are located in the basement within the junior common room and the standard shower; to the rear of the building on the ground floor (stepped access only); and on the second floor.
  • Parent and baby changing facilities are located on the ground floor in the shared standard toilets to the rear of the building (stepped access only).

Rooms and Spaces Links

Getting Here

  • By Road View
    • UCL is based in the Bloomsbury area of central London. Most of the buildings are close to the Euston Road (A501) and are located within the Congestion Charge Zone.
    • There is on street parking available on some of the streets in and around the UCL area.
  • By Bus View
    • There are many bus routes that stop close to the University buildings. The following bus routes stop on Gower Street, outside the main gate:-
      10 (Hammersmith Bus Station to King's Cross Station)
      14 (Putney Heath to Warren Street Station)
      24 (Hampstead Heath to Pimlico)
      29 (Wood Green to Trafalgar Square)
      73 (Victoria Bus Station to Stoke Newington)
      134 (North Finchley Bus Station to Tottenham Court Road)
      390 (Archway Station to Notting Hill Gate).
  • By Train View
    • Euston, St Pancras International and King's Cross stations are close to the majority of the University buildings. However, all of the London Terminal stations are within reach of the campus using public transport.
  • By Underground View
    • The closest tube stations to Gower Street are Euston Square (Hammersmith and City, Metropolitan and Circle lines), Warren Street (Northern and Victoria lines), Euston (Northern and Victoria lines) and Russell Square (Piccadilly line).
      There are many other tube stations in the vicinity of the University, including King's Cross St Pancras, Holborn, Tottenham Court Road and Goodge Street.
      The step-free underground stations nearby are; Euston Square, King’s Cross St Pancras and Tottenham Court Road.
  • Useful Links View

Useful Information

Building Parking

  • The building does have its own dedicated parking.

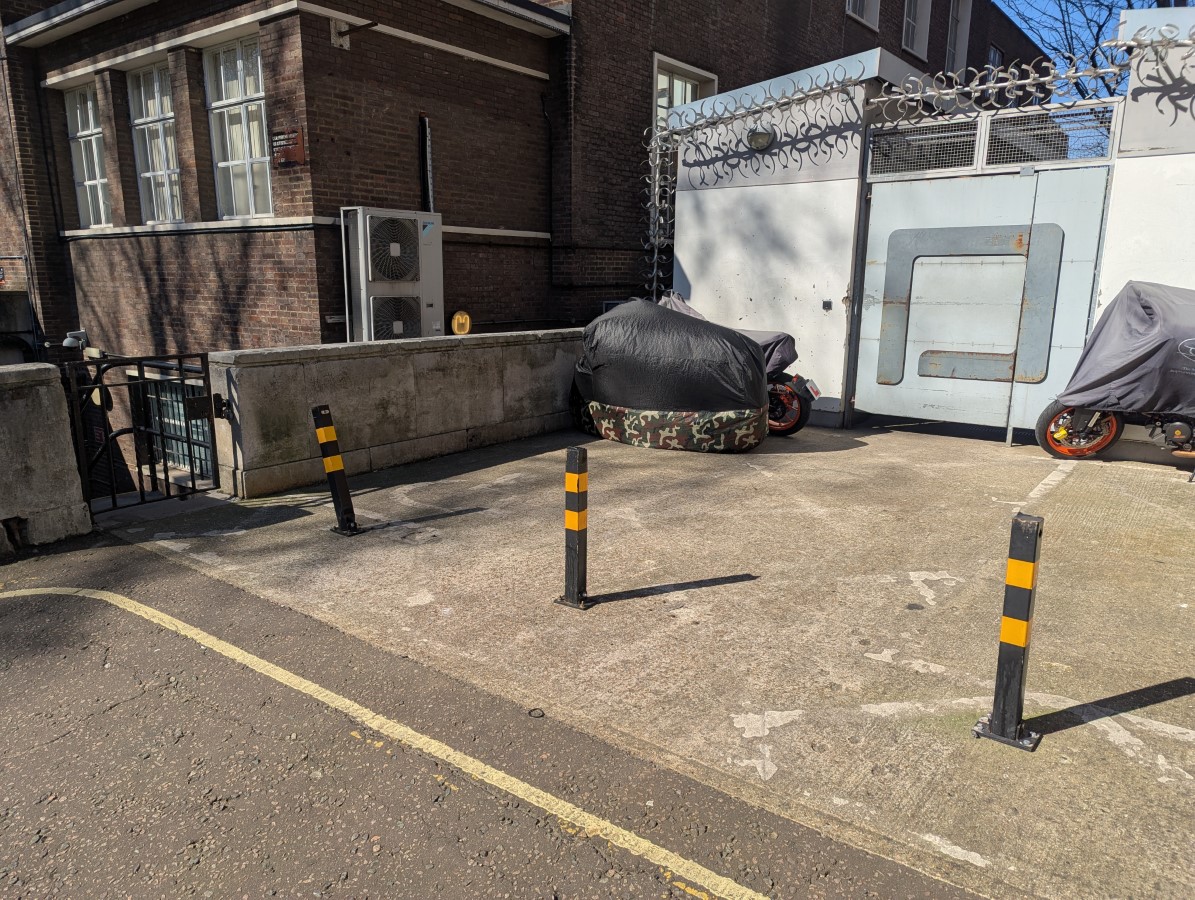

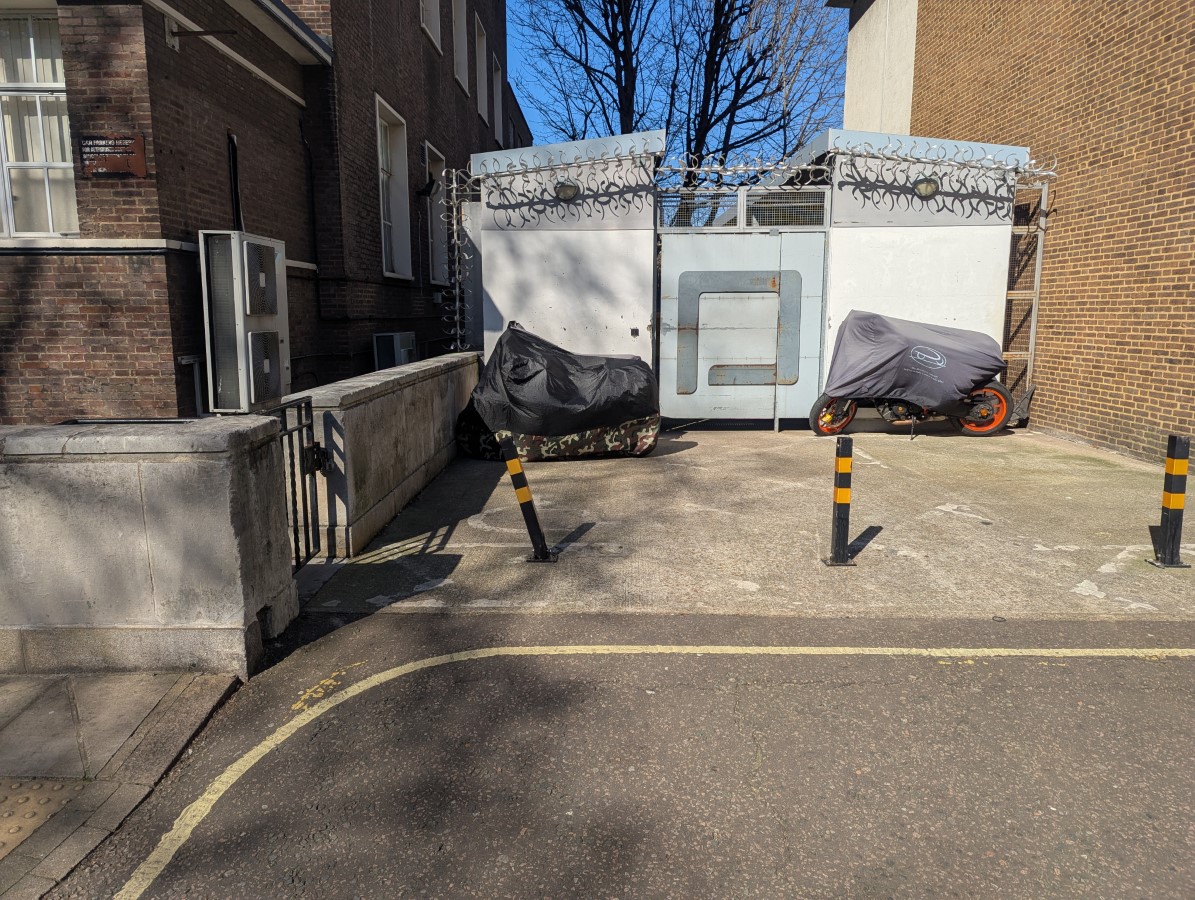

  • Building Car Park View
    • The car park can be used by Blue Badge holders.
    • There are no parking charges that apply on the day.
    • The car park is located to the right of the building.
    • The car park type is open air/surface.
    • The car park does not have a height restriction barrier.
    • Designated Blue Badge parking bays are available.
    • There is/are 1 designated parking bay(s) within the car park.
    • The Blue Badge bay(s) markings are faded.
    • The dimensions of the designated parking bay(s) are 200cm x 445cm (6ft 7in x 14ft 7in).
    • Parking spaces for Blue Badge holders do need to be booked in advance.
    • The nearest designated bay is 30m (32yd 2ft) from the main entrance.
    • The route from the car park to the building is accessible to a wheelchair user with assistance.
    • Assistance may be required because there is / are slopes/ramps.

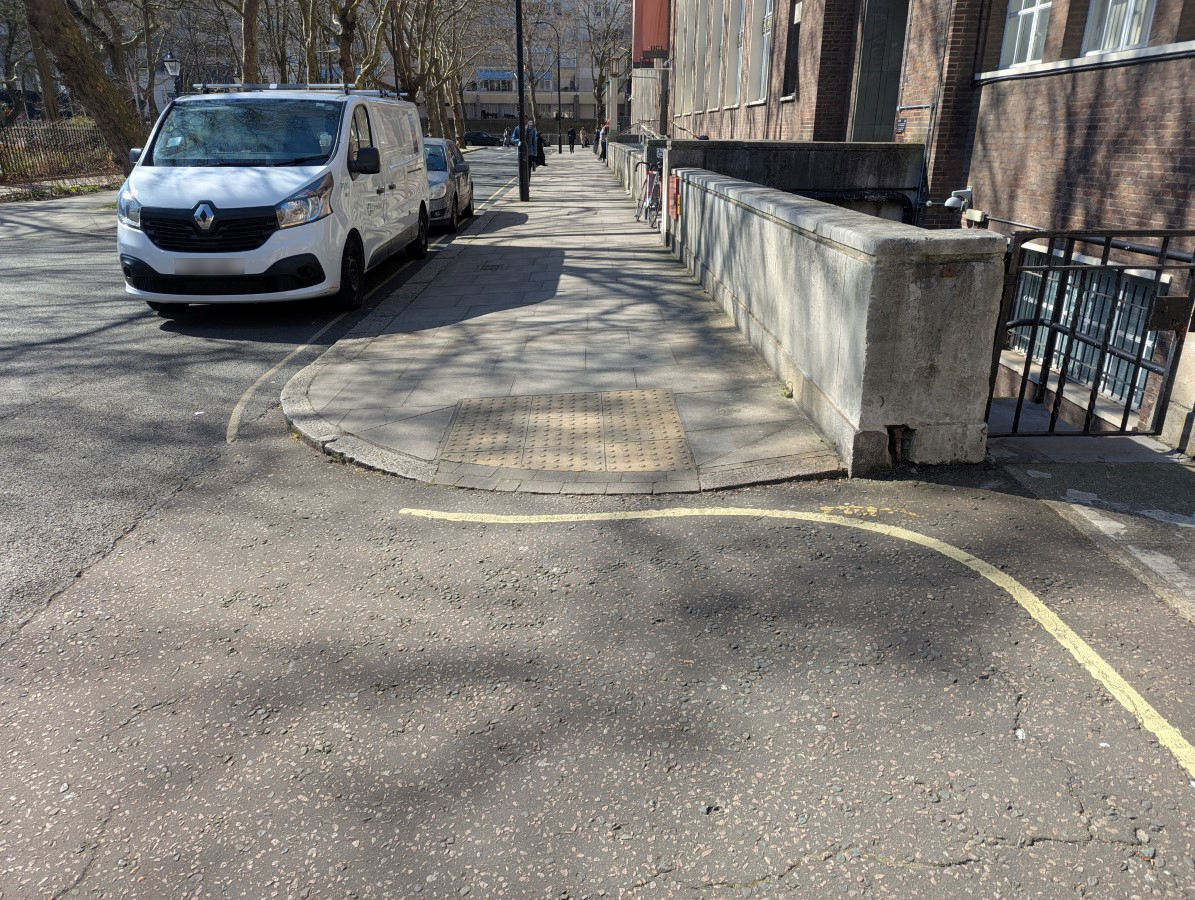

    • The dropped kerb between the car park and the building does have tactile paving.
    • The car park surface is concrete.
  • Site/Campus Car Parks View
    • There is not a site/campus car park within approximately 200m.
  • Public Car Parks View
    • There is not a car park for public use within 200m (approx).
  • On Street Parking View
    • Clearly signed and/or standard marked parking bays are available.
    • The dimensions of the standard marked parking bays are 230cm x 530cm (7ft 7in x 17ft 5in).
    • The on street standard parking bay(s) is/are located on the access road outside the building, off Brunswick Square (photographs 5 and 6).
  • Drop Off Point View
    • There is not a designated drop off point.

Outside Access

  • Entrance View
    • This information is for the entrance located to the centre of the building.
    • There is ramped/sloped or stepped access at this entrance.
    • There is not a bell/buzzer.
    • There is not an intercom.
    • A key card is required for access at this entrance.
    • The height of the card reader/lock is 100cm (3ft 3in).
    • There is a canopy or recess which provides weather protection at this entrance.
    • The main door(s) open(s) towards you (pull).
    • The door(s) is / are single.
    • The door(s) is/are permanently held open.
    • The width of the door opening is 103cm (3ft 5in).
  • Second Set of Doors View
    • There is a second set of doors.
    • The door(s) open(s) automatically.
    • The door(s) is / are single.
    • The width of the door opening is 100cm (3ft 3in).
  • Ramp/Slope View
    • There is a ramp/slope at this entrance.
    • The ramp/slope is located to the right as you face the entrance.
    • The ramp/slope does bypass the step(s).
    • The ramp/slope gradient is slight.
    • The ramp is permanent.
    • There is a level landing at the top of the ramp.
    • The ramp does have handrails.
    • The handrails are on both sides.
    • The width of the ramp is 104cm (3ft 5in).
  • Step(s) View
    • There is a / are step(s) at this entrance.
    • The step(s) is / are located in front of the entrance.
    • There is / are 6 step(s) to access the entrance.
    • There is not tactile paving at the top and bottom of the step(s).
    • The step(s) is / are not clearly marked.
    • The step(s) is / are medium height (11cm - 17cm).
    • The steps do have handrails.
    • The handrails are on both sides.
  • Comments View
    • The key card access panel is on the wall to the right of the entrance.
    • There are two similar doorways each leading into the foyer.

Reception

  • Reception is located to your right on entrance.
  • The desk is 4m (4yd 1ft) from the entrance.
  • The reception area is clearly visible from the entrance.
  • There is step free access to this reception area.
  • The lighting levels in the reception area are good.
  • The reception desk/counter is medium height (77cm - 109cm).
  • There is a low section of the counter (76cm or below) available.
  • There is a clear knee recess beneath the low/lowered counter.
  • The desk is staffed.
  • There is not a hearing assistance system.
  • Comments View
    • The reception desk is staffed 24 hours a day.
    • There are security barriers after reception.
    • There is a wide gate on the right (nearest reception) with a gate width of 95cm.
    • There are an additional 3 adjacent barriers with gate widths of 56cm.
    • There is a sofa within the reception waiting area.
    • There is clear signage and a building plan within the reception area.

Getting Around

  • Access View
    • There is step free access throughout the majority of the building, via lift.
    • There is/are 2 clearly marked step(s), with a handrail on the left going up, for access to G10.
    • The step(s) is/are medium height (11cm - 17cm).
    • There is a slight ramp, with a handrail on the right going up, for access to G10.
    • The ramp or slope does bypass the step(s).
    • This level change is shown in photographs 1 and 2.
    • There is/are 6 clearly marked step(s), with a handrail on the right going up, for access to rooms G11 to G17 (photograph 3).
    • The step(s) is/are medium height (11cm - 17cm).
    • There is/are 3 clearly marked step(s), with no handrails, for access to seminar rooms M1 to M6, commercial development office, undergraduate student support, development office and Wilkins Room (photograph 4).
    • The step(s) is/are deep (18cm+).
    • There are doors in corridors which have to be opened manually.
  • Getting Around View
    • There is clear signage for building facilities/areas in the foyer/reception area.
    • There is clearly written directional signage at key points of circulation routes.
    • There is flooring in corridors which is shiny and could cause issues with glare or look slippery to some people.
    • There is good colour contrast between the walls and floor in all areas.
    • The lighting levels are good.
    • This building does not play background music.
    • There is not a hearing assistance system.
  • Comments View

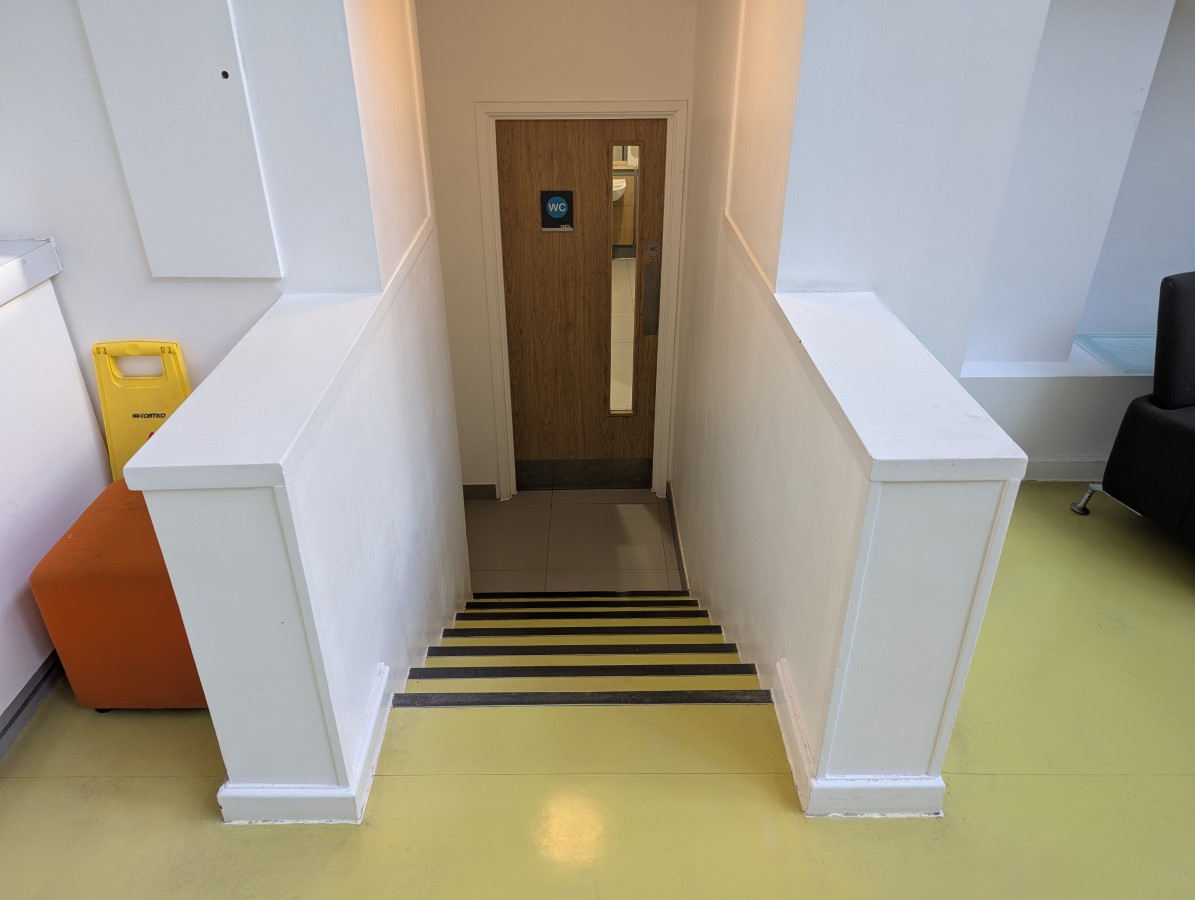

    • There are five clearly marked steps with handrails on both sides to access rooms G11 and G15 (photograph 5).
    • There are three clearly marked steps with no handrails to access room G14 (photograph 6).
    • There is a single step with no handrails to access room G16.
    • There are 8 clearly marked deep steps with a handrail on the right hand side going up to access room B42 (photograph 7).
    • There is an easy ramp on the fourth floor to access room 416 (photograph 8).
    • There are 11 deep steps with handrails on both sides to access rooms 417 to 420 (photograph 9).

Eating and Drinking (Refectory)

  • Location and Access View
    • The following information is for the café.
    • The café is located on the ground floor, to the left after the barrier gates.
    • There is step-free access to the café.
    • For access there are double manual doors which may be difficult to open.
    • The first set of double doors are heavy, 162cm wide and open towards you (photograph 1).

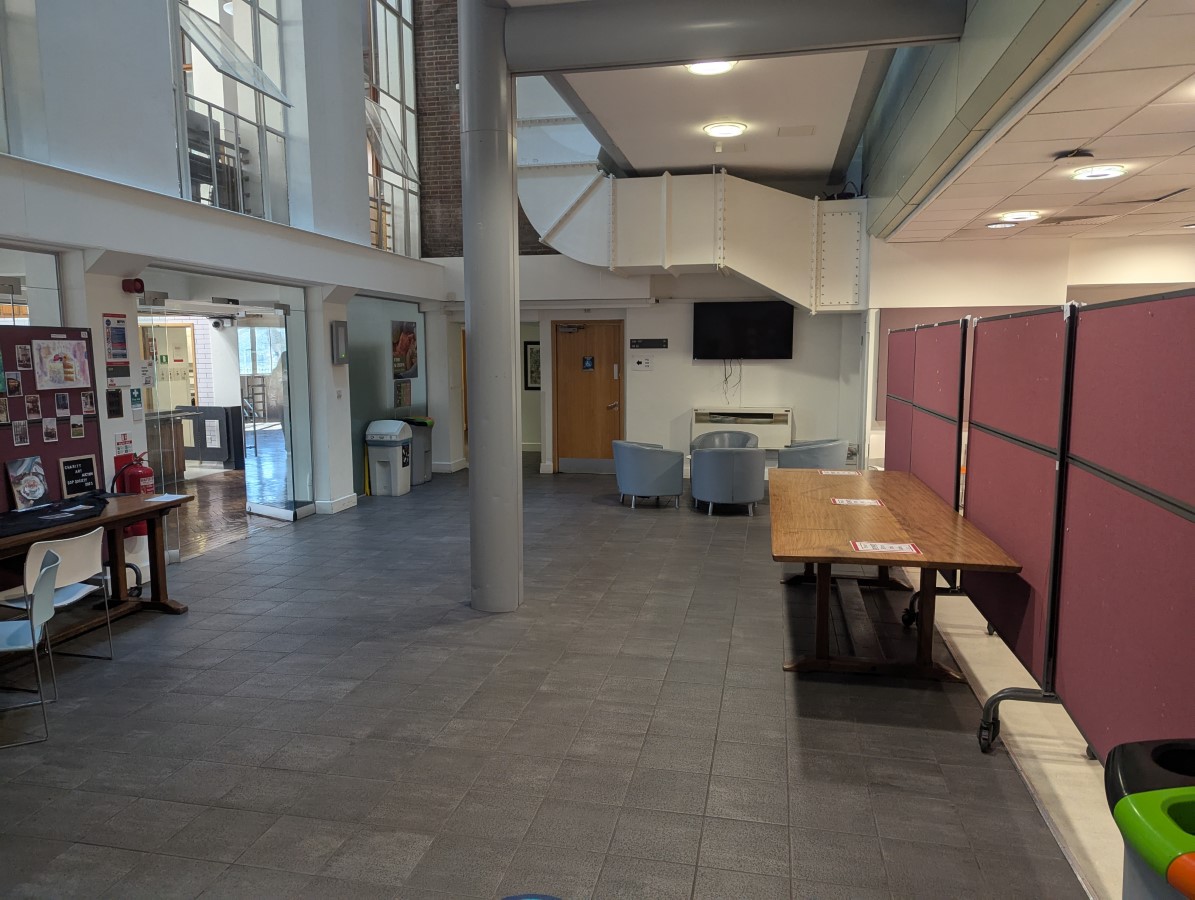

      These doors access the Square Lounge seating area, the refectory entrance, and accessible toilet.
      The doors into the refectory are permanently held open with an open door width of 166cm (photograph 2).
  • Service and Menus View
    • Tables cannot be booked in advance.
    • There is a counter where food and drink can be ordered.
    • Staff can bring food and/or drinks to tables.
    • Menu types include; written wall menus.
    • Menus are clearly written.
    • Menus are presented in contrasting colours.
    • Staff can read menus to customers if requested.
    • The type of food served here is hot and cold meals and snacks.
    • Plastic/takeaway cups are available.
    • Adapted cups are not available.
    • Adapted cutlery is not available.
    • Drinking straws are available.
    • This area does not play background music.
    • There is not a hearing assistance system .
  • Service Counter(s) View
    • The height of the counter is 93cm.
    • The height of the tray counter/rail is 88cm.
    • There is a moveable card machine available for payment.
    • The lighting levels are good.
  • Tables and Seating View
    • There is ample room for a wheelchair user to manoeuvre.
    • There are some tables which are accessible to wheelchair users.
    • The standard height for the underside of dining tables is 66cm.
    • There are also bench seats.
    • No tables are permanently fixed.
    • No chairs are permanently fixed.
    • No chairs have armrests on both sides.
    • The type of flooring in this area is wood.
    • There is flooring which is shiny and could cause issues with glare or look slippery to some people.
    • The lighting levels are moderate to good.
    • Access to the additional seating area is via the entrance to the refectory, and the stairs to the rear of the refectory.
    • The self-service chiller cabinet shelving is 56cm - 140cm above the floor (photograph 6).
      There are microwave ovens available to the rear of the refectory located on a worktop with a surface height of 92cm above the floor (photograph 9).
      The additional seating in the Square Lounge next to the refectory has tables with undersides 71cm above the floor (photograph 10).
      The additional seating on the first floor 126 Rest Area has seating with and without armrests, and coffee tables with surface heights of 34cm above the floor (photograph 11).

Other Floors (Refectory)

  • Steps View
    • The floors which are accessible by stairs are G and 1.
    • The stairs are located to the rear of the refectory.
    • The stairs are approximately 46m from the main building entrance.
    • There are 15 steps between floors.
    • The lighting levels are moderate to good.
    • The steps are clearly marked.
    • The steps are deep (18cm+).
    • The steps do not have handrails.
    • There is a landing.
  • Other View
    • The area(s)/service(s) on the floors which are not accessible is/are 116 Rest Area, and rooms 113 and 115.
  • Comments View
    • The stairs to the right facing the rear of the refectory have a handrail on the right hand side going up.
    • The stairs to the left facing the rear of the refectory have a handrail on the left hand side going up.
    • The stairs access the 116 Rest Area, rooms 113 and 115, and other services on the first floor.

Accessible Toilet(s) (Ground Floor - Left Hand Transfer)

  • There is an/are accessible toilet(s) available.
  • Location and Access View
    • This accessible toilet is located on the ground floor, off the Square Lounge seating area.
    • This accessible toilet is approximately 32m (34yd 2ft) from the main building entrance.
    • There is step-free access into the accessible toilet.
    • This is a shared toilet.
    • A key is not required for the accessible toilet.
    • There is tactile, pictorial and written text signage on or near the toilet door.
    • The contrast between the external door and wall is good.
    • The door opens inwards.
    • The door may be difficult to open.
    • The door is locked by a twist lock.
    • The width of the accessible toilet opening is 86cm (2ft 10in).
    • The contrast between the internal door and wall is good.
    • The door has a horizontal grab rail.
    • The contrast between the horizontal grab rail and internal door is good.
  • Toilet Features View
    • The dimensions of the accessible toilet are 150cm x 215cm (4ft 11in x 7ft 1in).
    • The accessible toilet does not have an unobstructed minimum turning space of 150cm x 150cm.
    • The height of the light switch/pull cord is 90cm from floor level.
    • The lighting levels are good.
    • There is a lateral transfer space.
    • As you face the toilet pan the transfer space is on the left.
    • The lateral transfer space is 70cm (2ft 4in).
    • The transfer space is obstructed by a waste disposal bin.
    • There is a flush on the transfer side.
    • There is not a spatula type lever flush.
    • There is a lever flush.
    • There is a dropdown rail on the transfer side.
    • The contrast between the dropdown rail(s) and wall is poor.
    • There is a/are wall-mounted grab rail(s) available.
    • As you face the toilet the wall-mounted grab rail(s) is/are on both sides.
    • There is a vertical wall-mounted grab rail on the transfer side.
    • There is a horizontal wall-mounted grab rail on the opposite side of the seat to the transfer space.
    • The contrast between the wall-mounted grab rail(s) and wall is poor.
    • The contrast between the walls and floor is good.
    • There is an emergency alarm.
    • The emergency pull cord alarm was out of reach (higher than 10cm (4") from floor) when surveyed.
    • There is a red flashing fire alarm beacon within the toilet.
    • Disposal facilities are available in the toilet.
    • There is a/are sanitary and general waste (with no lid) disposal units.
    • There is a/are coat hook(s).
    • The height of the coat hook is 163cm from the floor.
  • Additional Fixtures View
    • There is a mirror.
    • The mirror is not placed at a lower level or at an angle for ease of use.
    • There is not a shelf within the accessible toilet.
    • The toilet has a backrest.
    • The height of the toilet seat above floor level is 48cm (1ft 7in).
    • The toilet seat colour contrast is poor.
    • There is a toilet roll holder.
    • The toilet roll holder can be reached from seated on the toilet.
    • The toilet roll holder is not placed higher than 100cm (3ft 3in).
    • The height of the toilet roll holder is 98cm (3ft 3in).
    • The contrast between the toilet roll holder and the wall is good.
    • There is a wash basin.
    • The wash basin and tap(s) can be reached from seated on the toilet.
    • The wash basin is placed higher than 74cm (2ft 5in).
    • The height of the wash basin is 77cm (2ft 6in).
    • There are vertical wall-mounted grab rails on both sides of the wash basin.
    • The contrast between the wash basin wall-mounted grab rail(s) and wall is poor.
    • The wash basin tap type is push.
    • There is a wall fixed soap dispenser.
    • The soap dispenser cannot be reached from seated on the toilet.
    • The height of the soap dispenser is 115cm.
    • There is not a towel dispenser.
    • There is a hand dryer.
    • The hand dryer is placed higher than 100cm (3ft 3in).
    • The height of the hand dryer is 108cm (3ft 7in).
    • The contrast between the hand dryer and the wall is poor.
  • Comments View
    • There is a light pull cord 90cm above the floor.

Level Change (Ground Floor West)

  • There is a ramp/slope to access this area/service.
  • The ramp/slope does not bypass the step(s).
  • The ramp/slope is located between the ground floor left (west) side stairs and the left (west) lift.
  • There is a level landing at the top of the ramp/slope.
  • The ramp does not have handrails.
  • The width of the ramp/slope is 91cm (2ft 12in).
  • There is a/are step(s) to access this area/service.
  • The step(s) is/are located between the ground floor left (west) side stairs and the left (west) lift.
  • There is/are 2 step(s) to the area/service.
  • The lighting levels at the step(s) are good.
  • The step(s) is/are not clearly marked.
  • The step(s) is/are medium height (11cm - 17cm).
  • There is not a/are not handrail(s) at the step(s).
  • Comments View
    • This level change can be used to access rooms G26 and G27.
    • The ramp here is temporary.

Level Change (Ground Floor Rear)

  • There is a/are step(s) to access this area/service.
  • The step(s) is/are located on the ground floor to the rear of the building.
  • There is/are 3 step(s) to the area/service.
  • The lighting levels at the step(s) are low to moderate.
  • The step(s) is/are clearly marked.
  • The step(s) is/are medium height (11cm - 17cm).
  • There is not a/are not handrail(s) at the step(s).
  • Comments View
    • These steps access the ground floor shared standard toilets.

Standard Toilet(s)

  • Standard toilet facilities are available.
  • Toilet Facilities View
    • The female and male toilets are located in the middle of the basement floor (photographs 1 to 8).
    • There is step-free access into the toilet(s).
    • The standard toilet(s) is/are approximately 23m from the left (west) lift.
    • The colour contrast between the external toilet door(s) and wall(s) is good.
    • There is tactile, pictorial and written text signage on or near the toilet door.
    • An ambulant toilet cubicle is not available.
    • The height of the wash basin(s) is 84cm.
    • The wash basin(s) tap type is sensor.
    • Lighting levels are good.
    • There is an amenity cubicle in each of the female and male standard toilets on the basement floor (photographs 5 and 8).
      There are additional female and male standard toilets on the ground floor, and floors 2 to 5.
      The female standard toilets on floors 2, 3 and 5 are on the right (east) side of the building, and on floor 4 to the left (west) side of the building.
      The male standard toilets on floors 2 and 4 are to the right (east) side of the building, and floors 3 and 5 to the left (west) side of the building.
  • Toilet Facilities 2 View
    • The shared toilet is located on the ground floor to the rear of the building, to the rear right of the Square Lounge (photographs 9 and 10).
    • There is stepped access into the toilet(s).
    • The standard toilet(s) is/are approximately 52m from the main entrance.
    • The colour contrast between the external toilet door(s) and wall(s) is good.
    • There is pictorial signage on or near the toilet door.
    • An ambulant toilet cubicle is not available.
    • The height of the wash basin(s) is 80cm.
    • The wash basin(s) tap type is push.
    • Lighting levels are good.
    • There are additional shared standard toilets in the basement.
      These are to the rear of the building within room B31 shared standard shower (photograph 11), and within room B41 Junior Common Room.
      The shared standard toilet in room B31 requires a key, available from reception.
      There are further shared standard toilets on the second floor.
      These toilets are located on the right out of the west lift.
      There are 2 separate doors to each of a single and multiple cubicle facility.
  • Baby Changing Facilities 2 View
    • Baby change facilities are available in the shared toilets.
    • There is a flip down baby change table available.
    • The height of the baby change table is 89cm.
  • Comments View
    • The baby change facility is located in the shared standard toilets on the ground floor to the rear of the building, to the rear right of the Square Lounge (photographs 9 and 10).

Lift (West)

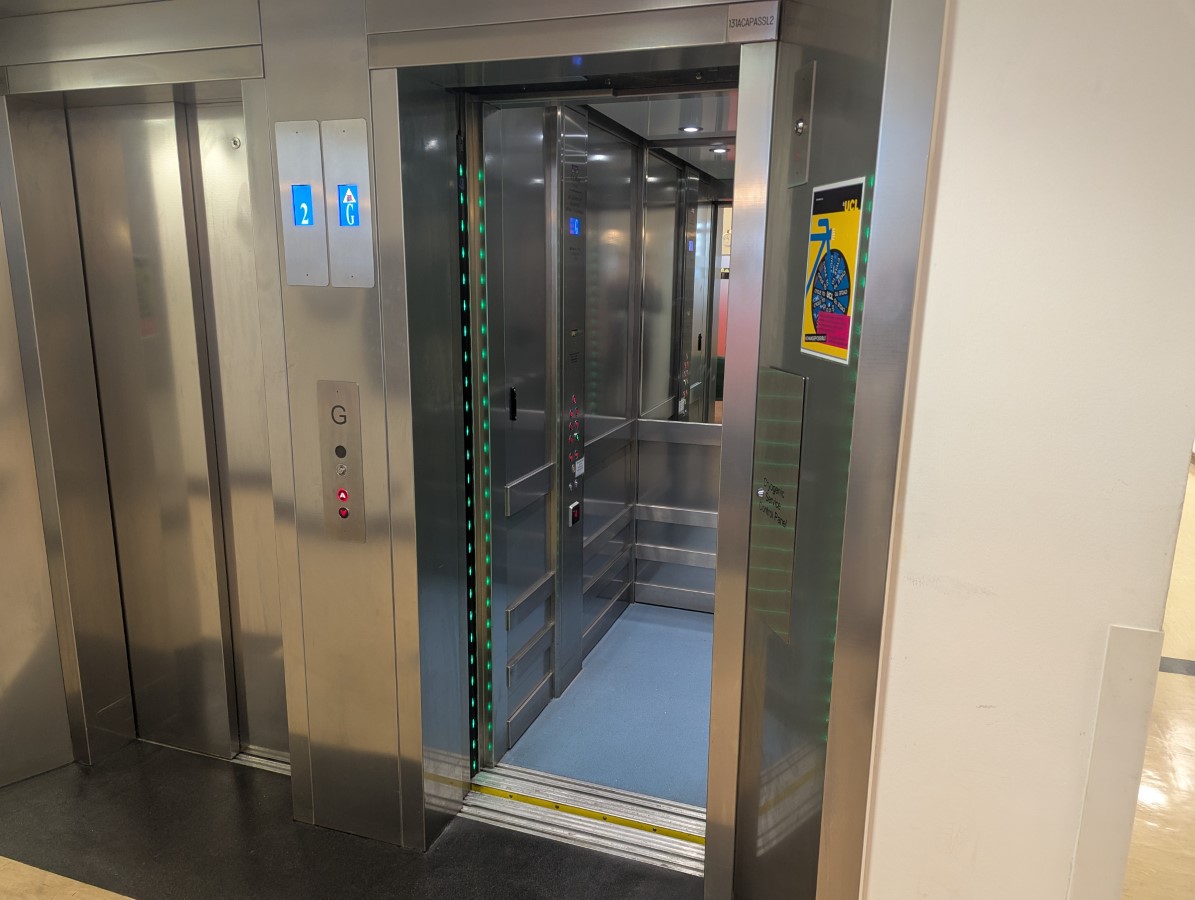

  • There is a lift for public use.
  • The lift is located to the left (west) side of the building, past reception and the refectory.
  • The lift is a standard lift.
  • The floors which are accessible by this lift are B, G, 1, 2, 3, 4 and 5.
  • Wall mounted information boards are provided at lift landings.
  • The weight limit for the lift is 825kg.
  • The lift is approximately 30m (32yd 2ft) from the entrance.
  • Staff do not need to be notified for use of the lift.
  • The clear door width is 82cm (2ft 8in).
  • The dimensions of the lift are 118cm x 153cm (3ft 10in x 5ft).
  • There are not separate entry and exit doors in the lift.
  • There is a mirror to aid reversing out of the lift.
  • The lift does have a visual floor indicator.
  • The lift does have an audible announcer.
  • The lift has a hearing enhancement system.
  • The lift does not have Braille markings.
  • The lift does have tactile markings.

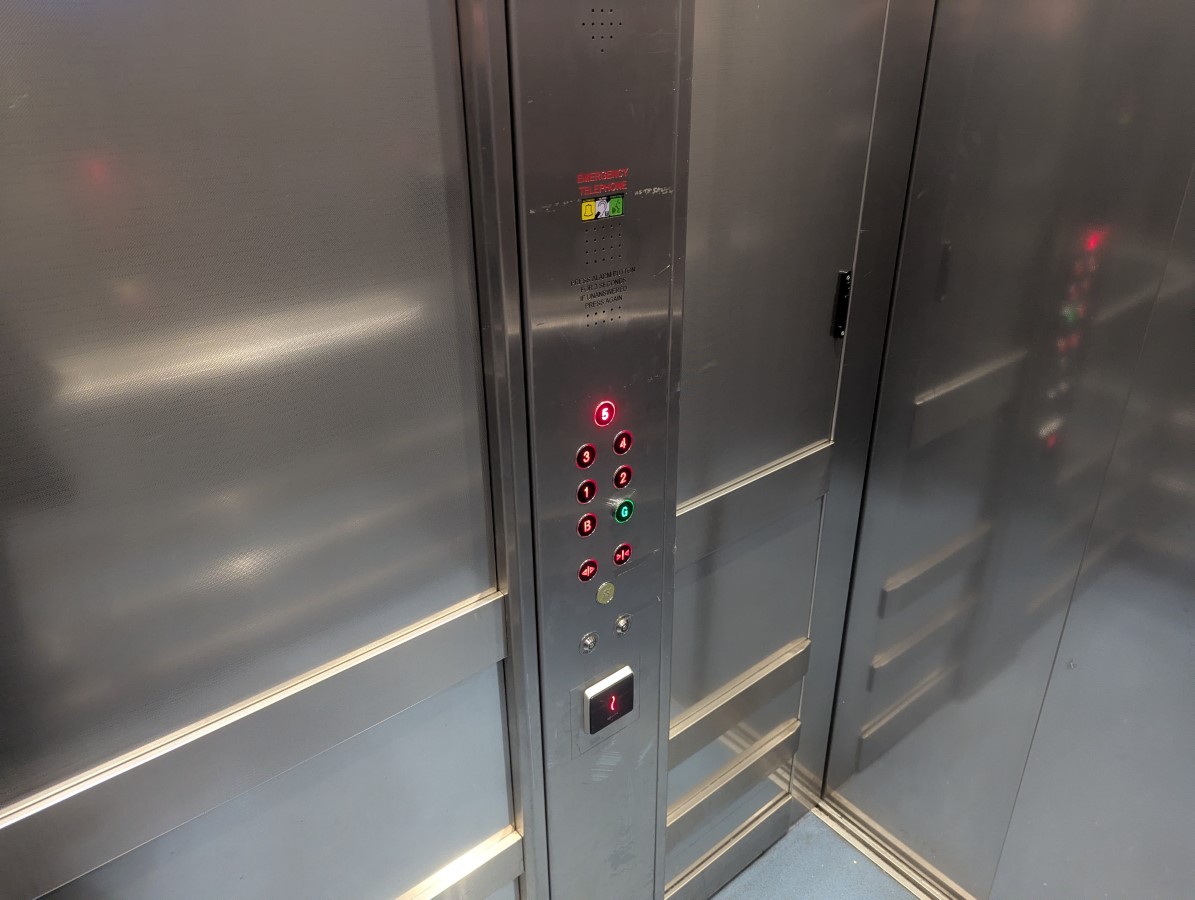

  • The controls for the lift are within 90cm - 120cm from the floor.
  • The lighting level in the lift is good.

Lift (East)

  • There is a lift for public use.
  • The lift is located to the right (east) side of the building.
  • The lift is a standard lift.
  • The floors which are accessible by this lift are B, G, 1, 2, 3, 4 and 5.
  • Wall mounted information boards are provided at lift landings.
  • There are manual, double doors which may be difficult to open to access the lift lobby on all floors.
  • The weight limit for the lift is 825kg.
  • The lift is approximately 30m (32yd 2ft) from the entrance.
  • Staff do not need to be notified for use of the lift.
  • The clear door width is 82cm (2ft 8in).
  • The dimensions of the lift are 125cm x 150cm (4ft 1in x 4ft 11in).
  • There are not separate entry and exit doors in the lift.
  • There is a mirror to aid reversing out of the lift.
  • The lift does have a visual floor indicator.
  • The lift does have an audible announcer.
  • The lift has a hearing enhancement system.
  • The lift does not have Braille markings.
  • The lift does have tactile markings.
  • The controls for the lift are within 90cm - 120cm from the floor.
  • The lighting level in the lift is good.
  • Comments View

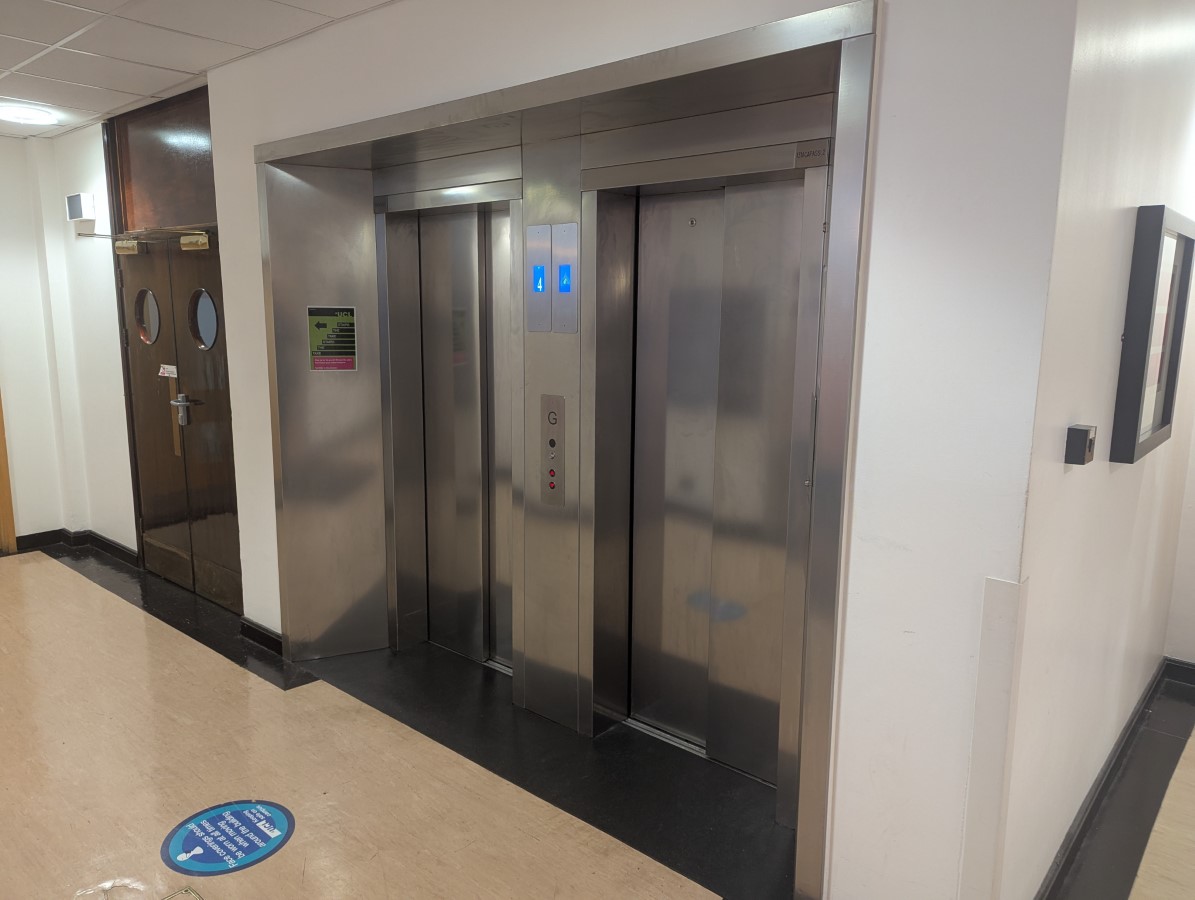

    • There are two adjacent lifts.
    • The first floor opens out into the library, for which a key card is required.
    • The key card reader is 70cm above the floor.

Other Floors

  • Steps View
    • The floors which are accessible by stairs are B, G, 1, 2, 3, 4, 5, 6.
    • The stairs are located on the right (east) side of the building.
    • The stairs are approximately 40m from the security barriers after reception.
    • There are 15+ steps between floors.
    • There are manual, double doors which may be difficult to open to access the stairwell on the basement floor, on the first floor, on the second floor and on the third floor.
    • The lighting levels are good.
    • The steps are clearly marked.
    • The steps are medium height (11cm - 17cm).
    • The steps do have handrails.
    • The steps have a handrail on both sides.
    • There is a landing.
    • Photographs 1 to 4 show the stairs to right (east) side of the building. There are stairs to the centre of the building past reception to access floors B, G, 1 only (photographs 5 to 7). There are similar sets of stairs on the left (west) side of the building (photographs 8 to 11). There are 15+ deep steps leading to the sixth floor at both the left (west) side and the right (east) sides of the building (photograph 12).
  • Other View
    • The area(s)/service(s) on the floors which are not accessible is/are the sixth floor.

Counter (Stores)

  • The desk is 20m (21yd 2ft) from the right (east) lift.
  • The store counter is located on the basement floor.
  • Clear signage for the counter is visible from the lift.
  • There is step free access to this counter.
  • The lighting levels in this area are good.
  • The reception counter is medium height (77cm - 109cm).
  • There is not a low section of the counter (76cm or below) available.
  • The desk is staffed.
  • There is not a hearing assistance system.

Accessible Toilet(s) (Basement - Left Hand Transfer)

  • There is an/are accessible toilet(s) available.
  • Location and Access View
    • This accessible toilet is located to the left and through a single, manual door once exiting the left (west) lift.
    • This accessible toilet is approximately 15m (16yd 1ft) from the left (west) lift.
    • There is step-free access into the accessible toilet.
    • This is a shared toilet.
    • A key is not required for the accessible toilet.
    • There is tactile, pictorial and written text signage on or near the toilet door.
    • The contrast between the external door and wall is good.
    • The door opens inwards.
    • The door is easy to open.
    • The door is locked by a twist lock.
    • The width of the accessible toilet opening is 85cm (2ft 9in).
    • The contrast between the internal door and wall is good.
    • The door has a horizontal grab rail.
    • The contrast between the horizontal grab rail and internal door is good.
  • Toilet Features View
    • The dimensions of the accessible toilet are 148cm x 250cm (4ft 10in x 8ft 2in).
    • The accessible toilet does not have an unobstructed minimum turning space of 150cm x 150cm.
    • The height of the light switch/pull cord is 120cm from floor level.
    • The lighting levels are moderate to good.
    • There is a lateral transfer space.
    • As you face the toilet pan the transfer space is on the left.
    • The lateral transfer space is 77cm (2ft 6in).
    • The transfer space is obstructed by a sanitary bin.
    • There is a flush, however it is not on the transfer side.
    • There is not a spatula type lever flush.
    • There is a lever flush.
    • There is a dropdown rail on the transfer side.
    • The contrast between the dropdown rail(s) and wall is poor.
    • There is a/are wall-mounted grab rail(s) available.
    • As you face the toilet the wall-mounted grab rail(s) is/are on both sides.
    • There is a vertical wall-mounted grab rail on the transfer side.
    • There is a horizontal wall-mounted grab rail on the opposite side of the seat to the transfer space.
    • The contrast between the wall-mounted grab rail(s) and wall is poor.
    • The contrast between the walls and floor is good.
    • There is an emergency alarm.
    • The emergency pull cord alarm was out of reach (higher than 10cm (4") from floor) when surveyed.
    • There is not a red flashing fire alarm beacon within the toilet.
    • Disposal facilities are available in the toilet.
    • There is a/are sanitary and general waste (with no lid) disposal units.
    • There is a/are coat hook(s).
    • The height of the coat hook is 162cm from the floor.
  • Additional Fixtures View
    • There is a mirror.
    • The mirror is not placed at a lower level or at an angle for ease of use.
    • There is a shelf within the accessible toilet.
    • The shelf has the minimum dimensions of 12.5cm x 40cm.
    • The shelf is at a height of 81cm.
    • The shelf is located where it is reachable.
    • The toilet does not have a backrest or a cistern.
    • The height of the toilet seat above floor level is 48cm (1ft 7in).
    • The toilet seat colour contrast is poor.
    • There is a toilet roll holder.
    • The toilet roll holder can be reached from seated on the toilet.
    • The toilet roll holder is not placed higher than 100cm (3ft 3in).
    • The height of the toilet roll holder is 94cm (3ft 1in).
    • The contrast between the toilet roll holder and the wall is fair.
    • There is a wash basin.
    • The wash basin and tap(s) can be reached from seated on the toilet.
    • The wash basin is not placed higher than 74cm (2ft 5in).
    • The height of the wash basin is 72cm (2ft 4in).
    • There are vertical wall-mounted grab rails on both sides of the wash basin.
    • The contrast between the wash basin wall-mounted grab rail(s) and wall is poor.
    • The wash basin tap type is twist turn mixer.
    • There is a wall fixed soap dispenser.
    • The soap dispenser cannot be reached from seated on the toilet.
    • The height of the soap dispenser is 113cm.
    • There is not a towel dispenser.
    • There is a hand dryer.
    • The hand dryer is placed higher than 100cm (3ft 3in).
    • The height of the hand dryer is 110cm (3ft 7in).
    • The contrast between the hand dryer and the wall is poor.

Eating and Drinking (B41 Junior Common Room)

  • Location and Access View
    • The following information is for the bar.
    • The bar is located on the basement floor right into the building from the left (west) lift or left into the building from the right (east) lift.
    • There is stepped access to the café.
    • For access there are double manual doors which may be difficult to open.
    • There are 2 sets of doors to enter the common room.
      The entrance nearest the right (east) lift is 20m from the lift.
      There are 3 medium height steps with a handrail on the right hand side going up (photographs 1 and 2).
      The manual double doors which open away from you (push) may be difficult to open, have an open door width of 130cm.
      The entrance nearest the left (west) lift is 66m from the lift.
      There are 3 medium height steps with a handrail on the left hand side going up (photographs 3 and 4).
      The manual double doors which open towards you (pull) may be difficult to open, have an open door width of 113cm.
  • Service and Menus View
    • Tables cannot be booked in advance.
    • There is a bar where food and drink can be ordered.
    • Staff can bring food and/or drinks to tables.
    • The common room is opened for specific bookings or events.
      Staff and students can consult UCL Timetable here for more information (opens in a new tab).
  • Service Counter(s) View
    • The height of the counter is 110cm.
  • Tables and Seating View
    • There is ample room for a wheelchair user to manoeuvre.
    • The majority of tables are accessible to wheelchair users.
    • The standard height for the underside of dining tables is 68cm.
    • There are also coffee tables, sofas and high stools.
    • The surface height of the lowest table is 41cm.
    • The surface height of the highest table is 107cm.
    • No tables are permanently fixed.
    • No chairs are permanently fixed.
    • No chairs have armrests on both sides.
    • The type of flooring in this area is laminate.
    • There is flooring which is shiny and could cause issues with glare or look slippery to some people.
    • The lighting levels are low to moderate.
  • Comments View
    • The common room is on two levels, a lower level to access seating and the bar, and a raised activity area.
    • There are 4 medium height steps with handrails on both sides to access the raised area from the centre of the common room (photograph 9).
    • There are 3 medium height steps without handrails to access the raised area from the bar (photograph 10).

Level Change (Basement B41 Junior Common Room)

  • There is a/are step(s) to access this area/service.
  • The step(s) is/are located off the raised area inside B41 Junior Common Room.
  • There is/are 7 step(s) to the area/service.
  • The lighting levels at the step(s) are moderate to good.
  • The step(s) is/are clearly marked.
  • The step(s) is/are medium height (11cm - 17cm).
  • There is not a/are not handrail(s) at the step(s).

Standard Shower (Basement B31)

  • Shower facilities are available.
  • The shower(s) surveyed is/are located in the basement, to the rear of the building, in room B31.
  • There is level access to the services from the shower facilities.
  • Comments View
    • There are 2 steps into the shower tray 13cm and 20cm high.
    • There is also a standard toilet located in the shower room.
    • There is also a wash basin 90cm above the floor.
    • The light switch is 142cm above the floor.

Standard Toilet(s) (Basement B41 Junior Common Room)

  • Standard toilet facilities are available.
  • Toilet Facilities View
    • The shared toilet is located on the basement off the Junior Common Room.
    • There is stepped access into the toilet(s).
    • The standard toilet(s) is/are approximately 41m from the right (east) lift.
    • The colour contrast between the external toilet door(s) and wall(s) is good.
    • There is written text signage on or near the toilet door.
    • An ambulant toilet cubicle is available.
    • The ambulant toilet does not have horizontal wall mounted grab rails.
    • There is a/are vertical wall mounted rail(s) on the right as you face the toilet.
    • The height of the wash basin(s) is 79cm.
    • The wash basin(s) tap type is push.
    • Lighting levels are good.

Reception (Student and Academic Support Office G11 and G15)

  • The student and academic support office is located to the right (east) side of the building on the ground floor.
  • The desk is 25m (27yd 1ft) from the main reception.
  • Clear signage for the reception area is not visible from the entrance.
  • There is step free access to this reception area.
  • The lighting levels in the reception area are good.
  • The reception desk/counter is medium height (77cm - 109cm).
  • There is a low section of the counter (76cm or below) available.
  • There is not a clear knee recess beneath the low/lowered counter.
  • The desk is not staffed.
  • There is a bell to attract attention.
  • The bell is at a suitable height for a wheelchair user.
  • There is not a hearing assistance system.
  • Comments View
    • There is a second Student Academic Support Office for professional students located in room G15 (photographs 5 and 6).
    • There are several desks in this room at a height of 69cm from the floor.

Level Change (First Floor West)

  • There is a/are step(s) to access this area/service.
  • The step(s) is/are located between the between the refectory upper seating area and rooms 113 and 115, and other services on the first floor.
  • There is/are 7 step(s) to the area/service.
  • The lighting levels at the step(s) are low to moderate.
  • The step(s) is/are not clearly marked.
  • The step(s) is/are deep (18cm+).
  • There is a/are handrail(s) at the step(s).
  • The handrail(s) is/are on both sides.
  • Comments View
    • The top of the steps leads through a door to the right (west) lift on the right after the doorway.

Lecture Theatre(s) (John Hanbury Lecture Theatre)

  • Directional and locational signage for the lecture theatre(s) is available in upper and lower case lettering that is clearly visible.
  • The corridor outside the lecture theatre(s) is sufficiently wide enough (150cm+) to allow wheelchair users to pass.
  • There is step free access into the lecture theatre(s).
  • The door opening width(s) is/are 75cm+ for the lecture theatre(s).
  • The door(s) for the lecture theatre(s) is/are not push pad activated.
  • There are no designated spaces for wheelchair users within the lecture theatre(s).
  • There is not space for an assistance dog.
  • There is not step free access to the speaker's area at the front of the lecture theatre(s).
  • The speaker's area is located at the bottom of the tiered seating.
  • The height of the lectern is 95cm.
  • The lectern is not height adjustable.
  • There is (staggered) tiered seating within the lecture theatre(s).
  • The steps to the (staggered) tiered seating do not have handrails.
  • There is not a hearing assistance system for the lecture theatre(s).
  • There is a visual fire alarm beacon in the lecture theatre(s).
  • There is fixed furniture within the lecture theatre(s).
  • The clear floor space beneath tables in the lecture theatre(s) ranges between 75cm and 77cm.
  • A height adjustable table/bench is not available.
  • There are no chairs with armrests on both sides within the lecture theatre(s).
  • Floor coverings in the lecture theatre(s) are even with no trip hazards.
  • Comments View
    • The lecture theatre is equipped with a microphone system for voice reinforcement and assistive listening.

Entrance (Library)

  • Entrance View
    • This information is for the entrance located at the front of the library on the first floor, to the right from the central staircase.
    • There is step free access at this entrance, via lift.
    • There is not a bell/buzzer.
    • There is not an intercom.
    • A key card is required for access at this entrance.
    • The height of the card reader/lock is 105cm (3ft 5in).
    • The main door(s) open(s) towards you (pull).
    • The door(s) is / are single.
    • The door(s) may be difficult to open.
    • The width of the door opening is 104cm (3ft 5in).
  • Second Set of Doors View
    • There is a second set of doors.
    • The main door(s) open(s) towards you (pull).
    • The door(s) is / are single.
    • The door(s) is/are permanently held open.
    • The width of the door opening is 86cm (2ft 10in).
  • Comments View
    • There is a push-button which is 102cm high and used to exit from the first entrance door.
    • There are security barriers between the doors with a width of 93cm.
    • There is also key card access via the right (east) lift.

Reception (Library)

  • The library reception is located to your left on entrance to the library.
  • The desk is 5m (5yd 1ft) from the library entrance.
  • The reception area is clearly visible from the entrance.
  • There is step free access to this reception area.
  • The lighting levels in the reception area are good.
  • The reception desk/counter is medium height (77cm - 109cm).
  • There is a low section of the counter (76cm or below) available.
  • The desk is not staffed.
  • There is a bell to attract attention.
  • The bell is at a suitable height for a wheelchair user.
  • There is a hearing assistance system.
  • The type of system is a fixed loop.
  • The hearing assistance system is signed.
  • Staff are trained to use the hearing assistance system.
  • The hearing assistance system was tested by an AccessAble surveyor.
  • The hearing assistance system was tested on 27/09/2022.
  • The hearing assistance system was working at the time of testing.
  • Comments View
    • Signage at the desk states that there is a portable loop, however only a fixed loop is available at the desk (photograph 3).
    • The loans machine is located to the left of the Library Reception. The scanner is 92cm high and the touch screen is 106 to 152cm high (photograph 4).
    • A self-service laptop loan services is available in the library. The touch screen is 104cm to 133cm high (photograph 5).

Library

  • This library does not have a regular supply of books in Braille.
  • This library does not have a regular supply of books in large print.
  • This library does not have a regular supply of books in audio format.
  • There is an ordering service.
  • The library does not have computers with accessible software.
  • Auxiliary aids are available for computer users.
  • A height adjustable chair is / are available.
  • Comments View
    • There are Access Point computers to conduct library literature searches after the first set of doors on tables with a surface height 99cm above the floor (photograph 4).
    • There is a deep step to access additional desks in the library (photographs 7 and 8).
    • There are 3 access points each with a step 17cm high.
    • There is a separate study room with a single 77cm wide door and a table with a surface height 75cm above the floor (photograph 9).
    • Alternative format versions of all UCL Library guides (large print, Braille and Microsoft Word) are available on request.
    • Book requests and orders may vary processing time depending on availability and material type.

Entrance (M1 to M6 Seminar Rooms via Library Fire Doors)

  • Entrance View
    • This information is for the entrance located on the first floor, to the right (east) side of the building.
    • There is ramped/sloped access at this entrance.
    • There is one set of manual, double doors, which may be difficult to open between the library and this entrance.
    • The main door(s) open(s) away from you (push).
    • The door(s) is / are double.
    • The door(s) may be difficult to open.
    • The width of the door opening is 149cm (4ft 11in).
  • Ramp/Slope View
    • There is a ramp/slope at this entrance.
    • The ramp/slope is located in front of the entrance.
    • The ramp/slope gradient is steep.
    • The width of the ramp is 149cm.
  • Comments View
    • Visitors requiring access at this entrance are required to enquire with staff at main reception or library reception beforehand.

Level Change (First Floor East M1 to M6 Seminar Rooms)

  • There is a ramp/slope to access this area/service.
  • The ramp/slope does bypass the step(s).
  • The ramp/slope is located on the first floor, to the right (east) side of the building.
  • The ramp/slope is permanent.
  • There is a level landing at the top of the ramp/slope.
  • The ramp does have handrails.
  • The handrails are on the right going up the ramp.
  • The width of the ramp/slope is 108cm (3ft 7in).
  • There is a/are step(s) to access this area/service.
  • The step(s) is/are located to the left of the ramp.
  • There is/are 3 step(s) to the area/service.
  • The lighting levels at the step(s) are good.
  • The step(s) is/are clearly marked.
  • The step(s) is/are deep (18cm+).
  • There is a/are handrail(s) at the step(s).
  • The handrail(s) is/are on the left going up the step(s).
  • Comments View
    • Step-free access to this level change is via the right (east) side lift to the first floor and through the library fire doors.
    • Visitors requiring step-free access are required to enquire with staff at main reception or library reception beforehand.

Accessible Toilet(s) (First Floor - Left Hand Transfer)

  • There is an/are accessible toilet(s) available.
  • Location and Access View
    • This accessible toilet is located on the first floor, to the right and through the double doors from the left (west) lift.
    • This accessible toilet is approximately 9m (9yd 2ft) from the left (west) lift.
    • There is step-free access into the accessible toilet.
    • This is a shared toilet.
    • A key is not required for the accessible toilet.
    • There is tactile, pictorial and written text signage on or near the toilet door.
    • The contrast between the external door and wall is good.
    • The door opens inwards.
    • The door is easy to open.
    • The door is locked by a twist lock.
    • The width of the accessible toilet opening is 80cm (2ft 7in).
    • The contrast between the internal door and wall is good.
    • The door has a horizontal grab rail.
    • The contrast between the horizontal grab rail and internal door is good.
  • Toilet Features View
    • The dimensions of the accessible toilet are 143cm x 248cm (4ft 8in x 8ft 2in).
    • The accessible toilet does not have an unobstructed minimum turning space of 150cm x 150cm.
    • The height of the light switch/pull cord is 90cm from floor level.
    • The lighting levels are moderate to good.
    • There is a lateral transfer space.
    • As you face the toilet pan the transfer space is on the left.
    • The lateral transfer space is 80cm (2ft 7in).
    • The transfer space is obstructed by a sanitary bin.
    • There is a flush on the transfer side.
    • There is not a spatula type lever flush.
    • There is a lever flush.
    • There is a dropdown rail, however it is not on the transfer side.
    • The contrast between the dropdown rail(s) and wall is poor.
    • There is a/are wall-mounted grab rail(s) available.
    • As you face the toilet the wall-mounted grab rail(s) is/are on the right.
    • There is not a vertical wall-mounted grab rail on the transfer side.
    • The contrast between the wall-mounted grab rail(s) and wall is poor.
    • The contrast between the walls and floor is good.
    • There is an emergency alarm.
    • The emergency pull cord alarm was out of reach (higher than 10cm (4") from floor) when surveyed.
    • There is a red flashing fire alarm beacon within the toilet.
    • Disposal facilities are available in the toilet.
    • There is a/are sanitary disposal units.
    • There is a/are coat hook(s).
    • The height of the coat hook is 166cm from the floor.
  • Additional Fixtures View
    • There is a mirror.
    • The mirror is not placed at a lower level or at an angle for ease of use.
    • There is not a shelf within the accessible toilet.
    • The toilet has a backrest.
    • There is a lid attached to the toilet seat.
    • The height of the toilet seat above floor level is 42cm (1ft 5in).
    • The toilet seat colour contrast is poor.
    • There is a toilet roll holder.
    • The toilet roll holder can be reached from seated on the toilet.
    • The toilet roll holder is placed higher than 100cm (3ft 3in).
    • The height of the toilet roll holder is 105cm (3ft 5in).
    • The contrast between the toilet roll holder and the wall is poor.
    • There is a wash basin.
    • The wash basin and tap(s) can be reached from seated on the toilet.
    • The wash basin is placed higher than 74cm (2ft 5in).
    • The height of the wash basin is 76cm (2ft 6in).
    • There are vertical wall-mounted grab rails on both sides of the wash basin.
    • The contrast between the wash basin wall-mounted grab rail(s) and wall is poor.
    • The wash basin tap type is twist turn mixer.
    • There is a wall fixed soap dispenser.
    • The soap dispenser cannot be reached from seated on the toilet.
    • The height of the soap dispenser is 120cm.
    • There is not a towel dispenser.
    • There is a hand dryer.
    • The hand dryer requires hands to be inserted into the top.
    • The hand dryer is not placed higher than 100cm (3ft 3in).
    • The height of the hand dryer is 82cm (2ft 8in).
    • The contrast between the hand dryer and the wall is good.
  • Comments View
    • This toilet requires a key code for access which is available from staff at main reception.

Standard Shower (First Floor)

  • Shower facilities are available.
  • The shower(s) surveyed is/are located on the first floor next to the accessible toilet.
  • There is level access to the services from the shower facilities.
  • Comments View
    • The single door into the shower room is 56cm wide.
    • The shower cubicle has a 31cm step over into the shower tray.
    • The shower cubicle is 64cm wide.
    • The light switch is 96cm above the floor.

Reception (Computer Unit)

  • The computer unit is located to the right from the left (west) lift.
  • The desk is 6m (6yd 1ft) from the left (west) lift.
  • Clear signage for the reception area is visible from the lift.
  • There is step free access to this reception area.
  • The lighting levels in the reception area are good.
  • The reception desk/counter is medium height (77cm - 109cm).
  • There is not a low section of the counter (76cm or below) available.
  • The desk is staffed.
  • There is a bell to attract attention.
  • The bell is at a suitable height for a wheelchair user.
  • There is not a hearing assistance system.

Accessible Toilet(s) (Second Floor - Right Hand Transfer)

  • There is an/are accessible toilet(s) available.
  • Location and Access View
    • This accessible toilet is located on the second floor, left out of the left (west) lift, then left again.
    • This accessible toilet is approximately 10m (10yd 2ft) from the left (west) lift.
    • There is step-free access into the accessible toilet.
    • This is a shared toilet.
    • A key is not required for the accessible toilet.
    • There is pictorial signage on or near the toilet door.
    • The contrast between the external door and wall is good.
    • The door opens inwards.
    • The door is easy to open.
    • The door is locked by a lever twist.
    • The width of the accessible toilet opening is 81cm (2ft 8in).
    • The contrast between the internal door and wall is good.
    • The door has a horizontal grab rail.
    • The contrast between the horizontal grab rail and internal door is poor.
  • Toilet Features View
    • The dimensions of the accessible toilet are 220cm x 240cm (7ft 3in x 7ft 10in).
    • The accessible toilet does have an unobstructed minimum turning space of 150cm x 150cm.
    • The lighting levels are good.
    • There is a lateral transfer space.
    • As you face the toilet pan the transfer space is on the right.
    • The lateral transfer space is 162cm (5ft 4in).
    • The transfer space is obstructed by a sanitary bin.
    • There is a flush on the transfer side.
    • There is a spatula type lever flush.
    • There is a dropdown rail on the transfer side.
    • The contrast between the dropdown rail(s) and wall is good.
    • There is a/are wall-mounted grab rail(s) available.
    • As you face the toilet the wall-mounted grab rail(s) is/are on the left.
    • There is not a vertical wall-mounted grab rail on the transfer side.
    • There is a horizontal wall-mounted grab rail on the opposite side of the seat to the transfer space.
    • The contrast between the wall-mounted grab rail(s) and wall is good.
    • The contrast between the walls and floor is fair.
    • There is an emergency alarm.
    • The emergency pull cord alarm is fully functional.
    • There is a red flashing fire alarm beacon within the toilet.
    • Disposal facilities are available in the toilet.
    • There is a/are sanitary disposal units.
    • There is a/are coat hook(s).
    • The height of the coat hook is 175cm from the floor.
  • Additional Fixtures View
    • There is a mirror.
    • The mirror is not placed at a lower level or at an angle for ease of use.
    • There is not a shelf within the accessible toilet.
    • The toilet has a backrest.
    • There is a lid attached to the toilet seat.
    • The height of the toilet seat above floor level is 49cm (1ft 7in).
    • The toilet seat colour contrast is poor.
    • There is a toilet roll holder.
    • The toilet roll holder can be reached from seated on the toilet.
    • The toilet roll holder is not placed higher than 100cm (3ft 3in).
    • The height of the toilet roll holder is 97cm (3ft 2in).
    • The contrast between the toilet roll holder and the wall is good.
    • There is a wash basin.
    • The wash basin and tap(s) can be reached from seated on the toilet.
    • The wash basin is not placed higher than 74cm (2ft 5in).
    • The height of the wash basin is 73cm (2ft 5in).
    • There is a vertical wall-mounted grab rail on the right hand side of the wash basin.
    • The contrast between the wash basin wall-mounted grab rail(s) and wall is good.
    • The wash basin tap type is lever mixer.
    • There is a wall fixed soap dispenser.
    • The soap dispenser can be reached from seated on the toilet.
    • The height of the soap dispenser is 85cm.
    • There is not a towel dispenser.
    • There is a hand dryer.
    • The hand dryer is not placed higher than 100cm (3ft 3in).
    • The height of the hand dryer is 91cm (2ft 12in).
    • The contrast between the hand dryer and the wall is good.

Accessible Toilet(s) (Third Floor - Right Hand Transfer)

  • There is an/are accessible toilet(s) available.
  • Location and Access View
    • This accessible toilet is located on the third floor, left out of the left (west) lift, then left again.
    • This accessible toilet is approximately 15m (16yd 1ft) from the left (west) lift.
    • There is step-free access into the accessible toilet.
    • This is a shared toilet.
    • A key is not required for the accessible toilet.
    • There is tactile, pictorial and written text signage on or near the toilet door.
    • The contrast between the external door and wall is good.
    • The door opens inwards.
    • The door is easy to open.
    • The door is locked by a twist lock.
    • The width of the accessible toilet opening is 86cm (2ft 10in).
    • The contrast between the internal door and wall is good.
    • The door has a horizontal grab rail.
    • The contrast between the horizontal grab rail and internal door is good.
  • Toilet Features View
    • The dimensions of the accessible toilet are 114cm x 252cm (3ft 9in x 8ft 3in).
    • The accessible toilet does not have an unobstructed minimum turning space of 150cm x 150cm.
    • The height of the light switch/pull cord is 120cm from floor level.
    • The lighting levels are good.
    • There is a lateral transfer space.
    • As you face the toilet pan the transfer space is on the right.
    • The lateral transfer space is 80cm (2ft 7in).
    • The transfer space is obstructed by a sanitary bin.
    • There is a flush on the transfer side.
    • There is not a spatula type lever flush.
    • There is a lever flush.
    • There is a dropdown rail on the transfer side.
    • The contrast between the dropdown rail(s) and wall is poor.
    • There is a/are wall-mounted grab rail(s) available.
    • As you face the toilet the wall-mounted grab rail(s) is/are on both sides.
    • There is a vertical wall-mounted grab rail on the transfer side.
    • There is a horizontal wall-mounted grab rail on the opposite side of the seat to the transfer space.
    • The contrast between the wall-mounted grab rail(s) and wall is poor.
    • The contrast between the walls and floor is good.
    • There is an emergency alarm.
    • The emergency pull cord alarm is fully functional.
    • There is a red flashing fire alarm beacon within the toilet.
    • Disposal facilities are available in the toilet.
    • There is a/are sanitary disposal units.
    • There is a/are coat hook(s).
    • The height of the coat hook is 168cm from the floor.
  • Additional Fixtures View
    • There is a mirror.
    • The mirror is not placed at a lower level or at an angle for ease of use.
    • There is not a shelf within the accessible toilet.
    • The toilet has a backrest.
    • The height of the toilet seat above floor level is 48cm (1ft 7in).
    • The toilet seat colour contrast is poor.
    • There is a toilet roll holder.
    • The toilet roll holder can be reached from seated on the toilet.
    • The toilet roll holder is not placed higher than 100cm (3ft 3in).
    • The height of the toilet roll holder is 92cm (3ft).
    • The contrast between the toilet roll holder and the wall is fair.
    • There is a wash basin.
    • The wash basin and tap(s) can be reached from seated on the toilet.
    • The wash basin is not placed higher than 74cm (2ft 5in).
    • The height of the wash basin is 72cm (2ft 4in).
    • There are vertical wall-mounted grab rails on both sides of the wash basin.
    • The contrast between the wash basin wall-mounted grab rail(s) and wall is fair.
    • The wash basin tap type is lever mixer.
    • There is a wall fixed soap dispenser.
    • The soap dispenser can be reached from seated on the toilet.
    • The height of the soap dispenser is 94cm.
    • There is not a towel dispenser.
    • There is a hand dryer.
    • The hand dryer is placed higher than 100cm (3ft 3in).
    • The height of the hand dryer is 110cm (3ft 7in).
    • The contrast between the hand dryer and the wall is poor.
  • Comments View
    • The facility width restriction as measured is due to pipe boxing (see photographs).

Accessible Toilet(s) (Fourth Floor - Left Hand Transfer)

  • There is an/are accessible toilet(s) available.
  • Location and Access View
    • This accessible toilet is located on the fourth floor, on the left as you exit the left (west) lift.
    • This accessible toilet is approximately 10m (10yd 2ft) from the left (west) lift.
    • There is step-free access into the accessible toilet.
    • This is a shared toilet.
    • A key is not required for the accessible toilet.
    • There is tactile, pictorial and written text signage on or near the toilet door.
    • The contrast between the external door and wall is good.
    • The door opens inwards.
    • The door may be difficult to open.
    • The door is locked by a twist lock.
    • The width of the accessible toilet opening is 84cm (2ft 9in).
    • The contrast between the internal door and wall is good.
    • The door has a horizontal grab rail.
    • The contrast between the horizontal grab rail and internal door is good.
  • Toilet Features View
    • The dimensions of the accessible toilet are 196cm x 182cm (6ft 5in x 5ft 12in).
    • The accessible toilet does not have an unobstructed minimum turning space of 150cm x 150cm.
    • The height of the light switch/pull cord is 130cm from floor level.
    • The lighting levels are good.
    • There is a lateral transfer space.
    • As you face the toilet pan the transfer space is on the left.
    • The lateral transfer space is 125cm (4ft 1in).
    • The transfer space is obstructed by a sanitary bin.
    • There is a flush on the transfer side.
    • There is not a spatula type lever flush.
    • There is a lever flush.
    • There is a dropdown rail on the transfer side.
    • The contrast between the dropdown rail(s) and wall is poor.
    • There is a/are wall-mounted grab rail(s) available.
    • As you face the toilet the wall-mounted grab rail(s) is/are on both sides.
    • There is a vertical wall-mounted grab rail on the transfer side.
    • There is a horizontal wall-mounted grab rail on the opposite side of the seat to the transfer space.
    • The contrast between the wall-mounted grab rail(s) and wall is poor.
    • The contrast between the walls and floor is good.
    • There is an emergency alarm.
    • The emergency pull cord alarm was out of reach (higher than 10cm (4") from floor) when surveyed.
    • There is not a red flashing fire alarm beacon within the toilet.
    • Disposal facilities are available in the toilet.
    • There is a/are sanitary disposal units.
    • There is a/are coat hook(s).
    • The height of the coat hook is 169cm from the floor.
  • Additional Fixtures View
    • There is a mirror.
    • The mirror is placed at a lower level or at an angle for ease of use.
    • There is not a shelf within the accessible toilet.
    • The toilet has a backrest.
    • The height of the toilet seat above floor level is 48cm (1ft 7in).
    • The toilet seat colour contrast is poor.
    • There is a toilet roll holder.
    • The toilet roll holder can be reached from seated on the toilet.
    • The toilet roll holder is not placed higher than 100cm (3ft 3in).
    • The height of the toilet roll holder is 90cm (2ft 11in).
    • The contrast between the toilet roll holder and the wall is fair.
    • There is a wash basin.
    • The wash basin and tap(s) can be reached from seated on the toilet.
    • The wash basin is not placed higher than 74cm (2ft 5in).
    • The height of the wash basin is 72cm (2ft 4in).
    • There are vertical wall-mounted grab rails on both sides of the wash basin.
    • The contrast between the wash basin wall-mounted grab rail(s) and wall is poor.
    • The wash basin tap type is twist turn mixer.
    • There is a wall fixed soap dispenser.
    • The soap dispenser can be reached from seated on the toilet.
    • The height of the soap dispenser is 94cm.
    • There is not a towel dispenser.
    • There is a hand dryer.
    • The hand dryer is placed higher than 100cm (3ft 3in).
    • The height of the hand dryer is 116cm (3ft 10in).
    • The contrast between the hand dryer and the wall is fair.

Accessible Toilet(s) (Fifth Floor - Right Hand Transfer)

  • There is an/are accessible toilet(s) available.
  • Location and Access View
    • This accessible toilet is located on the fifth floor, left out of the left (west) lift, then left again.
      The tactile signage on the first door accesses the male standard toilet and the non-tactile signed accessible toilet door.
    • This accessible toilet is approximately 13m (14yd 8in) from the left (west) lift.
    • There is step-free access into the accessible toilet.
    • This is a shared toilet.
    • A key is not required for the accessible toilet.
    • There is tactile, pictorial and written text signage on or near the toilet door.
    • The contrast between the external door and wall is good.
    • The door opens inwards.
    • The door is easy to open.
    • The door is locked by a sliding bolt.
    • The width of the accessible toilet opening is 83cm (2ft 9in).
    • The contrast between the internal door and wall is good.
    • The door has a horizontal grab rail.
    • The contrast between the horizontal grab rail and internal door is good.
  • Toilet Features View
    • The dimensions of the accessible toilet are 153cm x 210cm (5ft x 6ft 11in).
    • The accessible toilet does not have an unobstructed minimum turning space of 150cm x 150cm.
    • The lighting levels are good.
    • There is a lateral transfer space.
    • As you face the toilet pan the transfer space is on the right.
    • The lateral transfer space is 79cm (2ft 7in).
    • The transfer space is obstructed by a sanitary bin.
    • There is a flush on the transfer side.
    • There is not a spatula type lever flush.
    • There is a lever flush.
    • There is a dropdown rail on the transfer side.
    • The contrast between the dropdown rail(s) and wall is poor.
    • There is a/are wall-mounted grab rail(s) available.
    • As you face the toilet the wall-mounted grab rail(s) is/are on both sides.
    • There is a vertical wall-mounted grab rail on the transfer side.
    • There is a horizontal wall-mounted grab rail on the opposite side of the seat to the transfer space.
    • The contrast between the wall-mounted grab rail(s) and wall is poor.
    • The contrast between the walls and floor is good.
    • There is an emergency alarm.
    • The emergency pull cord alarm was out of reach (higher than 10cm (4") from floor) when surveyed.
    • There is a red flashing fire alarm beacon within the toilet.
    • Disposal facilities are not available in the toilet.
    • There is a/are sanitary disposal units.
    • There is not a/are not coat hook(s).
  • Additional Fixtures View
    • There is a mirror.
    • The mirror is placed at a lower level or at an angle for ease of use.
    • There is not a shelf within the accessible toilet.
    • The toilet has a backrest.
    • The height of the toilet seat above floor level is 48cm (1ft 7in).
    • The toilet seat colour contrast is poor.
    • There is a toilet roll holder.
    • The toilet roll holder can be reached from seated on the toilet.
    • The toilet roll holder is not placed higher than 100cm (3ft 3in).
    • The height of the toilet roll holder is 91cm (2ft 12in).
    • The contrast between the toilet roll holder and the wall is fair.
    • There is a wash basin.
    • The wash basin and tap(s) can be reached from seated on the toilet.
    • The wash basin is not placed higher than 74cm (2ft 5in).
    • The height of the wash basin is 72cm (2ft 4in).
    • There are vertical wall-mounted grab rails on both sides of the wash basin.
    • The contrast between the wash basin wall-mounted grab rail(s) and wall is poor.
    • The wash basin tap type is lever mixer.
    • There is a wall fixed soap dispenser.
    • The soap dispenser can be reached from seated on the toilet.
    • The height of the soap dispenser is 94cm.
    • There is not a towel dispenser.
    • There is a hand dryer.
    • The hand dryer is placed higher than 100cm (3ft 3in).
    • The height of the hand dryer is 112cm (3ft 8in).
    • The contrast between the hand dryer and the wall is poor.

Emergency Egress for Building
