Evacuation and Fire Safety Provisions

• Please note: If booking a space where level access is required, please first contact UCL’s Fire Safety team for building-specific evacuation and safety information at [email protected] / Telephone Number: (0)20 7679 7234.
• View Fire Safety and Personal Emergency Evacuation Plans (opens new tab) .

You are on Overview. Skip to the next section.

Overview

Collapse all Expand all

• About View
  • Marshgate is a flagship building with 10 floors.
  • There are 4 main lifts and 4 main staircases within the building.
    The lifts and stairs are arranged into 'Cores' at each corner of the building.
    Core B is front-right.
    Core C is front-left.
    Core A is rear-right.
    Core D is rear-left.
    There are an additional 3 lifts serving a subset of floors from the ground floor upwards, and also to the basement level.
    There are also 2 escalators and numerous connecting staircases.
  • The floors are signed as -1, G, 1, 2, etc., for the basement, ground floor, level 1, level 2, and so on.
    This is a bit different in the lifts which are marked LG for level -1.
    Only the Core D lifts and Core D stairs serve level -1.
  • View information on UCL East.
• Parking and Public Transport View
  • The venue does not have its own car park.
  • There is on-street Blue Badge Bay parking.
  • The nearest step-free train station is Stratford.
  • The nearest underground station is Stratford.
  • The nearest DLR station is Stratford.
  • For the latest travel options and information you can plan your travel using Google Maps (opens new tab).
  • View information on getting here (opens new tab) .
  • UCL East comprises the flagship Marshgate and the One Pool Street developments.

You are on Getting Inside. Skip to the next section.

Getting Inside

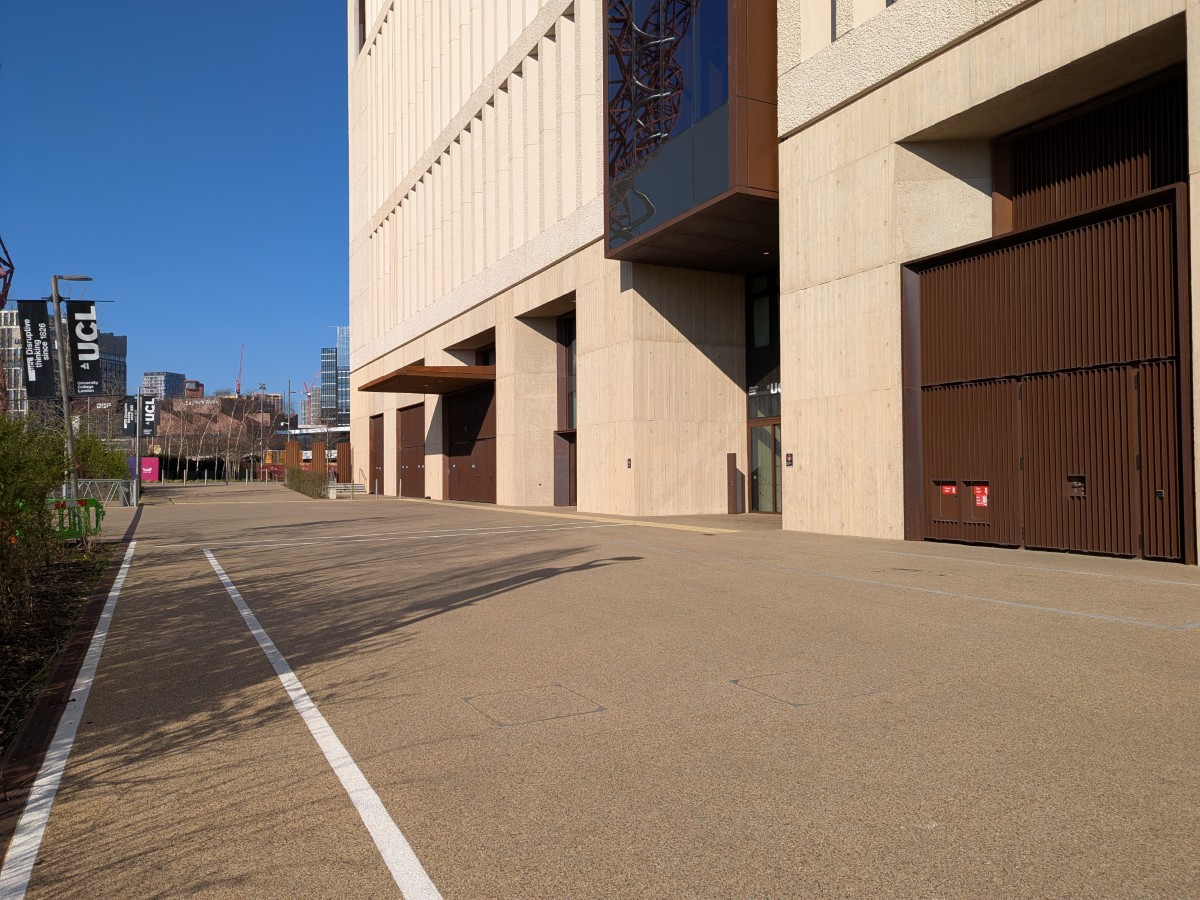

• The approach to the building is step-free and level.
• Marshgate has three entrances.
  All entrances have two sets of automatic double doors.
  All entrances provide step-free access to the main atrium on the ground floor of the building.
• The main and side entrances are not named or signed.
  The rear entrance is signed UCL East Marshgate.
• The main accessible entrance at the front of the building provides step-free level access to the reception desk on the ground floor.
• The side entrance is located in the side of the building facing Sidings Street.
  The entrance at the rear of the building is mainly used for access to the bicycle store.
  A key card is required for access at this entrance with the key card reader at a height of 94cm.

You are on Getting Around. Skip to the next section.

Getting Around

• There is step-free level access throughout the building on all floors.
• There is no through access to between Core A and Core D on the ground floor, only via the main atrium.
  There is no through access to Core A from Core B or Core D on level 1.
  There is no access between Core B and Core C on level 3.
• Floor surfaces along all circulation routes are hard and smooth, with some having a shiny finish.
• There is considerable mixture of seating available throughout the building from level 1 upwards.
• Wall mounted wayfinding signage is provided throughout the building.
• There is a turnstile gate near the rear of the building on the ground floor for access to the bicycle store in the basement.
  The gates are width restricted to 65cm.
  The gates requires a key card.
  There is an alternative wider single width manual door to the left of the turnstile gates.
  A key card is required for this door.
• There is a prayer room towards the rear of the building on level 1, off the Core A lift lobby.

You are on Toilet and Changing Facilities. Skip to the next section.

Toilet and Changing Facilities

Collapse all Expand all

• Toilet Facilities View

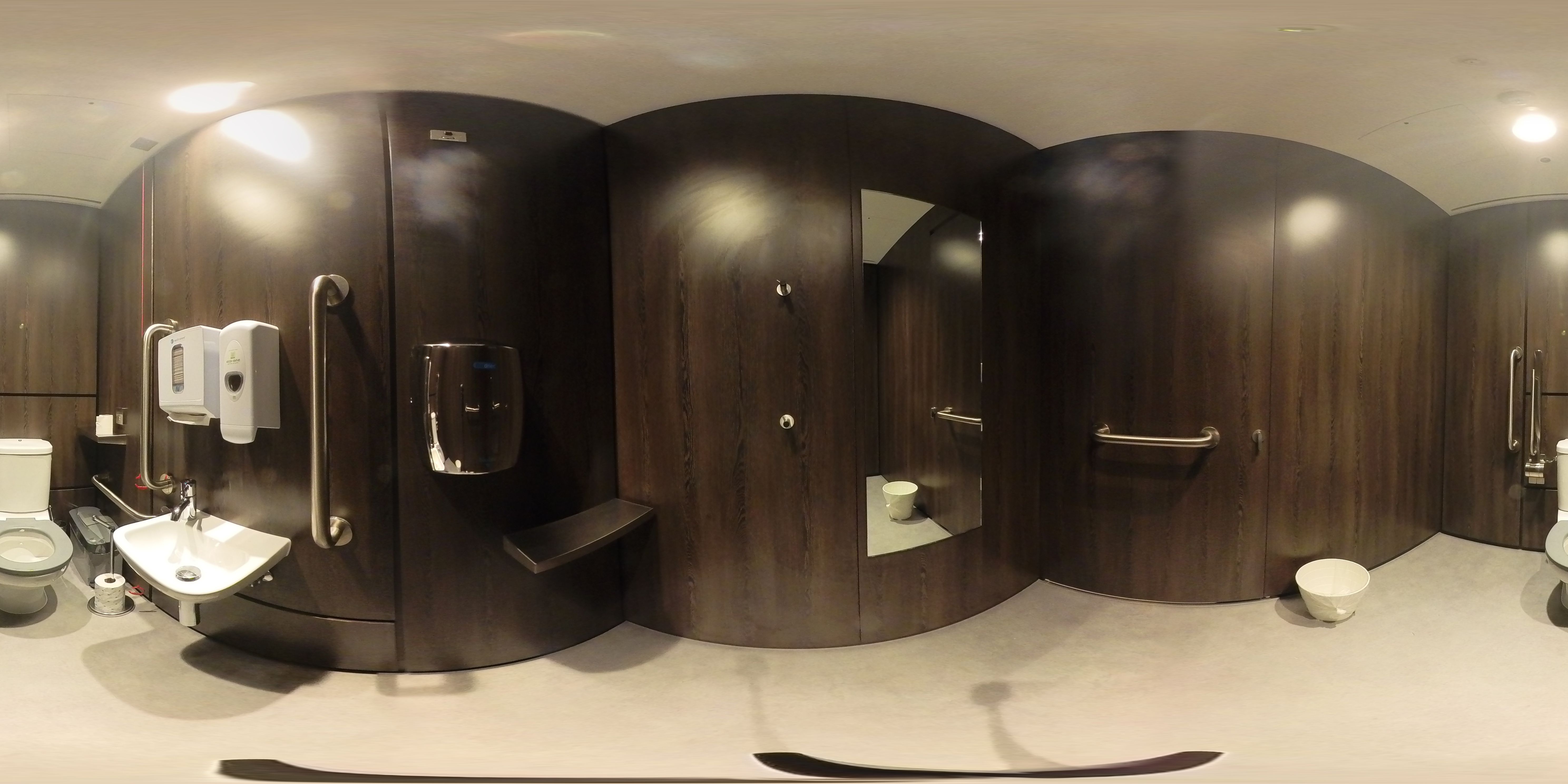

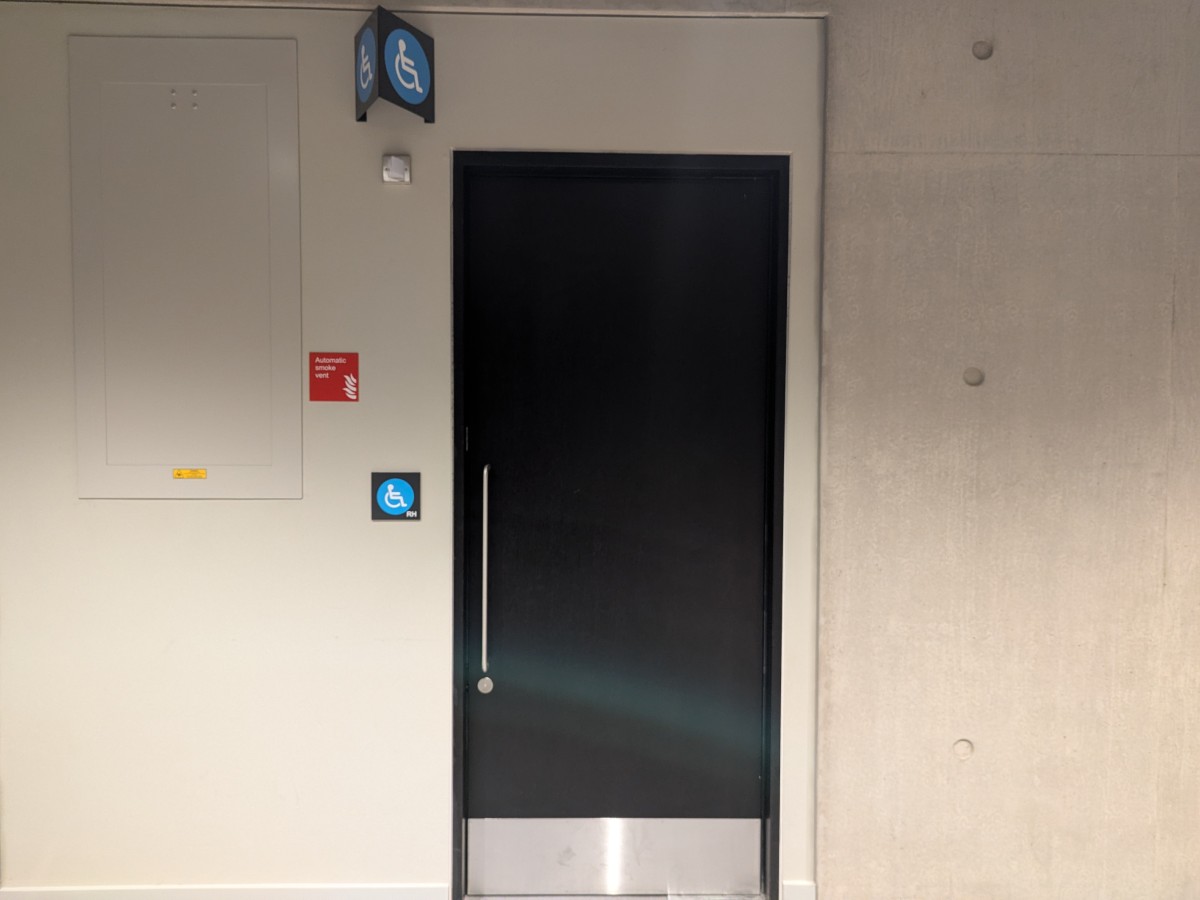

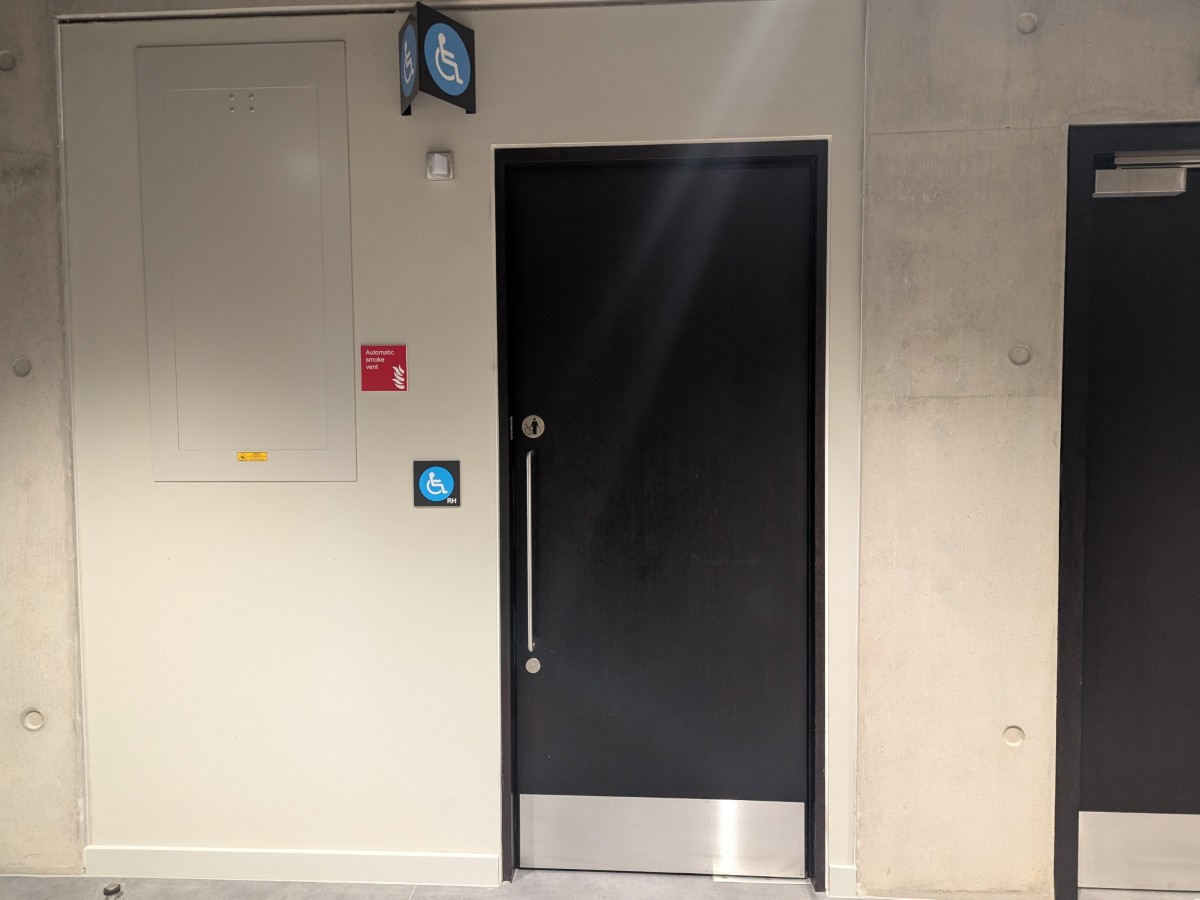

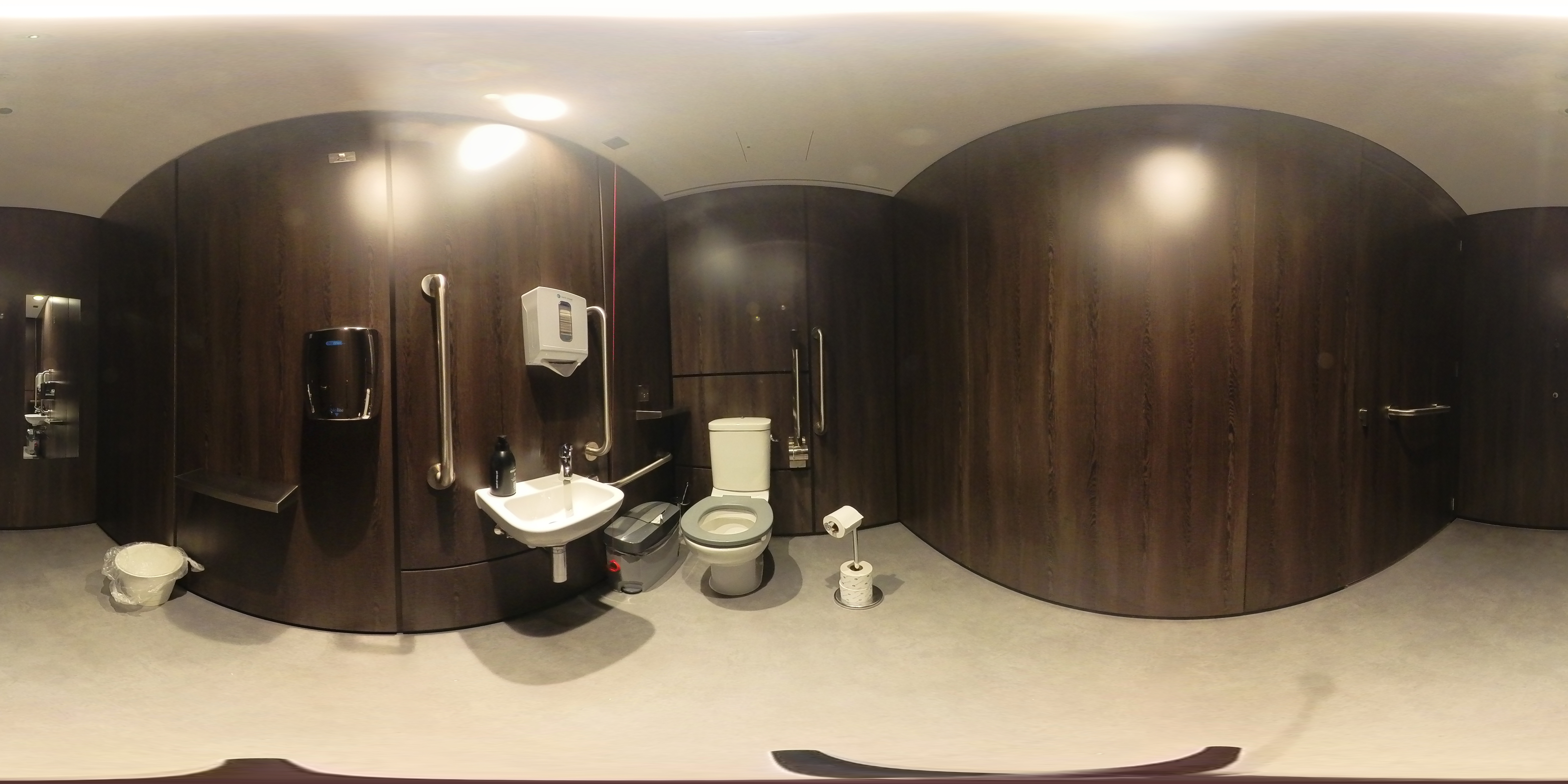

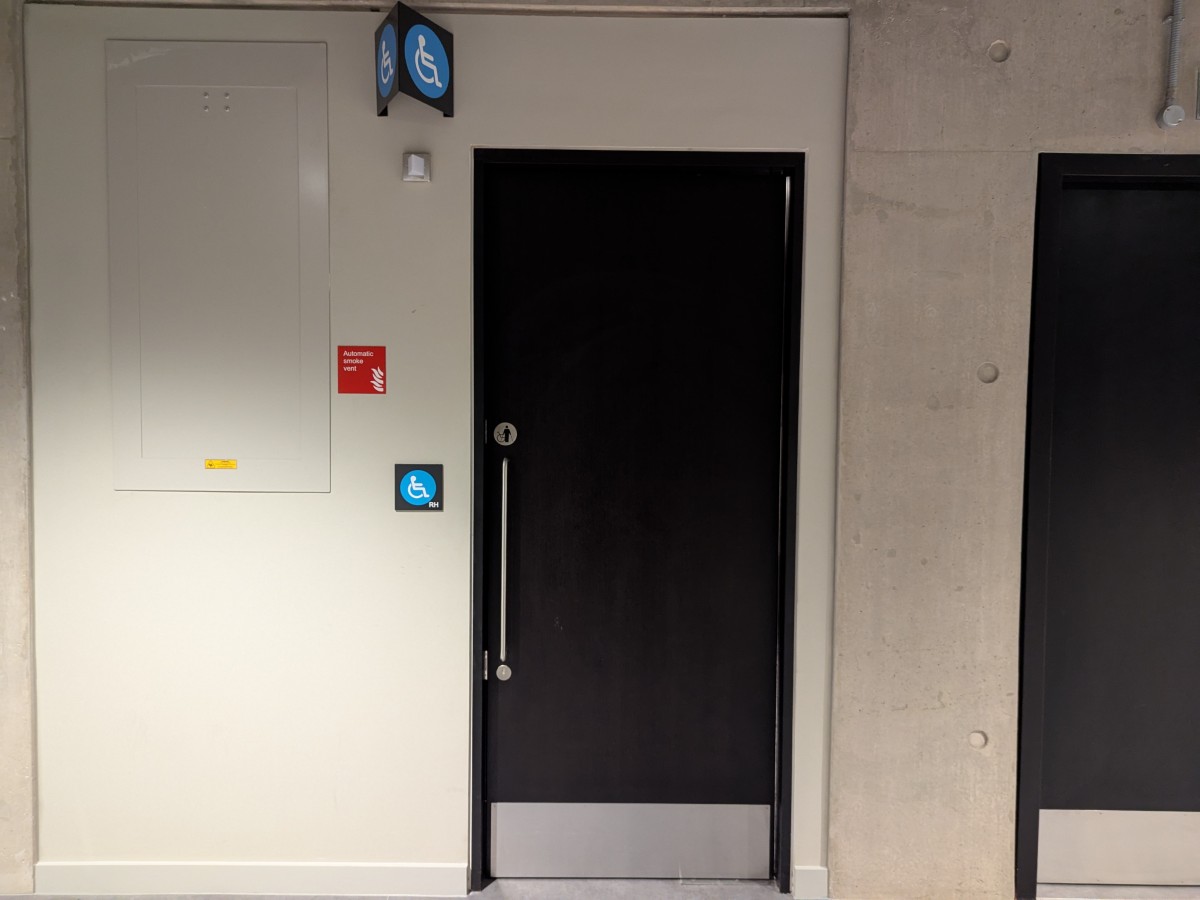

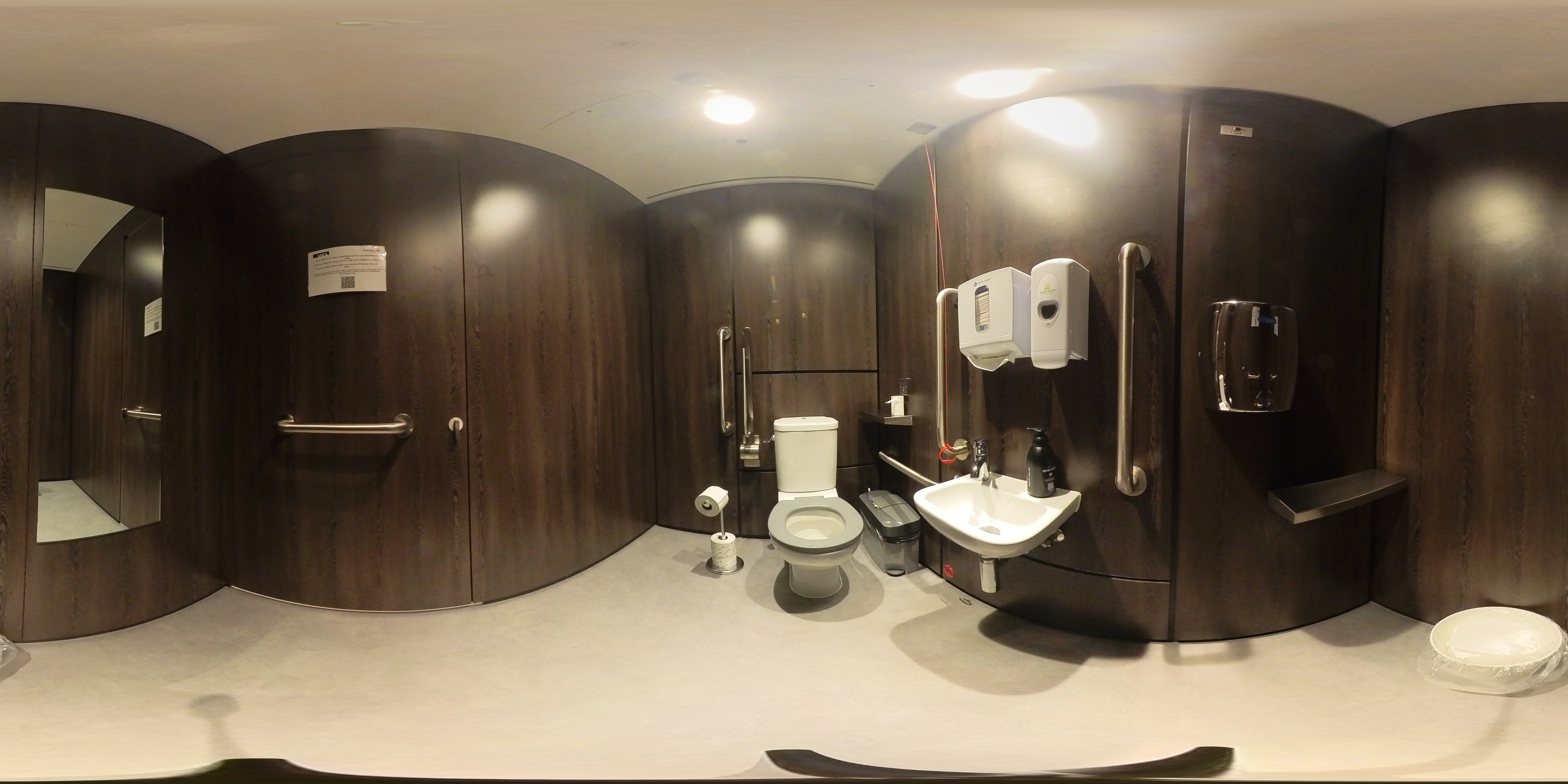

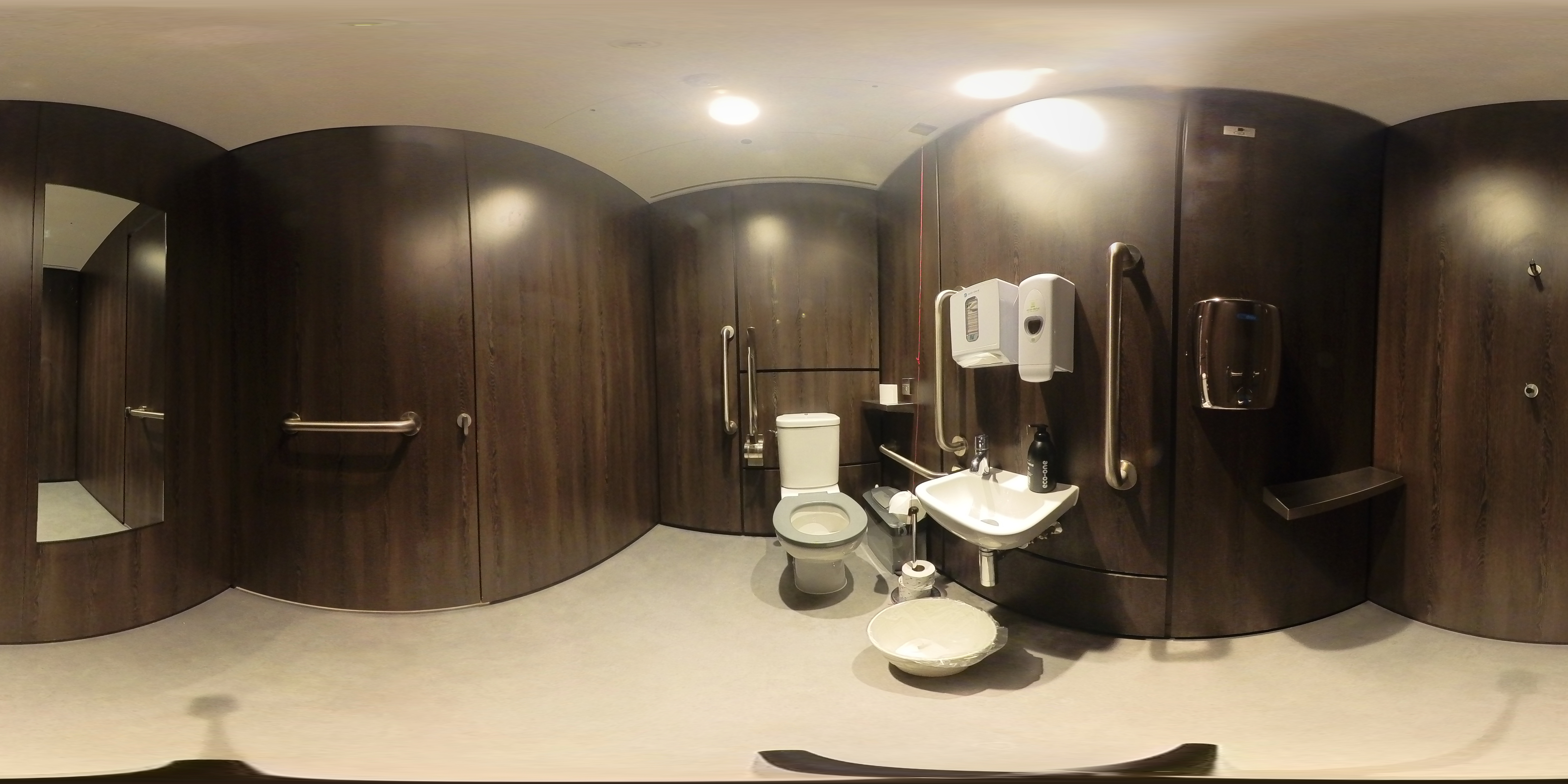

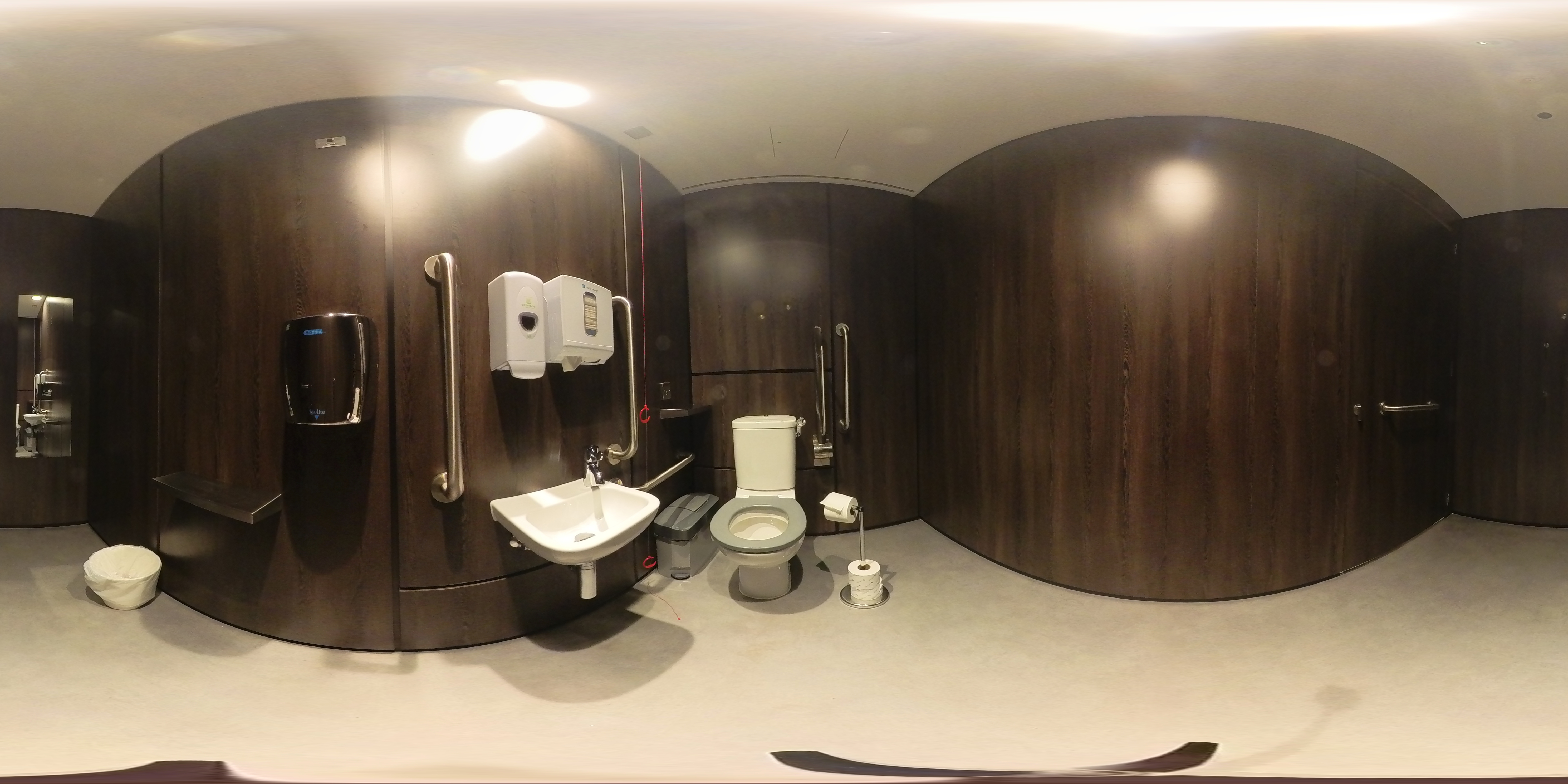

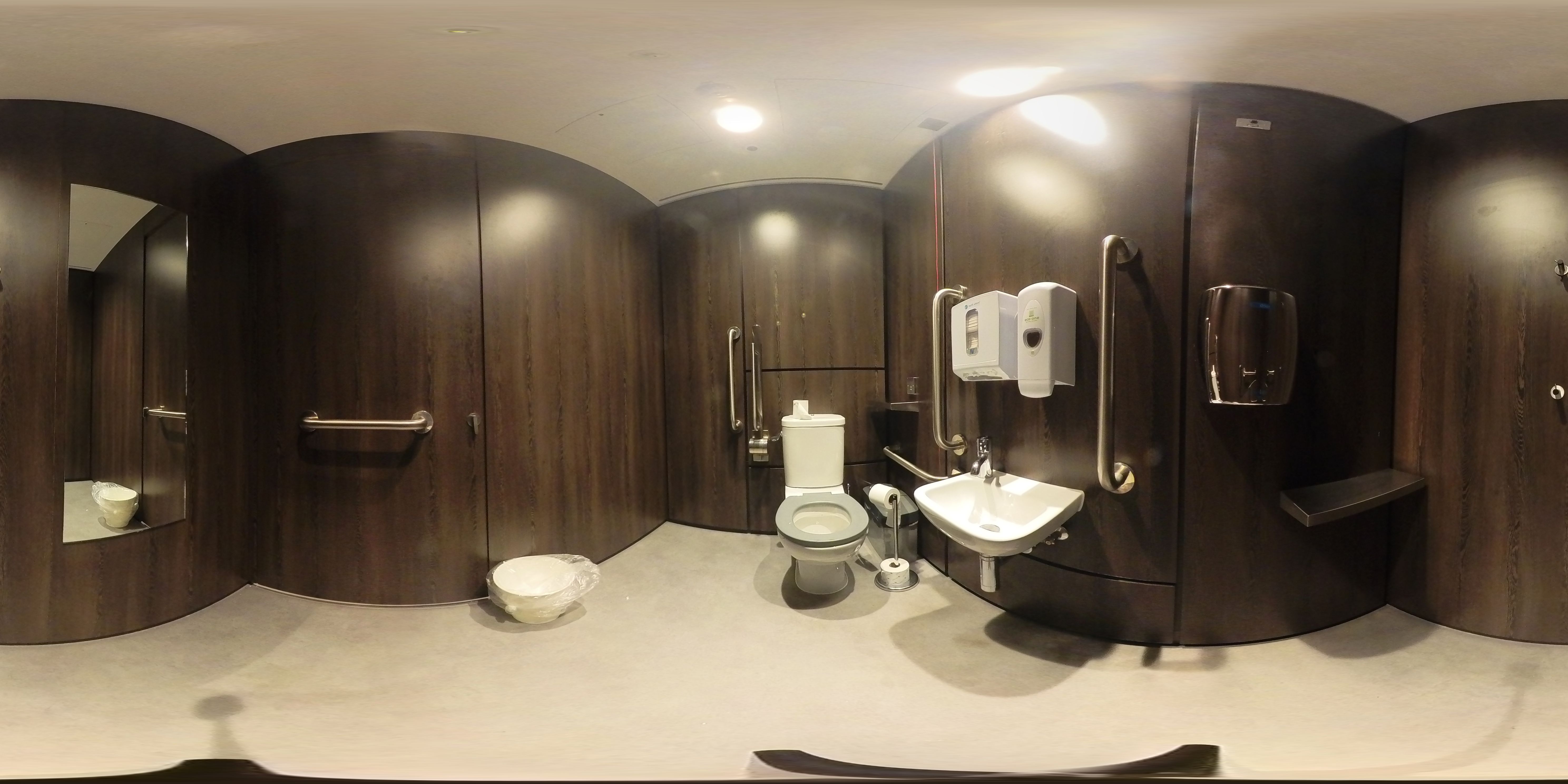

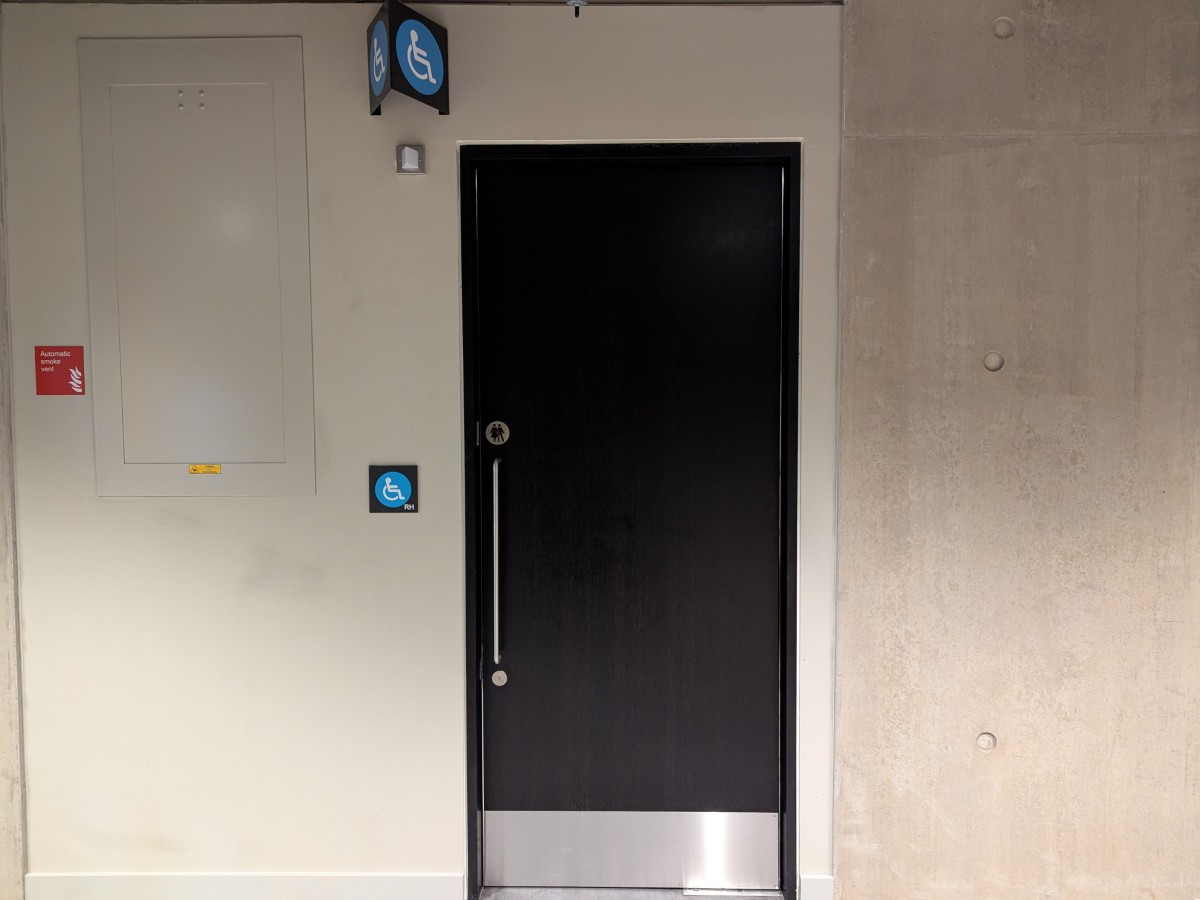

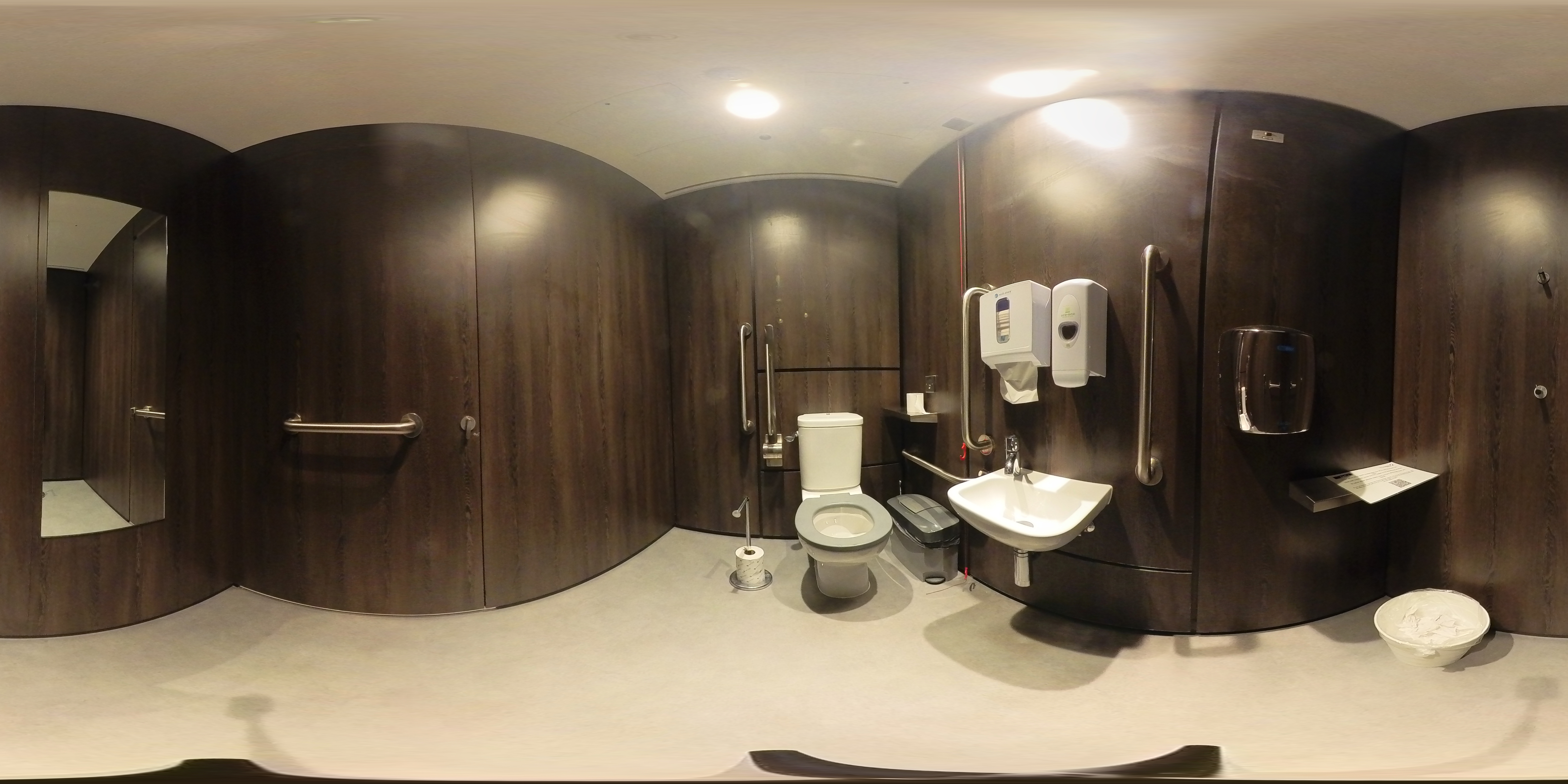

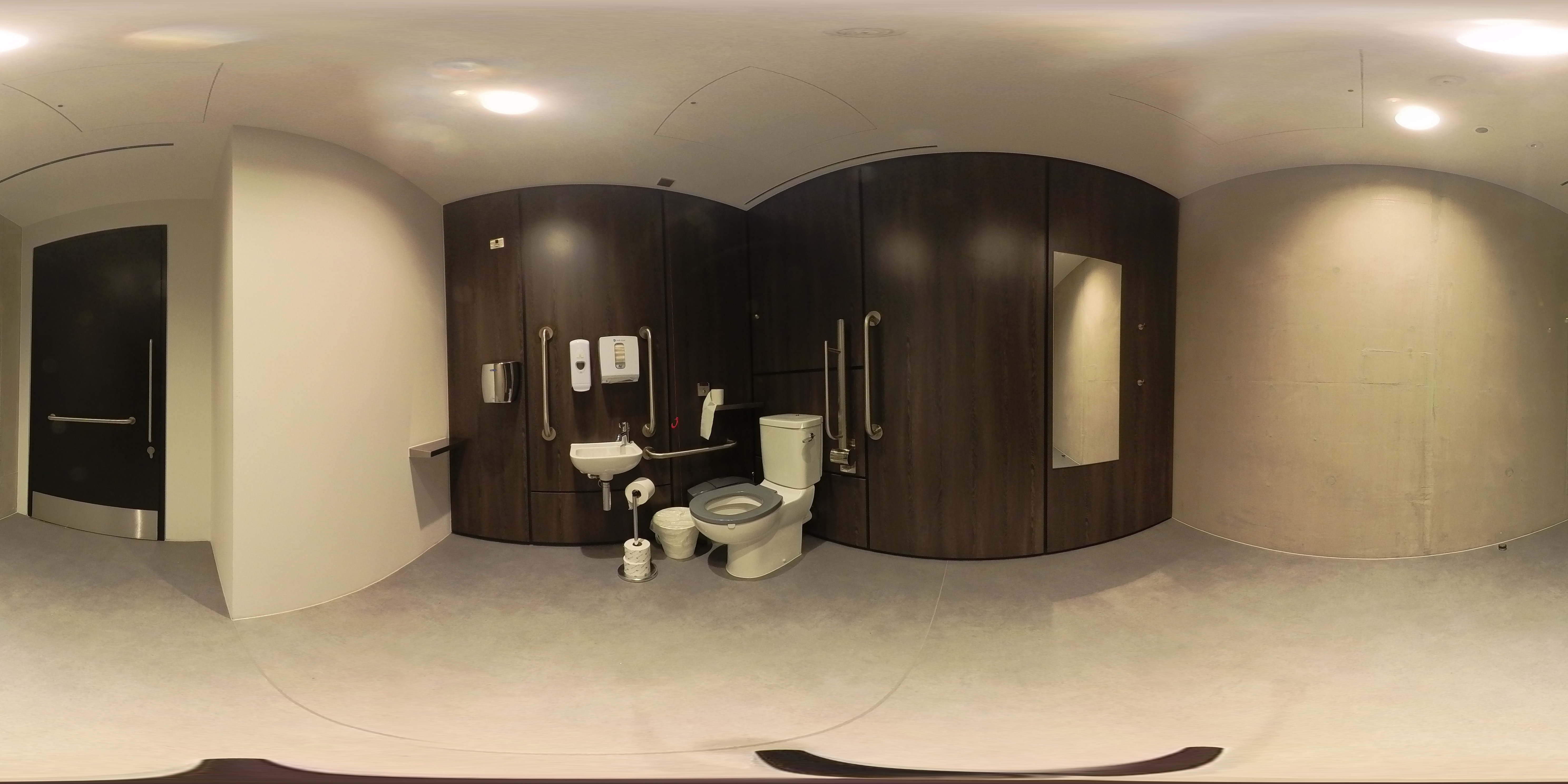

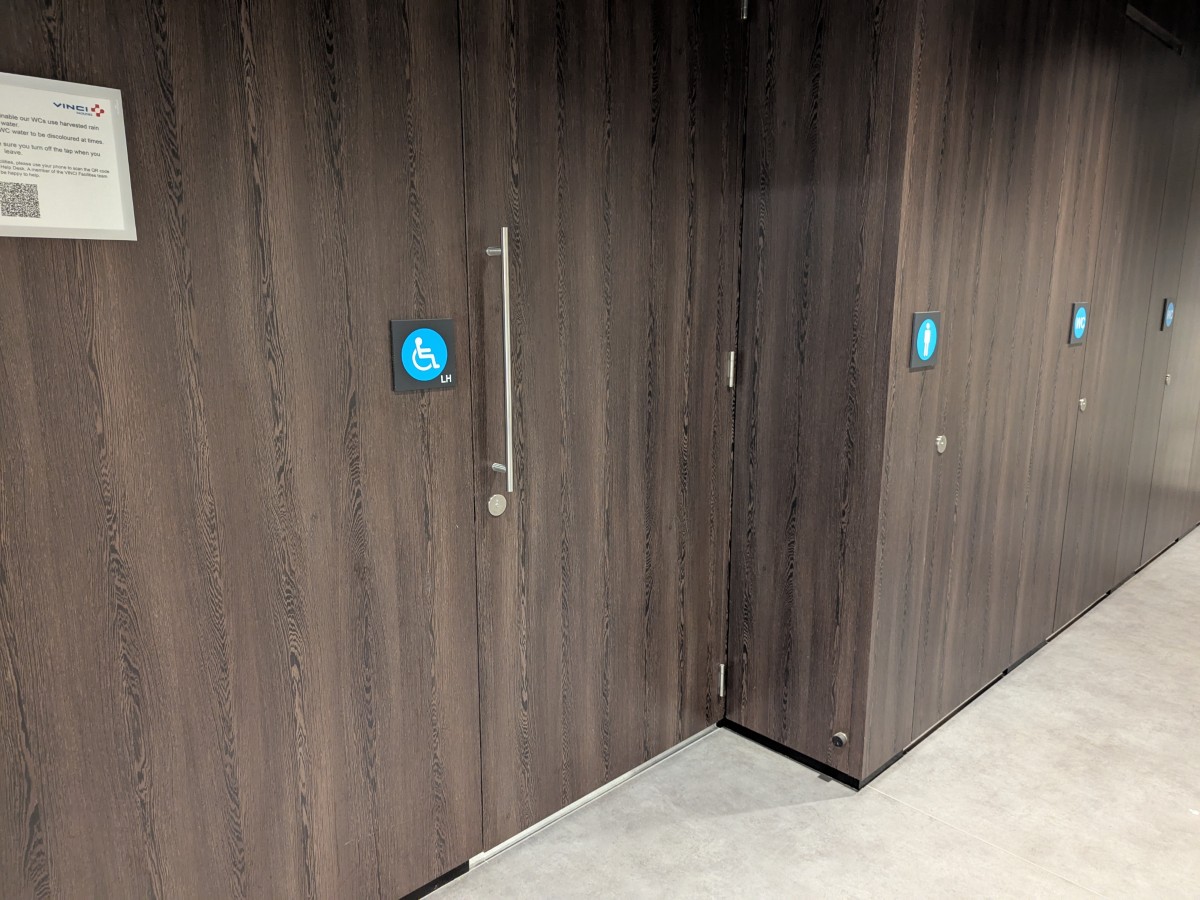

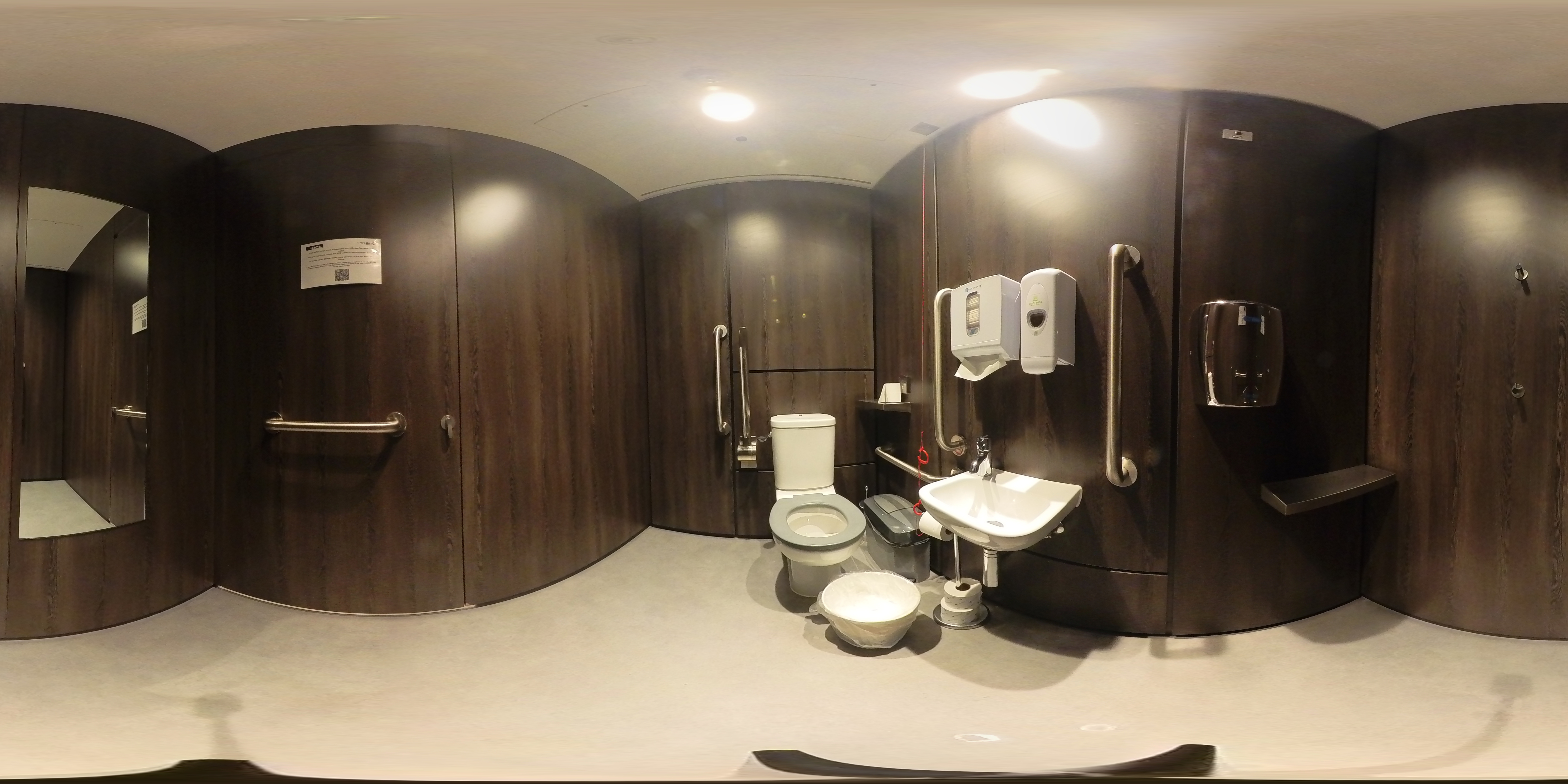

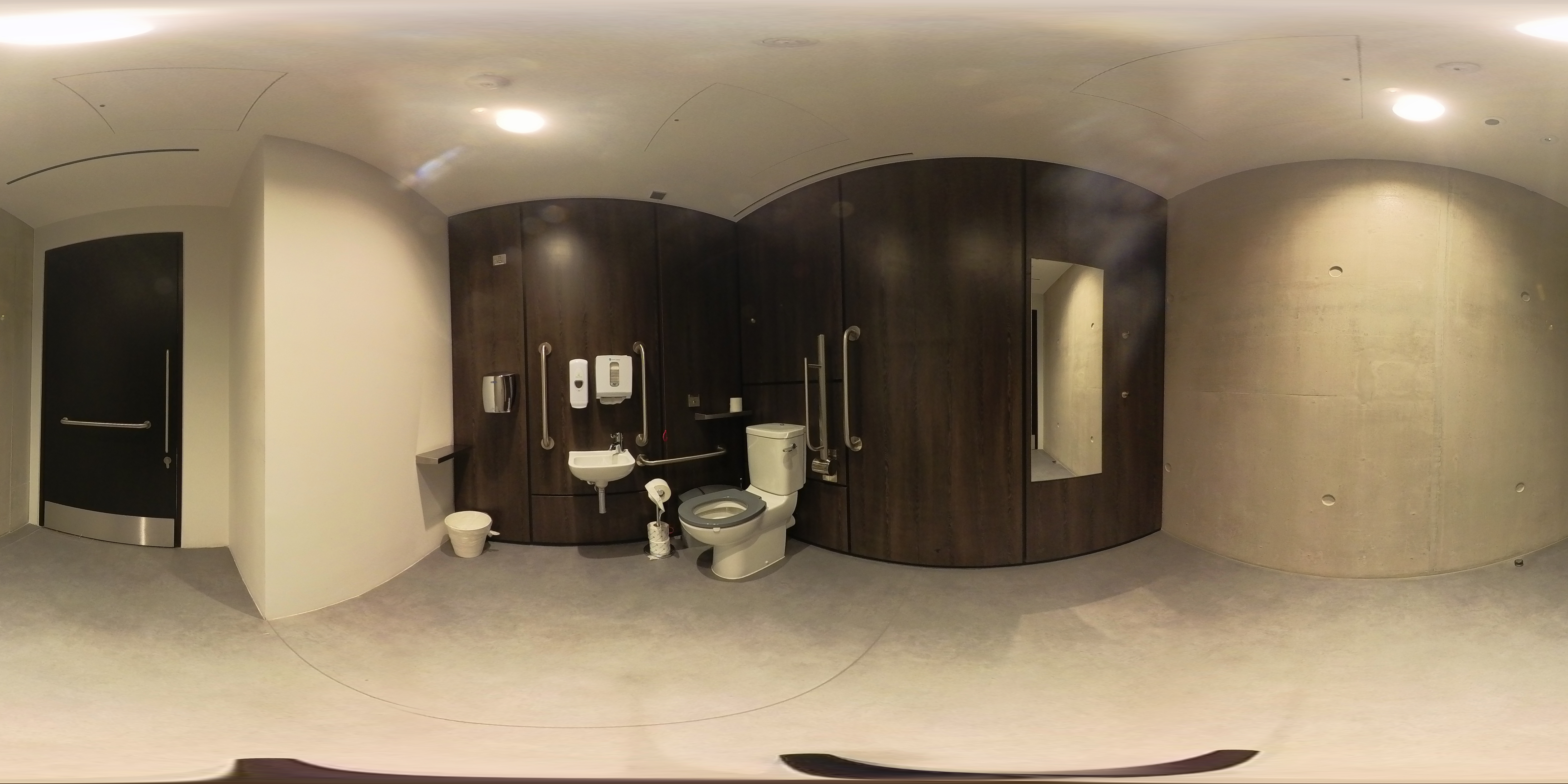

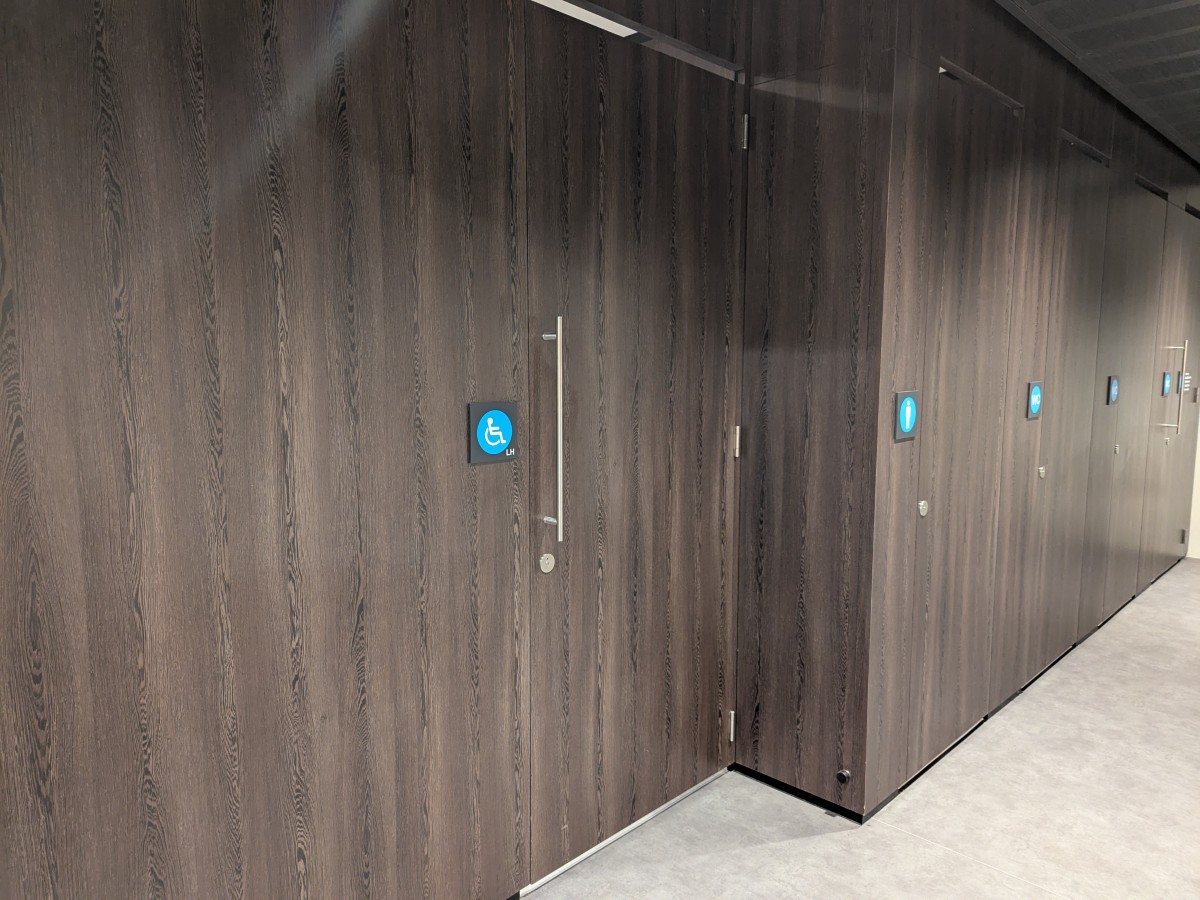

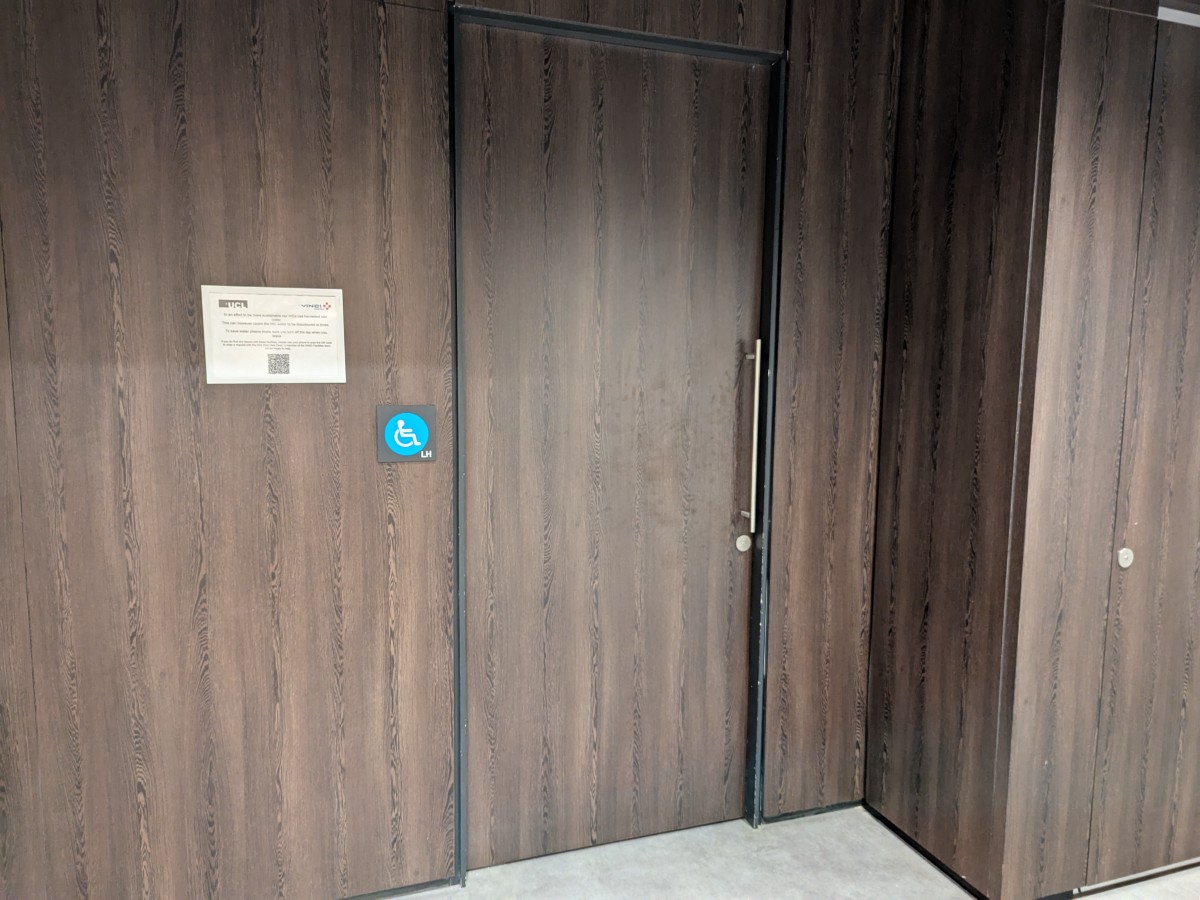

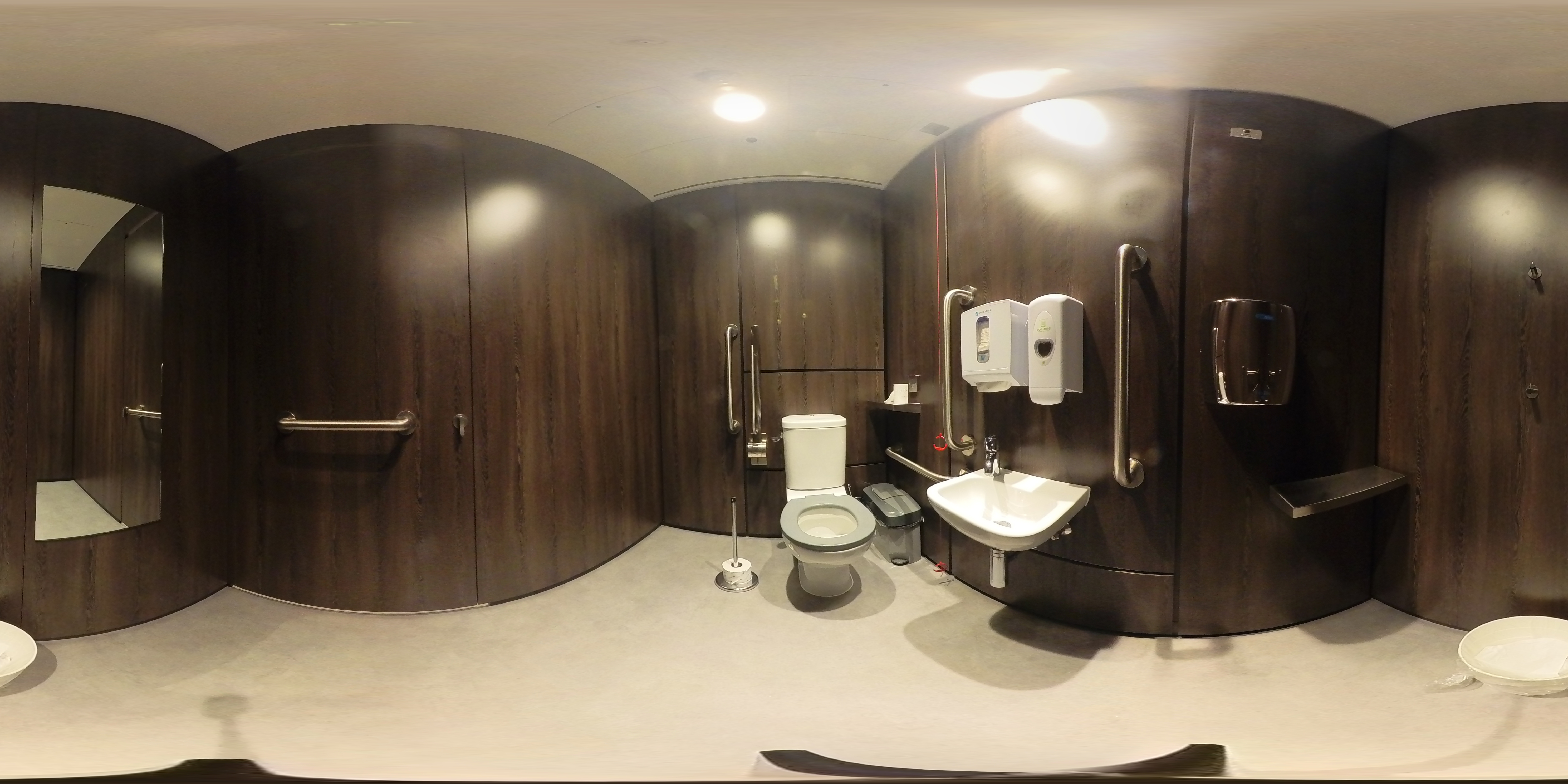

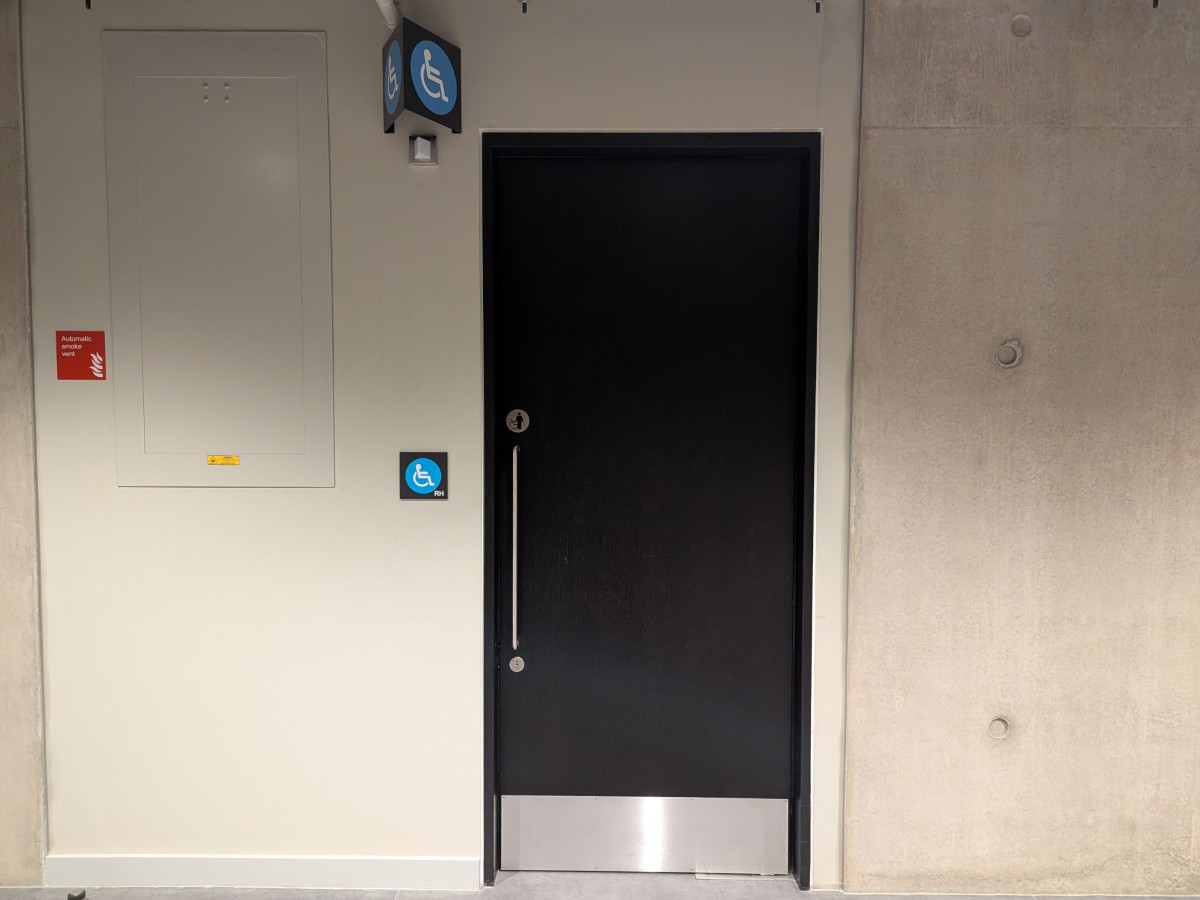

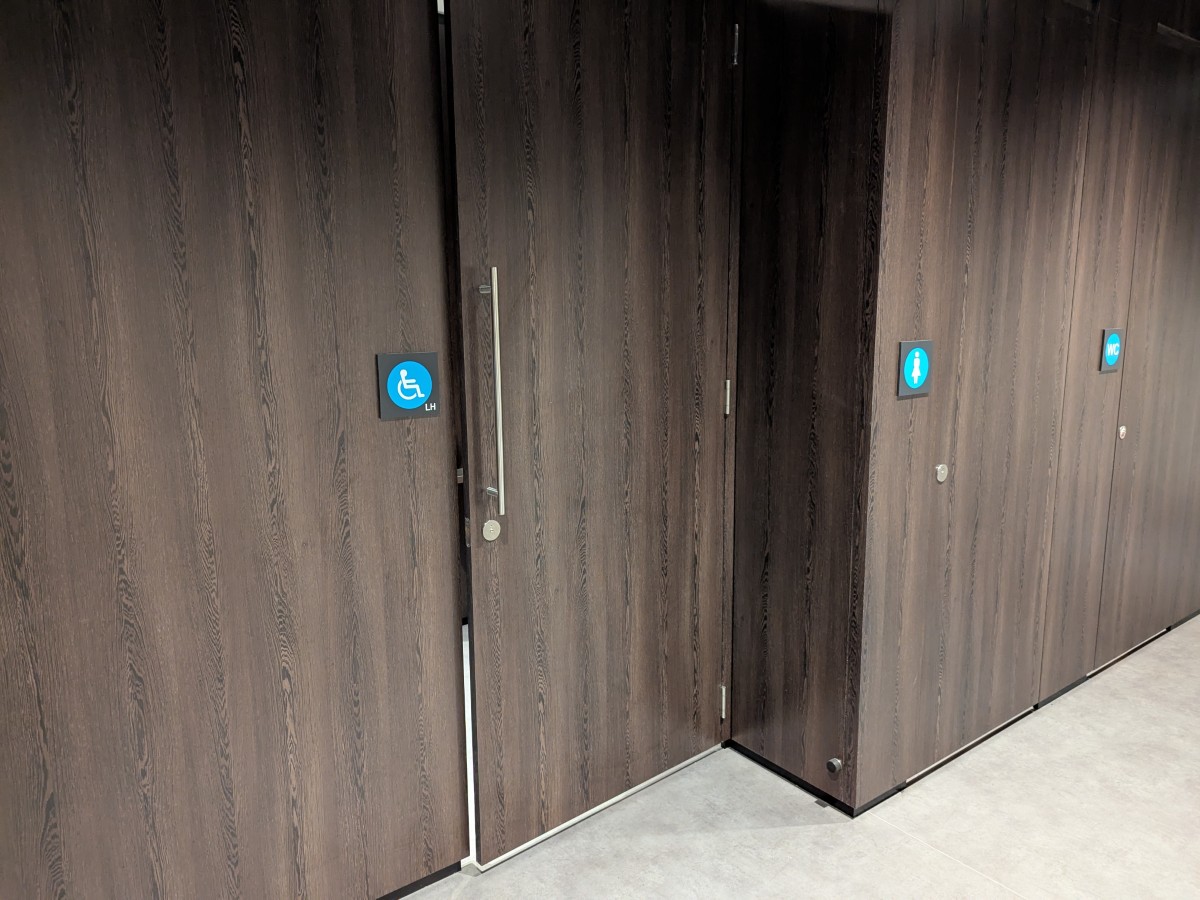

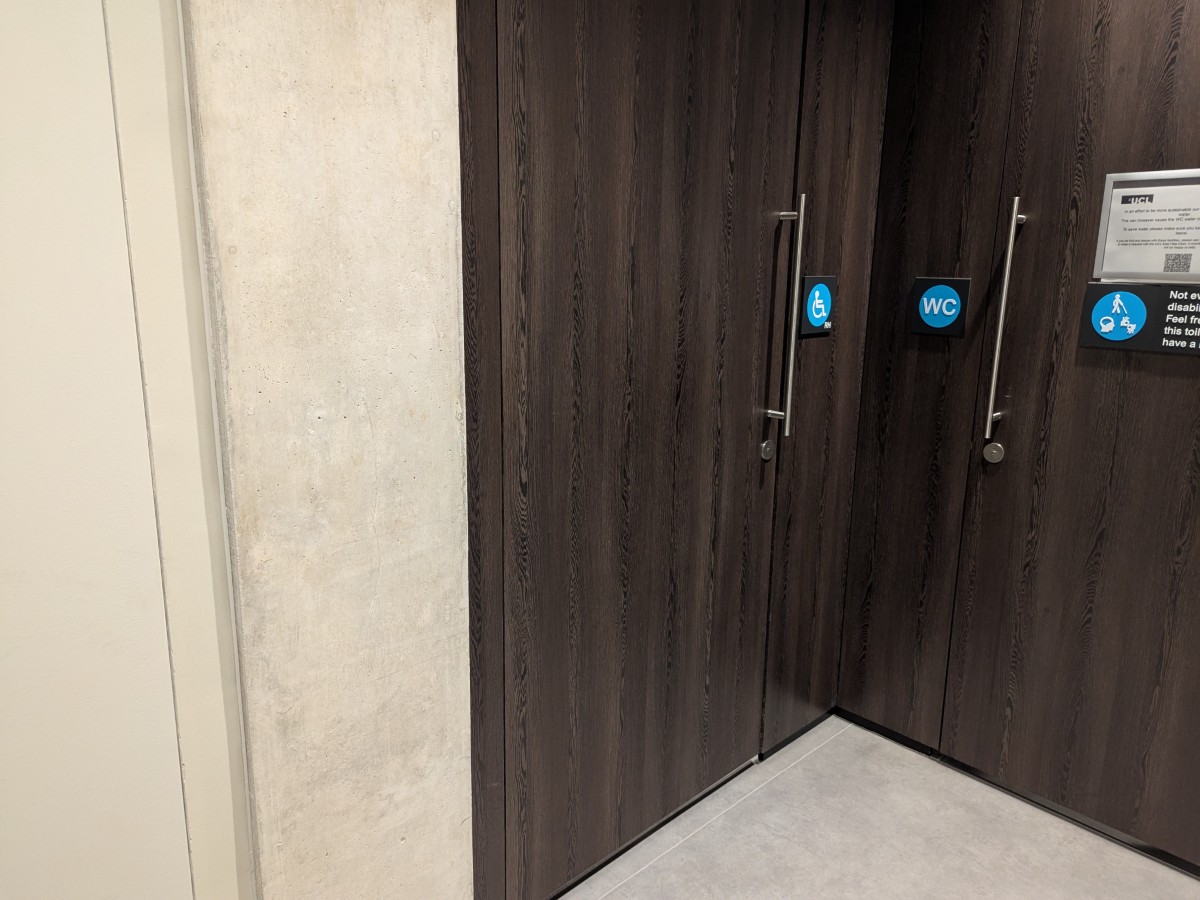

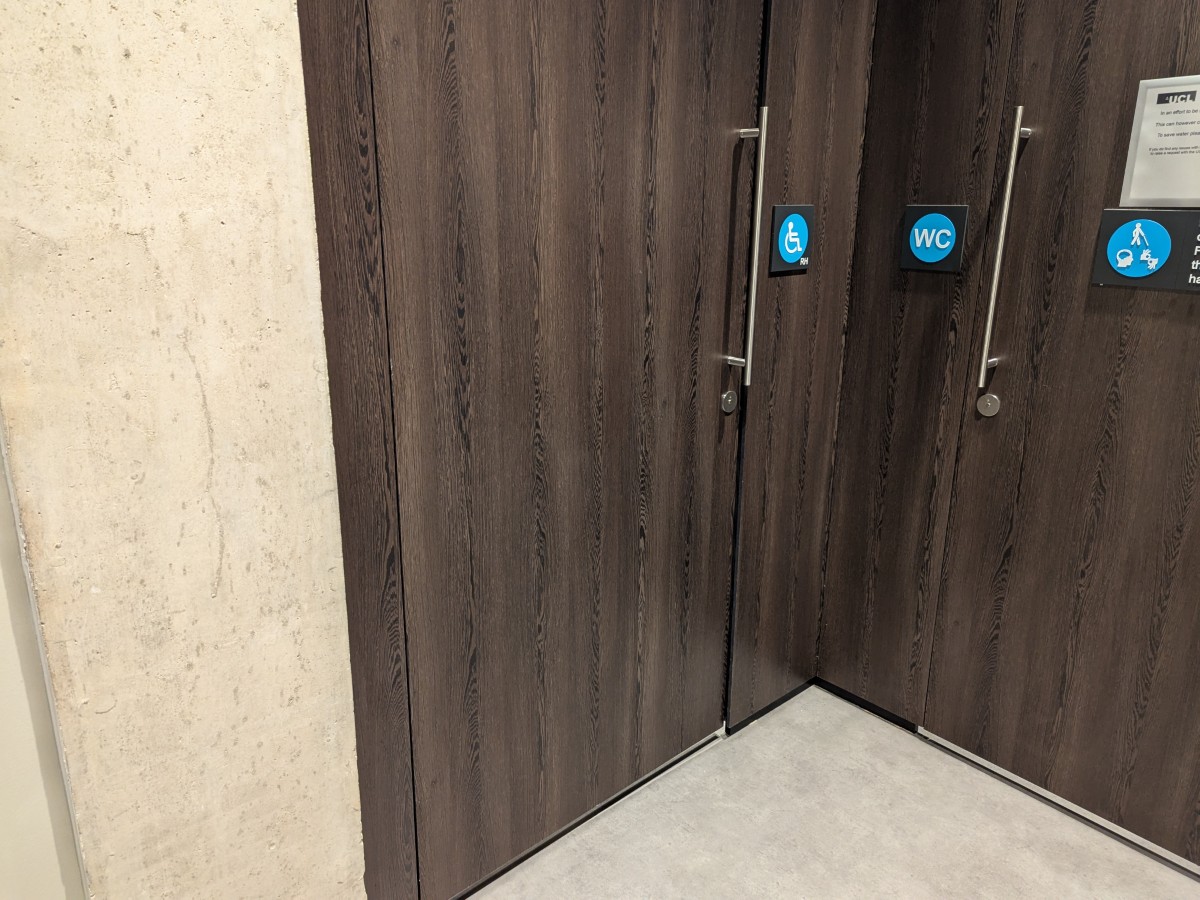

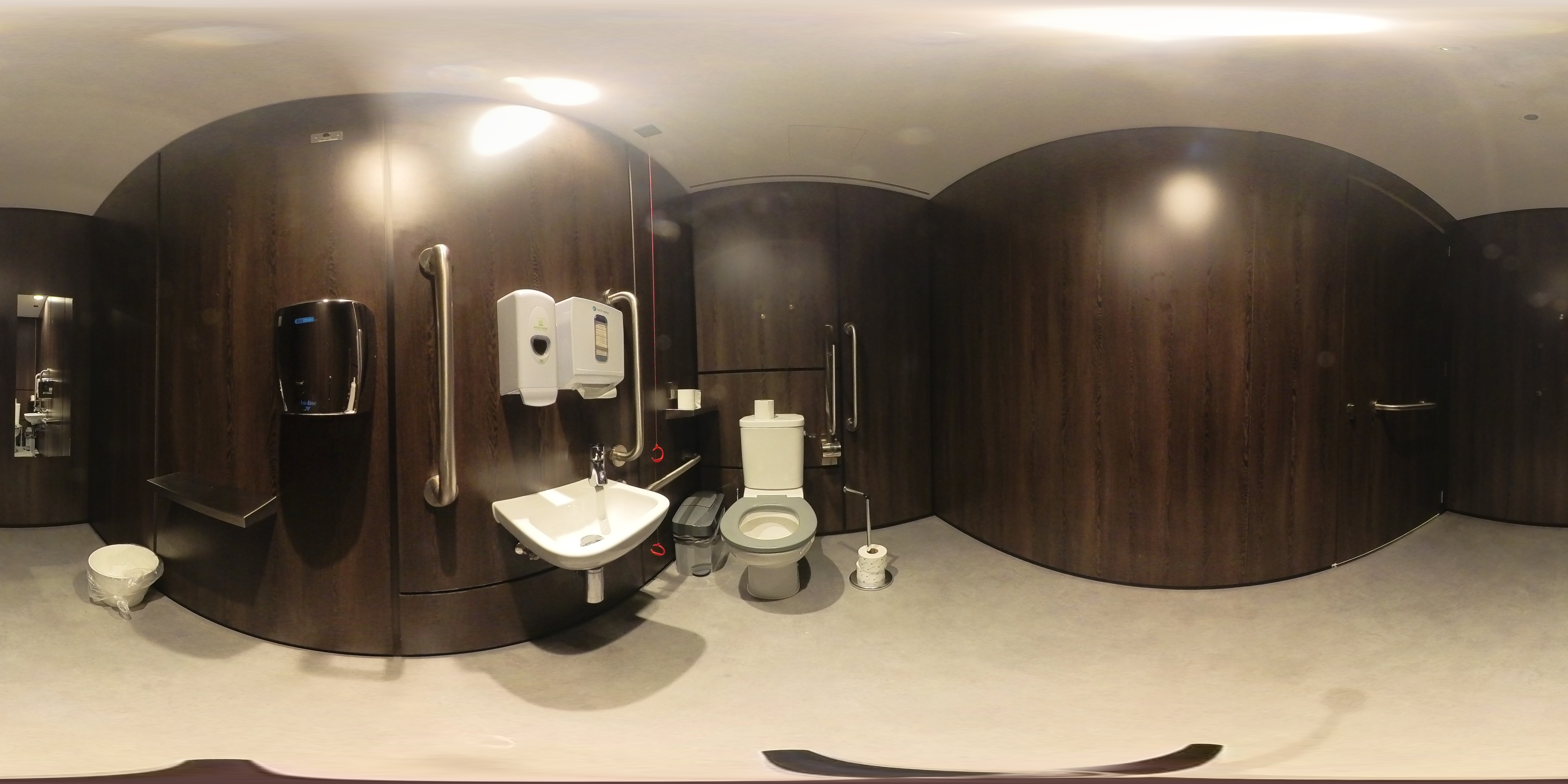

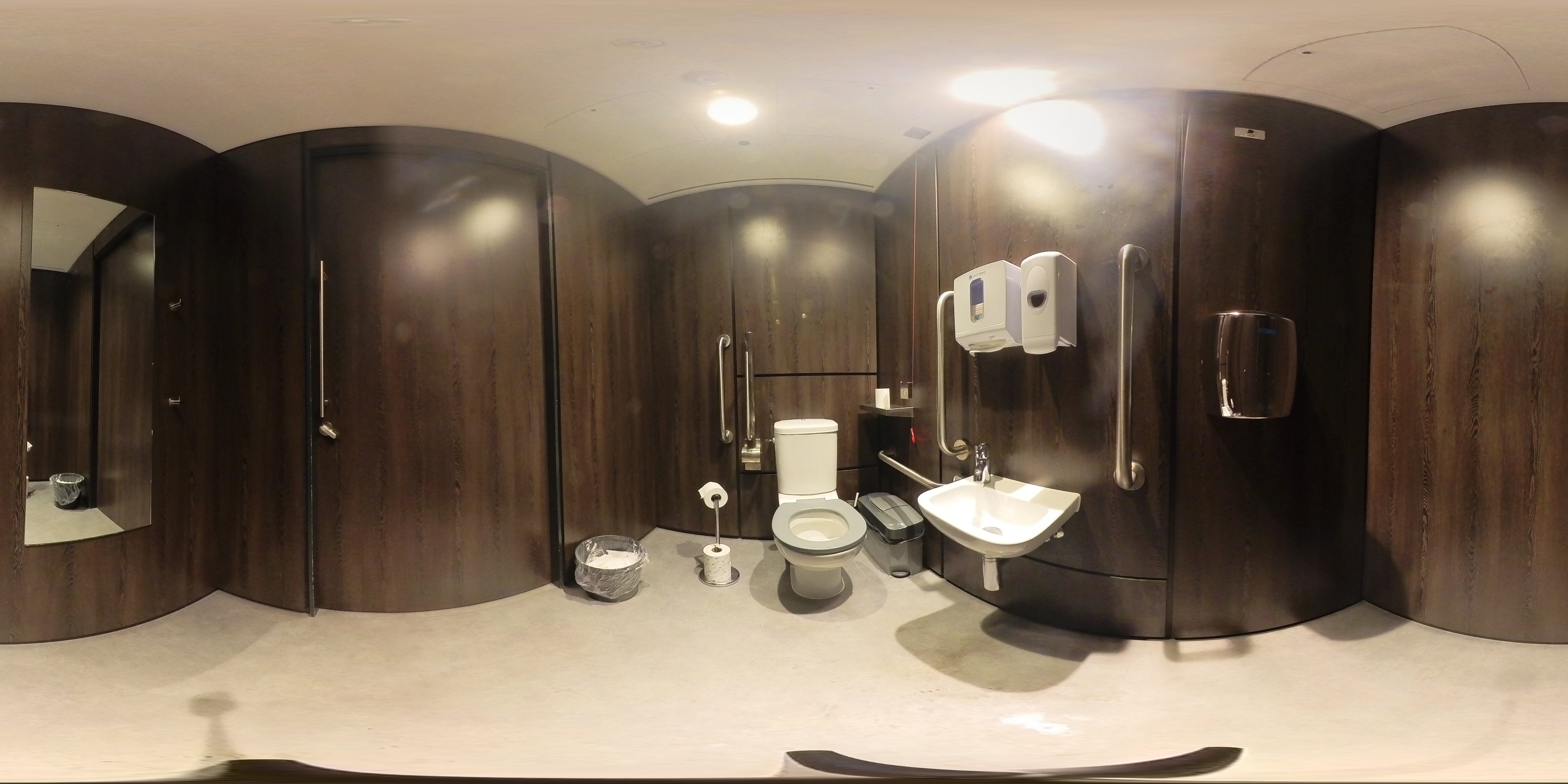

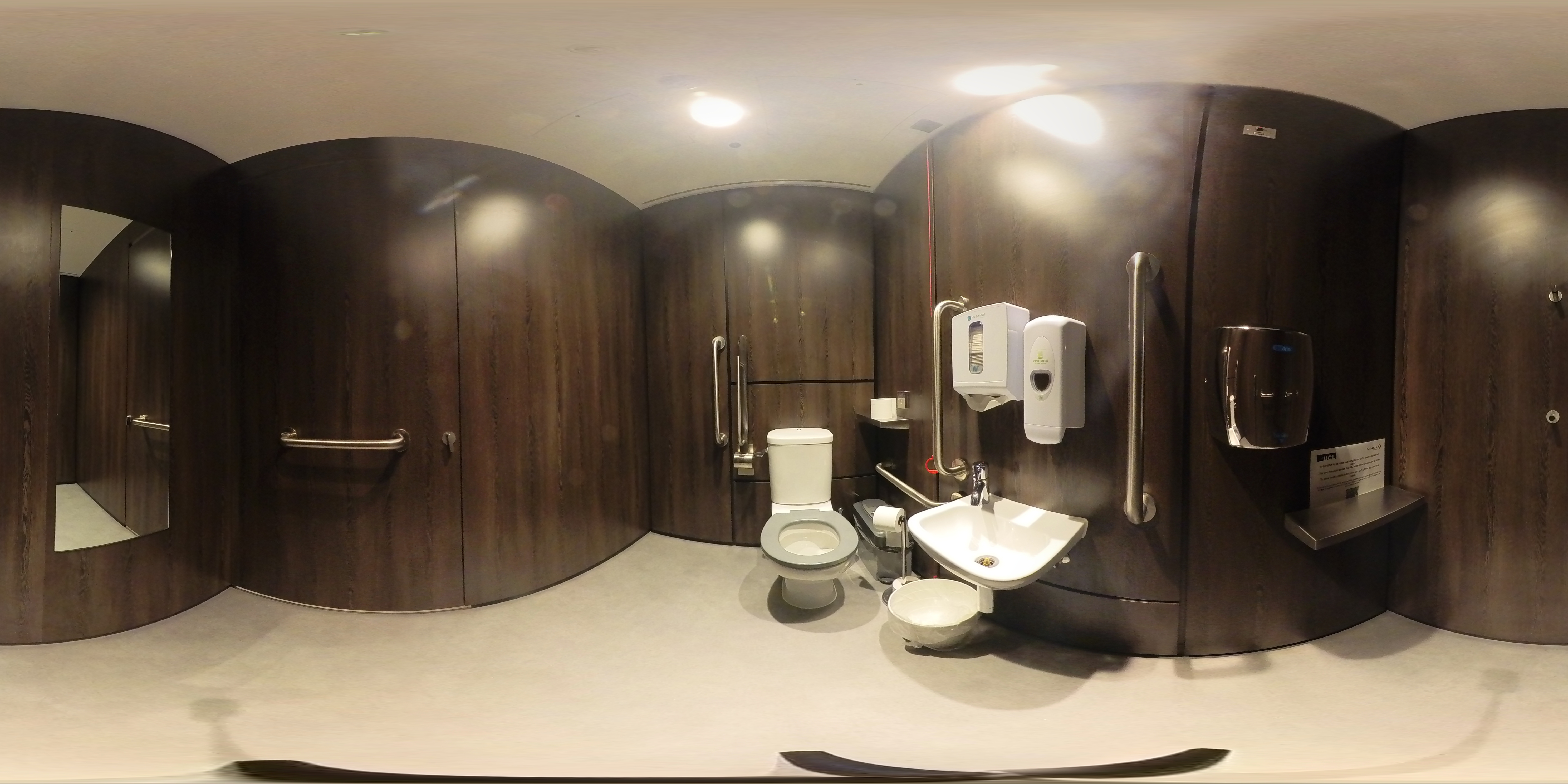

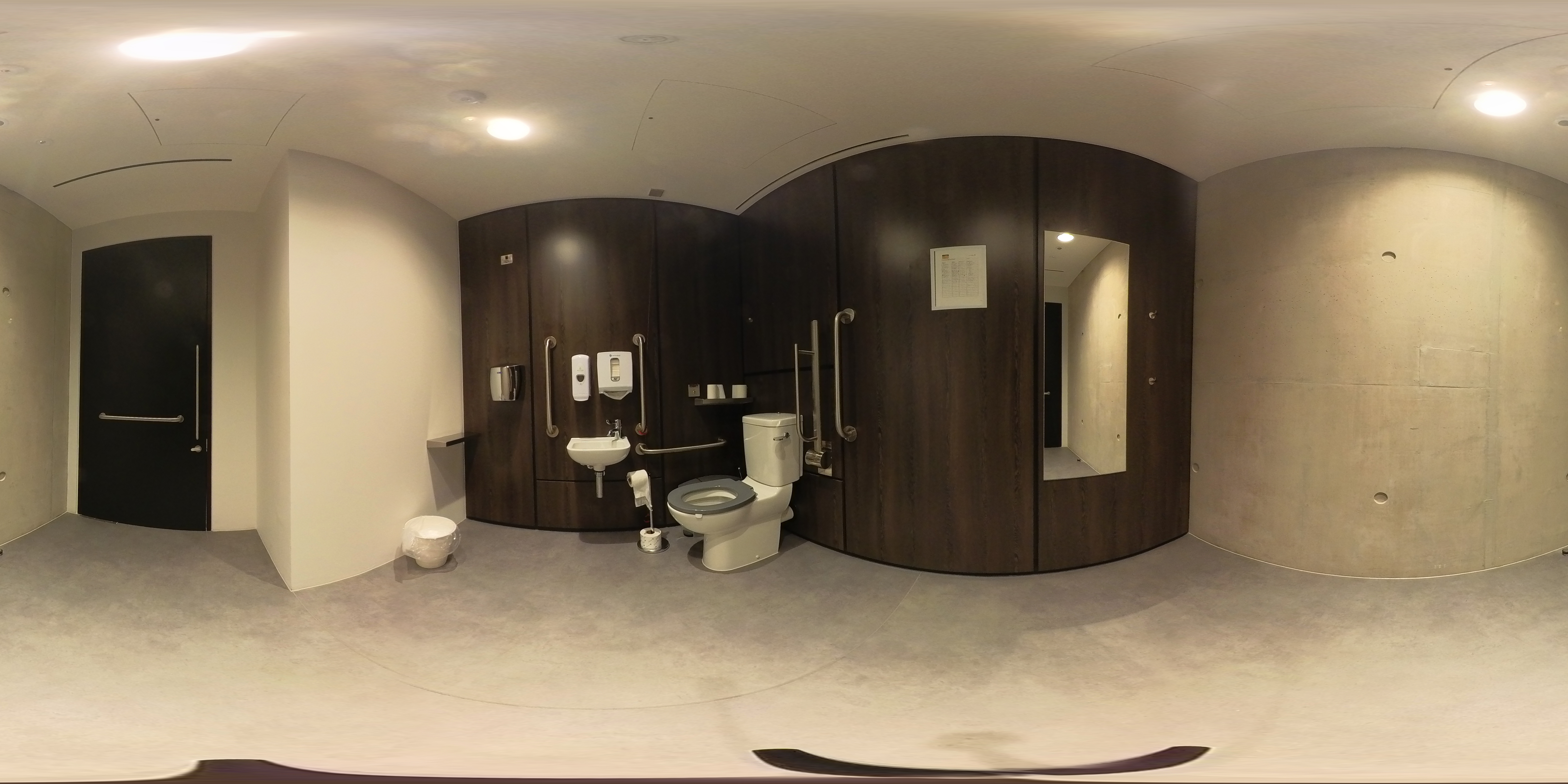

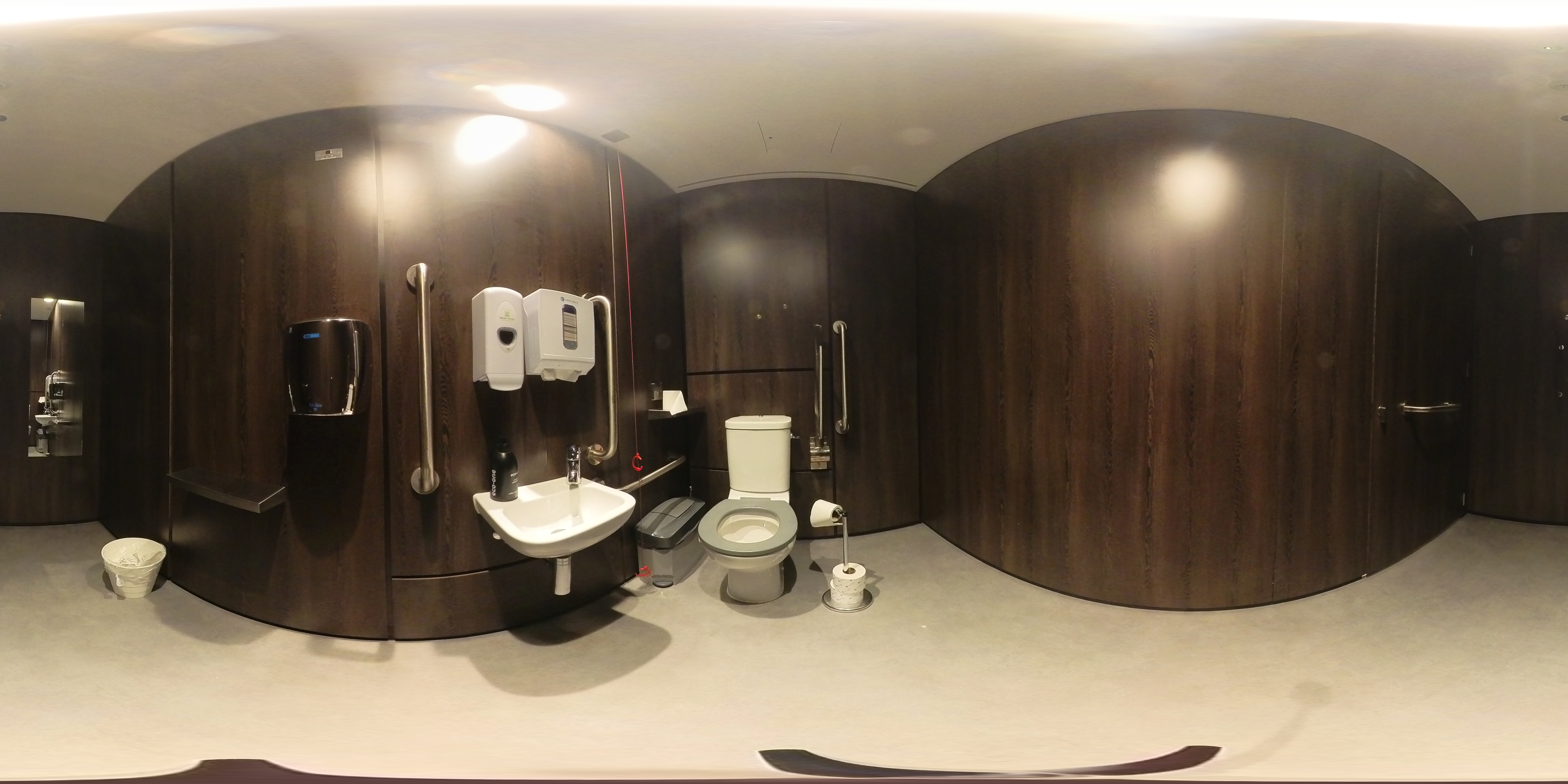

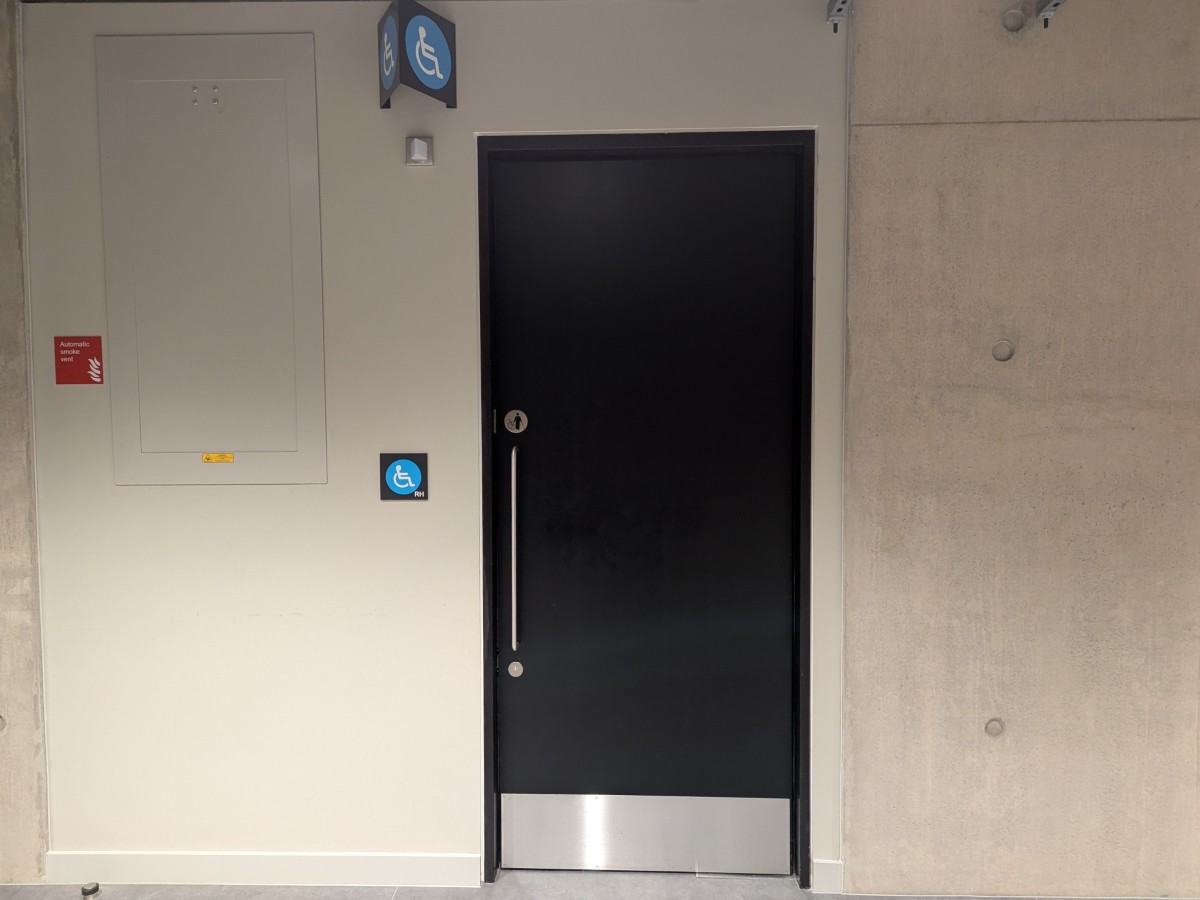

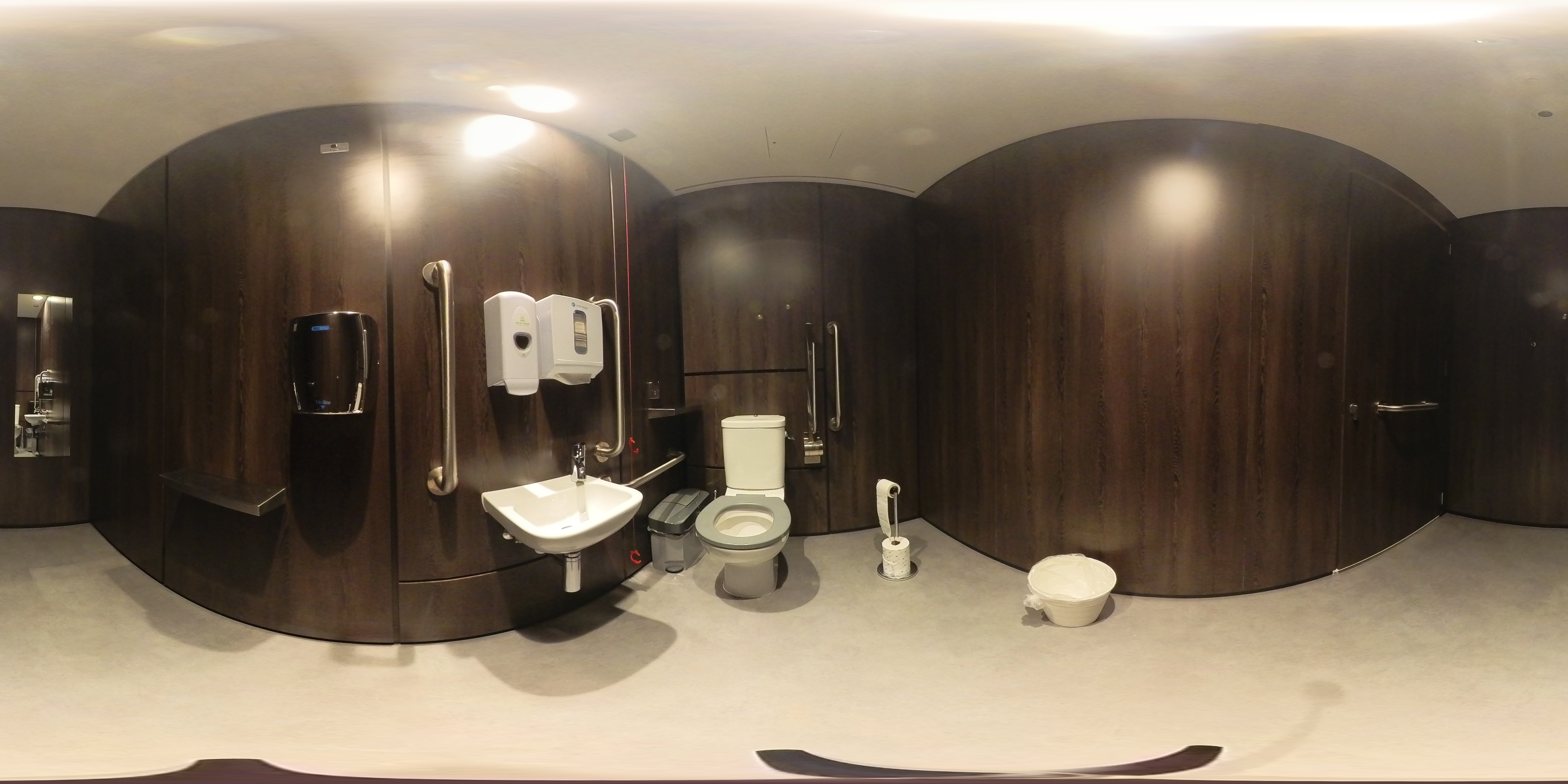

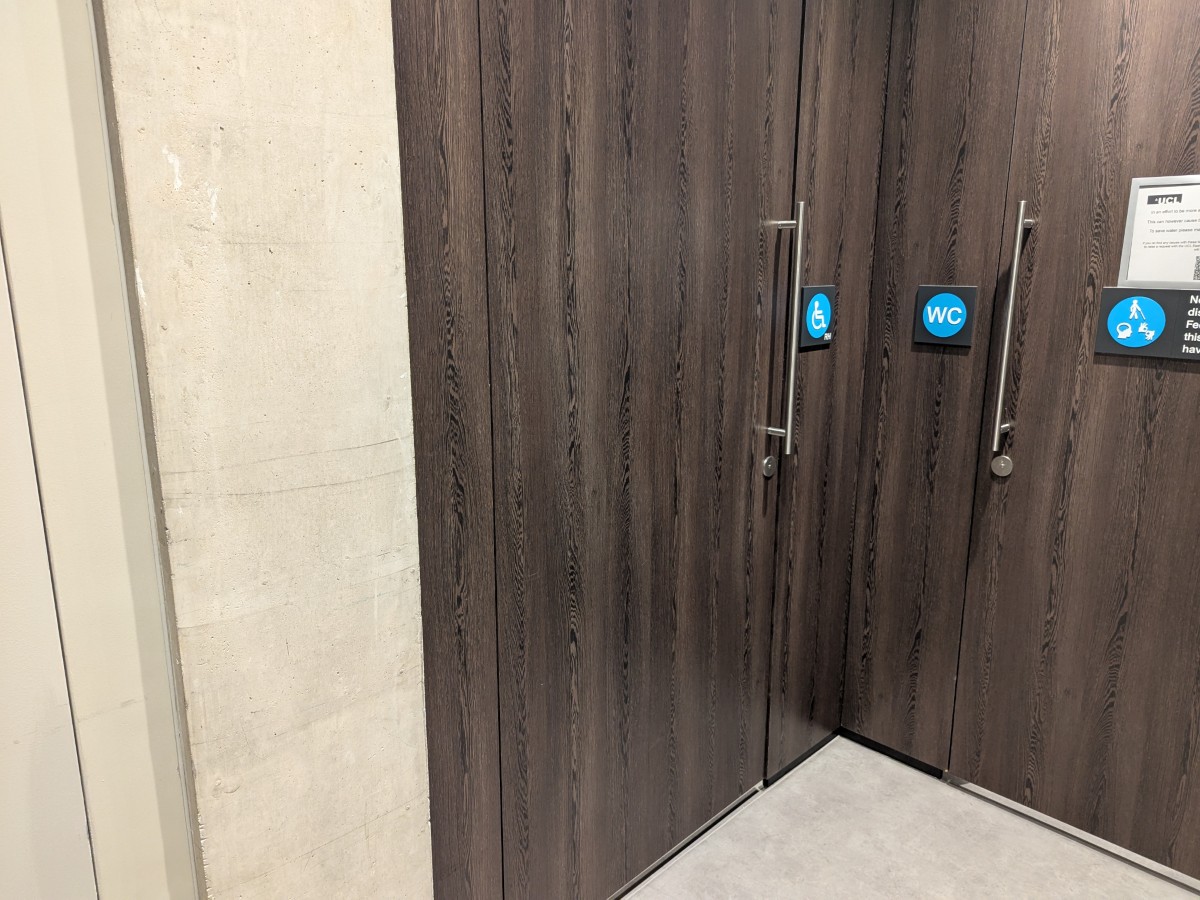

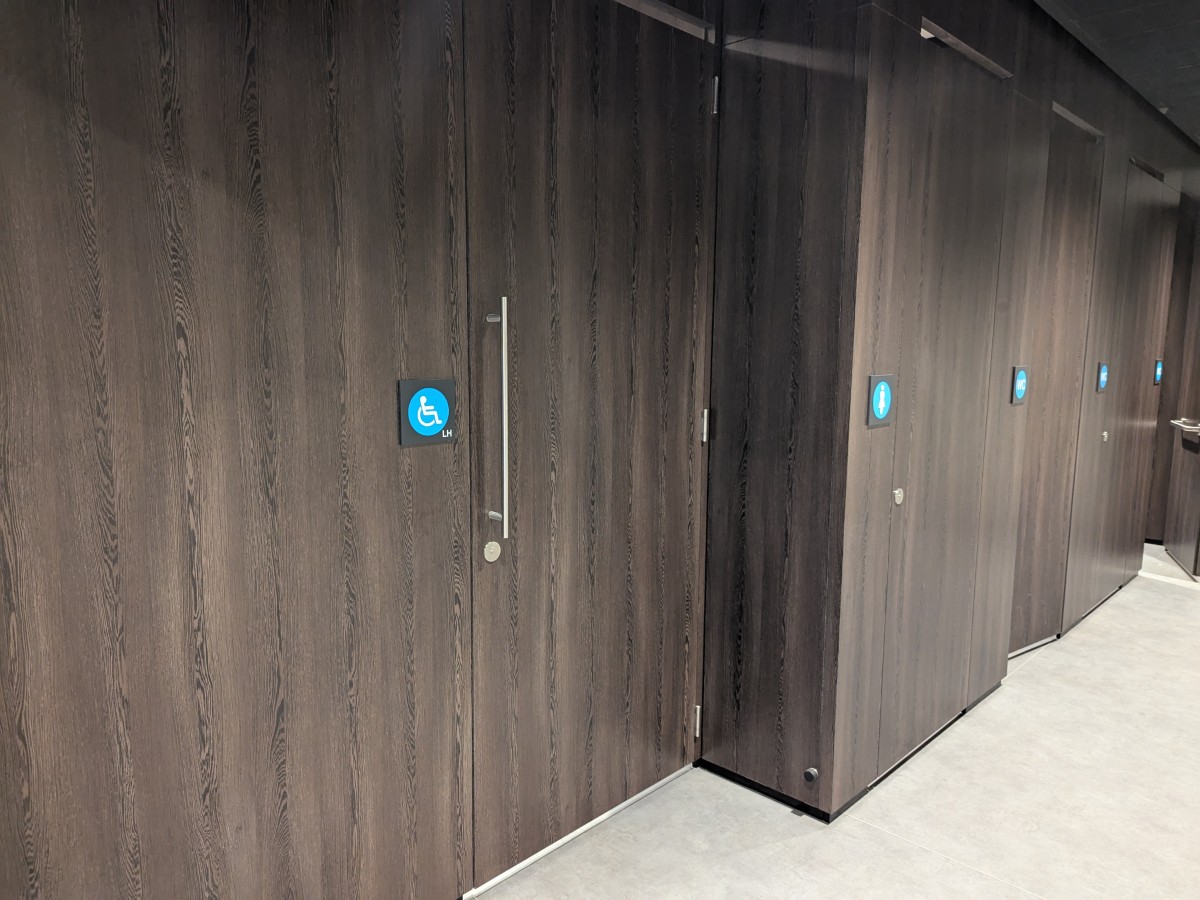

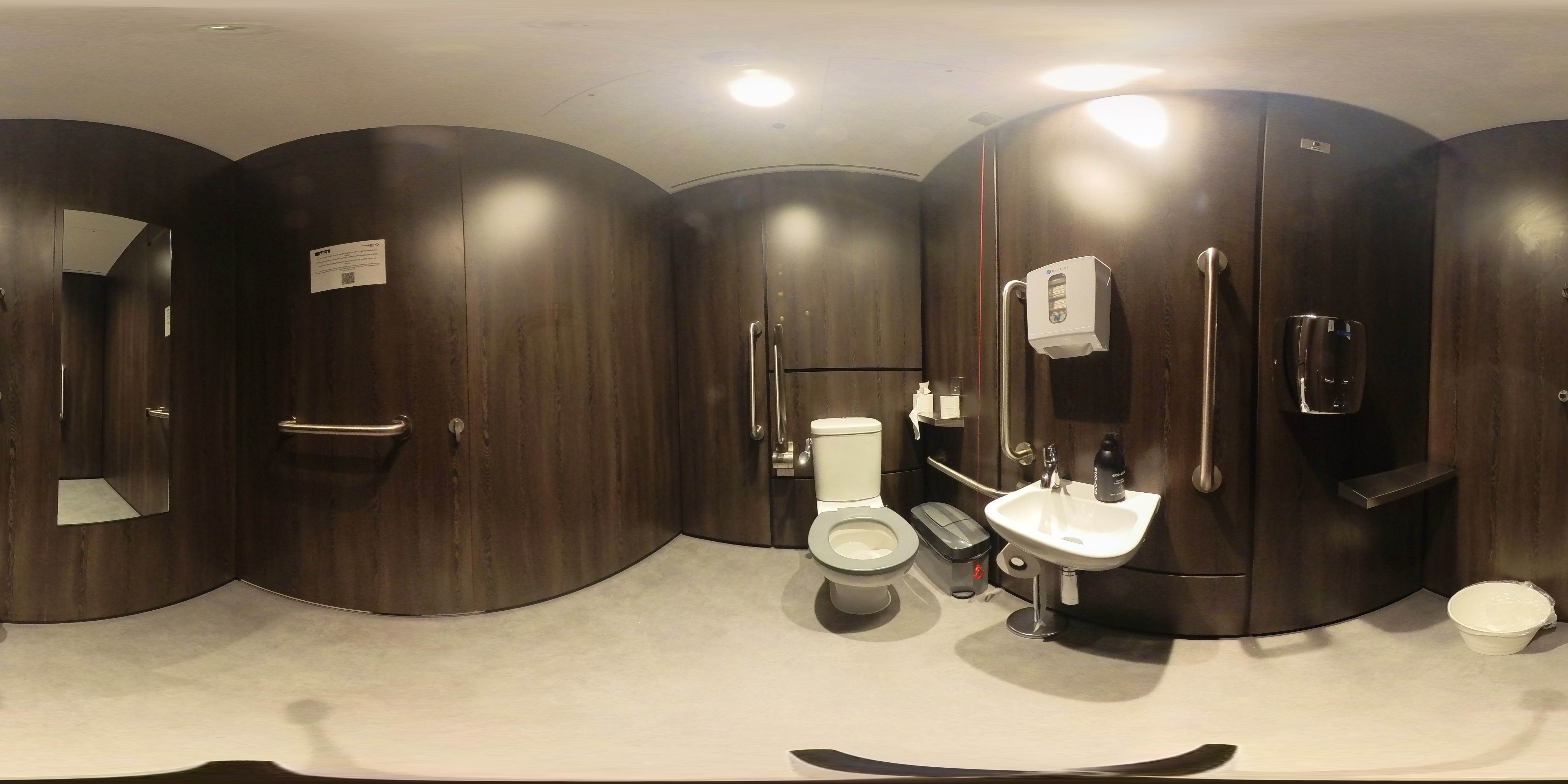

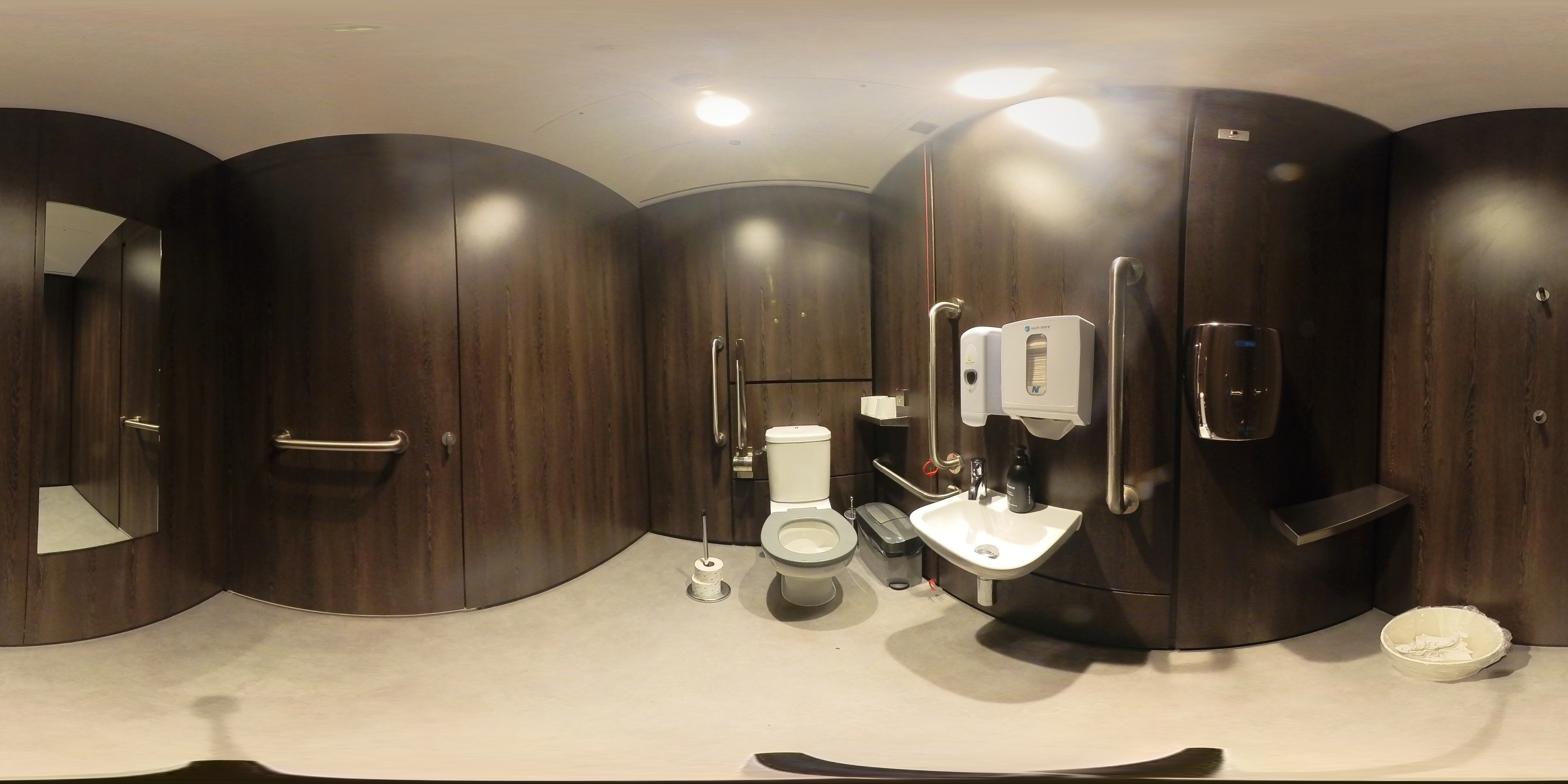

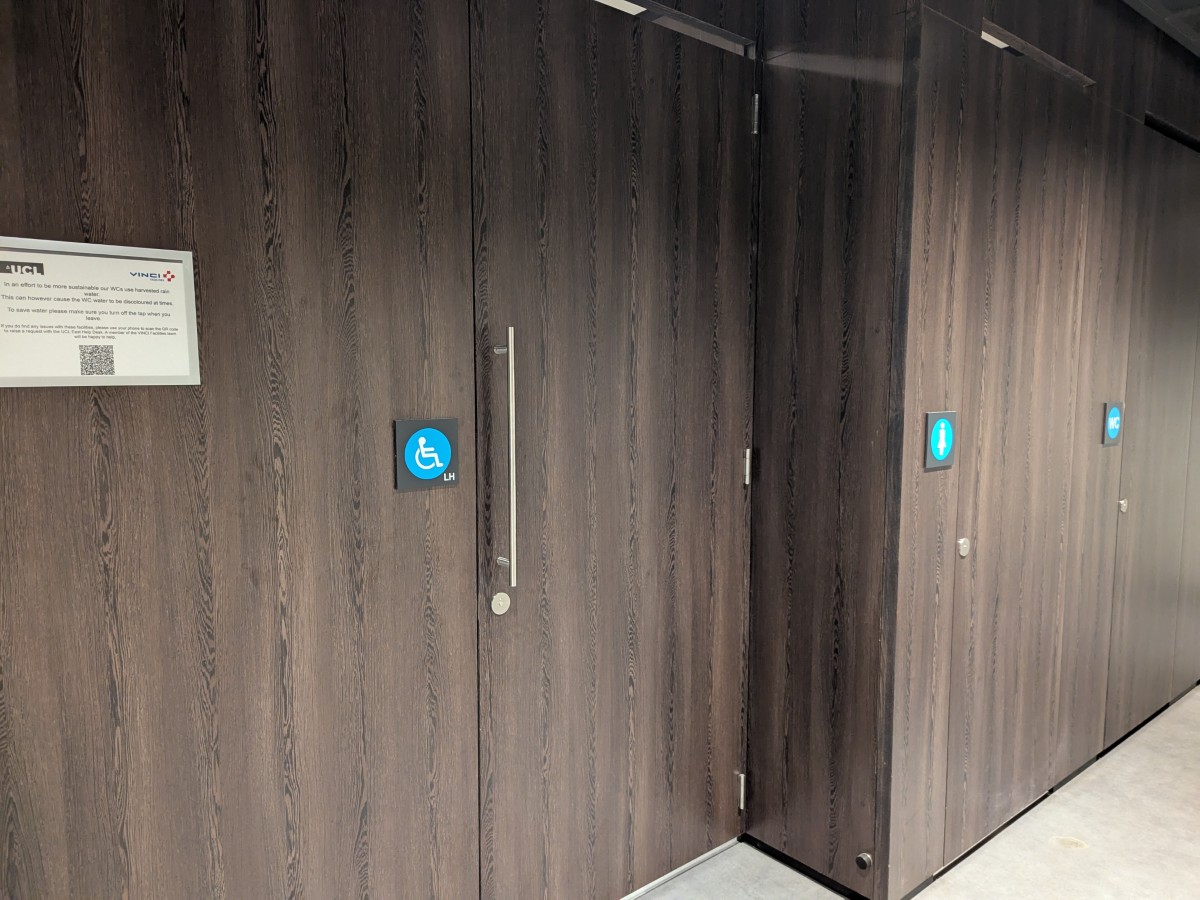

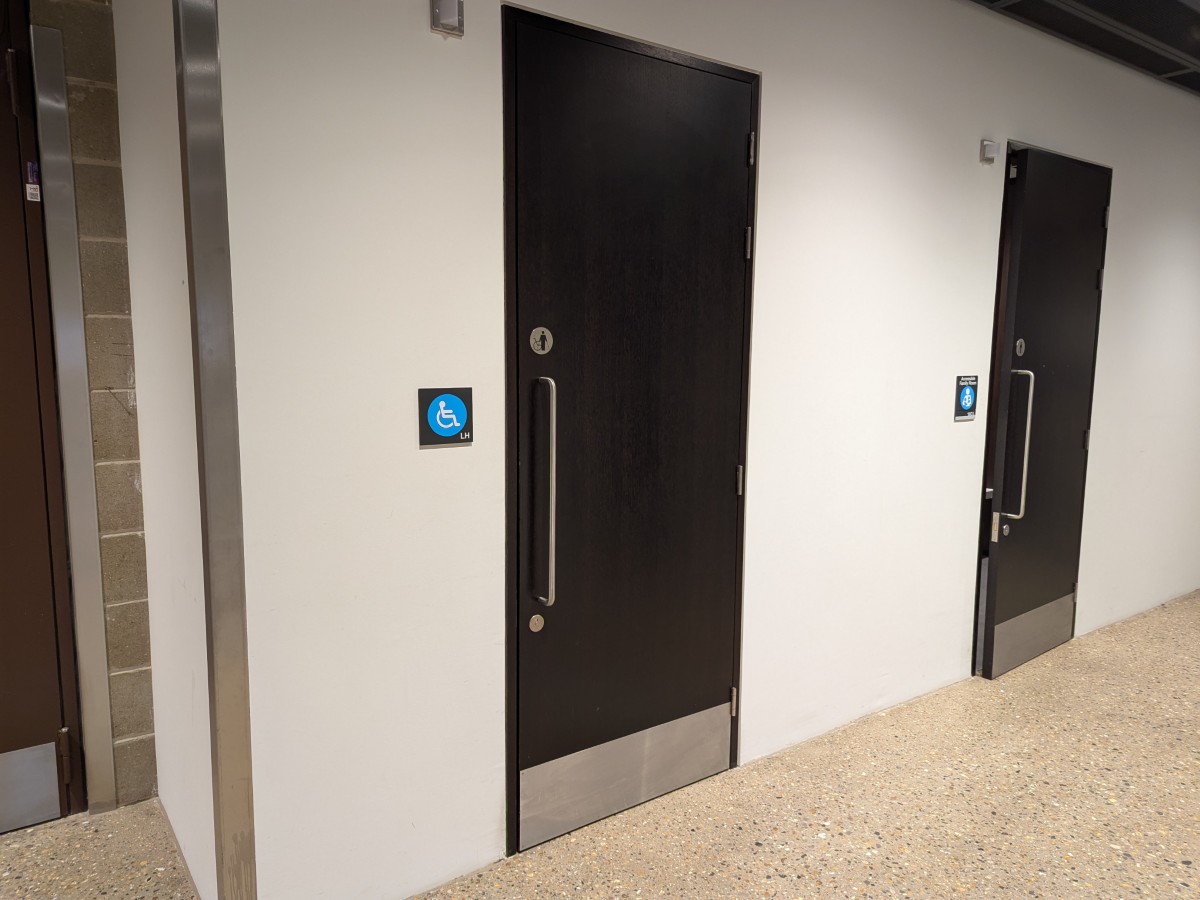

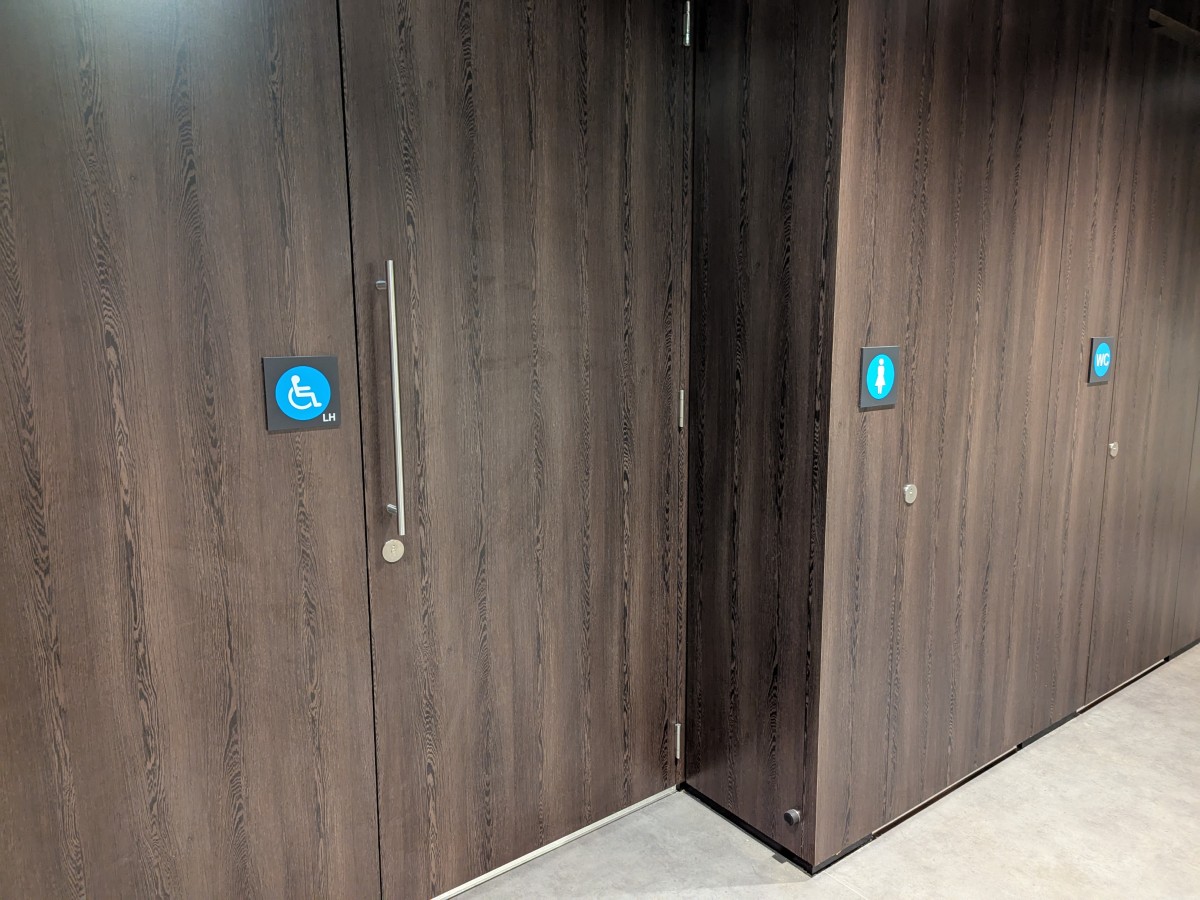

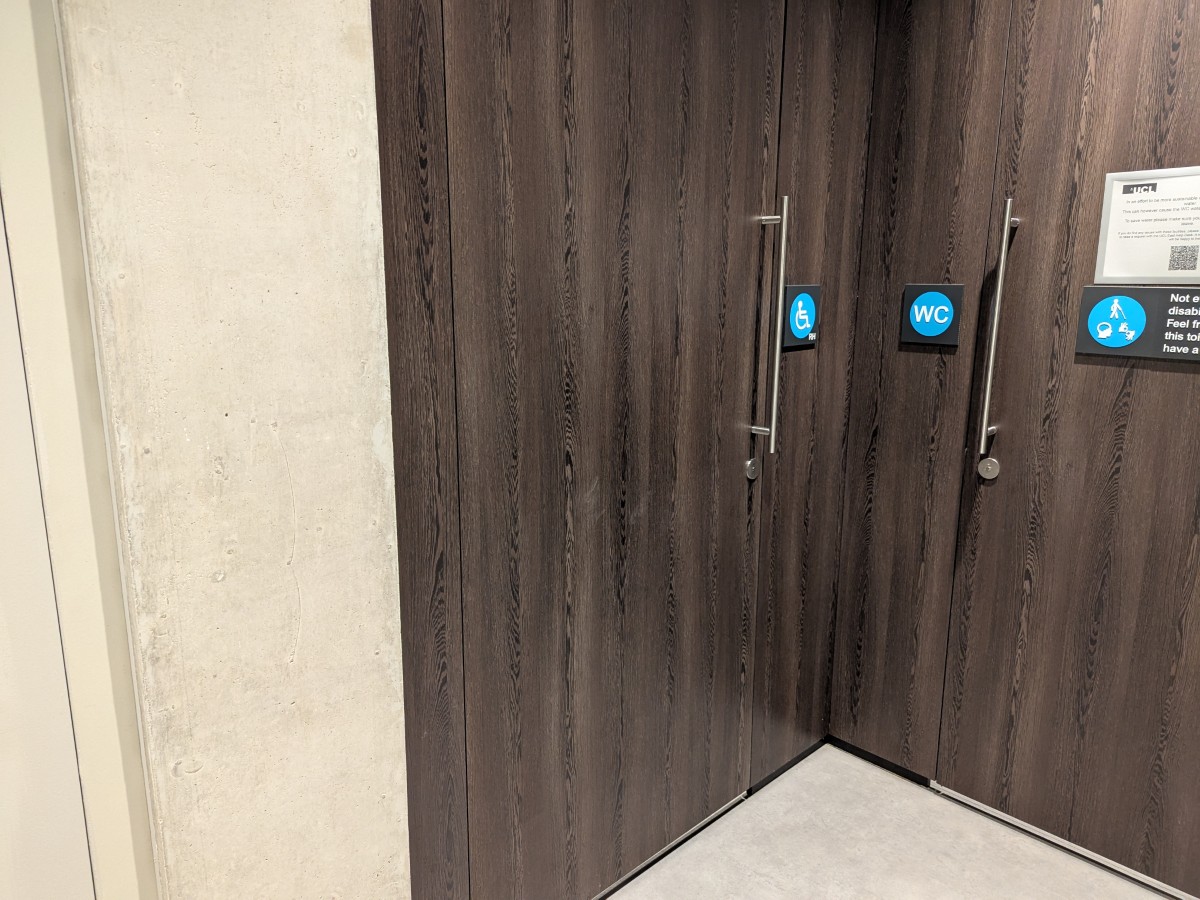

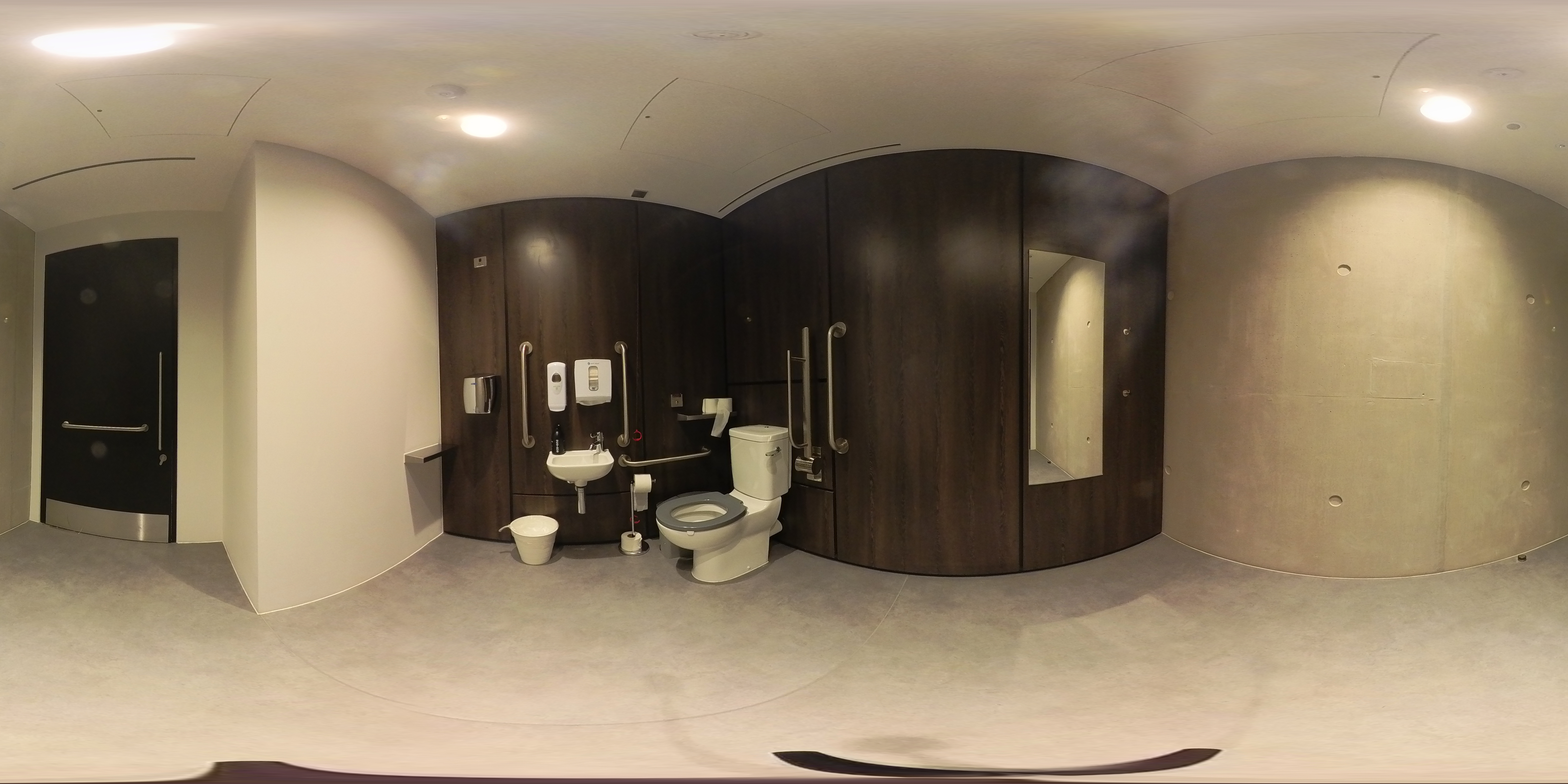

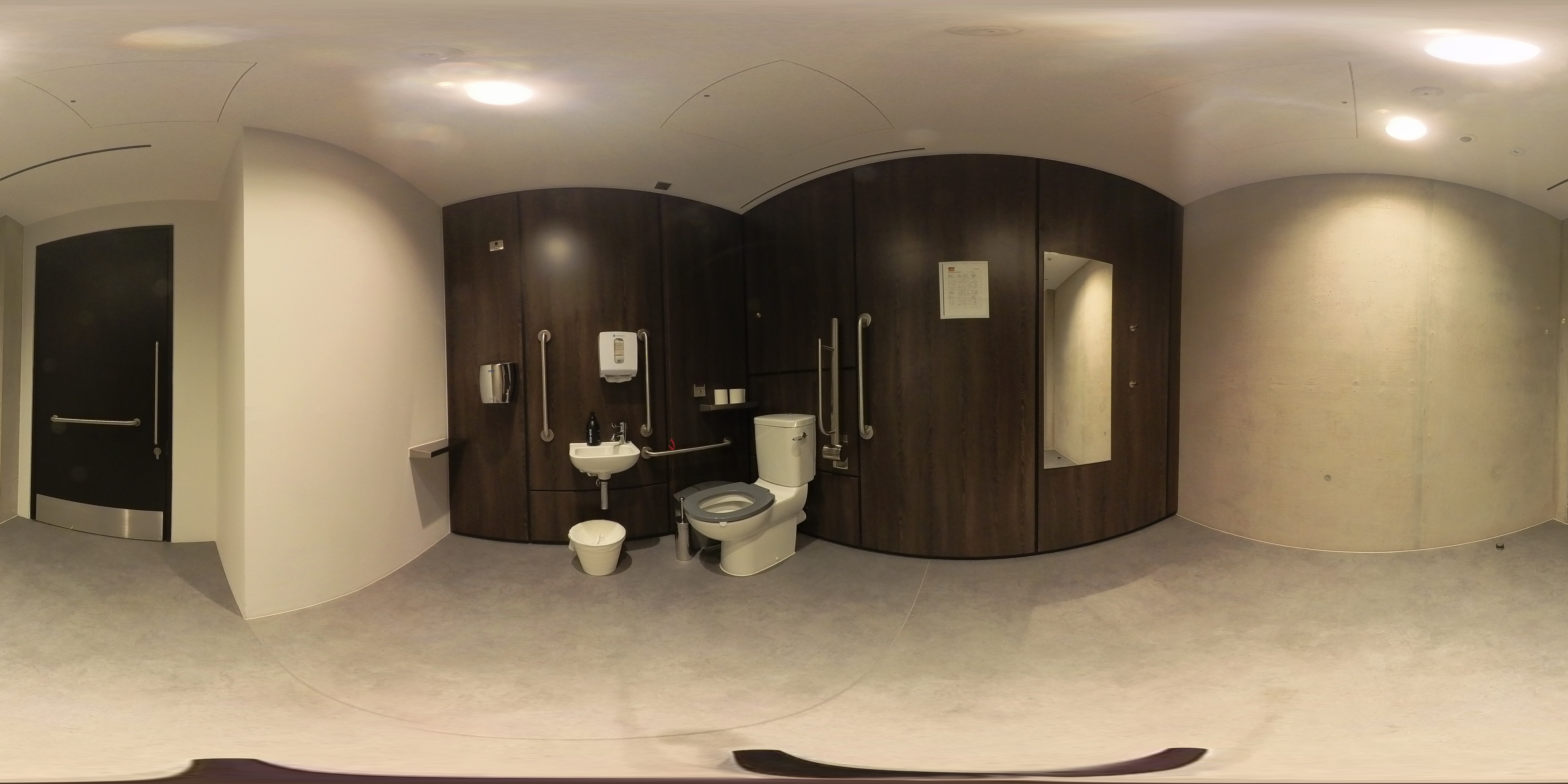

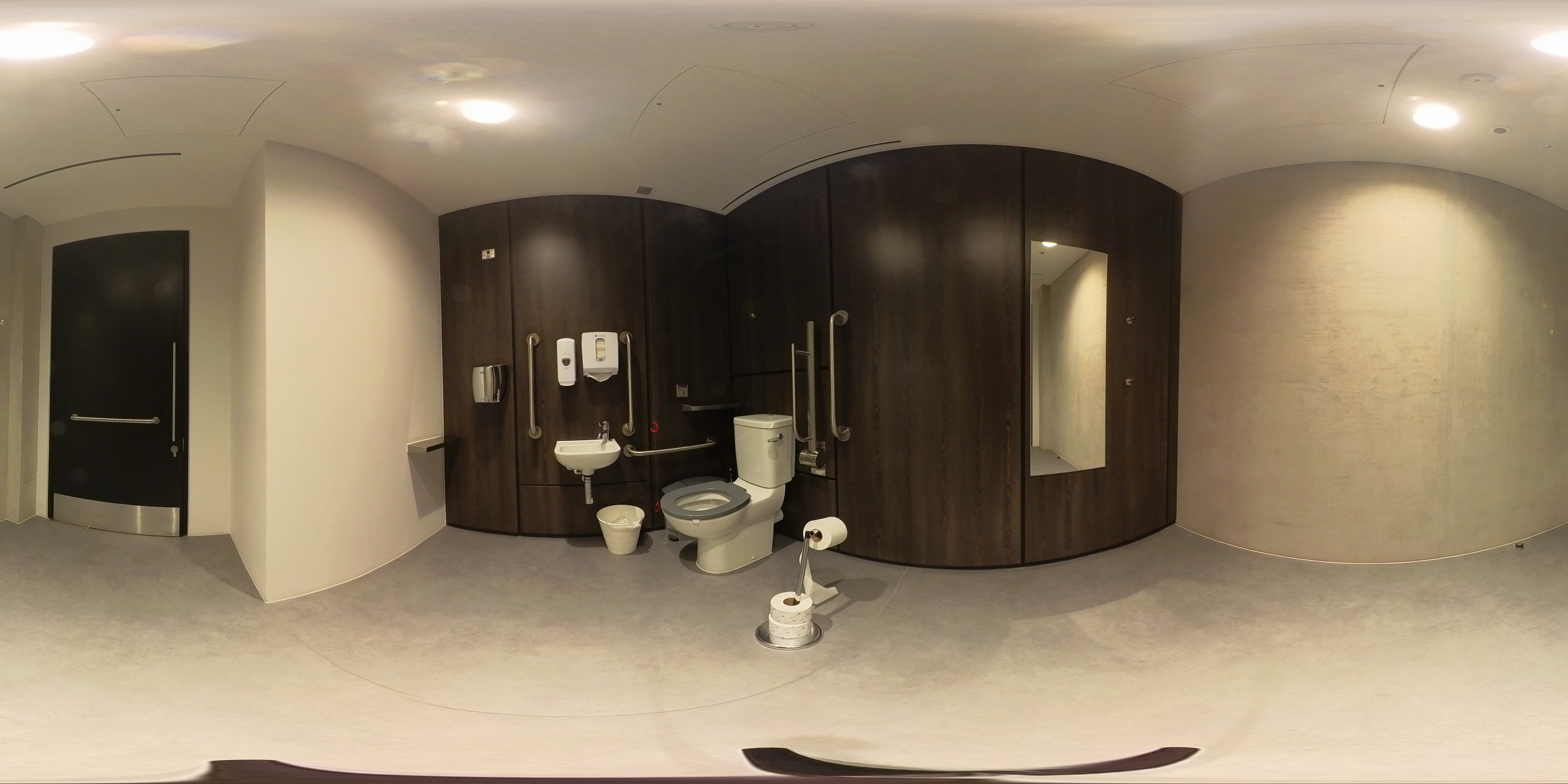

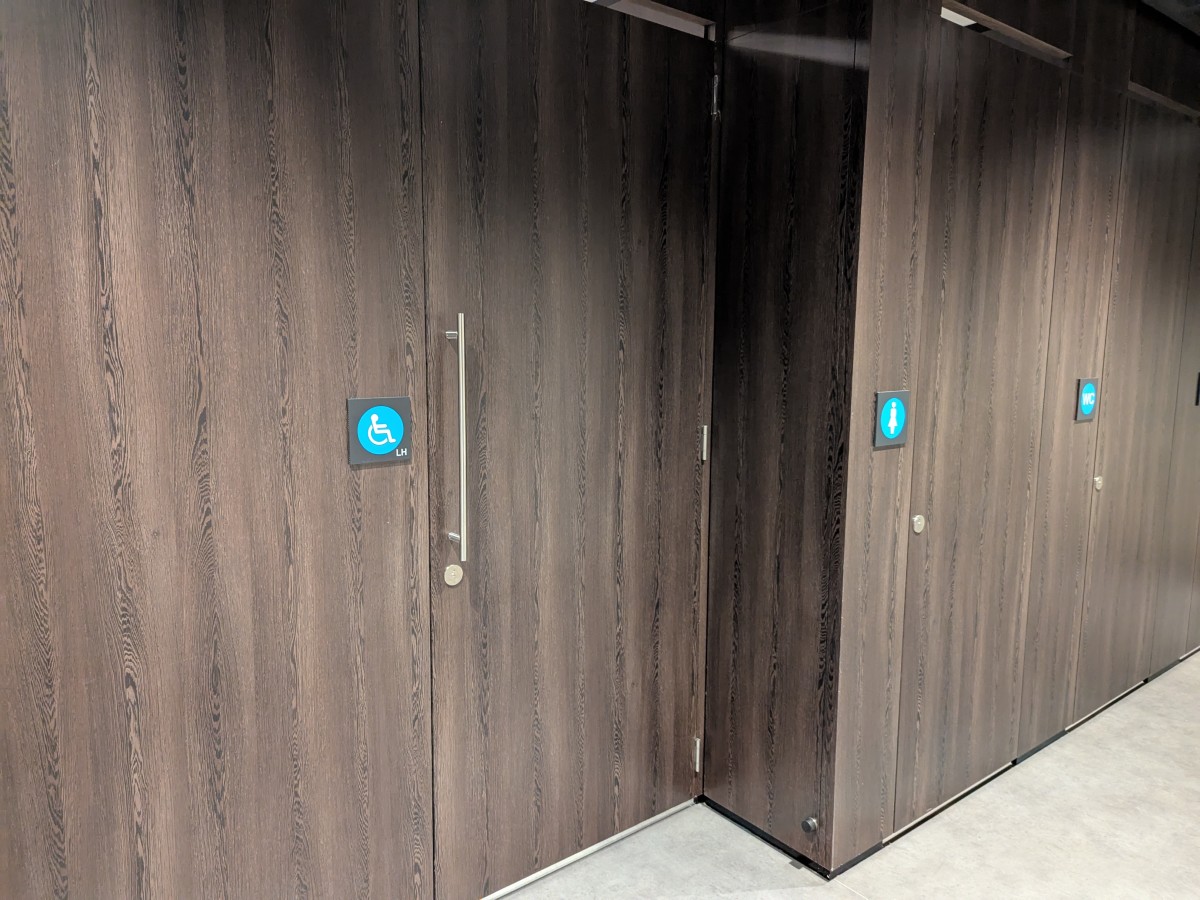

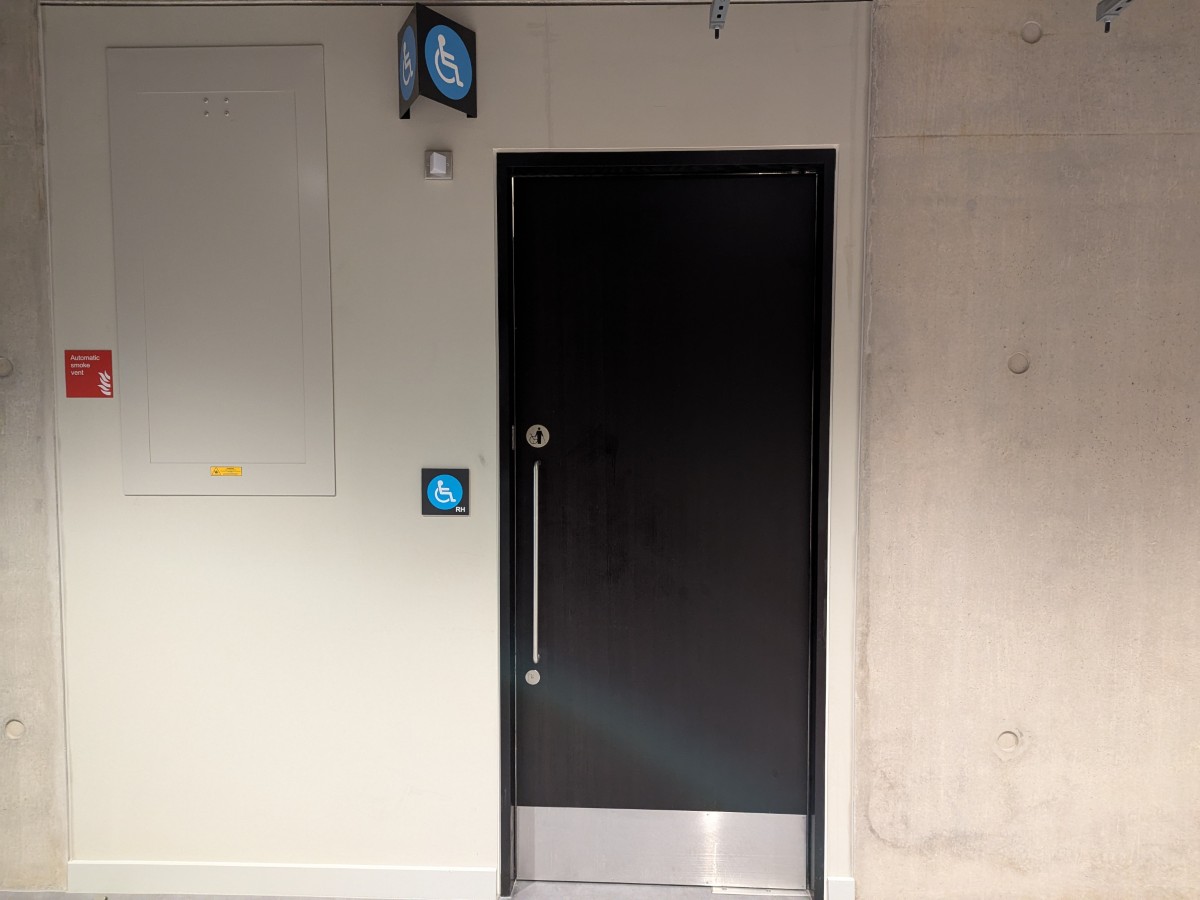

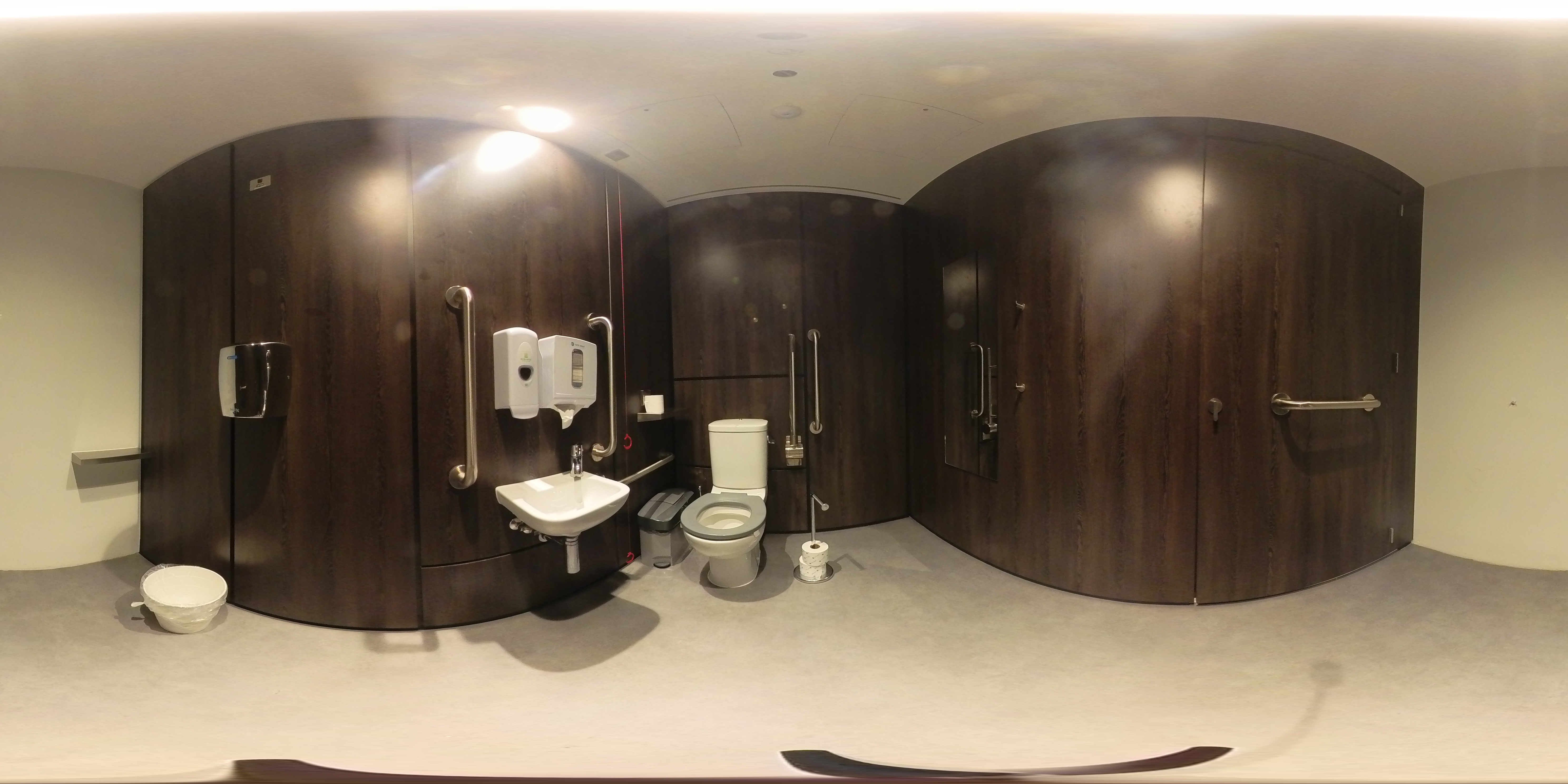

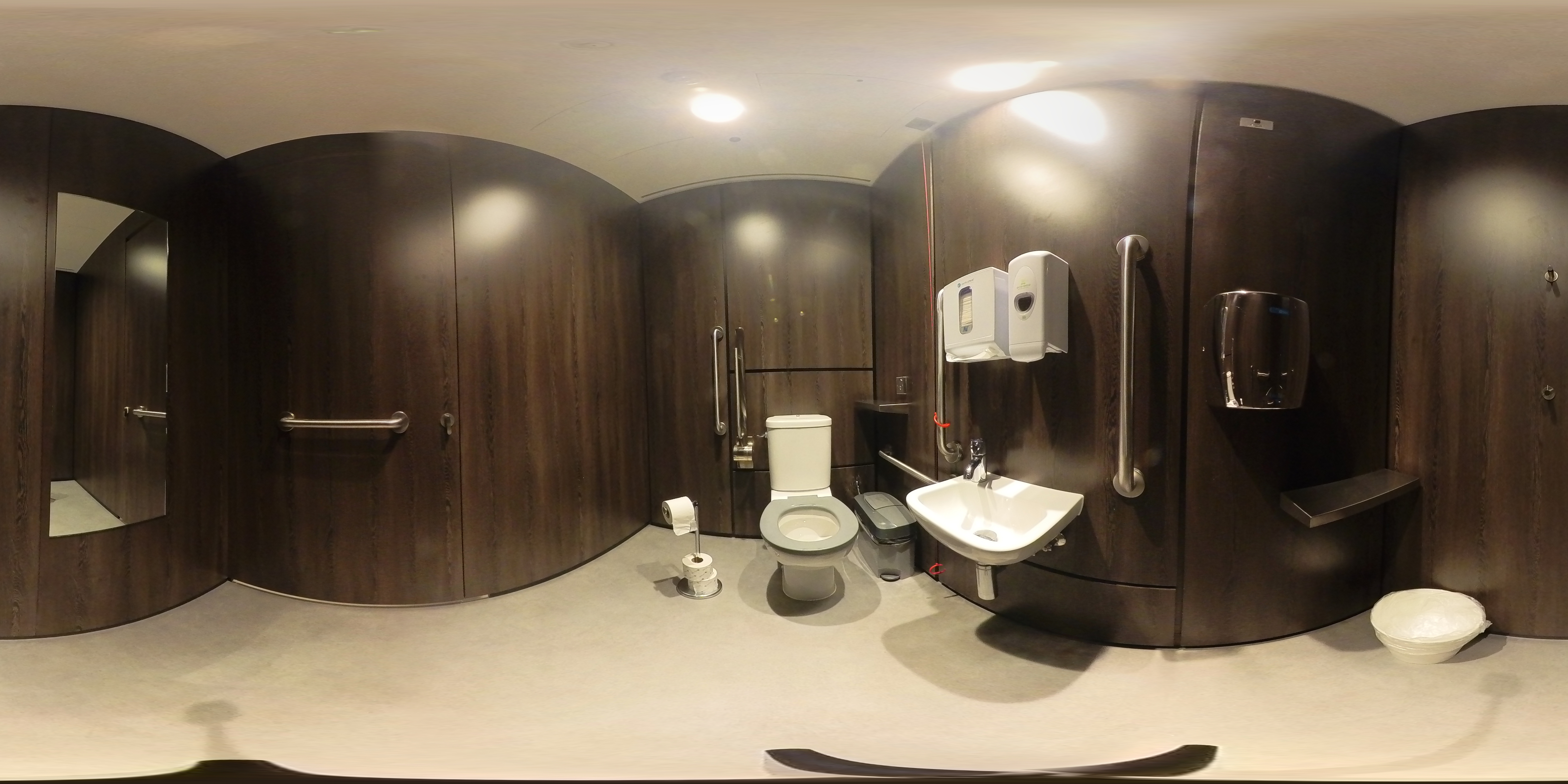

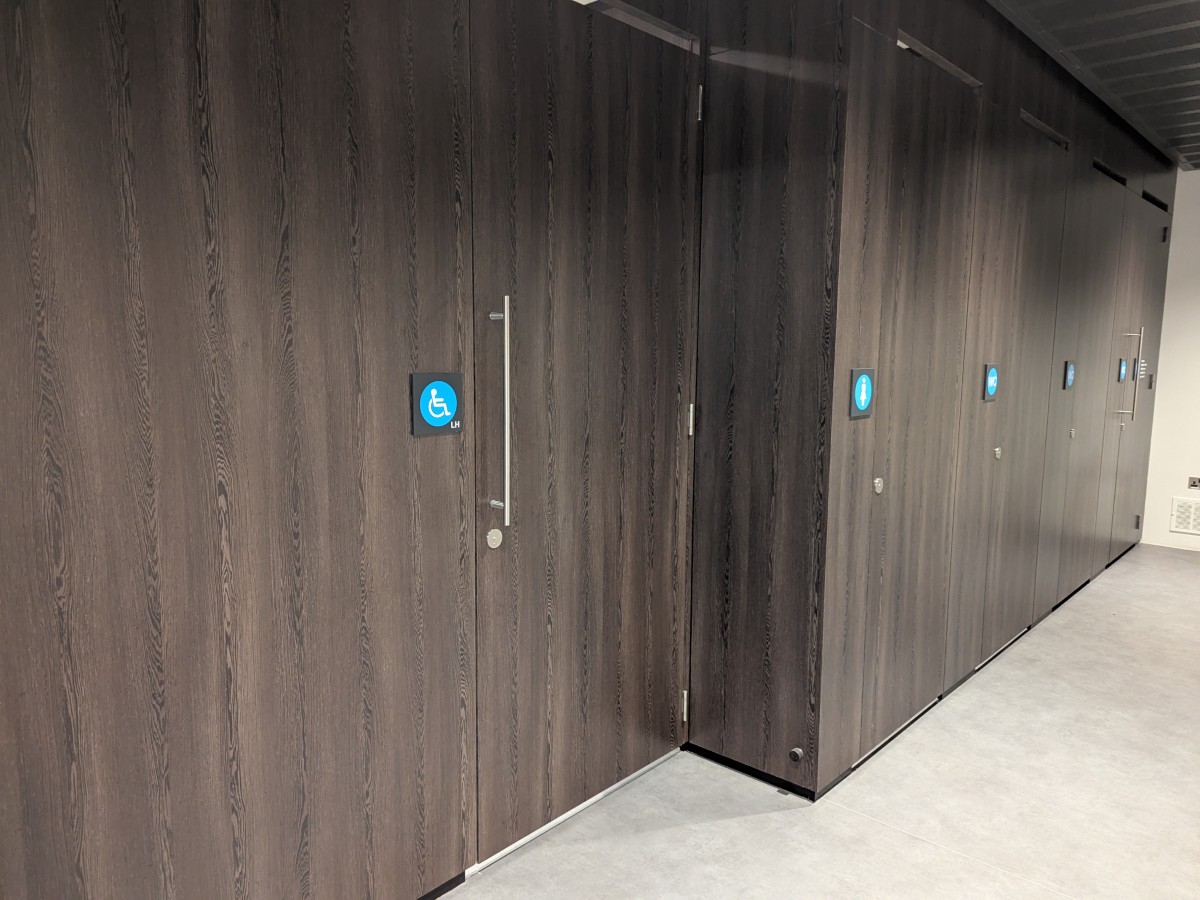

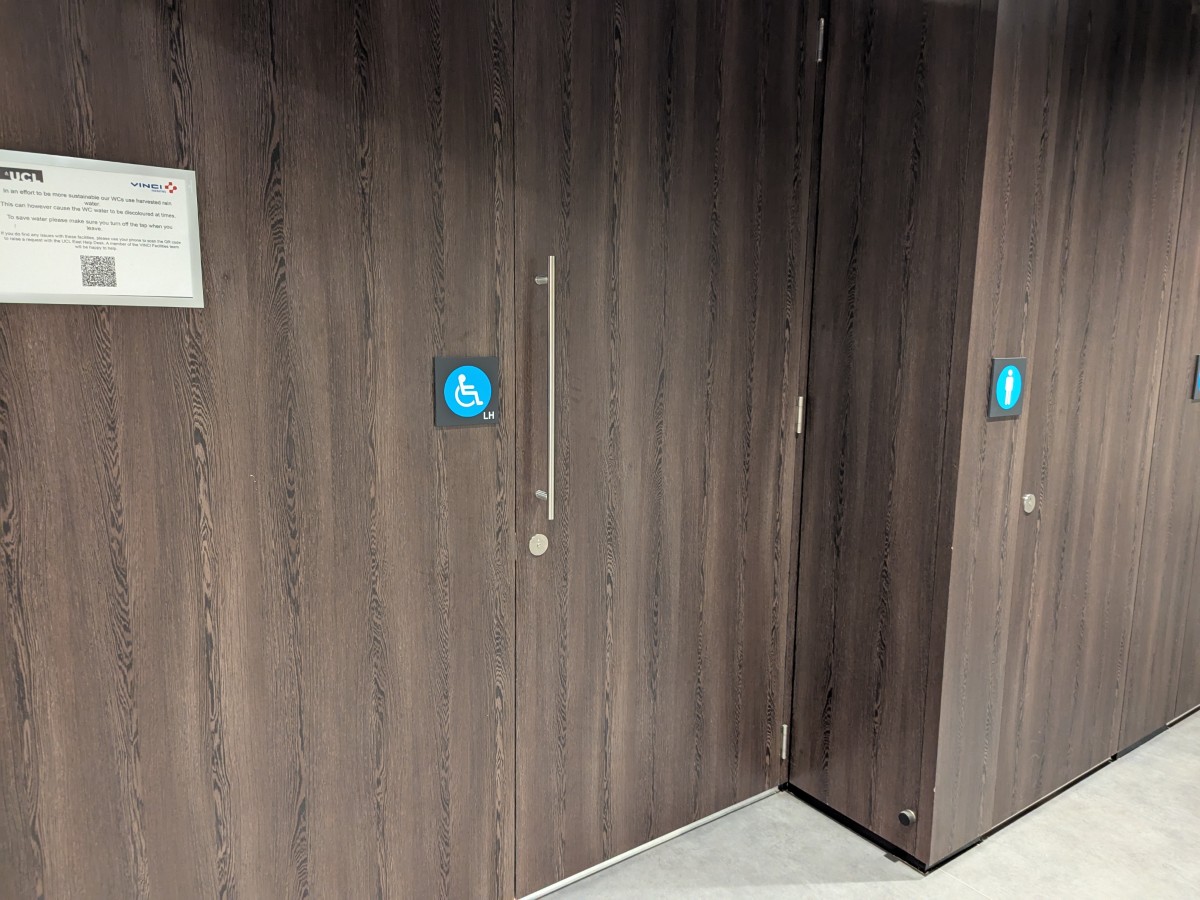

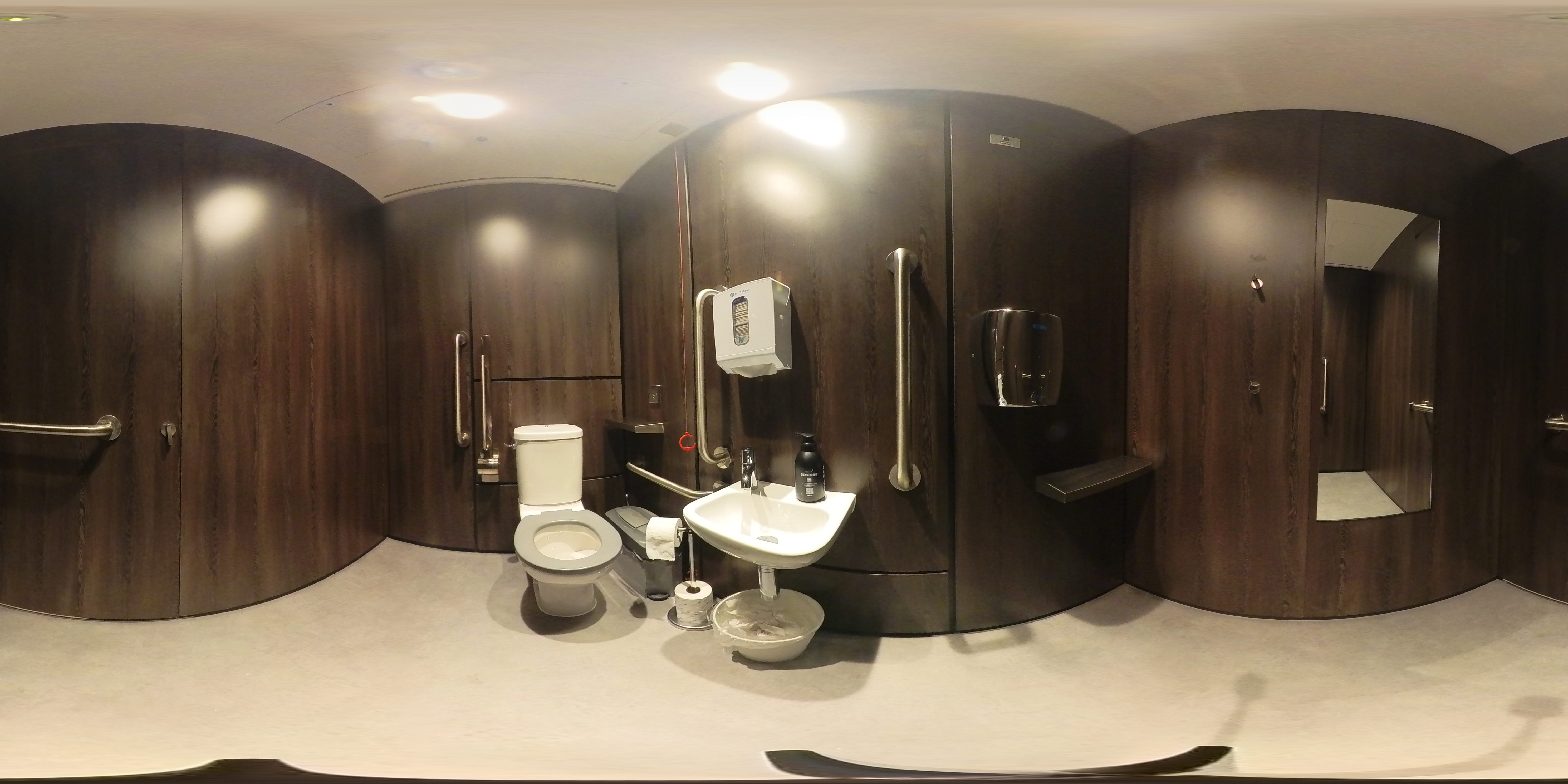

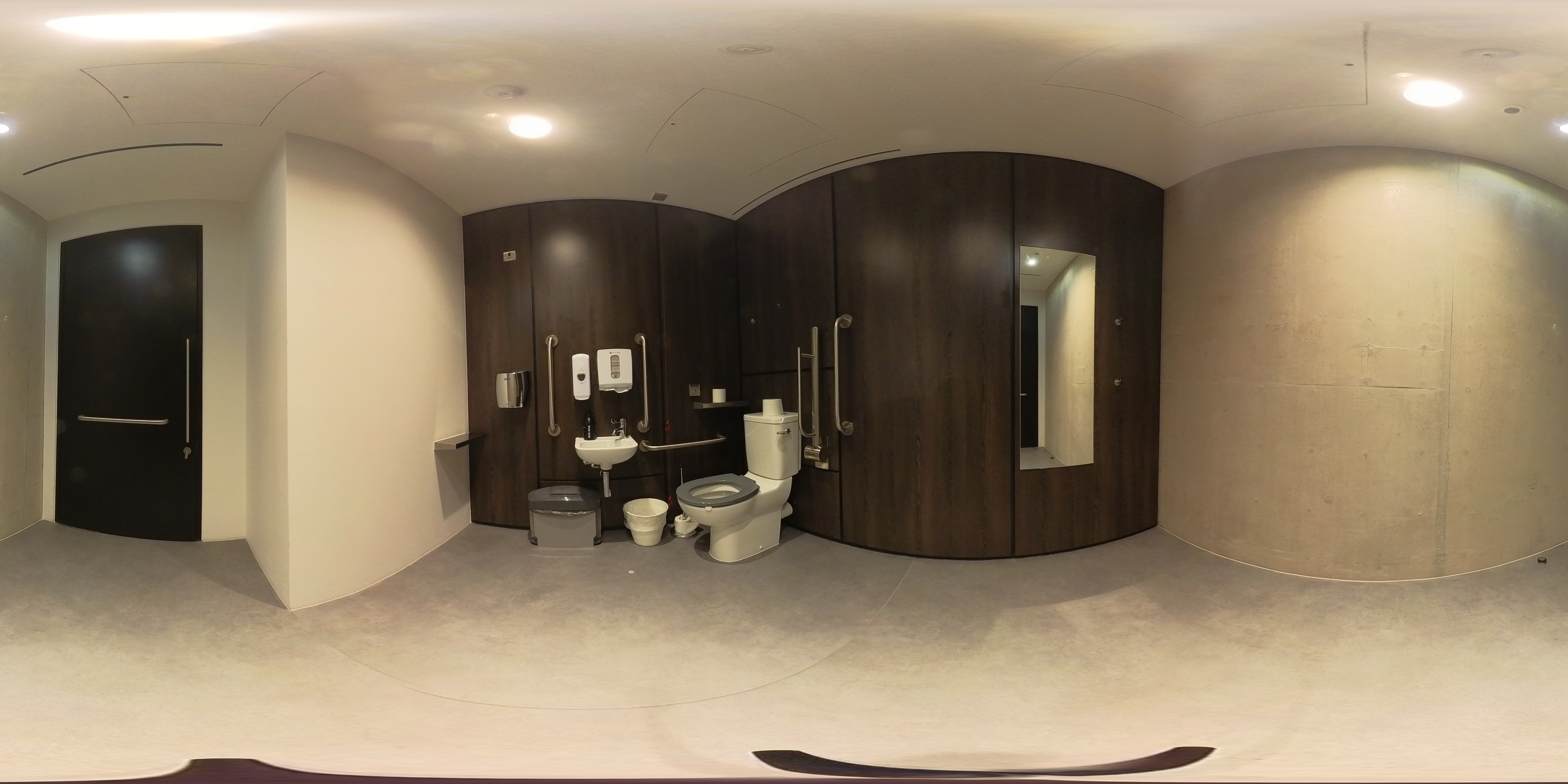

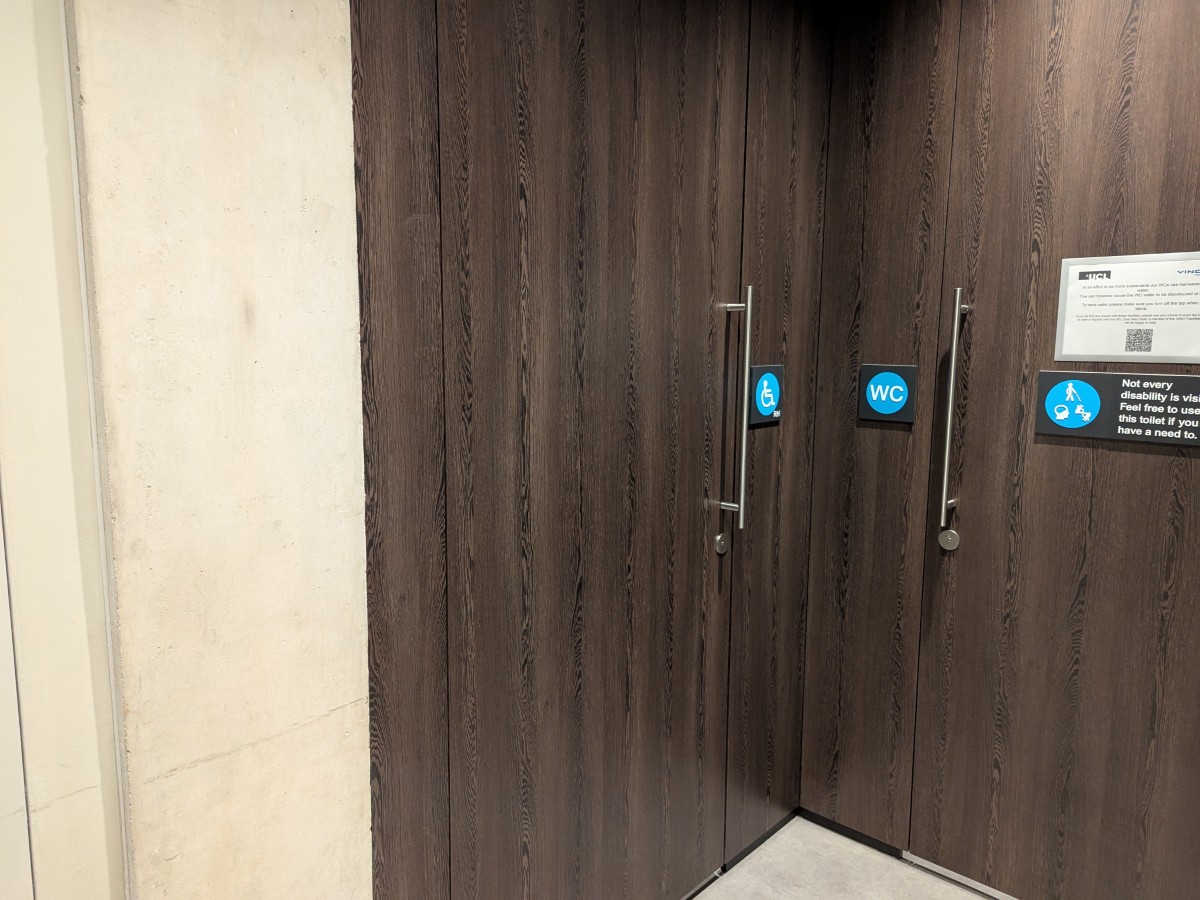

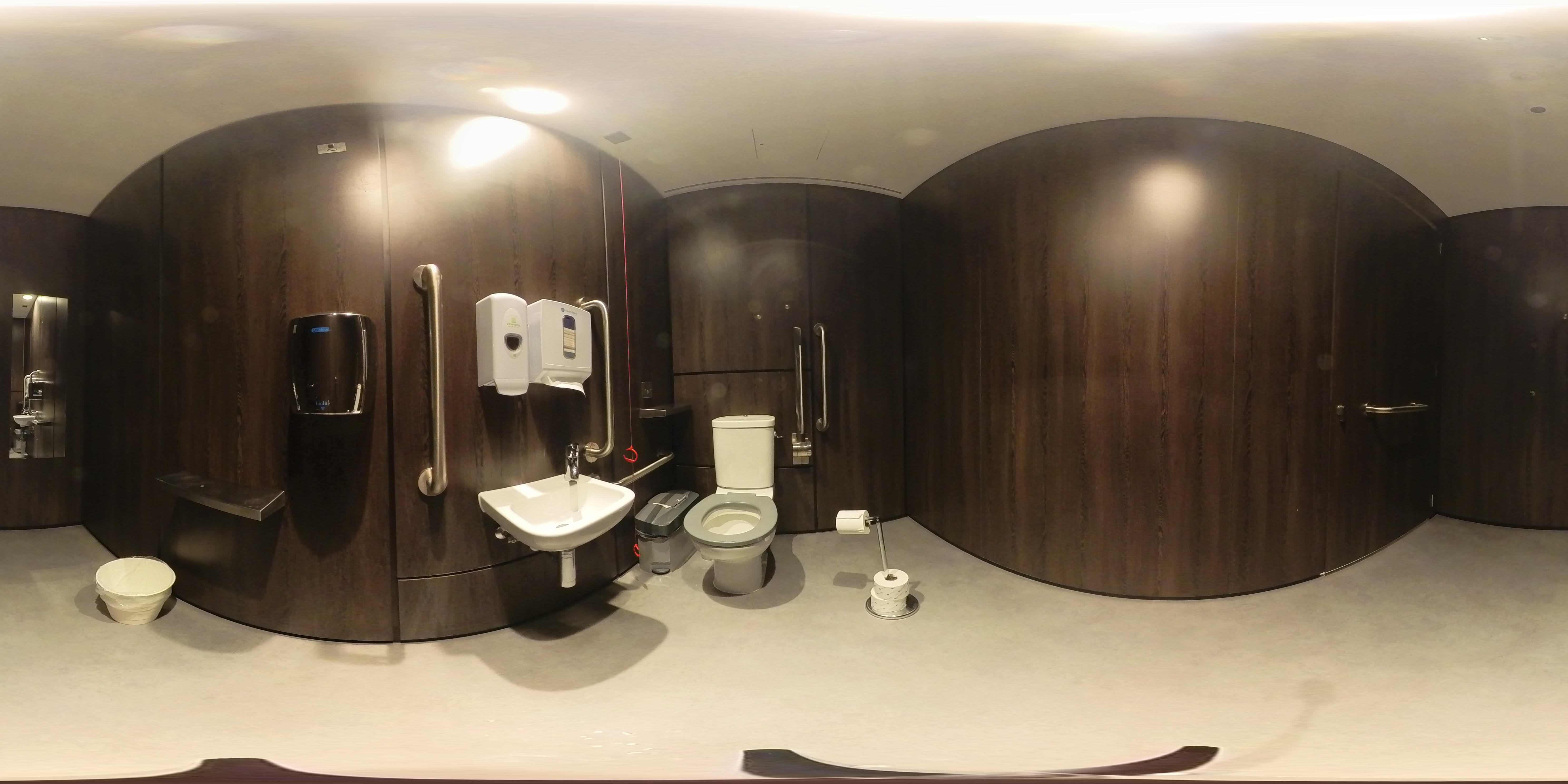

  • There are 25+ toilets with adaptations.
  • Toilets with adaptations are located on all levels.
  • The transfer space varies between left and right in the toilets with adaptations.
  • All toilets with adaptations in Core A and Core C have a transfer space on the right-hand side. All toilets with adaptations in Core B and Core D have a transfer space on the left-hand side.

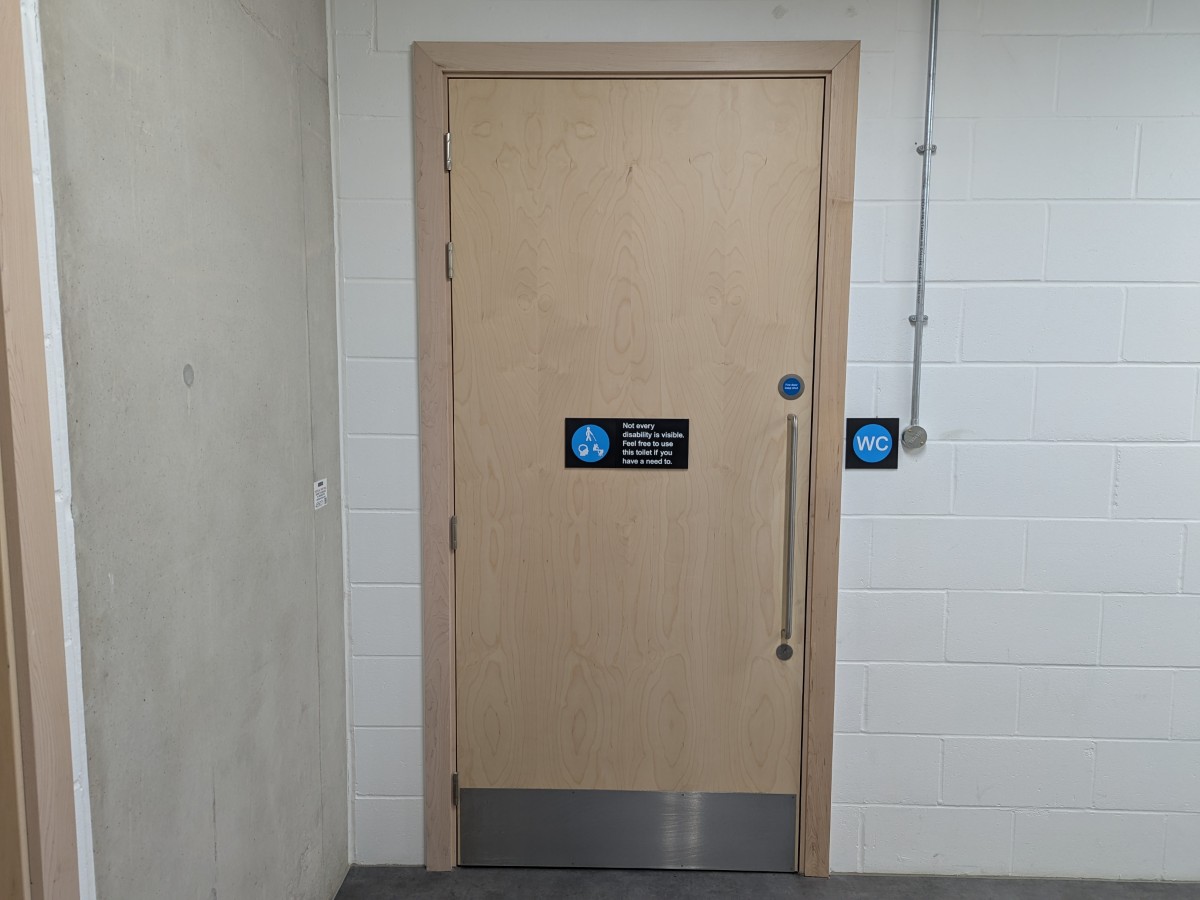

  • Ambulant toilet facilities are located on all levels.

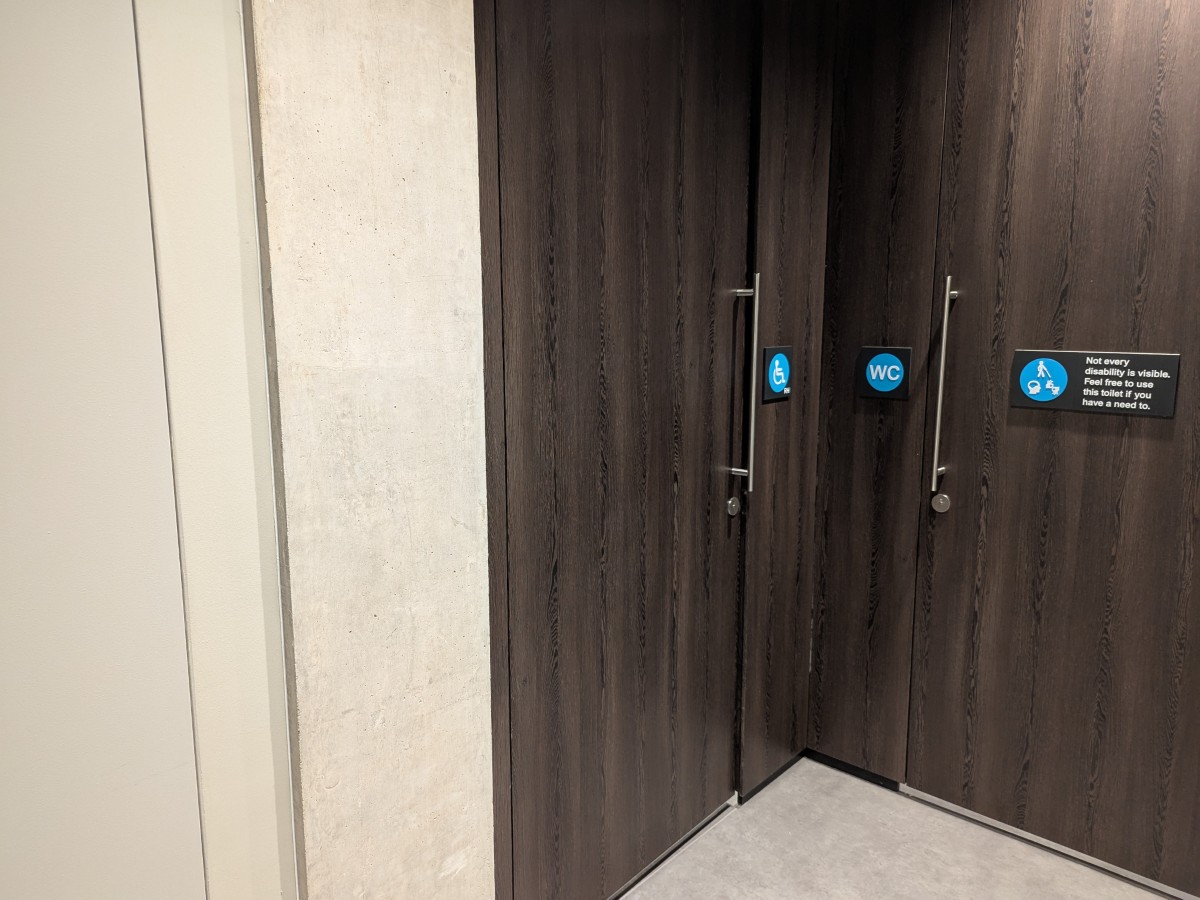

  • The gender inclusive step-free toilet facilities are located on all levels.
  • The female step-free toilet facilities are located on levels 1 to 7 near the Core B lifts, and on level -1 in the female standard changing room.
  • The male step-free toilet facilities are located levels 1 to 7 near the Core D lifts, and on level -1 in the male standard changing room.
• Changing Places and Changing Facilities View

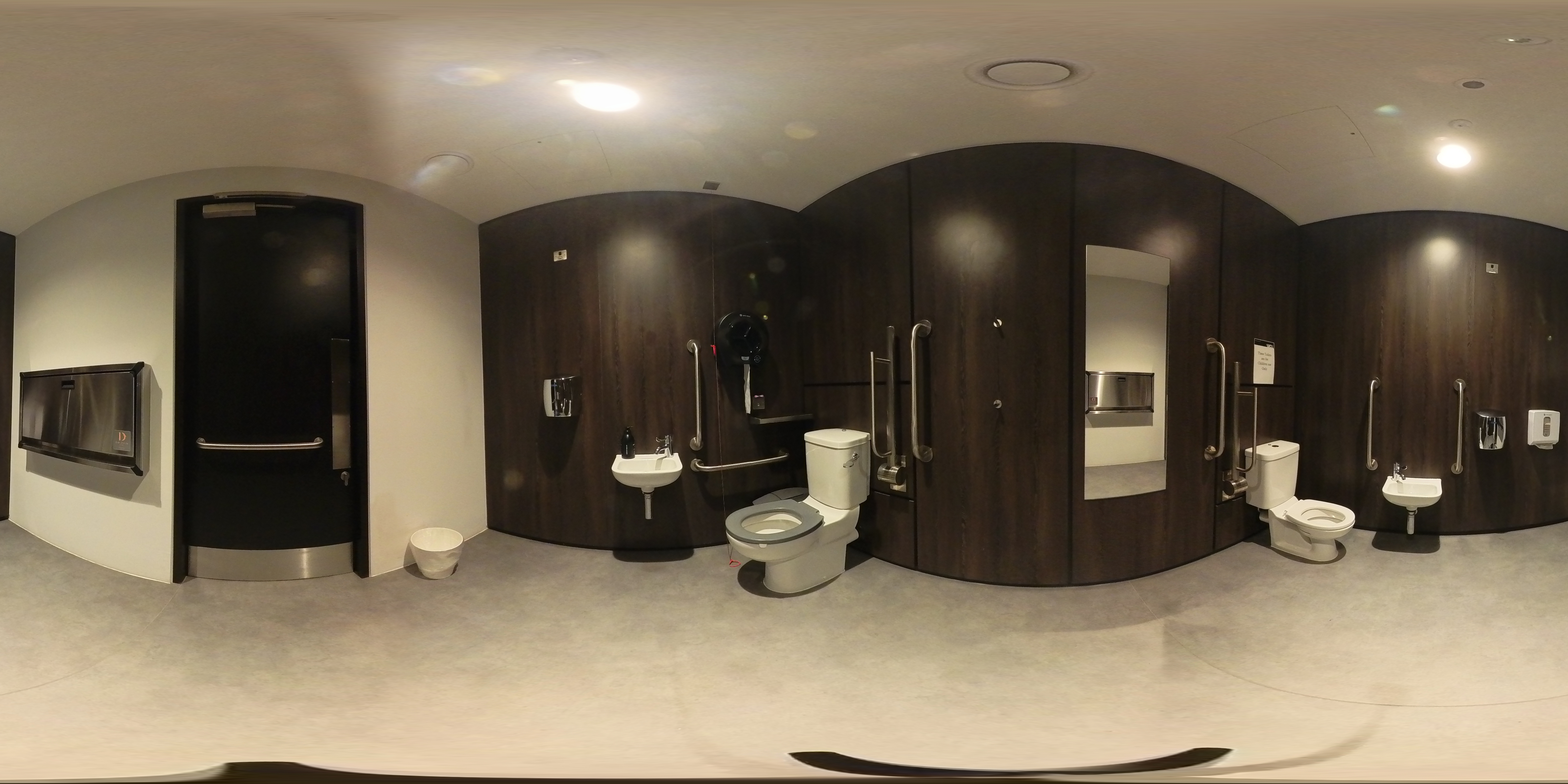

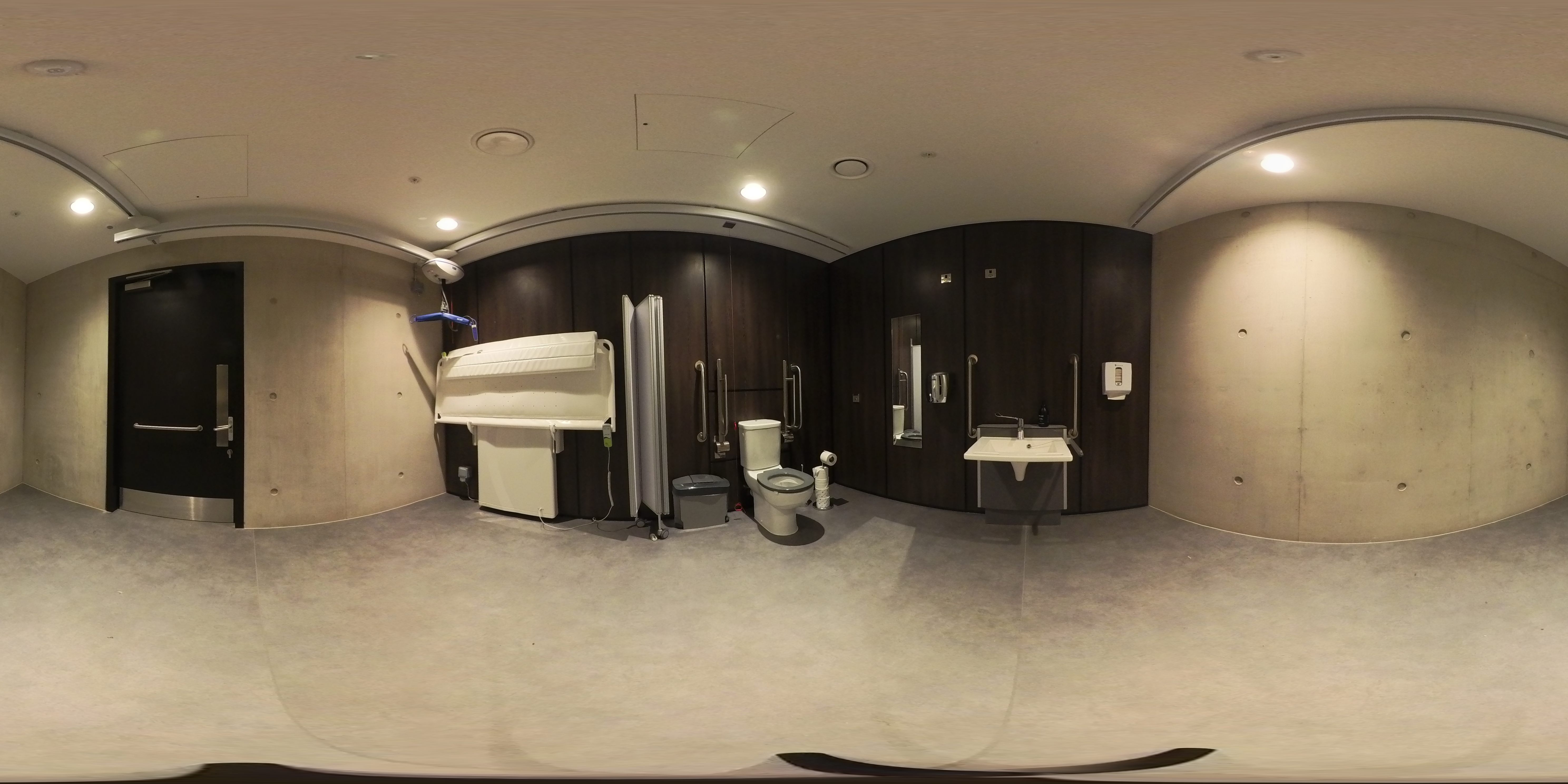

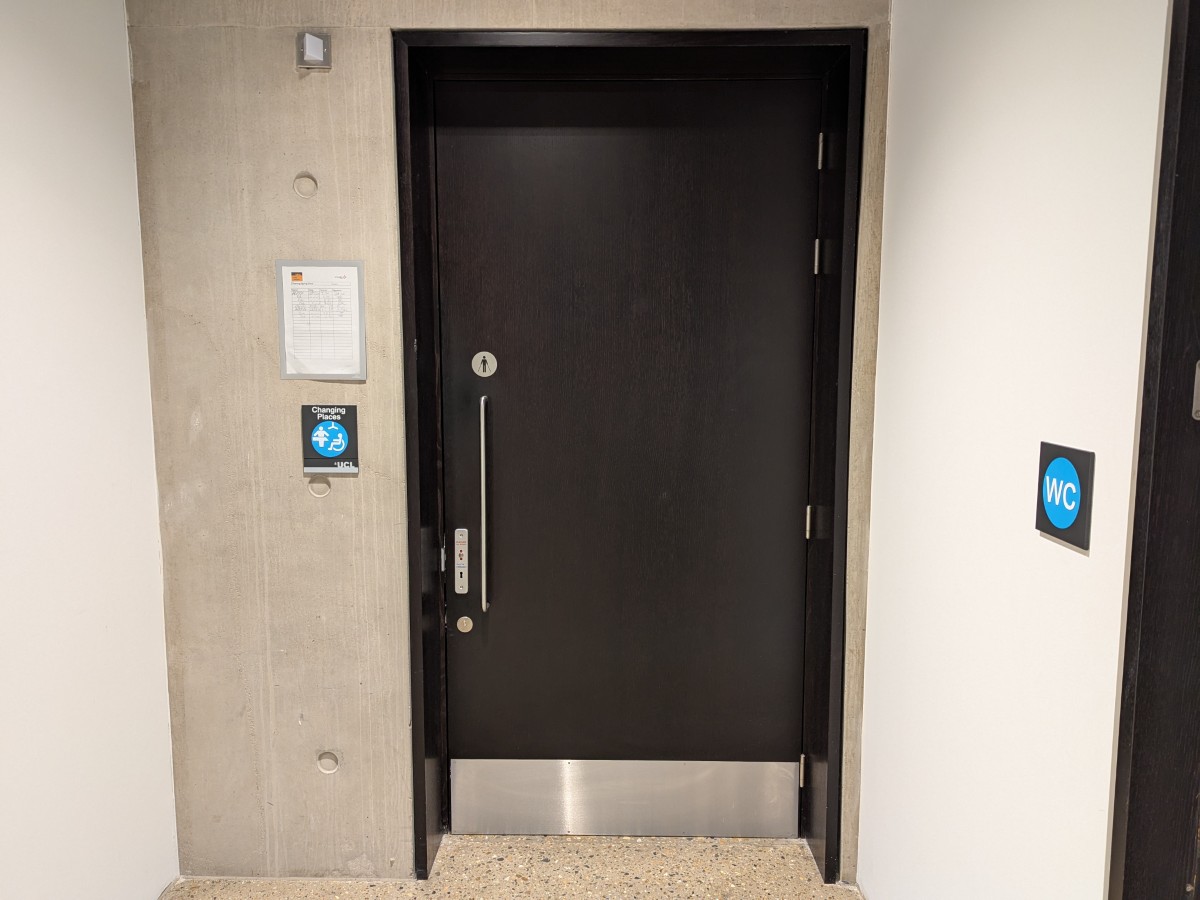

  • The Changing Places toilet facilities are located on the ground floor, to the rear of the building.
  • Standard changing facilities are located on level -1.

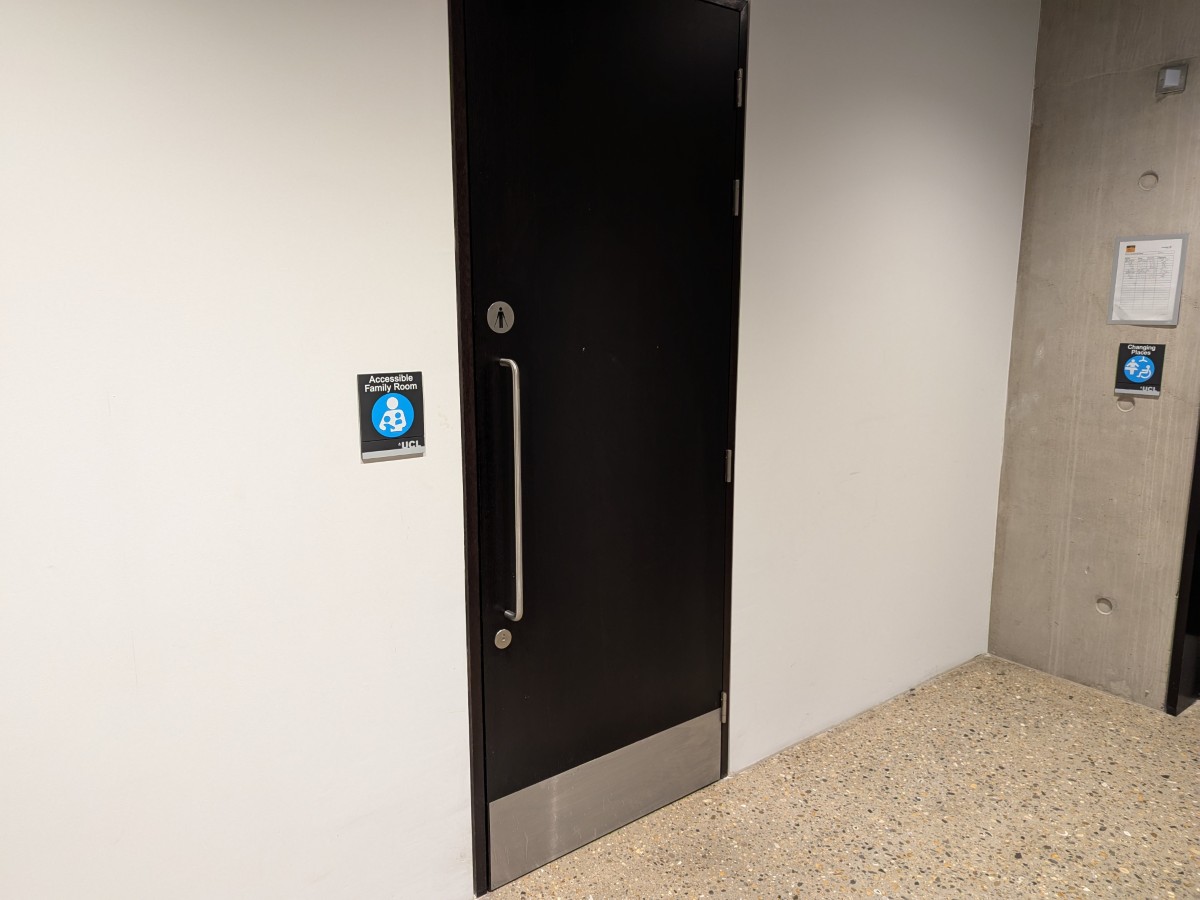

  • Parent and baby changing facilities are located on the ground floor, to the rear of the building.
• Washroom and Shower Facilities View

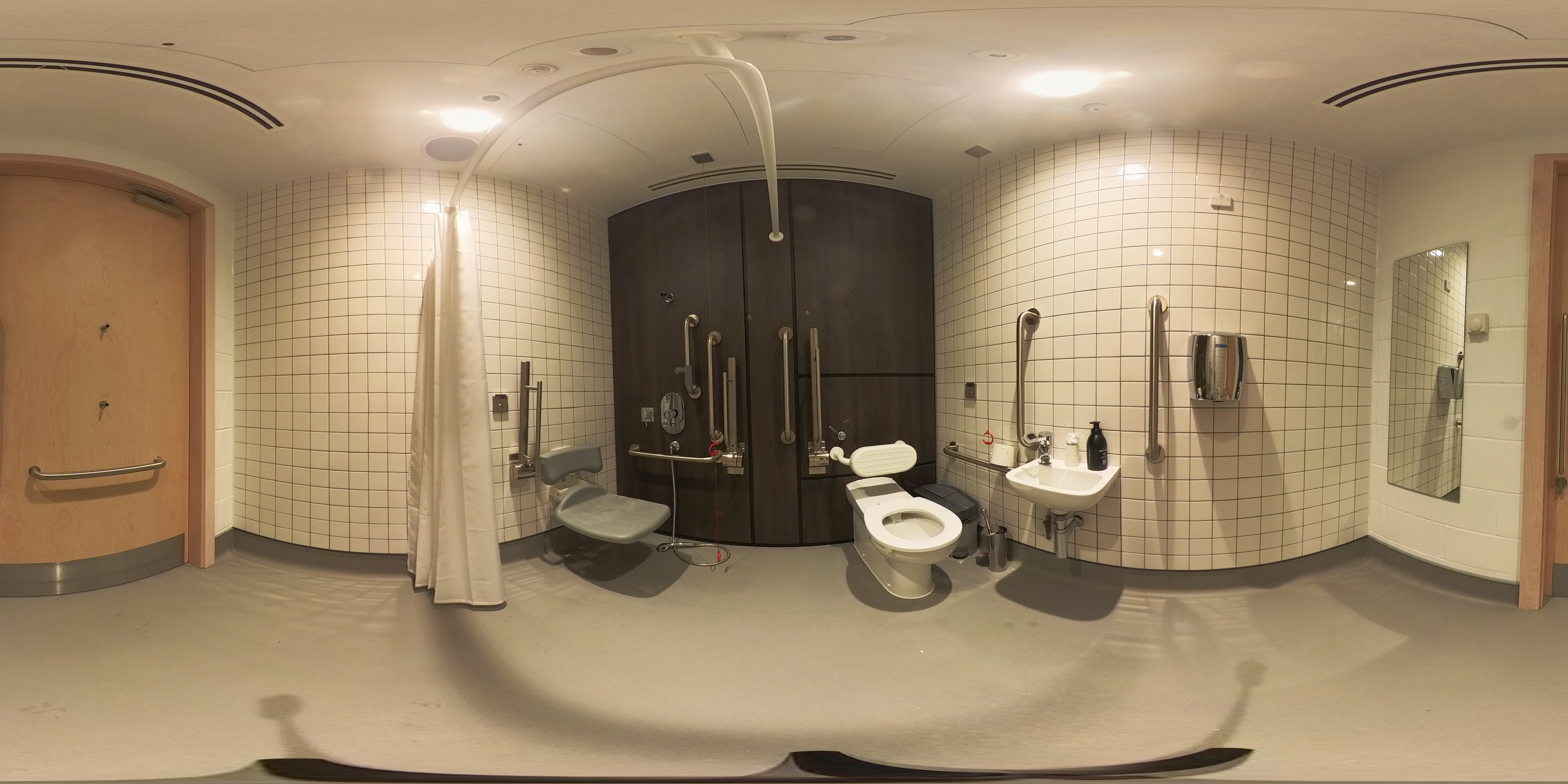

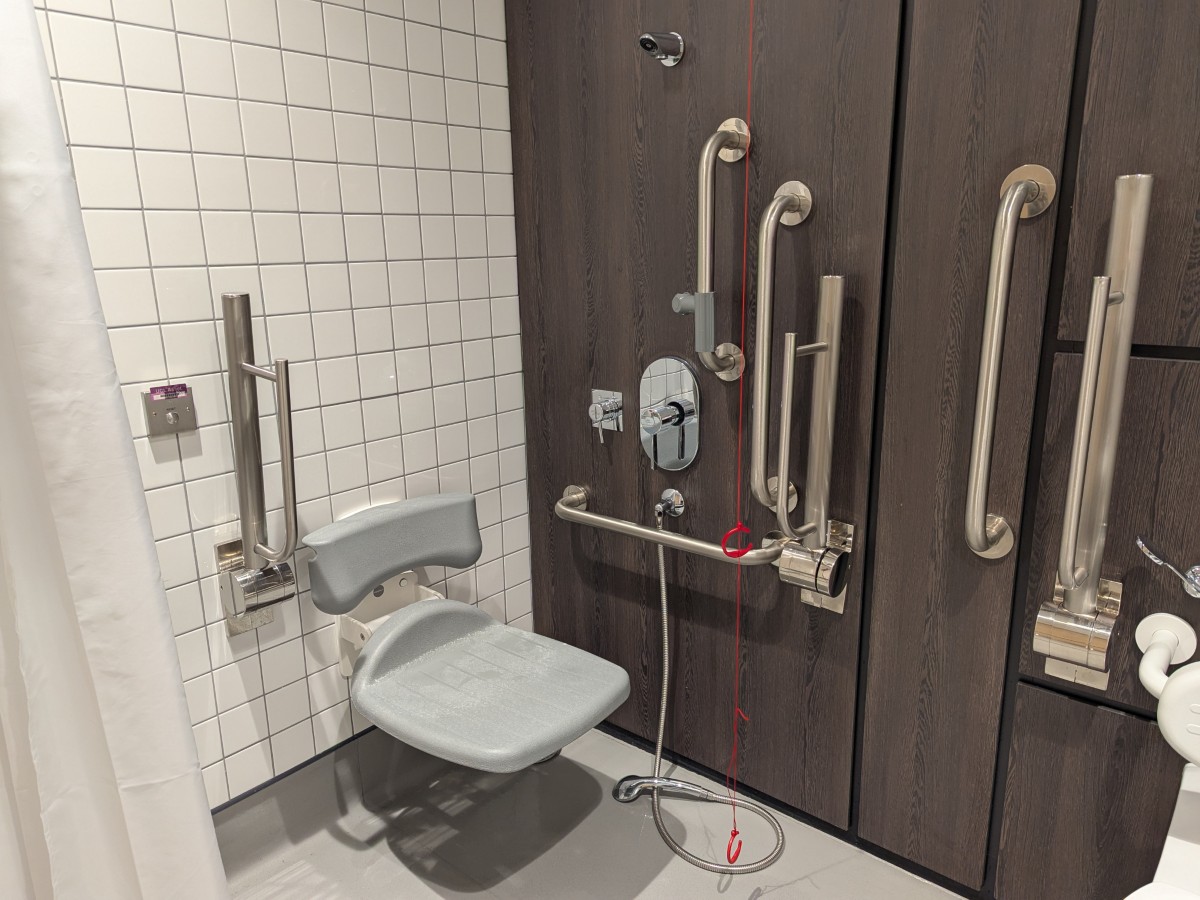

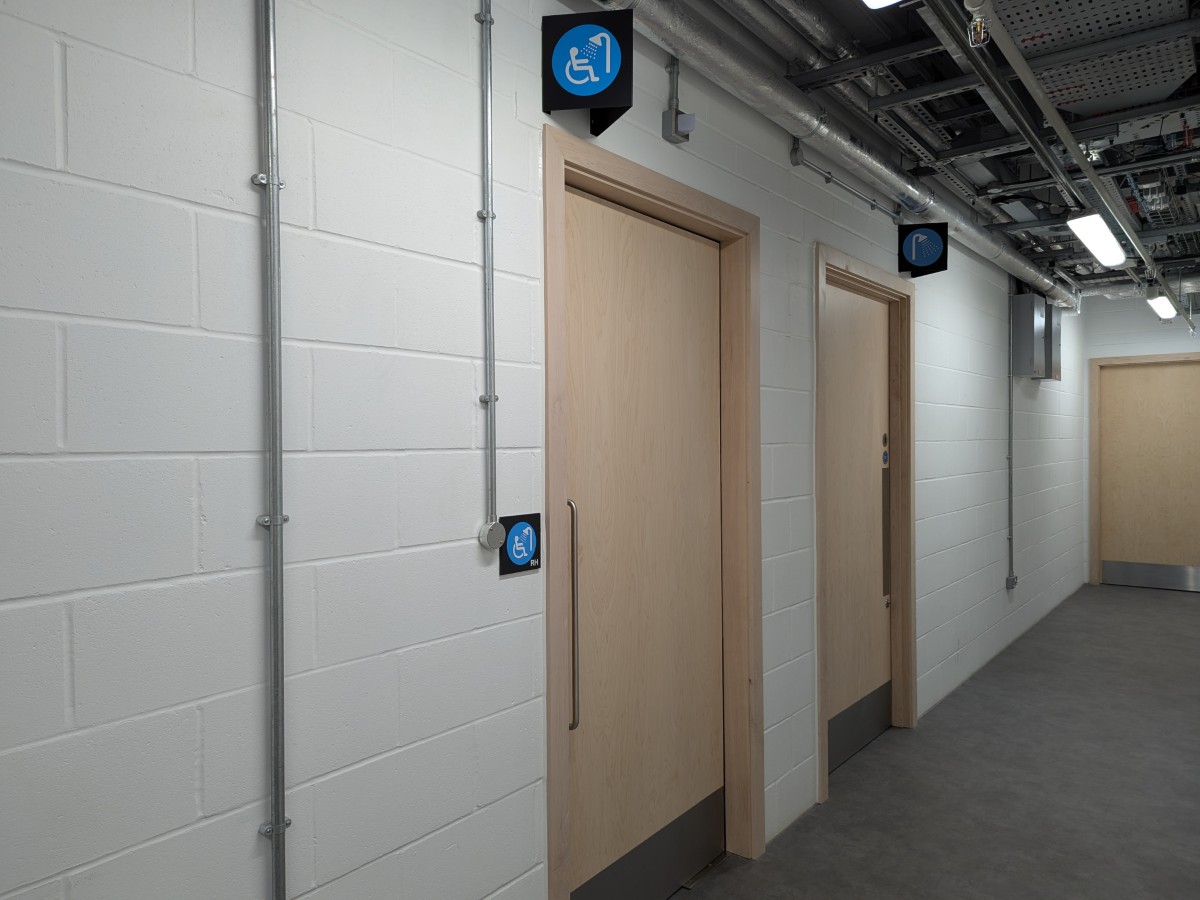

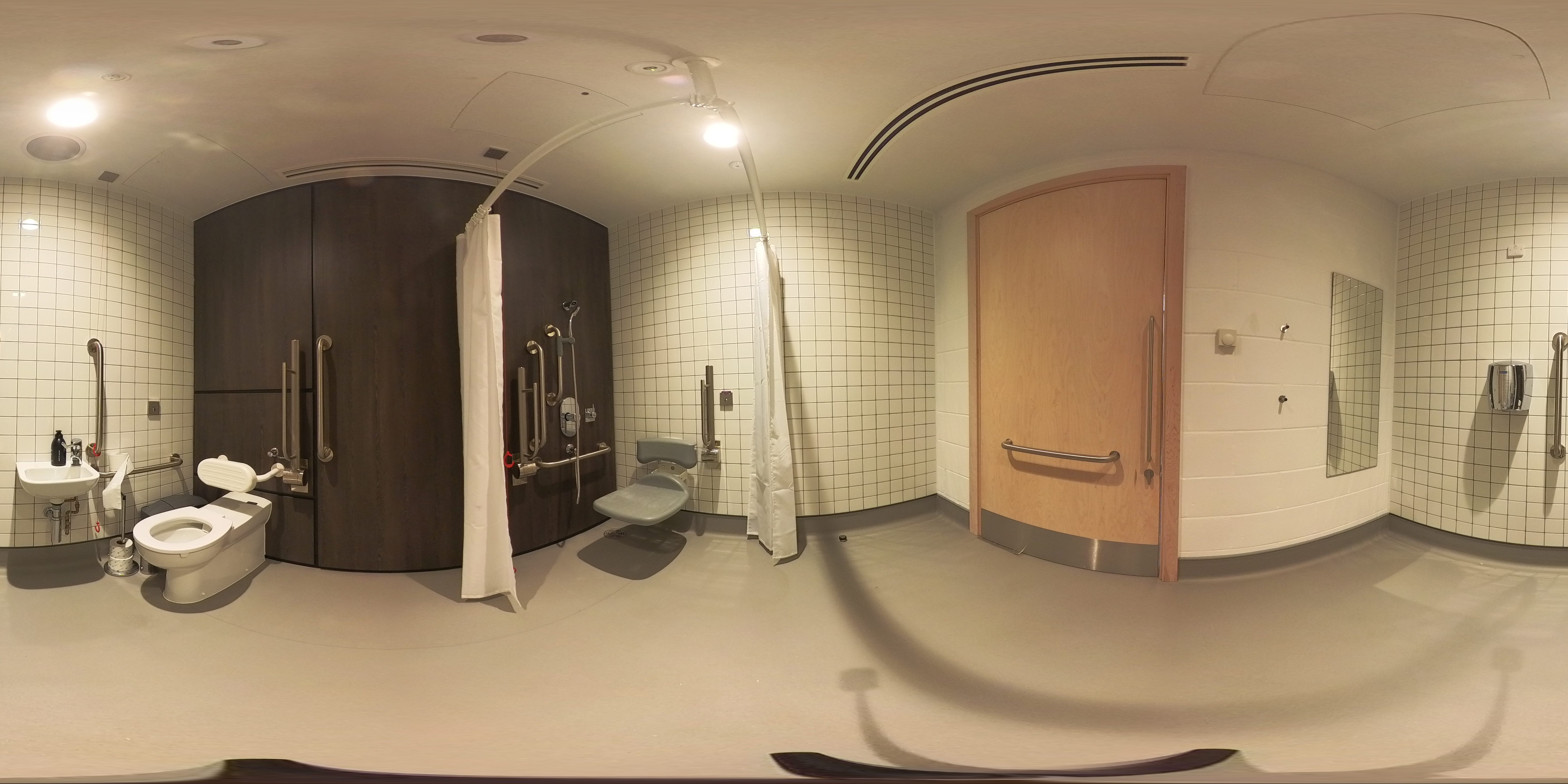

  • The shower facilities which have adaptations are located on level -1 near the Core D lift, and level 1 near the Core D lift.
  • Standard shower facilities are located on level -1.
  • There are ambulant shower facilities available within the female and male standard changing rooms on level -1.

You are on Rooms and Services in the Building. Skip to the next section.

Rooms and Services in the Building

Collapse all Expand all

• Other Rooms/Services View
  • View information on Marshgate - UCL East Library (opens new tab) .
• Eating and Drinking View
  • View information on Marshgate - Refectory and Coffee Shop (opens new tab) .
  • View information on Marshgate Café - Marshgate (opens new tab) .

You are on Parking. Skip to the next section.

Parking

Collapse all Expand all

• Drop-off Point View
  • There is not a designated drop-off point available.
• On-street Parking View
  • On-street designated Blue Badge parking is available .
  • The on-street designated Blue Badge parking bays are located on Pool Street, outside One Pool Street, opposite London Aquatics Centre.
  • The on-street Blue Badge bay markings have a low colour contrast.

You are on Entrance (Main). Skip to the next section.

Entrance (Main)

• This entrance is located to the front of the building, facing Water Works River.
• The entrance area is clearly signed.
• There is a canopy or recess which provides weather protection at the entrance.
• There is step-free level access at the entrance.
• There is a key fob/card reader at a height of 95cm.
• There is an intercom at a height of 110cm.
• There are double automatic doors at this entrance.
• The doors open by sliding.
• The width of the opening is 264cm.
• The doors have a low visual contrast.
• There is a second set of double automatic doors .
• The second set of doors open by sliding.
• The width of the opening is 263cm.
• The second set of doors have a low visual contrast.

You are on Reception. Skip to the next section.

Reception

• The reception is located on the right after the main entrance.
• The distance from the main entrance is 4m.
• There is step-free level access to reception.
• The height of the reception desk is 111cm.
• There is a lowered section at the desk.
• The height of the lowered section is 78cm.
• The reception has patterned/distracting backgrounds.
• There is a clearly signed portable hearing assistance system.
• The hearing assistance system was tested and working at the time of the survey.
• There is no (or very little) background noise in this area.
• The flooring is shiny.
• Lighting levels were even at the time of the survey, with unshaded light sources.
• There are security barriers with a wider opening which are operated by key card.
• There is a security desk on the right after the security barriers.
  The height of the security desk is 78cm.

You are on Lift (Core B). Skip to the next section.

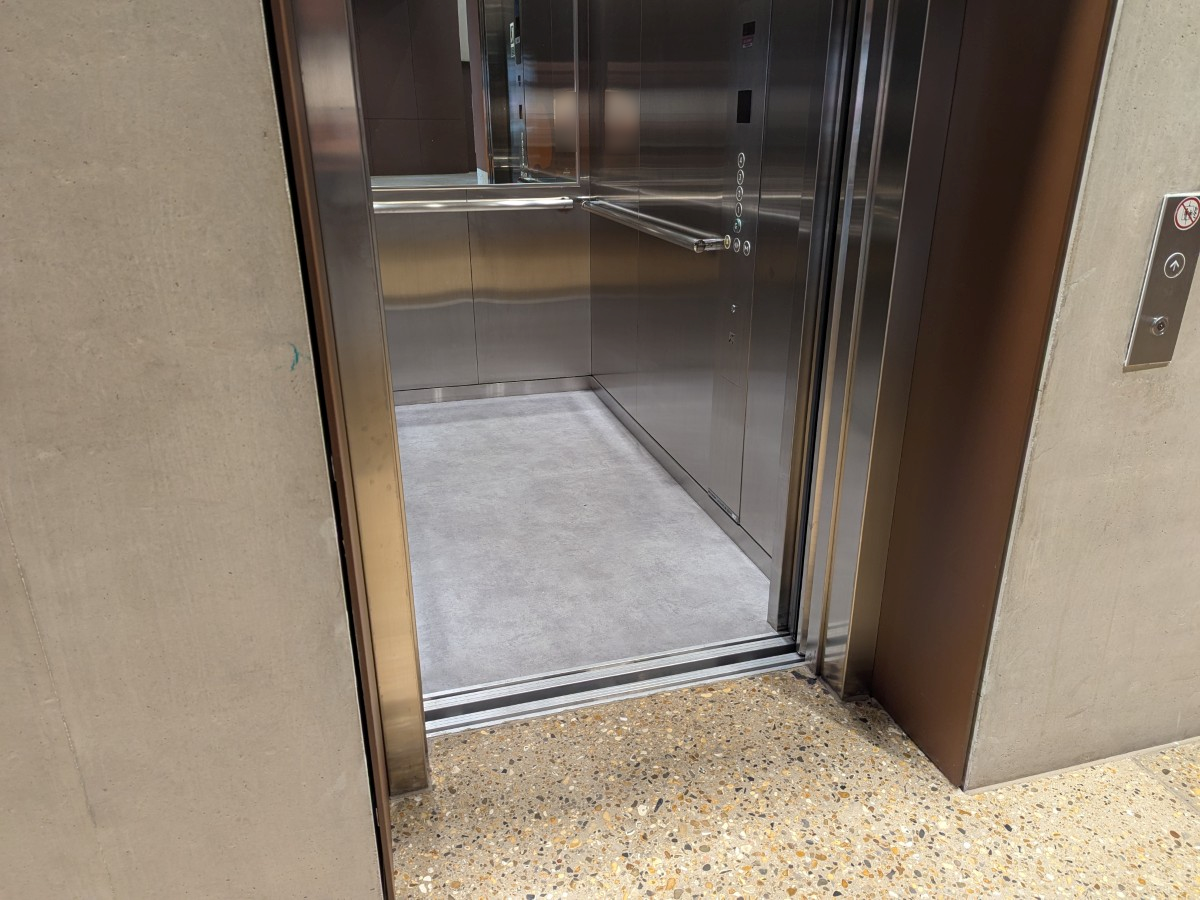

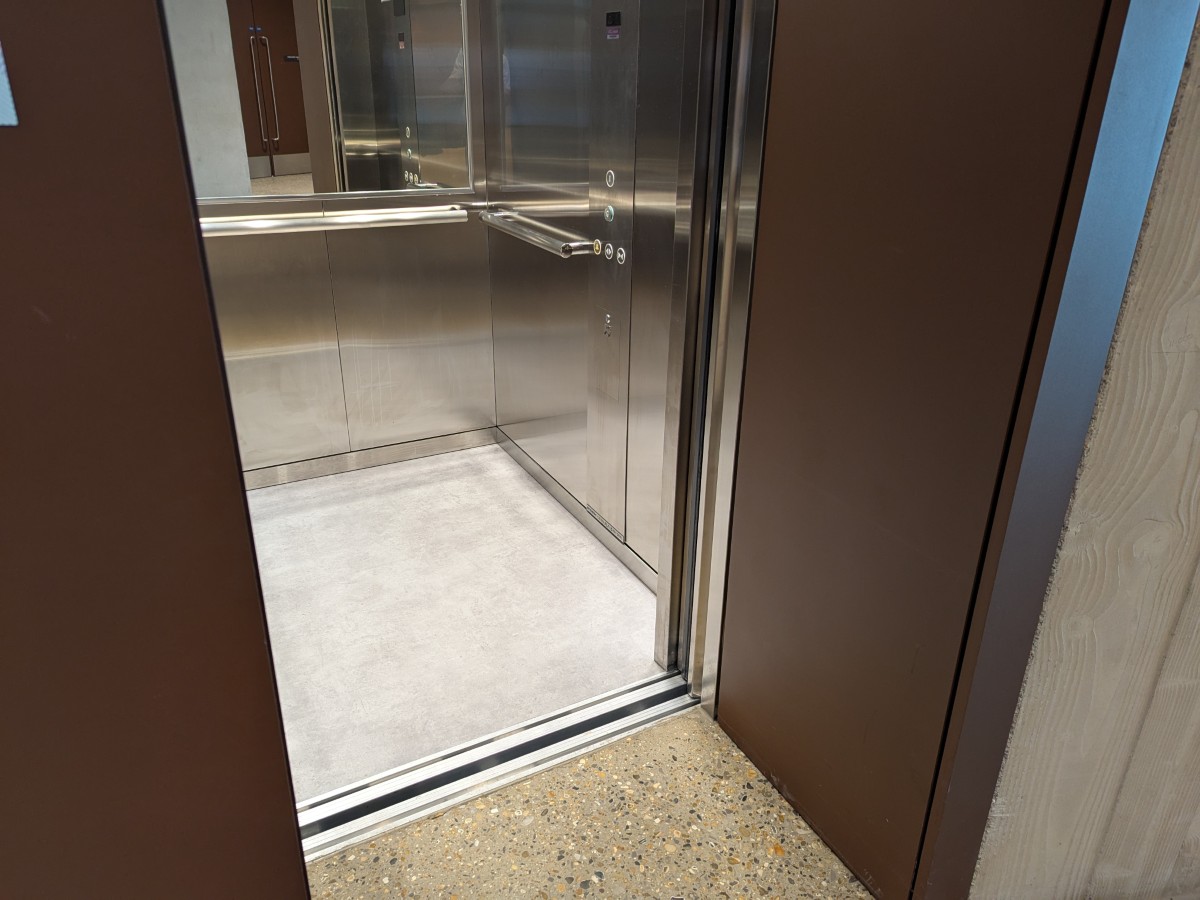

Lift (Core B)

• The lift surveyed is located on the right after the reception security barriers.
• The distance from the reception security barriers is 23m.
• The most accessible route to the lift has step-free level access and doors permanently held open.
• The ground floor and levels 1 to 8 are accessed by this lift.
• The lift door has a high visual contrast.
• The lift has a level manoeuvring space in front of it for a wheelchair user (150cm x 150cm).
• The external lift control buttons have tactile markings and a high visual contrast.
• All of the external lift controls are at a suitable height for a wheelchair user.
• The lift door opening width is 110cm.
• The internal dimensions of the lift are 200cm (width) x 140cm (depth).
• The internal lift control buttons have tactile markings and a high visual contrast.
• All of the internal lift controls are at a suitable height for a wheelchair user.
• Internally the lift has: a mirror to aid reversing, a hearing assistance alarm system, a visual floor indicator and an audible announcer.
• Lighting levels were even at the time of the survey, with unshaded light sources.
• There are other lifts available at this location which are of a similar size.
• A key card is required to access level 8 using this lift.
  There are similar lifts in Core C and Core D to the left of the building, and in Core A to the right of the building.
  The Core D lift can be used to access level -1 for basement facilities including the bicycle store.
  There is a slight slope into each of the Core A, Core C, and Core D lifts on all levels.
  A key card is required to access the Core A and Core D lifts.
  There are also goods lifts in Core C and Core A but these are not for general use.

You are on Lift (G to 4). Skip to the next section.

Lift (G to 4)

• The lift surveyed is located on the right after the reception security barriers.
• The distance from the reception security barriers is 15m.
• The most accessible route to the lift has step-free level access.
• The ground floor and levels 1 to 4 are accessed by this lift.
• The lift door has a high visual contrast.
• The lift has a level manoeuvring space in front of it for a wheelchair user (150cm x 150cm).
• The external lift control buttons have tactile markings and a high visual contrast.
• All of the external lift controls are at a suitable height for a wheelchair user.
• The lift door opening width is 90cm.
• The internal dimensions of the lift are 109cm (width) x 210cm (depth).
• The internal lift control buttons have tactile markings and a high visual contrast.
• All of the internal lift controls are at a suitable height for a wheelchair user.
• Internally the lift has: a mirror to aid reversing, a hearing assistance alarm system, a visual floor indicator and an audible announcer.
• Lighting levels were even at the time of the survey, with unshaded light sources.
• A key card is required to access this lift from level 1.

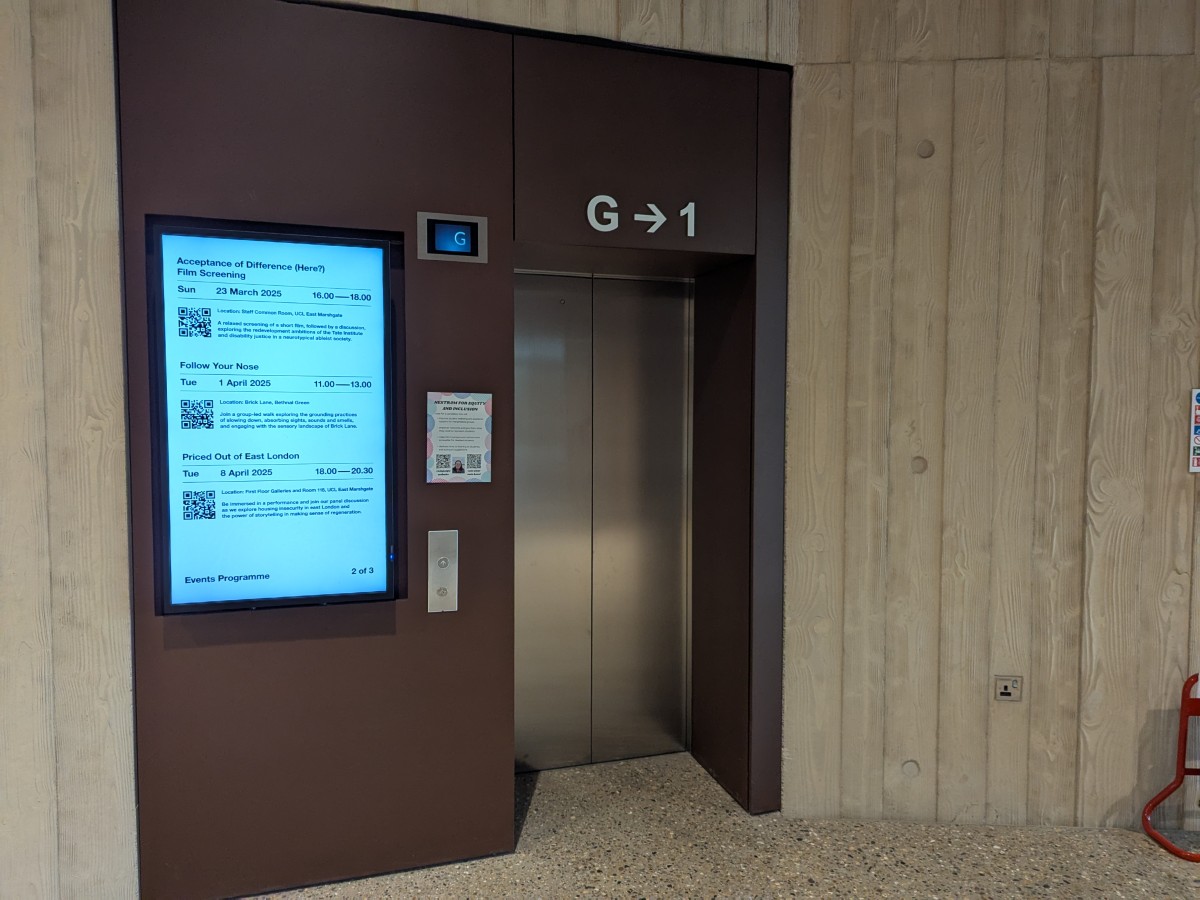

  There is a similar lift between the ground floor and level 1 in the main building atrium for access to the lecture theatre and the Cinematic and Videogame Architecture Studio.
  The internal dimensions of this lift are 108cm (width) x 140cm (depth).
  There is a further similar lift between the ground floor and level -1 to the rear of the building for basement facilities including the bicycle store.
  The lift door opening width is 100cm.
  The internal dimensions of the lift are 116cm (width) x 230cm (depth).
  Internally this lift has a separate door to exit.
  This lift does not have a mirror to aid reversing.

You are on Escalators (Ground Floor to Level 2). Skip to the next section.

Escalators (Ground Floor to Level 2)

• The escalators surveyed are located on the left after the reception security barriers.
• The ground floor and level 2 are accessed by escalators.
• The escalator steps are clearly marked.
• The foot (bottom) and head (top) of the escalators are not clearly marked.
• Lighting levels were even at the time of the survey, with unshaded light sources.
• The escalator detailed here accesses the ground to level 2 in the building.
  There is a similar escalator between level 2 and level 4 to the rear of the building, as shown in the photographs.

You are on Stairs (Core B). Skip to the next section.

Stairs (Core B)

• The stairs surveyed are located on the right after the reception security barriers.
• There is a single manual door to access the stairwell.
• The ground floor and levels 1 to 8 can be accessed by these stairs.
• There are 20+ steps between floors.
• The steps are clearly marked and have handrails on both sides.
• The handrails cover the flight of stairs throughout its length.
• The handrails extend horizontally beyond the first and last step.
• The height of the steps is between 15cm and 18cm.
• The height of the highest step is 17cm.
• The depth of the steps is not between 30cm and 45cm.
• Lighting levels were even at the time of the survey, with unshaded light sources.
• Some sections of the stairs have handrails that are not easy to grip.
  A key card is required to access levels 1 and 8 using these stairs.
  There are similar stairs in Core C and Core D to the left of the building, and in Core A to the right of the building.
  A key card is required to access the Core A and Core D stairs.
  There is also a staircase between the ground floor and level 1 in the main building atrium for access to the lecture theatre and the Cinematic and Videogame Architecture Studio.
  There is a further set of stairs between level 2 and level 3 to the rear of the building for the Large Design Studio on level 3, and again between level 3 and level 4 to the centre of the building for access to the open Project Space and other areas on level 4.
  There is a final upward staircase for levels 4 to 6 at the front of the building, and onward to level 7 for the Wet Lab on level 7.
  Further to these are stairs to the rear of the building between the ground floor and level -1 for access to basement facilities including the bicycle store.

You are on Changing Places (Ground Floor - Peninsular). Skip to the next section.

Changing Places (Ground Floor - Peninsular)

Collapse all Expand all

• Location and Access View
  • The Changing Places facility surveyed is located on the ground floor, to the rear of the building.
  • The Changing Places toilet is in addition to other toilet facilities.
  • The distance from the main entrance is 55m.
  • The most accessible route to the Changing Places facility has step-free level access.
  • There is step-free level access into the facility.
  • There is tactile, pictorial and written text signage on or near the door.
  • A RADAR key is required for access to this facility.
  • The door opens outwards and has a high visual contrast.
  • The width of the door opening is 105cm.
  • The door has a locking handle.
  • Internally the door has a high visual contrast.
  • There is a grab rail on the internal door with a high visual contrast.
  • The dimensions of the facility are 400cm (width) x 380cm (depth) and there is room for a wheelchair user to manoeuvre (180cm x 180cm).
• Toilet Details View
  • There is lateral transfer space on both sides of the toilet, however they are obstructed.
  • The transfer space on the right as you face the toilet is 81cm.
  • The transfer space on the left as you face the toilet is 284cm.
  • There is a spatula flush on the right transfer side.
  • There is no horizontal grab rail for the toilet.
  • There are vertical grab rails on both sides of the toilet.
  • The vertical grab rails have a high visual contrast.
  • There are dropdown rails on both sides of the toilet.
  • The dropdown rails have a high visual contrast.
  • The toilet seat is 49cm from the floor.
  • The toilet seat has a high visual contrast.
  • There is not a wall mounted toilet roll holder.
• Changing Bench and Hoist Details View
  • The changing bench is wall mounted and height adjustable.
  • The length of the changing bench is 180cm.
  • The facility hoist is powered overhead and accesses all areas.
• Other Facilities View
  • There is a height adjustable wash basin.
  • The wash basin has a lever mixer tap.
  • The vertical grab rails are on both sides of the wash basin.
  • The wash basin grab rails have a high visual contrast.
  • There is a soap dispenser, however it is not wall mounted.
  • There is a wall mounted towel dispenser.
  • The towel dispenser has a high visual contrast.
  • The towel dispenser is 108cm from the floor.
  • A wide paper roll dispenser is not available.
  • There is a wall mounted hand dryer.
  • The hand dryer has a medium visual contrast.
  • The hand dryer is 101cm from the floor.
  • There is a pull cord emergency alarm within 10cm from the floor.
  • There is a full length mirror.
  • There is no shelf.
  • The facility has a sanitary bin.
  • There are no coat hooks.
  • A privacy screen is available.
  • The walls and floor visual contrast varies between low and high.
  • Lighting levels were even at the time of the survey, with unshaded light sources.

You are on Shower with Adaptations (Level 1 - Core D). Skip to the next section.

Shower with Adaptations (Level 1 - Core D)

Collapse all Expand all

• Location and Access View
  • The shower surveyed is located on level 1 to the rear left of the building, near the Core D lift.
  • The distance from the Core D lift is 18m.
  • The most accessible route to the shower has step-free level access and manual doors.
  • There is step-free level access into the facility.
  • There is tactile, pictorial and written text signage on or near the door.
  • The door opens both ways and has a high visual contrast.
  • The width of the door opening is 89cm.
  • The door has a lever twist lock.
  • Internally the door has a high visual contrast.
  • There is not a grab rail on the internal door .
• Dimensions and Features View
  • There is room for a wheelchair user to manoeuvre in the shower (150cm x 150cm).
  • There is a fixed height shower head.
  • The shower controls are lever mixer.
  • There is a flip-down shower seat.
  • The shower seat is 56cm from the floor.
  • There are grab rails and dropdown rails for the shower.
  • The grab rails have a high visual contrast.
  • The dropdown rails have a high visual contrast.
  • There is a pull cord emergency alarm for the shower, however it is not within 10cm from the floor.
  • There is a full length mirror.
  • The shelf does not meet the AccessAble criteria for Stoma Friendly Toilets.
  • The facility has a sanitary bin.
  • There are no coat hooks.
  • The walls and floor visual contrast varies between low and high.
  • Lighting levels were even at the time of the survey, with unshaded light sources.

You are on Toilet with Adaptations (Ground Floor - Rear - Left Hand Transfer). Skip to the next section.

Toilet with Adaptations (Ground Floor - Rear - Left Hand Transfer)

Collapse all Expand all

• Location and Access View
  • The toilet surveyed is located on the ground floor to the rear of the building.
  • The distance from the main entrance is 50m.
  • The most accessible route to the toilet has step-free level access.
  • There is step-free level access into the facility.
  • There is tactile, pictorial and written text signage on or near the door.
  • The door opens outwards and has a high visual contrast.
  • The width of the door opening is 80cm.
  • The door has a lever twist lock.
  • Internally the door has a high visual contrast.
  • There is a grab rail on the internal door with a high visual contrast.
• Dimensions and Features View
  • The dimensions of the cubicle are 176cm (width) x 223cm (depth) and there is room for a wheelchair user to manoeuvre (150cm x 150cm).
  • There is a lateral transfer space to the left as you face the toilet, however it is obstructed.
  • The lateral transfer space is 108cm (from the side of the toilet pan).
  • There is a spatula flush on the transfer side.
  • There is a horizontal grab rail on the non-transfer side.
  • The horizontal grab rail has a high visual contrast.
  • There is a vertical grab rail on the transfer side.
  • The vertical grab rail has a high visual contrast.
  • There is a dropdown rail on the transfer side.
  • The dropdown rail has a high visual contrast.
  • The toilet seat is 48cm from the floor.
  • The toilet seat has a high visual contrast.
  • There is not a wall mounted toilet roll holder.
  • The wash basin and taps can be reached when seated on the toilet.
  • The wash basin is 74cm from the floor.
  • The wash basin has a lever mixer tap.
  • The vertical grab rails are on both sides of the wash basin.
  • The wash basin grab rails have a high visual contrast.
  • There is a wall mounted soap dispenser which cannot be reached when seated on the toilet.
  • The soap dispenser has a high visual contrast.
  • The soap dispenser is 102cm from the floor.
  • There is a wall mounted towel dispenser which cannot be reached when seated on the toilet.
  • The towel dispenser has a high visual contrast.
  • The towel dispenser is 100cm from the floor.
  • There is a wall mounted hand dryer.
  • The hand dryer has a medium visual contrast.
  • The hand dryer is 99cm from the floor.
  • There is a pull cord emergency alarm within 10cm from the floor.
  • There is a full length mirror.
  • There is an unobstructed shelf.
  • The shelf does not meet the AccessAble criteria for Stoma Friendly Toilets.
  • The cubicle has a waste bin and a sanitary bin.
  • There are multiple coat hooks.
  • The coat hooks are 108cm and 143cm from the floor.
  • The walls and floor have a high visual contrast.
  • Lighting levels were even at the time of the survey, with unshaded light sources.

You are on Toilet with Adaptations (Ground Floor - Core A - Left Hand Transfer). Skip to the next section.

Toilet with Adaptations (Ground Floor - Core A - Left Hand Transfer)

Collapse all Expand all

• Location and Access View
  • The toilet surveyed is located on the ground floor to the right of the building, near the Core A lift lobby.
  • The distance from the main entrance is 37m.
  • The most accessible route to the toilet has manual doors.
  • There is step-free level access into the facility.
  • There is tactile, pictorial and written text signage on or near the door.
  • The door opens by sliding and has a low visual contrast.
  • The width of the door opening is 80cm.
  • The door has a lever twist lock.
  • Internally the door has a low visual contrast.
  • There is not a grab rail on the internal door .
• Dimensions and Features View
  • The dimensions of the cubicle are 148cm (width) x 221cm (depth) and there is not room for a wheelchair user to manoeuvre (150cm x 150cm).
  • There is a lateral transfer space to the left as you face the toilet, however it is obstructed.
  • The lateral transfer space is 79cm (from the side of the toilet pan).
  • There is a spatula flush on the transfer side.
  • There is a horizontal grab rail on the non-transfer side.
  • The horizontal grab rail has a high visual contrast.
  • There is a vertical grab rail on the transfer side.
  • The vertical grab rail has a high visual contrast.
  • There is a dropdown rail on the transfer side.
  • The dropdown rail has a high visual contrast.
  • The toilet seat is 48cm from the floor.
  • The toilet seat has a high visual contrast.
  • There is not a wall mounted toilet roll holder.
  • The wash basin and taps can be reached when seated on the toilet.
  • The wash basin is 74cm from the floor.
  • The wash basin has a lever mixer tap.
  • The vertical grab rails are on both sides of the wash basin.
  • The wash basin grab rails have a high visual contrast.
  • There is a wall mounted soap dispenser which cannot be reached when seated on the toilet.
  • The soap dispenser has a high visual contrast.
  • The soap dispenser is 114cm from the floor.
  • There is a wall mounted towel dispenser which cannot be reached when seated on the toilet.
  • The towel dispenser has a high visual contrast.
  • The towel dispenser is 118cm from the floor.
  • There is a wall mounted hand dryer.
  • The hand dryer has a medium visual contrast.
  • The hand dryer is 100cm from the floor.
  • There is a pull cord emergency alarm within 10cm from the floor.
  • There is a full length mirror.
  • There is a shelf, however there is an obstruction in front of it.
  • The shelf meets the AccessAble criteria for Stoma Friendly Toilets.
  • The cubicle has a waste bin and a sanitary bin.
  • There are multiple coat hooks.
  • The coat hooks are 107cm and 143cm from the floor.
  • The walls and floor have a high visual contrast.
  • Lighting levels were even at the time of the survey, with unshaded light sources.

You are on Toilet with Adaptations (Ground Floor - Accessible Family Room - Right Hand Transfer). Skip to the next section.

Toilet with Adaptations (Ground Floor - Accessible Family Room - Right Hand Transfer)

Collapse all Expand all

• Location and Access View
  • The toilet surveyed is located on the ground floor, to the rear of the building.
  • The distance from the main entrance is 53m.
  • The most accessible route to the toilet has step-free level access.
  • There is step-free level access into the facility.
  • There is tactile, pictorial and written text signage on or near the door.
  • The door opens outwards and has a high visual contrast.
  • The width of the door opening is 82cm.
  • The door has a lever twist lock.
  • Internally the door has a high visual contrast.
  • There is a grab rail on the internal door with a high visual contrast.
• Dimensions and Features View
  • The dimensions of the cubicle are 326cm (width) x 222cm (depth) and there is room for a wheelchair user to manoeuvre (150cm x 150cm).
  • There is a lateral transfer space to the right as you face the toilet.
  • The lateral transfer space is 203cm (from the side of the toilet pan).
  • There is a spatula flush on the transfer side.
  • There is a horizontal grab rail on the non-transfer side.
  • The horizontal grab rail has a high visual contrast.
  • There is a vertical grab rail on the transfer side.
  • The vertical grab rail has a high visual contrast.
  • There is a dropdown rail on the transfer side.
  • The dropdown rail has a high visual contrast.
  • The toilet seat is 49cm from the floor.
  • The toilet seat has a high visual contrast.
  • There is a wall mounted toilet roll holder which can be reached when seated on the toilet.
  • The toilet roll holder has a low visual contrast.
  • The toilet roll holder is 126cm from the floor.
  • The wash basin and taps can be reached when seated on the toilet.
  • The wash basin is 74cm from the floor.
  • The wash basin has a lever mixer tap.
  • The vertical grab rail is on the right as you face the wash basin.
  • The wash basin grab rail has a high visual contrast.
  • There is a soap dispenser, however it is not wall mounted.
  • There is a wall mounted towel dispenser which cannot be reached when seated on the toilet.
  • The towel dispenser has a high visual contrast.
  • The towel dispenser is 76cm from the floor.
  • There is a wall mounted hand dryer.
  • The hand dryer has a medium visual contrast.
  • The hand dryer is 98cm from the floor.
  • There is a pull cord emergency alarm within 10cm from the floor.
  • There is a full length mirror.
  • There is a shelf, however there is an obstruction in front of it.
  • The shelf meets the AccessAble criteria for Stoma Friendly Toilets.
  • The cubicle has a waste bin and a sanitary bin.
  • There are multiple coat hooks.
  • The coat hooks are 107cm and 143cm from the floor.
  • The height of the baby change facility when in use is 91cm.
  • The walls and floor visual contrast varies between low and high.
  • Lighting levels were even at the time of the survey, with unshaded light sources.
  • There is a lowered toilet available within the cubicle with a seat height of 34cm from the floor.
    There is a lateral transfer space to the left as you face the lowered toilet.
    There is not a horizontal grab rail on the non-transfer side of the lowered toilet.
    The toilet seat has a low visual contrast.
    There is a lowered wash basin at a height of 50cm from the floor.
    There are vertical grab rails on both sides of the lowered wash basin.
    There is a lowered hand dryer at a height of 75cm from the floor.
    The lowered hand dryer cannot be reached from seated on the toilet.
    The lowered facilities in this toilet are intended for use by children.

You are on Toilet with Adaptations (Level -1 - Core D - Left Hand Transfer). Skip to the next section.

Toilet with Adaptations (Level -1 - Core D - Left Hand Transfer)

Collapse all Expand all

• Location and Access View
  • The toilet surveyed is located on level -1 to the rear left of the building, near the Core D lift.
  • The distance from the Core D lift is 18m.
  • The most accessible route to the toilet has step-free level access and manual doors.
  • There is step-free level access into the facility.
  • There is tactile, pictorial and written text signage on or near the door.
  • The door opens outwards and has a high visual contrast.
  • The width of the door opening is 99cm.
  • The door has a lever twist lock.
  • Internally the door has a high visual contrast.
  • There is a grab rail on the internal door with a medium visual contrast.
• Dimensions and Features View
  • The dimensions of the cubicle are 220cm (width) x 240cm (depth) and there is room for a wheelchair user to manoeuvre (150cm x 150cm).
  • There is a lateral transfer space to the left as you face the toilet, however it is obstructed.
  • The lateral transfer space is 85cm (from the side of the toilet pan).
  • There is a spatula flush on the transfer side.
  • There is a horizontal grab rail on the non-transfer side.
  • The horizontal grab rail has a high visual contrast.
  • There is a vertical grab rail on the transfer side.
  • The vertical grab rail has a high visual contrast.
  • There is a dropdown rail on the transfer side.
  • The dropdown rail has a high visual contrast.
  • The toilet seat is 48cm from the floor.
  • The toilet seat has a low visual contrast.
  • The toilet has a padded backrest.
  • There is not a wall mounted toilet roll holder.
  • The wash basin and taps can be reached when seated on the toilet.
  • The wash basin is 74cm from the floor.
  • The wash basin has a lever mixer tap.
  • The vertical grab rails are on both sides of the wash basin.
  • The wash basin grab rails have a high visual contrast.
  • There is a soap dispenser, however it is not wall mounted.
  • There is not a towel dispenser.
  • There is a wall mounted hand dryer.
  • The hand dryer has a medium visual contrast.
  • The hand dryer is 103cm from the floor.
  • There is a pull cord emergency alarm within 10cm from the floor.
  • There is a full length mirror.
  • There is no shelf.
  • The cubicle has a sanitary bin.
  • There are multiple coat hooks.
  • The coat hooks are 108cm and 142cm from the floor.
  • The walls and floor have a high visual contrast.
  • Lighting levels were even at the time of the survey, with unshaded light sources.

You are on Shower with Adaptations (Within Toilet with Adaptation Level -1 - Core D - Left Hand Transfer). Skip to the next section.

Shower with Adaptations (Within Toilet with Adaptation Level -1 - Core D - Left Hand Transfer)

Collapse all Expand all

• Location and Access View
  • The shower surveyed is located on level -1, within the left hand transfer toilet with adaptations.
  • The door opens both ways and has a visual contrast.
• Dimensions and Features View
  • There is room for a wheelchair user to manoeuvre in the shower (150cm x 150cm).
  • There is a fixed height shower head.
  • The shower controls are lever mixer.
  • There is a flip-down shower seat.
  • The shower seat is 47cm from the floor.
  • There are grab rails and dropdown rails for the shower.
  • The grab rails have a high visual contrast.
  • The dropdown rails have a high visual contrast.
  • There is a pull cord emergency alarm for the shower within 10cm from the floor.

You are on Toilet with Adaptations (Level -1 - Core D - Right Hand Transfer). Skip to the next section.

Toilet with Adaptations (Level -1 - Core D - Right Hand Transfer)

Collapse all Expand all

• Location and Access View
  • The toilet surveyed is located on level -1 to the rear left of the building, near the Core D lift.
  • The distance from the Core D lift is 21m.
  • The most accessible route to the toilet has step-free level access and manual doors.
  • There is step-free level access into the facility.
  • There is tactile, pictorial and written text signage on or near the door.
  • The door opens both ways and has a high visual contrast.
  • The width of the door opening is 98cm.
  • The door has a lever twist lock.
  • Internally the door has a high visual contrast.
  • There is a grab rail on the internal door with a medium visual contrast.
• Dimensions and Features View
  • The dimensions of the cubicle are 296cm (width) x 242cm (depth) and there is room for a wheelchair user to manoeuvre (150cm x 150cm).
  • There is a lateral transfer space to the right as you face the toilet.
  • The lateral transfer space is 159cm (from the side of the toilet pan).
  • There is a spatula flush on the transfer side.
  • There is a horizontal grab rail on the non-transfer side.
  • The horizontal grab rail has a high visual contrast.
  • There is a vertical grab rail on the transfer side.
  • The vertical grab rail has a high visual contrast.
  • There is a dropdown rail on the transfer side.
  • The dropdown rail has a high visual contrast.
  • The toilet seat is 48cm from the floor.
  • The toilet seat has a low visual contrast.
  • The toilet has a padded backrest.
  • There is not a wall mounted toilet roll holder.
  • The wash basin and taps can be reached when seated on the toilet.
  • The wash basin is 74cm from the floor.
  • The wash basin has a lever mixer tap.
  • The vertical grab rails are on both sides of the wash basin.
  • The wash basin grab rails have a high visual contrast.
  • There is a soap dispenser, however it is not wall mounted.
  • There is not a towel dispenser.
  • There is a wall mounted hand dryer.
  • The hand dryer has a medium visual contrast.
  • The hand dryer is 102cm from the floor.
  • There is a pull cord emergency alarm, however it is not within 10cm from the floor.
  • There is a full length mirror.
  • The cubicle has a sanitary bin.
  • There are multiple coat hooks.
  • The coat hooks are 107cm and 143cm from the floor.
  • The walls and floor have a high visual contrast.
  • Lighting levels were even at the time of the survey, with unshaded light sources.

You are on Shower with Adaptations (Within the Toilet with Adaptations Level -1 - Core D - Right Hand Transfer). Skip to the next section.

Shower with Adaptations (Within the Toilet with Adaptations Level -1 - Core D - Right Hand Transfer)

Collapse all Expand all

• Location and Access View
  • The shower surveyed is located on level -1, within the right hand transfer toilet with adaptations.
• Dimensions and Features View
  • There is room for a wheelchair user to manoeuvre in the shower (150cm x 150cm).
  • There is an adjustable shower head.
  • The shower controls are lever mixer.
  • There is a flip-down shower seat.
  • The shower seat is 48cm from the floor.
  • There are grab rails and dropdown rails for the shower.
  • The grab rails have a high visual contrast.
  • The dropdown rails have a high visual contrast.
  • There is a pull cord emergency alarm for the shower, however it is not within 10cm from the floor.

You are on Toilet with Adaptations (Level 1 - Lecture Theatre - Right Hand Transfer). Skip to the next section.

Toilet with Adaptations (Level 1 - Lecture Theatre - Right Hand Transfer)

Collapse all Expand all

• Location and Access View
  • The toilet surveyed is located on level 1 to the right of the building, within the lecture theatre toilets lobby.
  • The distance from the G to 4 lift is 26m.
  • The most accessible route to the toilet has step-free level access, manual doors and automatic doors.
  • There is step-free level access into the facility.
  • The automatic doors require a key card to open.
  • There is tactile, pictorial and written text signage on or near the door.
  • The door opens inwards and has a low visual contrast.
  • The width of the door opening is 89cm.
  • The door has a lever twist lock.
  • Internally the door has a low visual contrast.
  • There is a grab rail on the internal door with a high visual contrast.
• Dimensions and Features View
  • The dimensions of the cubicle are 163cm (width) x 287cm (depth) and there is room for a wheelchair user to manoeuvre (150cm x 150cm).
  • There is a lateral transfer space to the right as you face the toilet, however it is obstructed.
  • The lateral transfer space is 95cm (from the side of the toilet pan).
  • There is a spatula flush on the transfer side.
  • There is a horizontal grab rail on the non-transfer side.
  • The horizontal grab rail has a high visual contrast.
  • There is a vertical grab rail on the transfer side.
  • The vertical grab rail has a high visual contrast.
  • There is a dropdown rail on the transfer side.
  • The dropdown rail has a high visual contrast.
  • The toilet seat is 49cm from the floor.
  • The toilet seat has a high visual contrast.
  • There is not a wall mounted toilet roll holder.
  • The wash basin and taps can be reached when seated on the toilet.
  • The wash basin is 73cm from the floor.
  • The wash basin has a lever mixer tap.
  • The vertical grab rails are on both sides of the wash basin.
  • The wash basin grab rails have a high visual contrast.
  • There is a wall mounted soap dispenser which can be reached when seated on the toilet.
  • The soap dispenser has a high visual contrast.
  • The soap dispenser is 100cm from the floor.
  • There is a wall mounted towel dispenser which can be reached when seated on the toilet.
  • The towel dispenser has a high visual contrast.
  • The towel dispenser is 98cm from the floor.
  • There is a wall mounted hand dryer.
  • The hand dryer has a medium visual contrast.
  • The hand dryer is 99cm from the floor.
  • There is a pull cord emergency alarm, however it is not within 10cm from the floor.
  • There is a full length mirror.
  • There is an unobstructed shelf.
  • The shelf does not meet the AccessAble criteria for Stoma Friendly Toilets.
  • The cubicle has a waste bin and a sanitary bin.
  • There are multiple coat hooks.
  • The coat hooks are 107cm and 143cm from the floor.
  • The walls and floor have a high visual contrast.
  • Lighting levels were even at the time of the survey, with unshaded light sources.

You are on Toilet with Adaptations (Level 1 - Core B - Left Hand Transfer). Skip to the next section.

Toilet with Adaptations (Level 1 - Core B - Left Hand Transfer)

Collapse all Expand all

• Location and Access View
  • The toilet surveyed is located on level 1 to the front right of the building, near the G to 4 lift.
  • The distance from the G to 4 lift is 9m.
  • The most accessible route to the toilet has step-free level access.
  • There is step-free level access into the facility.
  • There is tactile, pictorial and written text signage on or near the door.
  • The door opens outwards and has a low visual contrast.
  • The width of the door opening is 88cm.
  • The door has a lever twist lock.
  • Internally the door has a low visual contrast.
  • There is a grab rail on the internal door with a high visual contrast.
• Dimensions and Features View
  • The dimensions of the cubicle are 150cm (width) x 220cm (depth) and there is room for a wheelchair user to manoeuvre (150cm x 150cm).
  • There is a lateral transfer space to the left as you face the toilet.
  • The lateral transfer space is 81cm (from the side of the toilet pan).
  • There is a spatula flush on the transfer side.
  • There is a horizontal grab rail on the non-transfer side.
  • The horizontal grab rail has a high visual contrast.
  • There is a vertical grab rail on the transfer side.
  • The vertical grab rail has a high visual contrast.
  • There is a dropdown rail on the transfer side.
  • The dropdown rail has a high visual contrast.
  • The toilet seat is 48cm from the floor.
  • The toilet seat has a high visual contrast.
  • There is not a wall mounted toilet roll holder.
  • The wash basin and taps can be reached when seated on the toilet.
  • The wash basin is 74cm from the floor.
  • The wash basin has a lever mixer tap.
  • The vertical grab rails are on both sides of the wash basin.
  • The wash basin grab rails have a high visual contrast.
  • There is a wall mounted soap dispenser which cannot be reached when seated on the toilet.
  • The soap dispenser has a high visual contrast.
  • The soap dispenser is 98cm from the floor.
  • There is a wall mounted towel dispenser which cannot be reached when seated on the toilet.
  • The towel dispenser has a high visual contrast.
  • The towel dispenser is 106cm from the floor.
  • There is a wall mounted hand dryer.
  • The hand dryer has a medium visual contrast.
  • The hand dryer is 98cm from the floor.
  • There is a pull cord emergency alarm, however it is not within 10cm from the floor.
  • There is a full length mirror.
  • There is an unobstructed shelf.
  • The shelf does not meet the AccessAble criteria for Stoma Friendly Toilets.
  • The cubicle has a waste bin and a sanitary bin.
  • There are multiple coat hooks.
  • The coat hooks are 108cm and 142cm from the floor.
  • The walls and floor have a high visual contrast.
  • Lighting levels were even at the time of the survey, with unshaded light sources.

You are on Toilet with Adaptations (Level 1 - Core C - Right Hand Transfer). Skip to the next section.

Toilet with Adaptations (Level 1 - Core C - Right Hand Transfer)

Collapse all Expand all

• Location and Access View
  • The toilet surveyed is located on level 1 to the front left of the building, in the Core C lift lobby.
  • The distance from the Core C lift is 6m.
  • The most accessible route to the toilet has step-free level access.
  • There is step-free level access into the facility.
  • There is tactile, pictorial and written text signage on or near the door.
  • The door opens both ways and has a high visual contrast.
  • The width of the door opening is 89cm.
  • The door has a lever twist lock.
  • Internally the door has a high visual contrast.
  • There is a grab rail on the internal door with a high visual contrast.
• Dimensions and Features View
  • The dimensions of the cubicle are 275cm (width) x 207cm (depth) and there is not room for a wheelchair user to manoeuvre (150cm x 150cm).
  • There is a lateral transfer space to the right as you face the toilet.
  • The lateral transfer space is 205cm (from the side of the toilet pan).
  • There is a spatula flush on the transfer side.
  • There is a horizontal grab rail on the non-transfer side.
  • The horizontal grab rail has a high visual contrast.
  • There is a vertical grab rail on the transfer side.
  • The vertical grab rail has a high visual contrast.
  • There is a dropdown rail on the transfer side.
  • The dropdown rail has a high visual contrast.
  • The toilet seat is 49cm from the floor.
  • The toilet seat has a high visual contrast.
  • There is not a wall mounted toilet roll holder.
  • The wash basin and taps can be reached when seated on the toilet.
  • The wash basin is 74cm from the floor.
  • The wash basin has a lever mixer tap.
  • The vertical grab rails are on both sides of the wash basin.
  • The wash basin grab rails have a high visual contrast.
  • There is a wall mounted soap dispenser which cannot be reached when seated on the toilet.
  • The soap dispenser has a high visual contrast.
  • The soap dispenser is 104cm from the floor.
  • There is a wall mounted towel dispenser which cannot be reached when seated on the toilet.
  • The towel dispenser has a high visual contrast.
  • The towel dispenser is 106cm from the floor.
  • There is a wall mounted hand dryer.
  • The hand dryer has a medium visual contrast.
  • The hand dryer is 100cm from the floor.
  • There is a pull cord emergency alarm within 10cm from the floor.
  • There is a full length mirror.
  • There is an unobstructed shelf.
  • The shelf does not meet the AccessAble criteria for Stoma Friendly Toilets.
  • The cubicle has a waste bin and a sanitary bin.
  • There are multiple coat hooks.
  • The coat hooks are 108cm and 143cm from the floor.
  • The walls and floor have a high visual contrast.
  • Lighting levels were even at the time of the survey, with unshaded light sources.

You are on Toilet with Adaptations (Level 1 - Core D - Left Hand Transfer). Skip to the next section.

Toilet with Adaptations (Level 1 - Core D - Left Hand Transfer)

Collapse all Expand all

• Location and Access View
  • The toilet surveyed is located on level 1 to the rear left of the building, near the Core D lift.
  • The distance from the Core D lift is 18m.
  • The most accessible route to the toilet has step-free level access and manual doors.
  • There is step-free level access into the facility.
  • There is tactile, pictorial and written text signage on or near the door.
  • The door opens outwards and has a low visual contrast.
  • The width of the door opening is 88cm.
  • The door has a lever twist lock.
  • Internally the door has a low visual contrast.
  • There is a grab rail on the internal door with a high visual contrast.
• Dimensions and Features View
  • The dimensions of the cubicle are 150cm (width) x 221cm (depth) and there is room for a wheelchair user to manoeuvre (150cm x 150cm).
  • There is a lateral transfer space to the left as you face the toilet, however it is obstructed.
  • The lateral transfer space is 81cm (from the side of the toilet pan).
  • There is a spatula flush on the transfer side.
  • There is a horizontal grab rail on the non-transfer side.
  • The horizontal grab rail has a high visual contrast.
  • There is a vertical grab rail on the transfer side.
  • The vertical grab rail has a high visual contrast.
  • There is a dropdown rail on the transfer side.
  • The dropdown rail has a high visual contrast.
  • The toilet seat is 48cm from the floor.
  • The toilet seat has a high visual contrast.
  • There is not a wall mounted toilet roll holder.
  • The wash basin and taps can be reached when seated on the toilet.
  • The wash basin is 74cm from the floor.
  • The wash basin has a lever mixer tap.
  • The vertical grab rails are on both sides of the wash basin.
  • The wash basin grab rails have a high visual contrast.
  • There is a wall mounted soap dispenser which cannot be reached when seated on the toilet.
  • The soap dispenser has a high visual contrast.
  • The soap dispenser is 101cm from the floor.
  • There is a wall mounted towel dispenser which cannot be reached when seated on the toilet.
  • The towel dispenser has a high visual contrast.
  • The towel dispenser is 109cm from the floor.
  • There is a wall mounted hand dryer.
  • The hand dryer has a medium visual contrast.
  • The hand dryer is 98cm from the floor.
  • There is a pull cord emergency alarm, however it is not within 10cm from the floor.
  • There is a full length mirror.
  • There is an unobstructed shelf.
  • The shelf does not meet the AccessAble criteria for Stoma Friendly Toilets.
  • The cubicle has a sanitary bin.
  • There are multiple coat hooks.
  • The coat hooks are 117cm and 153cm from the floor.
  • The walls and floor have a high visual contrast.
  • Lighting levels were even at the time of the survey, with unshaded light sources.

You are on Toilet with Adaptations (Level 2 - Core A - Right Hand Transfer). Skip to the next section.

Toilet with Adaptations (Level 2 - Core A - Right Hand Transfer)

Collapse all Expand all

• Location and Access View
  • The toilet surveyed is located on level 2 to the rear right of the building, off the Core A lift lobby.
  • The distance from the Core A lift is 10m.
  • The most accessible route to the toilet has step-free level access and manual doors.
  • There is step-free level access into the facility.
  • There is tactile, pictorial and written text signage on or near the door.
  • The door opens inwards and has a low visual contrast.
  • The width of the door opening is 89cm.
  • The door has a lever twist lock.
  • Internally the door has a low visual contrast.
  • There is a grab rail on the internal door with a high visual contrast.
• Dimensions and Features View
  • The dimensions of the cubicle are 156cm (width) x 328cm (depth) and there is room for a wheelchair user to manoeuvre (150cm x 150cm).
  • There is a lateral transfer space to the right as you face the toilet, however it is obstructed.
  • The lateral transfer space is 88cm (from the side of the toilet pan).
  • There is a spatula flush on the transfer side.
  • There is a horizontal grab rail on the non-transfer side.
  • The horizontal grab rail has a high visual contrast.
  • There is a vertical grab rail on the transfer side.
  • The vertical grab rail has a high visual contrast.
  • There is a dropdown rail on the transfer side.
  • The dropdown rail has a high visual contrast.
  • The toilet seat is 49cm from the floor.
  • The toilet seat has a high visual contrast.
  • There is not a wall mounted toilet roll holder.
  • The wash basin and taps can be reached when seated on the toilet.
  • The wash basin is 74cm from the floor.
  • The wash basin has a lever mixer tap.
  • The vertical grab rails are on both sides of the wash basin.
  • The wash basin grab rails have a high visual contrast.
  • There is a wall mounted soap dispenser which cannot be reached when seated on the toilet.
  • The soap dispenser has a high visual contrast.
  • The soap dispenser is 102cm from the floor.
  • There is a wall mounted towel dispenser which cannot be reached when seated on the toilet.
  • The towel dispenser has a high visual contrast.
  • The towel dispenser is 106cm from the floor.
  • There is a wall mounted hand dryer.
  • The hand dryer has a medium visual contrast.
  • The hand dryer is 99cm from the floor.
  • There is a pull cord emergency alarm, however it is not within 10cm from the floor.
  • There is a full length mirror.
  • There is an unobstructed shelf.
  • The shelf does not meet the AccessAble criteria for Stoma Friendly Toilets.
  • The cubicle has a waste bin and a sanitary bin.
  • There are multiple coat hooks.
  • The coat hooks are 107cm and 142cm from the floor.
  • The walls and floor have a high visual contrast.
  • Lighting levels were uneven at the time of the survey, with pools of light and shade and unshaded light sources.

You are on Toilet with Adaptations (Level 2 - Core B - Left Hand Transfer). Skip to the next section.

Toilet with Adaptations (Level 2 - Core B - Left Hand Transfer)

Collapse all Expand all

• Location and Access View
  • The toilet surveyed is located on level 2 to the front right of the building, near the G to 4 lift.
  • The distance from the G to 4 lift is 9m.
  • The most accessible route to the toilet has step-free level access and manual doors.
  • There is step-free level access into the facility.
  • There is tactile, pictorial and written text signage on or near the door.
  • The door opens outwards and has a low visual contrast.
  • The width of the door opening is 88cm.
  • The door has a lever twist lock.
  • Internally the door has a low visual contrast.
  • There is a grab rail on the internal door with a high visual contrast.
• Dimensions and Features View
  • The dimensions of the cubicle are 150cm (width) x 220cm (depth) and there is room for a wheelchair user to manoeuvre (150cm x 150cm).
  • There is a lateral transfer space to the left as you face the toilet.
  • The lateral transfer space is 81cm (from the side of the toilet pan).
  • There is a spatula flush on the transfer side.
  • There is a horizontal grab rail on the non-transfer side.
  • The horizontal grab rail has a high visual contrast.
  • There is a vertical grab rail on the transfer side.
  • The vertical grab rail has a high visual contrast.
  • There is a dropdown rail on the transfer side.
  • The dropdown rail has a high visual contrast.
  • The toilet seat is 49cm from the floor.
  • The toilet seat has a high visual contrast.
  • There is not a wall mounted toilet roll holder.
  • The wash basin and taps can be reached when seated on the toilet.
  • The wash basin is 74cm from the floor.
  • The wash basin has a lever mixer tap.
  • The vertical grab rails are on both sides of the wash basin.
  • The wash basin grab rails have a high visual contrast.
  • There is a wall mounted soap dispenser which cannot be reached when seated on the toilet.
  • The soap dispenser has a high visual contrast.
  • The soap dispenser is 100cm from the floor.
  • There is a wall mounted towel dispenser which cannot be reached when seated on the toilet.
  • The towel dispenser has a high visual contrast.
  • The towel dispenser is 106cm from the floor.
  • There is a wall mounted hand dryer.
  • The hand dryer has a medium visual contrast.
  • The hand dryer is 98cm from the floor.
  • There is a pull cord emergency alarm but it was tied up at the time of the survey.
  • There is a full length mirror.
  • There is an unobstructed shelf.
  • The shelf does not meet the AccessAble criteria for Stoma Friendly Toilets.
  • The cubicle has a waste bin and a sanitary bin.
  • There are multiple coat hooks.
  • The coat hooks are 107cm and 141cm from the floor.
  • The walls and floor have a high visual contrast.
  • Lighting levels were even at the time of the survey, with unshaded light sources.

You are on Toilet with Adaptations (Level 2 - Core C - Right Hand Transfer). Skip to the next section.

Toilet with Adaptations (Level 2 - Core C - Right Hand Transfer)

Collapse all Expand all

• Location and Access View
  • The toilet surveyed is located on level 2 to the front left of the building, in the Core C lift lobby.
  • The distance from the Core C lift is 6m.
  • The most accessible route to the toilet has step-free level access.
  • There is step-free level access into the facility.
  • There is tactile, pictorial and written text signage on or near the door.
  • The door opens both ways and has a high visual contrast.
  • The width of the door opening is 89cm.
  • The door has a lever twist lock.
  • Internally the door has a high visual contrast.
  • There is a grab rail on the internal door with a high visual contrast.
• Dimensions and Features View
  • The dimensions of the cubicle are 275cm (width) x 205cm (depth) and there is not room for a wheelchair user to manoeuvre (150cm x 150cm).
  • There is a lateral transfer space to the right as you face the toilet.
  • The lateral transfer space is 207cm (from the side of the toilet pan).
  • There is a spatula flush on the transfer side.
  • There is a horizontal grab rail on the non-transfer side.
  • The horizontal grab rail has a high visual contrast.
  • There is a vertical grab rail on the transfer side.
  • The vertical grab rail has a high visual contrast.
  • There is a dropdown rail on the transfer side.
  • The dropdown rail has a high visual contrast.
  • The toilet seat is 48cm from the floor.
  • The toilet seat has a high visual contrast.
  • There is not a wall mounted toilet roll holder.
  • The wash basin and taps can be reached when seated on the toilet.
  • The wash basin is 74cm from the floor.
  • The wash basin has a lever mixer tap.
  • The vertical grab rails are on both sides of the wash basin.
  • The wash basin grab rails have a high visual contrast.
  • There is a wall mounted soap dispenser which cannot be reached when seated on the toilet.
  • The soap dispenser has a high visual contrast.
  • The soap dispenser is 101cm from the floor.
  • There is a wall mounted towel dispenser which cannot be reached when seated on the toilet.
  • The towel dispenser has a high visual contrast.
  • The towel dispenser is 105cm from the floor.
  • There is a wall mounted hand dryer.
  • The hand dryer has a medium visual contrast.
  • The hand dryer is 100cm from the floor.
  • There is a pull cord emergency alarm, however it is not within 10cm from the floor.
  • There is a full length mirror.
  • There is an unobstructed shelf.
  • The shelf does not meet the AccessAble criteria for Stoma Friendly Toilets.
  • The cubicle has a waste bin and a sanitary bin.
  • There are multiple coat hooks.
  • The coat hooks are 108cm and 143cm from the floor.
  • The walls and floor have a high visual contrast.
  • Lighting levels were even at the time of the survey, with unshaded light sources.

You are on Toilet with Adaptations (Level 2 - Core D - Left Hand Transfer). Skip to the next section.

Toilet with Adaptations (Level 2 - Core D - Left Hand Transfer)

Collapse all Expand all

• Location and Access View
  • The toilet surveyed is located on level 2 to the rear left of the building, near the Core D lift.
  • The distance from the Core D lift is 18m.
  • The most accessible route to the toilet has step-free level access and manual doors.
  • There is step-free level access into the facility.
  • There is tactile, pictorial and written text signage on or near the door.
  • The door opens outwards and has a low visual contrast.
  • The width of the door opening is 89cm.
  • The door has a lever twist lock.
  • Internally the door has a low visual contrast.
  • There is a grab rail on the internal door with a high visual contrast.
• Dimensions and Features View
  • The dimensions of the cubicle are 150cm (width) x 220cm (depth) and there is room for a wheelchair user to manoeuvre (150cm x 150cm).
  • There is a lateral transfer space to the left as you face the toilet, however it is obstructed.
  • The lateral transfer space is 81cm (from the side of the toilet pan).
  • There is a spatula flush on the transfer side.
  • There is a horizontal grab rail on the non-transfer side.
  • The horizontal grab rail has a high visual contrast.
  • There is a vertical grab rail on the transfer side.
  • The vertical grab rail has a high visual contrast.
  • There is a dropdown rail on the transfer side.
  • The dropdown rail has a high visual contrast.
  • The toilet seat is 48cm from the floor.
  • The toilet seat has a high visual contrast.
  • There is not a wall mounted toilet roll holder.
  • The wash basin and taps can be reached when seated on the toilet.
  • The wash basin is 74cm from the floor.
  • The wash basin has a lever mixer tap.
  • The vertical grab rails are on both sides of the wash basin.
  • The wash basin grab rails have a high visual contrast.
  • There is a wall mounted soap dispenser which cannot be reached when seated on the toilet.
  • The soap dispenser has a high visual contrast.
  • The soap dispenser is 98cm from the floor.
  • There is a wall mounted towel dispenser which cannot be reached when seated on the toilet.
  • The towel dispenser has a high visual contrast.
  • The towel dispenser is 100cm from the floor.
  • There is a wall mounted hand dryer.
  • The hand dryer has a medium visual contrast.
  • The hand dryer is 98cm from the floor.
  • There is a pull cord emergency alarm within 10cm from the floor.
  • There is a full length mirror.
  • There is an unobstructed shelf.
  • The shelf does not meet the AccessAble criteria for Stoma Friendly Toilets.
  • The cubicle has a waste bin and a sanitary bin.
  • There are multiple coat hooks.
  • The coat hooks are 108cm and 142cm from the floor.
  • The walls and floor have a high visual contrast.
  • Lighting levels were even at the time of the survey, with unshaded light sources.

You are on Toilet with Adaptations (Level 3 - Core A - Right Hand Transfer). Skip to the next section.

Toilet with Adaptations (Level 3 - Core A - Right Hand Transfer)

Collapse all Expand all

• Location and Access View
  • The toilet surveyed is located on level 3 to the rear right of the building, off the Core A lift lobby.
  • The distance from the Core A lift is 10m.
  • The most accessible route to the toilet has step-free level access and manual doors.
  • There is step-free level access into the facility.
  • There is tactile, pictorial and written text signage on or near the door.
  • The door opens inwards and has a low visual contrast.
  • The width of the door opening is 89cm.
  • The door has a lever twist lock.
  • Internally the door has a low visual contrast.
  • There is a grab rail on the internal door with a high visual contrast.
• Dimensions and Features View
  • The dimensions of the cubicle are 156cm (width) x 328cm (depth) and there is room for a wheelchair user to manoeuvre (150cm x 150cm).
  • There is a lateral transfer space to the right as you face the toilet, however it is obstructed.
  • The lateral transfer space is 88cm (from the side of the toilet pan).
  • There is a spatula flush on the transfer side.
  • There is a horizontal grab rail on the non-transfer side.
  • The horizontal grab rail has a high visual contrast.
  • There is a vertical grab rail on the transfer side.
  • The vertical grab rail has a high visual contrast.
  • There is a dropdown rail on the transfer side.
  • The dropdown rail has a high visual contrast.
  • The toilet seat is 49cm from the floor.
  • The toilet seat has a high visual contrast.
  • There is not a wall mounted toilet roll holder.
  • The wash basin and taps can be reached when seated on the toilet.
  • The wash basin is 74cm from the floor.
  • The wash basin has a lever mixer tap.
  • The vertical grab rails are on both sides of the wash basin.
  • The wash basin grab rails have a high visual contrast.
  • There is a wall mounted soap dispenser which cannot be reached when seated on the toilet.
  • The soap dispenser has a high visual contrast.
  • The soap dispenser is 106cm from the floor.
  • There is a wall mounted towel dispenser which cannot be reached when seated on the toilet.
  • The towel dispenser has a high visual contrast.
  • The towel dispenser is 110cm from the floor.
  • There is a wall mounted hand dryer.
  • The hand dryer has a medium visual contrast.
  • The hand dryer is 99cm from the floor.
  • There is a pull cord emergency alarm, however it is not within 10cm from the floor.
  • There is a full length mirror.
  • There is an unobstructed shelf.
  • The shelf does not meet the AccessAble criteria for Stoma Friendly Toilets.
  • The cubicle has a waste bin and a sanitary bin.
  • There is one coat hook.
  • The coat hook is 142cm from the floor.
  • The walls and floor have a high visual contrast.
  • Lighting levels were uneven at the time of the survey, with pools of light and shade and unshaded light sources.

You are on Toilet with Adaptations (Level 3 - Core B - Left Hand Transfer). Skip to the next section.

Toilet with Adaptations (Level 3 - Core B - Left Hand Transfer)

Collapse all Expand all

• Location and Access View
  • The toilet surveyed is located on level 3 to the front right of the building, near the G to 4 lift.
  • The distance from the G to 4 lift is 9m.
  • The most accessible route to the toilet has step-free level access and manual doors.
  • There is step-free level access into the facility.
  • There is tactile, pictorial and written text signage on or near the door.
  • The door opens outwards and has a low visual contrast.
  • The width of the door opening is 88cm.
  • The door has a lever twist lock.
  • Internally the door has a low visual contrast.
  • There is a grab rail on the internal door with a high visual contrast.
• Dimensions and Features View
  • The dimensions of the cubicle are 150cm (width) x 220cm (depth) and there is room for a wheelchair user to manoeuvre (150cm x 150cm).
  • There is a lateral transfer space to the left as you face the toilet.
  • The lateral transfer space is 81cm (from the side of the toilet pan).
  • There is a spatula flush on the transfer side.
  • There is a horizontal grab rail on the non-transfer side.
  • The horizontal grab rail has a high visual contrast.
  • There is a vertical grab rail on the transfer side.
  • The vertical grab rail has a high visual contrast.
  • There is a dropdown rail on the transfer side.
  • The dropdown rail has a high visual contrast.
  • The toilet seat is 48cm from the floor.
  • The toilet seat has a high visual contrast.
  • There is not a wall mounted toilet roll holder.
  • The wash basin and taps can be reached when seated on the toilet.
  • The wash basin is 74cm from the floor.
  • The wash basin has a lever mixer tap.
  • The vertical grab rails are on both sides of the wash basin.
  • The wash basin grab rails have a high visual contrast.
  • There is a wall mounted soap dispenser which cannot be reached when seated on the toilet.
  • The soap dispenser has a high visual contrast.
  • The soap dispenser is 103cm from the floor.
  • There is a wall mounted towel dispenser which cannot be reached when seated on the toilet.
  • The towel dispenser has a high visual contrast.
  • The towel dispenser is 108cm from the floor.
  • There is a wall mounted hand dryer.
  • The hand dryer has a medium visual contrast.
  • The hand dryer is 98cm from the floor.
  • There is a pull cord emergency alarm, however it is not within 10cm from the floor.
  • There is a full length mirror.
  • There is an unobstructed shelf.
  • The shelf does not meet the AccessAble criteria for Stoma Friendly Toilets.
  • The cubicle has a waste bin and a sanitary bin.
  • There are multiple coat hooks.
  • The coat hooks are 107cm and 142cm from the floor.
  • The walls and floor have a high visual contrast.
  • Lighting levels were even at the time of the survey, with unshaded light sources.

You are on Toilet with Adaptations (Level 3 - Core C - Right Hand Transfer). Skip to the next section.

Toilet with Adaptations (Level 3 - Core C - Right Hand Transfer)

Collapse all Expand all

• Location and Access View
  • The toilet surveyed is located on level 3 to the front left of the building, in the Core C lift lobby.
  • The distance from the Core C lift is 6m.
  • The most accessible route to the toilet has step-free level access.
  • There is step-free level access into the facility.
  • There is tactile, pictorial and written text signage on or near the door.
  • The door opens both ways and has a high visual contrast.
  • The width of the door opening is 89cm.
  • The door has a lever twist lock.
  • Internally the door has a high visual contrast.
  • There is a grab rail on the internal door with a high visual contrast.
• Dimensions and Features View
  • The dimensions of the cubicle are 277cm (width) x 208cm (depth) and there is room for a wheelchair user to manoeuvre (150cm x 150cm).
  • There is a lateral transfer space to the right as you face the toilet.
  • The lateral transfer space is 208cm (from the side of the toilet pan).
  • There is a spatula flush on the transfer side.
  • There is a horizontal grab rail on the non-transfer side.
  • The horizontal grab rail has a high visual contrast.
  • There is a vertical grab rail on the transfer side.
  • The vertical grab rail has a high visual contrast.
  • There is a dropdown rail on the transfer side.
  • The dropdown rail has a high visual contrast.
  • The toilet seat is 49cm from the floor.
  • The toilet seat has a high visual contrast.
  • There is not a wall mounted toilet roll holder.
  • The wash basin and taps can be reached when seated on the toilet.
  • The wash basin is 74cm from the floor.
  • The wash basin has a lever mixer tap.
  • The vertical grab rails are on both sides of the wash basin.
  • The wash basin grab rails have a high visual contrast.
  • There is a wall mounted soap dispenser which cannot be reached when seated on the toilet.
  • The soap dispenser has a high visual contrast.
  • The soap dispenser is 98cm from the floor.
  • There is a wall mounted towel dispenser which cannot be reached when seated on the toilet.
  • The towel dispenser has a high visual contrast.
  • The towel dispenser is 102cm from the floor.
  • There is a wall mounted hand dryer.
  • The hand dryer has a medium visual contrast.
  • The hand dryer is 100cm from the floor.
  • There is a pull cord emergency alarm within 10cm from the floor.
  • There is a full length mirror.
  • There is an unobstructed shelf.
  • The shelf does not meet the AccessAble criteria for Stoma Friendly Toilets.
  • The cubicle has a waste bin and a sanitary bin.
  • There are multiple coat hooks.
  • The coat hooks are 108cm and 143cm from the floor.
  • The walls and floor have a high visual contrast.
  • Lighting levels were even at the time of the survey, with unshaded light sources.

You are on Toilet with Adaptations (Level 3 - Core D - Left Hand Transfer). Skip to the next section.

Toilet with Adaptations (Level 3 - Core D - Left Hand Transfer)

Collapse all Expand all

• Location and Access View
  • The toilet surveyed is located on level 3 to the rear left of the building, near the Core D lift.
  • The distance from the Core D lift is 18m.
  • The most accessible route to the toilet has step-free level access and manual doors.
  • There is step-free level access into the facility.
  • There is tactile, pictorial and written text signage on or near the door.
  • The door opens outwards and has a low visual contrast.
  • The width of the door opening is 88cm.
  • The door has a lever twist lock.
  • Internally the door has a low visual contrast.
  • There is a grab rail on the internal door with a high visual contrast.
• Dimensions and Features View
  • The dimensions of the cubicle are 150cm (width) x 220cm (depth) and there is room for a wheelchair user to manoeuvre (150cm x 150cm).
  • There is a lateral transfer space to the left as you face the toilet, however it is obstructed.
  • The lateral transfer space is 82cm (from the side of the toilet pan).
  • There is a spatula flush on the transfer side.
  • There is a horizontal grab rail on the non-transfer side.
  • The horizontal grab rail has a high visual contrast.
  • There is a vertical grab rail on the transfer side.
  • The vertical grab rail has a high visual contrast.
  • There is a dropdown rail on the transfer side.
  • The dropdown rail has a high visual contrast.
  • The toilet seat is 48cm from the floor.
  • The toilet seat has a high visual contrast.
  • There is not a wall mounted toilet roll holder.
  • The wash basin and taps can be reached when seated on the toilet.
  • The wash basin is 74cm from the floor.
  • The wash basin has a lever mixer tap.
  • The vertical grab rails are on both sides of the wash basin.
  • The wash basin grab rails have a high visual contrast.
  • There is a wall mounted soap dispenser which cannot be reached when seated on the toilet.
  • The soap dispenser has a high visual contrast.
  • The soap dispenser is 98cm from the floor.
  • There is a wall mounted towel dispenser which cannot be reached when seated on the toilet.
  • The towel dispenser has a high visual contrast.
  • The towel dispenser is 104cm from the floor.
  • There is a wall mounted hand dryer.
  • The hand dryer has a medium visual contrast.
  • The hand dryer is 98cm from the floor.
  • There is a pull cord emergency alarm within 10cm from the floor.
  • There is a full length mirror.
  • There is a shelf, however there is an obstruction in front of it.
  • The shelf does not meet the AccessAble criteria for Stoma Friendly Toilets.
  • The cubicle has a waste bin and a sanitary bin.
  • There are multiple coat hooks.
  • The coat hooks are 108cm and 142cm from the floor.
  • The walls and floor have a high visual contrast.
  • Lighting levels were even at the time of the survey, with unshaded light sources.

You are on Toilet with Adaptations (Level 4 - Core A - Right Hand Transfer). Skip to the next section.

Toilet with Adaptations (Level 4 - Core A - Right Hand Transfer)

Collapse all Expand all

• Location and Access View
  • The toilet surveyed is located on level 4 to the rear right of the building, off the Core A lift lobby.
  • The distance from the Core A lift is 10m.
  • The most accessible route to the toilet has step-free level access and manual doors.
  • There is step-free level access into the facility.
  • There is tactile, pictorial and written text signage on or near the door.
  • The door opens inwards and has a low visual contrast.
  • The width of the door opening is 89cm.
  • The door has a lever twist lock.
  • Internally the door has a low visual contrast.
  • There is a grab rail on the internal door with a high visual contrast.
• Dimensions and Features View
  • The dimensions of the cubicle are 156cm (width) x 329cm (depth) and there is room for a wheelchair user to manoeuvre (150cm x 150cm).
  • There is a lateral transfer space to the right as you face the toilet, however it is obstructed.
  • The lateral transfer space is 88cm (from the side of the toilet pan).
  • There is a spatula flush on the transfer side.
  • There is a horizontal grab rail on the non-transfer side.
  • The horizontal grab rail has a high visual contrast.
  • There is a vertical grab rail on the transfer side.
  • The vertical grab rail has a high visual contrast.
  • There is a dropdown rail on the transfer side.
  • The dropdown rail has a high visual contrast.
  • The toilet seat is 48cm from the floor.
  • The toilet seat has a high visual contrast.
  • There is not a wall mounted toilet roll holder.
  • The wash basin and taps can be reached when seated on the toilet.
  • The wash basin is 73cm from the floor.
  • The wash basin has a lever mixer tap.
  • The vertical grab rails are on both sides of the wash basin.
  • The wash basin grab rails have a high visual contrast.
  • There is a wall mounted soap dispenser which cannot be reached when seated on the toilet.
  • The soap dispenser has a high visual contrast.
  • The soap dispenser is 105cm from the floor.
  • There is a wall mounted towel dispenser which cannot be reached when seated on the toilet.
  • The towel dispenser has a high visual contrast.
  • The towel dispenser is 108cm from the floor.
  • There is a wall mounted hand dryer.
  • The hand dryer has a medium visual contrast.
  • The hand dryer is 99cm from the floor.
  • There is a pull cord emergency alarm, however it is not within 10cm from the floor.
  • There is a full length mirror.
  • There is an unobstructed shelf.
  • The shelf does not meet the AccessAble criteria for Stoma Friendly Toilets.
  • The cubicle has a waste bin and a sanitary bin.
  • There are multiple coat hooks.
  • The coat hooks are 107cm and 142cm from the floor.
  • The walls and floor have a high visual contrast.
  • Lighting levels were uneven at the time of the survey, with pools of light and shade and unshaded light sources.

You are on Toilet with Adaptations (Level 4 - Core B - Left Hand Transfer). Skip to the next section.

Toilet with Adaptations (Level 4 - Core B - Left Hand Transfer)

Collapse all Expand all

• Location and Access View
  • The toilet surveyed is located on level 4 to the front right of the building, near the G to 4 lift.
  • The distance from the G to 4 lift is 9m.
  • The most accessible route to the toilet has step-free level access.
  • There is step-free level access into the facility.
  • There is tactile, pictorial and written text signage on or near the door.
  • The door opens outwards and has a low visual contrast.
  • The width of the door opening is 88cm.
  • The door has a lever twist lock.
  • Internally the door has a low visual contrast.
  • There is a grab rail on the internal door with a high visual contrast.
• Dimensions and Features View
  • The dimensions of the cubicle are 150cm (width) x 220cm (depth) and there is room for a wheelchair user to manoeuvre (150cm x 150cm).
  • There is a lateral transfer space to the left as you face the toilet.
  • The lateral transfer space is 81cm (from the side of the toilet pan).
  • There is a spatula flush on the transfer side.
  • There is a horizontal grab rail on the non-transfer side.
  • The horizontal grab rail has a high visual contrast.
  • There is a vertical grab rail on the transfer side.
  • The vertical grab rail has a high visual contrast.
  • There is a dropdown rail on the transfer side.
  • The dropdown rail has a high visual contrast.
  • The toilet seat is 48cm from the floor.
  • The toilet seat has a high visual contrast.
  • There is not a wall mounted toilet roll holder.
  • The wash basin and taps can be reached when seated on the toilet.
  • The wash basin is 74cm from the floor.
  • The wash basin has a lever mixer tap.
  • The vertical grab rails are on both sides of the wash basin.
  • The wash basin grab rails have a high visual contrast.
  • There is a wall mounted soap dispenser which cannot be reached when seated on the toilet.
  • The soap dispenser has a high visual contrast.
  • The soap dispenser is 106cm from the floor.
  • There is a wall mounted towel dispenser which cannot be reached when seated on the toilet.
  • The towel dispenser has a high visual contrast.
  • The towel dispenser is 110cm from the floor.
  • There is a wall mounted hand dryer.
  • The hand dryer has a medium visual contrast.
  • The hand dryer is 98cm from the floor.
  • There is a pull cord emergency alarm within 10cm from the floor.
  • There is a full length mirror.
  • There is an unobstructed shelf.
  • The shelf does not meet the AccessAble criteria for Stoma Friendly Toilets.
  • The cubicle has a waste bin and a sanitary bin.
  • There are multiple coat hooks.
  • The coat hooks are 108cm and 142cm from the floor.
  • The walls and floor have a high visual contrast.
  • Lighting levels were even at the time of the survey, with unshaded light sources.

You are on Toilet with Adaptations (Level 4 - Core C - Right Hand Transfer). Skip to the next section.

Toilet with Adaptations (Level 4 - Core C - Right Hand Transfer)

Collapse all Expand all

• Location and Access View
  • The toilet surveyed is located on level 4 to the front left of the building, in the Core C lift lobby.
  • The distance from the Core C lift is 6m.
  • The most accessible route to the toilet has step-free level access.
  • There is step-free level access into the facility.
  • There is tactile, pictorial and written text signage on or near the door.
  • The door opens both ways and has a high visual contrast.
  • The width of the door opening is 89cm.
  • The door has a lever twist lock.
  • Internally the door has a high visual contrast.
  • There is a grab rail on the internal door with a high visual contrast.
• Dimensions and Features View
  • The dimensions of the cubicle are 275cm (width) x 206cm (depth) and there is not room for a wheelchair user to manoeuvre (150cm x 150cm).
  • There is a lateral transfer space to the right as you face the toilet.
  • The lateral transfer space is 207cm (from the side of the toilet pan).
  • There is a spatula flush on the transfer side.
  • There is a horizontal grab rail on the non-transfer side.
  • The horizontal grab rail has a high visual contrast.
  • There is a vertical grab rail on the transfer side.
  • The vertical grab rail has a high visual contrast.
  • There is a dropdown rail on the transfer side.
  • The dropdown rail has a high visual contrast.
  • The toilet seat is 49cm from the floor.
  • The toilet seat has a high visual contrast.
  • There is not a wall mounted toilet roll holder.
  • The wash basin and taps can be reached when seated on the toilet.
  • The wash basin is 74cm from the floor.
  • The wash basin has a lever mixer tap.
  • The vertical grab rails are on both sides of the wash basin.
  • The wash basin grab rails have a high visual contrast.
  • There is a wall mounted soap dispenser which cannot be reached when seated on the toilet.
  • The soap dispenser has a high visual contrast.
  • The soap dispenser is 101cm from the floor.
  • There is a wall mounted towel dispenser which cannot be reached when seated on the toilet.
  • The towel dispenser has a high visual contrast.
  • The towel dispenser is 108cm from the floor.
  • There is a wall mounted hand dryer.
  • The hand dryer has a medium visual contrast.
  • The hand dryer is 95cm from the floor.
  • There is a pull cord emergency alarm, however it is not within 10cm from the floor.
  • There is a full length mirror.
  • There is an unobstructed shelf.
  • The shelf does not meet the AccessAble criteria for Stoma Friendly Toilets.
  • The cubicle has a waste bin and a sanitary bin.
  • There are multiple coat hooks.
  • The coat hooks are 107cm and 143cm from the floor.
  • The walls and floor have a high visual contrast.
  • Lighting levels were even at the time of the survey, with unshaded light sources.

You are on Toilet with Adaptations (Level 4 - Core D - Left Hand Transfer). Skip to the next section.

Toilet with Adaptations (Level 4 - Core D - Left Hand Transfer)

Collapse all Expand all

• Location and Access View
  • The toilet surveyed is located on level 4 to the rear left of the building, near the Core D lift.
  • The distance from the Core D lift is 18m.
  • The most accessible route to the toilet has step-free level access and manual doors.
  • There is step-free level access into the facility.
  • There is tactile, pictorial and written text signage on or near the door.
  • The door opens outwards and has a low visual contrast.
  • The width of the door opening is 88cm.
  • The door has a lever twist lock.
  • Internally the door has a low visual contrast.
  • There is a grab rail on the internal door with a high visual contrast.
• Dimensions and Features View
  • The dimensions of the cubicle are 150cm (width) x 220cm (depth) and there is room for a wheelchair user to manoeuvre (150cm x 150cm).
  • There is a lateral transfer space to the left as you face the toilet, however it is obstructed.
  • The lateral transfer space is 81cm (from the side of the toilet pan).
  • There is a spatula flush on the transfer side.
  • There is a horizontal grab rail on the non-transfer side.
  • The horizontal grab rail has a high visual contrast.
  • There is a vertical grab rail on the transfer side.
  • The vertical grab rail has a high visual contrast.
  • There is a dropdown rail on the transfer side.
  • The dropdown rail has a high visual contrast.
  • The toilet seat is 48cm from the floor.
  • The toilet seat has a high visual contrast.
  • There is not a wall mounted toilet roll holder.
  • The wash basin and taps can be reached when seated on the toilet.
  • The wash basin is 74cm from the floor.
  • The wash basin has a lever mixer tap.
  • The vertical grab rails are on both sides of the wash basin.
  • The wash basin grab rails have a high visual contrast.
  • There is a wall mounted soap dispenser which cannot be reached when seated on the toilet.
  • The soap dispenser has a high visual contrast.
  • The soap dispenser is 103cm from the floor.
  • There is a wall mounted towel dispenser which cannot be reached when seated on the toilet.
  • The towel dispenser has a high visual contrast.
  • The towel dispenser is 108cm from the floor.
  • There is a wall mounted hand dryer.
  • The hand dryer has a medium visual contrast.
  • The hand dryer is 92cm from the floor.
  • There is a pull cord emergency alarm within 10cm from the floor.
  • There is a full length mirror.
  • There is a shelf, however there is an obstruction in front of it.
  • The shelf does not meet the AccessAble criteria for Stoma Friendly Toilets.
  • The cubicle has a waste bin and a sanitary bin.
  • There are multiple coat hooks.
  • The coat hooks are 108cm and 142cm from the floor.
  • The walls and floor have a high visual contrast.
  • Lighting levels were even at the time of the survey, with unshaded light sources.

You are on Toilet with Adaptations (Level 5 - Core A - Right Hand Transfer). Skip to the next section.

Toilet with Adaptations (Level 5 - Core A - Right Hand Transfer)

Collapse all Expand all

• Location and Access View
  • The toilet surveyed is located on level 5 to the rear right of the building, off the Core A lift lobby.
  • The distance from the Core A lift is 10m.
  • The most accessible route to the toilet has step-free level access and manual doors.
  • There is step-free level access into the facility.
  • There is tactile, pictorial and written text signage on or near the door.
  • The door opens inwards and has a low visual contrast.
  • The width of the door opening is 89cm.
  • The door has a lever twist lock.
  • Internally the door has a low visual contrast.
  • There is a grab rail on the internal door with a high visual contrast.
• Dimensions and Features View
  • The dimensions of the cubicle are 150cm (width) x 329cm (depth) and there is room for a wheelchair user to manoeuvre (150cm x 150cm).
  • There is a lateral transfer space to the right as you face the toilet, however it is obstructed.
  • The lateral transfer space is 80cm (from the side of the toilet pan).
  • There is a spatula flush on the transfer side.
  • There is a horizontal grab rail on the non-transfer side.
  • The horizontal grab rail has a high visual contrast.
  • There is a vertical grab rail on the transfer side.
  • The vertical grab rail has a high visual contrast.
  • There is a dropdown rail on the transfer side.
  • The dropdown rail has a high visual contrast.
  • The toilet seat is 49cm from the floor.
  • The toilet seat has a high visual contrast.
  • There is not a wall mounted toilet roll holder.
  • The wash basin and taps can be reached when seated on the toilet.
  • The wash basin is 73cm from the floor.
  • The wash basin has a lever mixer tap.
  • The vertical grab rails are on both sides of the wash basin.
  • The wash basin grab rails have a high visual contrast.
  • There is a wall mounted soap dispenser which cannot be reached when seated on the toilet.
  • The soap dispenser has a high visual contrast.
  • The soap dispenser is 107cm from the floor.
  • There is a wall mounted towel dispenser which cannot be reached when seated on the toilet.
  • The towel dispenser has a high visual contrast.
  • The towel dispenser is 109cm from the floor.
  • There is a wall mounted hand dryer.
  • The hand dryer has a medium visual contrast.
  • The hand dryer is 99cm from the floor.
  • There is a pull cord emergency alarm, however it is not within 10cm from the floor.
  • There is a full length mirror.
  • There is an unobstructed shelf.
  • The shelf does not meet the AccessAble criteria for Stoma Friendly Toilets.
  • The cubicle has a waste bin and a sanitary bin.
  • There are multiple coat hooks.
  • The coat hooks are 107cm and 142cm from the floor.
  • The walls and floor have a high visual contrast.
  • Lighting levels were uneven at the time of the survey, with pools of light and shade and unshaded light sources.

You are on Toilet with Adaptations (Level 5 - Core B - Left Hand Transfer). Skip to the next section.

Toilet with Adaptations (Level 5 - Core B - Left Hand Transfer)

Collapse all Expand all

• Location and Access View
  • The toilet surveyed is located on level 5 to the front right of the building, near the Core B lift.
  • The distance from the Core B lift is 18m.
  • The most accessible route to the toilet has step-free level access and doors permanently held open.
  • There is step-free level access into the facility.
  • There is tactile, pictorial and written text signage on or near the door.
  • The door opens outwards and has a low visual contrast.
  • The width of the door opening is 88cm.
  • The door has a lever twist lock.
  • Internally the door has a low visual contrast.
  • There is a grab rail on the internal door with a high visual contrast.
• Dimensions and Features View
  • The dimensions of the cubicle are 150cm (width) x 220cm (depth) and there is room for a wheelchair user to manoeuvre (150cm x 150cm).
  • There is a lateral transfer space to the left as you face the toilet.
  • The lateral transfer space is 81cm (from the side of the toilet pan).
  • There is a spatula flush on the transfer side.
  • There is a horizontal grab rail on the non-transfer side.
  • The horizontal grab rail has a high visual contrast.
  • There is a vertical grab rail on the transfer side.
  • The vertical grab rail has a high visual contrast.
  • There is a dropdown rail on the transfer side.
  • The dropdown rail has a high visual contrast.
  • The toilet seat is 48cm from the floor.
  • The toilet seat has a high visual contrast.
  • There is not a wall mounted toilet roll holder.
  • The wash basin and taps can be reached when seated on the toilet.
  • The wash basin is 73cm from the floor.
  • The wash basin has a lever mixer tap.
  • The vertical grab rails are on both sides of the wash basin.
  • The wash basin grab rails have a high visual contrast.
  • There is a wall mounted soap dispenser which cannot be reached when seated on the toilet.
  • The soap dispenser has a high visual contrast.
  • The soap dispenser is 106cm from the floor.
  • There is a wall mounted towel dispenser which cannot be reached when seated on the toilet.
  • The towel dispenser has a high visual contrast.
  • The towel dispenser is 112cm from the floor.
  • There is a wall mounted hand dryer.
  • The hand dryer has a medium visual contrast.
  • The hand dryer is 98cm from the floor.
  • There is a pull cord emergency alarm but it was tied up at the time of the survey.
  • There is a full length mirror.
  • There is an unobstructed shelf.
  • The shelf does not meet the AccessAble criteria for Stoma Friendly Toilets.
  • The cubicle has a waste bin and a sanitary bin.
  • There are multiple coat hooks.
  • The coat hooks are 108cm and 142cm from the floor.
  • The walls and floor have a high visual contrast.
  • Lighting levels were even at the time of the survey, with unshaded light sources.

You are on Toilet with Adaptations (Level 5 - Core C - Right Hand Transfer). Skip to the next section.

Toilet with Adaptations (Level 5 - Core C - Right Hand Transfer)

Collapse all Expand all

• Location and Access View
  • The toilet surveyed is located on level 5 to the front left of the building, in the Core C lift lobby.
  • The distance from the Core C lift is 6m.
  • The most accessible route to the toilet has step-free level access.
  • There is step-free level access into the facility.
  • There is tactile, pictorial and written text signage on or near the door.
  • The door opens both ways and has a high visual contrast.
  • The width of the door opening is 88cm.
  • The door has a lever twist lock.
  • Internally the door has a high visual contrast.
  • There is a grab rail on the internal door with a high visual contrast.
• Dimensions and Features View
  • The dimensions of the cubicle are 278cm (width) x 207cm (depth) and there is not room for a wheelchair user to manoeuvre (150cm x 150cm).
  • There is a lateral transfer space to the right as you face the toilet.
  • The lateral transfer space is 208cm (from the side of the toilet pan).
  • There is a spatula flush on the transfer side.
  • There is a horizontal grab rail on the non-transfer side.
  • The horizontal grab rail has a high visual contrast.
  • There is a vertical grab rail on the transfer side.
  • The vertical grab rail has a high visual contrast.
  • There is a dropdown rail on the transfer side.
  • The dropdown rail has a high visual contrast.
  • The toilet seat is 48cm from the floor.
  • The toilet seat has a high visual contrast.
  • There is not a wall mounted toilet roll holder.
  • The wash basin and taps can be reached when seated on the toilet.
  • The wash basin is 74cm from the floor.
  • The wash basin has a lever mixer tap.
  • The vertical grab rails are on both sides of the wash basin.
  • The wash basin grab rails have a high visual contrast.
  • There is a wall mounted soap dispenser which cannot be reached when seated on the toilet.
  • The soap dispenser has a high visual contrast.
  • The soap dispenser is 106cm from the floor.
  • There is a wall mounted towel dispenser which cannot be reached when seated on the toilet.
  • The towel dispenser has a high visual contrast.
  • The towel dispenser is 110cm from the floor.
  • There is a wall mounted hand dryer.
  • The hand dryer has a medium visual contrast.
  • The hand dryer is 99cm from the floor.
  • There is a pull cord emergency alarm, however it is not within 10cm from the floor.
  • There is a full length mirror.
  • There is an unobstructed shelf.
  • The shelf does not meet the AccessAble criteria for Stoma Friendly Toilets.
  • The cubicle has a waste bin and a sanitary bin.
  • There are multiple coat hooks.
  • The coat hooks are 108cm and 143cm from the floor.
  • The walls and floor have a high visual contrast.
  • Lighting levels were even at the time of the survey, with unshaded light sources.

You are on Toilet with Adaptations (Level 5 - Core D - Left Hand Transfer). Skip to the next section.

Toilet with Adaptations (Level 5 - Core D - Left Hand Transfer)

Collapse all Expand all

• Location and Access View
  • The toilet surveyed is located on level 5 to the rear left of the building, near the Core D lift.
  • The distance from the Core D lift is 18m.
  • The most accessible route to the toilet has step-free level access and manual doors.
  • There is step-free level access into the facility.
  • There is tactile, pictorial and written text signage on or near the door.
  • The door opens outwards and has a low visual contrast.
  • The width of the door opening is 89cm.
  • The door has a lever twist lock.
  • Internally the door has a low visual contrast.
  • There is a grab rail on the internal door with a high visual contrast.
• Dimensions and Features View
  • The dimensions of the cubicle are 150cm (width) x 220cm (depth) and there is room for a wheelchair user to manoeuvre (150cm x 150cm).
  • There is a lateral transfer space to the left as you face the toilet, however it is obstructed.
  • The lateral transfer space is 81cm (from the side of the toilet pan).
  • There is a spatula flush on the transfer side.
  • There is a horizontal grab rail on the non-transfer side.
  • The horizontal grab rail has a high visual contrast.
  • There is a vertical grab rail on the transfer side.
  • The vertical grab rail has a high visual contrast.
  • There is a dropdown rail on the transfer side.
  • The dropdown rail has a high visual contrast.
  • The toilet seat is 48cm from the floor.
  • The toilet seat has a high visual contrast.
  • There is not a wall mounted toilet roll holder.
  • The wash basin and taps can be reached when seated on the toilet.
  • The wash basin is 74cm from the floor.
  • The wash basin has a lever mixer tap.
  • The vertical grab rails are on both sides of the wash basin.
  • The wash basin grab rails have a high visual contrast.
  • There is a wall mounted soap dispenser which cannot be reached when seated on the toilet.
  • The soap dispenser has a high visual contrast.
  • The soap dispenser is 108cm from the floor.
  • There is a wall mounted towel dispenser which cannot be reached when seated on the toilet.
  • The towel dispenser has a high visual contrast.
  • The towel dispenser is 112cm from the floor.
  • There is a wall mounted hand dryer.
  • The hand dryer has a medium visual contrast.
  • The hand dryer is 98cm from the floor.
  • There is a pull cord emergency alarm, however it is not within 10cm from the floor.
  • There is a full length mirror.
  • There is an unobstructed shelf.
  • The shelf does not meet the AccessAble criteria for Stoma Friendly Toilets.
  • The cubicle has a waste bin and a sanitary bin.
  • There are multiple coat hooks.
  • The coat hooks are 108cm and 143cm from the floor.
  • The walls and floor have a high visual contrast.
  • Lighting levels were even at the time of the survey, with unshaded light sources.

You are on Toilet with Adaptations (Level 6 - Core A - Right Hand Transfer). Skip to the next section.

Toilet with Adaptations (Level 6 - Core A - Right Hand Transfer)

Collapse all Expand all

• Location and Access View
  • The toilet surveyed is located on level 6 to the rear right of the building, off the Core A lift lobby.
  • The distance from the Core A lift is 10m.
  • The most accessible route to the toilet has step-free level access and manual doors.
  • There is step-free level access into the facility.
  • There is tactile, pictorial and written text signage on or near the door.
  • The door opens inwards and has a low visual contrast.
  • The width of the door opening is 89cm.
  • The door has a lever twist lock.
  • Internally the door has a low visual contrast.
  • There is a grab rail on the internal door with a high visual contrast.
• Dimensions and Features View
  • The dimensions of the cubicle are 150cm (width) x 329cm (depth) and there is room for a wheelchair user to manoeuvre (150cm x 150cm).
  • There is a lateral transfer space to the right as you face the toilet, however it is obstructed.
  • The lateral transfer space is 80cm (from the side of the toilet pan).
  • There is a spatula flush on the transfer side.
  • There is a horizontal grab rail on the non-transfer side.
  • The horizontal grab rail has a high visual contrast.
  • There is a vertical grab rail on the transfer side.
  • The vertical grab rail has a high visual contrast.
  • There is a dropdown rail on the transfer side.
  • The dropdown rail has a high visual contrast.
  • The toilet seat is 48cm from the floor.
  • The toilet seat has a high visual contrast.
  • There is not a wall mounted toilet roll holder.
  • The wash basin and taps can be reached when seated on the toilet.
  • The wash basin is 73cm from the floor.
  • The wash basin has a lever mixer tap.
  • The vertical grab rails are on both sides of the wash basin.
  • The wash basin grab rails have a high visual contrast.
  • There is a wall mounted soap dispenser which cannot be reached when seated on the toilet.
  • The soap dispenser has a high visual contrast.
  • The soap dispenser is 109cm from the floor.
  • There is a wall mounted towel dispenser which cannot be reached when seated on the toilet.
  • The towel dispenser has a high visual contrast.
  • The towel dispenser is 114cm from the floor.
  • There is a wall mounted hand dryer.
  • The hand dryer has a medium visual contrast.
  • The hand dryer is 98cm from the floor.
  • There is a pull cord emergency alarm within 10cm from the floor.
  • There is a full length mirror.
  • There is an unobstructed shelf.
  • The shelf does not meet the AccessAble criteria for Stoma Friendly Toilets.
  • The cubicle has a waste bin and a sanitary bin.
  • There are multiple coat hooks.
  • The coat hooks are 107cm and 142cm from the floor.
  • The walls and floor have a high visual contrast.
  • Lighting levels were uneven at the time of the survey, with pools of light and shade and unshaded light sources.

You are on Toilet with Adaptations (Level 6 - Core B - Left Hand Transfer). Skip to the next section.

Toilet with Adaptations (Level 6 - Core B - Left Hand Transfer)

Collapse all Expand all

• Location and Access View
  • The toilet surveyed is located on level 6 to the front right of the building, near the Core B lift.
  • The distance from the Core B lift is 18m.
  • The most accessible route to the toilet has step-free level access and doors permanently held open.
  • There is step-free level access into the facility.
  • There is tactile, pictorial and written text signage on or near the door.
  • The door opens outwards and has a low visual contrast.
  • The width of the door opening is 88cm.
  • The door has a lever twist lock.
  • Internally the door has a low visual contrast.
  • There is a grab rail on the internal door with a high visual contrast.
• Dimensions and Features View
  • The dimensions of the cubicle are 150cm (width) x 221cm (depth) and there is room for a wheelchair user to manoeuvre (150cm x 150cm).
  • There is a lateral transfer space to the left as you face the toilet.
  • The lateral transfer space is 81cm (from the side of the toilet pan).
  • There is a spatula flush on the transfer side.
  • There is a horizontal grab rail on the non-transfer side.
  • The horizontal grab rail has a high visual contrast.
  • There is a vertical grab rail on the transfer side.
  • The vertical grab rail has a high visual contrast.
  • There is a dropdown rail on the transfer side.
  • The dropdown rail has a high visual contrast.
  • The toilet seat is 48cm from the floor.
  • The toilet seat has a high visual contrast.
  • There is not a wall mounted toilet roll holder.
  • The wash basin and taps can be reached when seated on the toilet.
  • The wash basin is 73cm from the floor.
  • The wash basin has a lever mixer tap.
  • The vertical grab rails are on both sides of the wash basin.
  • The wash basin grab rails have a high visual contrast.
  • There is a wall mounted soap dispenser which cannot be reached when seated on the toilet.
  • The soap dispenser has a high visual contrast.
  • The soap dispenser is 104cm from the floor.
  • There is a wall mounted towel dispenser which cannot be reached when seated on the toilet.
  • The towel dispenser has a high visual contrast.
  • The towel dispenser is 108cm from the floor.
  • There is a wall mounted hand dryer.
  • The hand dryer has a medium visual contrast.
  • The hand dryer is 98cm from the floor.
  • There is a pull cord emergency alarm within 10cm from the floor.
  • There is a full length mirror.
  • There is an unobstructed shelf.
  • The shelf does not meet the AccessAble criteria for Stoma Friendly Toilets.
  • The cubicle has a waste bin and a sanitary bin.
  • There are multiple coat hooks.
  • The coat hooks are 107cm and 142cm from the floor.
  • The walls and floor have a high visual contrast.
  • Lighting levels were even at the time of the survey, with unshaded light sources.

You are on Toilet with Adaptations (Level 6 - Core C - Right Hand Transfer). Skip to the next section.

Toilet with Adaptations (Level 6 - Core C - Right Hand Transfer)

Collapse all Expand all

• Location and Access View
  • The toilet surveyed is located on level 6 to the front left of the building, in the Core C lift lobby.
  • The distance from the Core C lift is 6m.
  • The most accessible route to the toilet has step-free level access.
  • There is step-free level access into the facility.
  • There is tactile, pictorial and written text signage on or near the door.
  • The door opens both ways and has a high visual contrast.
  • The width of the door opening is 89cm.
  • The door has a lever twist lock.
  • Internally the door has a high visual contrast.
  • There is a grab rail on the internal door with a high visual contrast.
• Dimensions and Features View
  • The dimensions of the cubicle are 287cm (width) x 206cm (depth) and there is room for a wheelchair user to manoeuvre (150cm x 150cm).
  • There is a lateral transfer space to the right as you face the toilet, however it is obstructed.
  • The lateral transfer space is 216cm (from the side of the toilet pan).
  • There is a spatula flush on the transfer side.
  • There is a horizontal grab rail on the non-transfer side.
  • The horizontal grab rail has a high visual contrast.
  • There is a vertical grab rail on the transfer side.
  • The vertical grab rail has a high visual contrast.
  • There is a dropdown rail on the transfer side.
  • The dropdown rail has a high visual contrast.
  • The toilet seat is 48cm from the floor.
  • The toilet seat has a high visual contrast.
  • There is not a wall mounted toilet roll holder.
  • The wash basin and taps can be reached when seated on the toilet.
  • The wash basin is 74cm from the floor.
  • The wash basin has a lever mixer tap.
  • The vertical grab rails are on both sides of the wash basin.
  • The wash basin grab rails have a high visual contrast.
  • There is a wall mounted soap dispenser which cannot be reached when seated on the toilet.
  • The soap dispenser has a high visual contrast.
  • The soap dispenser is 110cm from the floor.
  • There is a wall mounted towel dispenser which cannot be reached when seated on the toilet.
  • The towel dispenser has a high visual contrast.
  • The towel dispenser is 114cm from the floor.
  • There is a wall mounted hand dryer.
  • The hand dryer has a medium visual contrast.
  • The hand dryer is 99cm from the floor.
  • There is a pull cord emergency alarm, however it is not within 10cm from the floor.
  • There is a full length mirror.
  • There is an unobstructed shelf.
  • The shelf does not meet the AccessAble criteria for Stoma Friendly Toilets.
  • The cubicle has a waste bin and a sanitary bin.
  • There are multiple coat hooks.
  • The coat hooks are 109cm and 144cm from the floor.
  • The walls and floor have a high visual contrast.
  • Lighting levels were even at the time of the survey, with unshaded light sources.

You are on Toilet with Adaptations (Level 6 - Core D - Left Hand Transfer). Skip to the next section.

Toilet with Adaptations (Level 6 - Core D - Left Hand Transfer)

Collapse all Expand all

• Location and Access View
  • The toilet surveyed is located on level 6 to the rear left of the building, near the Core D lift.
  • The distance from the Core D lift is 18m.
  • The most accessible route to the toilet has step-free level access and manual doors.
  • There is step-free level access into the facility.
  • There is tactile, pictorial and written text signage on or near the door.
  • The door opens outwards and has a low visual contrast.
  • The width of the door opening is 88cm.
  • The door has a lever twist lock.
  • Internally the door has a low visual contrast.
  • There is a grab rail on the internal door with a high visual contrast.
• Dimensions and Features View
  • The dimensions of the cubicle are 150cm (width) x 220cm (depth) and there is room for a wheelchair user to manoeuvre (150cm x 150cm).
  • There is a lateral transfer space to the left as you face the toilet, however it is obstructed.
  • The lateral transfer space is 81cm (from the side of the toilet pan).
  • There is a spatula flush on the transfer side.
  • There is a horizontal grab rail on the non-transfer side.
  • The horizontal grab rail has a high visual contrast.
  • There is a vertical grab rail on the transfer side.
  • The vertical grab rail has a high visual contrast.
  • There is a dropdown rail on the transfer side.
  • The dropdown rail has a high visual contrast.
  • The toilet seat is 48cm from the floor.
  • The toilet seat has a high visual contrast.
  • There is not a wall mounted toilet roll holder.
  • The wash basin and taps can be reached when seated on the toilet.
  • The wash basin is 74cm from the floor.
  • The wash basin has a lever mixer tap.
  • The vertical grab rails are on both sides of the wash basin.
  • The wash basin grab rails have a high visual contrast.
  • There is a wall mounted soap dispenser which cannot be reached when seated on the toilet.
  • The soap dispenser has a high visual contrast.
  • The soap dispenser is 110cm from the floor.
  • There is a wall mounted towel dispenser which cannot be reached when seated on the toilet.
  • The towel dispenser has a high visual contrast.
  • The towel dispenser is 114cm from the floor.
  • There is a wall mounted hand dryer.
  • The hand dryer has a medium visual contrast.
  • The hand dryer is 98cm from the floor.
  • There is a pull cord emergency alarm, however it is not within 10cm from the floor.
  • There is a full length mirror.
  • There is an unobstructed shelf.
  • The shelf does not meet the AccessAble criteria for Stoma Friendly Toilets.
  • The cubicle has a waste bin and a sanitary bin.
  • The walls and floor have a high visual contrast.
  • Lighting levels were even at the time of the survey, with unshaded light sources.

You are on Toilet with Adaptations (Level 7 - Core A - Right Hand Transfer). Skip to the next section.

Toilet with Adaptations (Level 7 - Core A - Right Hand Transfer)

Collapse all Expand all

• Location and Access View
  • The toilet surveyed is located on level 7 to the rear right of the building, off the Core A lift lobby.
  • The distance from the Core A lift is 10m.
  • The most accessible route to the toilet has step-free level access and manual doors.
  • There is step-free level access into the facility.
  • There is tactile, pictorial and written text signage on or near the door.
  • The door opens inwards and has a low visual contrast.
  • The width of the door opening is 88cm.
  • The door has a lever twist lock.
  • Internally the door has a low visual contrast.
  • There is a grab rail on the internal door with a high visual contrast.
• Dimensions and Features View
  • The dimensions of the cubicle are 150cm (width) x 328cm (depth) and there is room for a wheelchair user to manoeuvre (150cm x 150cm).
  • There is a lateral transfer space to the right as you face the toilet, however it is obstructed.
  • The lateral transfer space is 81cm (from the side of the toilet pan).
  • There is a spatula flush on the transfer side.
  • There is a horizontal grab rail on the non-transfer side.
  • The horizontal grab rail has a high visual contrast.
  • There is a vertical grab rail on the transfer side.
  • The vertical grab rail has a high visual contrast.
  • There is a dropdown rail on the transfer side.
  • The dropdown rail has a high visual contrast.
  • The toilet seat is 49cm from the floor.
  • The toilet seat has a high visual contrast.
  • There is not a wall mounted toilet roll holder.
  • The wash basin and taps can be reached when seated on the toilet.
  • The wash basin is 73cm from the floor.
  • The wash basin has a lever mixer tap.
  • The vertical grab rails are on both sides of the wash basin.
  • The wash basin grab rails have a high visual contrast.
  • There is a soap dispenser, however it is not wall mounted.
  • There is a wall mounted towel dispenser which cannot be reached when seated on the toilet.
  • The towel dispenser has a high visual contrast.
  • The towel dispenser is 114cm from the floor.
  • There is a wall mounted hand dryer.
  • The hand dryer has a medium visual contrast.
  • The hand dryer is 98cm from the floor.
  • There is a pull cord emergency alarm, however it is not within 10cm from the floor.
  • There is a full length mirror.
  • There is an unobstructed shelf.
  • The shelf meets the AccessAble criteria for Stoma Friendly Toilets.
  • The cubicle has a waste bin and a sanitary bin.
  • There are multiple coat hooks.
  • The coat hooks are 107cm and 142cm from the floor.
  • The walls and floor have a high visual contrast.
  • Lighting levels were uneven at the time of the survey, with pools of light and shade and unshaded light sources.

You are on Toilet with Adaptations (Level 7 - Core B - Left Hand Transfer). Skip to the next section.

Toilet with Adaptations (Level 7 - Core B - Left Hand Transfer)

Collapse all Expand all

• Location and Access View
  • The toilet surveyed is located on level 7 to the front right of the building, near the Core B lift.
  • The distance from the Core B lift is 18m.
  • The most accessible route to the toilet has step-free level access and manual doors.
  • There is step-free level access into the facility.
  • There is tactile, pictorial and written text signage on or near the door.
  • The door opens outwards and has a low visual contrast.
  • The width of the door opening is 88cm.
  • The door has a lever twist lock.
  • Internally the door has a low visual contrast.
  • There is a grab rail on the internal door with a high visual contrast.
• Dimensions and Features View
  • The dimensions of the cubicle are 150cm (width) x 221cm (depth) and there is room for a wheelchair user to manoeuvre (150cm x 150cm).
  • There is a lateral transfer space to the left as you face the toilet.
  • The lateral transfer space is 82cm (from the side of the toilet pan).
  • There is a spatula flush on the transfer side.
  • There is a horizontal grab rail on the non-transfer side.
  • The horizontal grab rail has a high visual contrast.
  • There is a vertical grab rail on the transfer side.
  • The vertical grab rail has a high visual contrast.
  • There is a dropdown rail on the transfer side.
  • The dropdown rail has a high visual contrast.
  • The toilet seat is 48cm from the floor.
  • The toilet seat has a high visual contrast.
  • There is not a wall mounted toilet roll holder.
  • The wash basin and taps can be reached when seated on the toilet.
  • The wash basin is 73cm from the floor.
  • The wash basin has a lever mixer tap.
  • The vertical grab rails are on both sides of the wash basin.
  • The wash basin grab rails have a high visual contrast.
  • There is a soap dispenser, however it is not wall mounted.
  • There is a wall mounted towel dispenser which cannot be reached when seated on the toilet.
  • The towel dispenser has a high visual contrast.
  • The towel dispenser is 112cm from the floor.
  • There is a wall mounted hand dryer.
  • The hand dryer has a medium visual contrast.
  • The hand dryer is 98cm from the floor.
  • There is a pull cord emergency alarm, however it is not within 10cm from the floor.
  • There is a full length mirror.
  • There is an unobstructed shelf.
  • The shelf does not meet the AccessAble criteria for Stoma Friendly Toilets.
  • The cubicle has a waste bin and a sanitary bin.
  • There are multiple coat hooks.
  • The coat hooks are 108cm and 143cm from the floor.
  • The walls and floor have a high visual contrast.
  • Lighting levels were even at the time of the survey, with unshaded light sources.

You are on Toilet with Adaptations (Level 7 - Core C - Right Hand Transfer). Skip to the next section.

Toilet with Adaptations (Level 7 - Core C - Right Hand Transfer)

Collapse all Expand all

• Location and Access View
  • The toilet surveyed is located on level 7 to the front left of the building, in the Core C lift lobby.
  • The distance from the Core C lift is 6m.
  • The most accessible route to the toilet has step-free level access.
  • There is step-free level access into the facility.
  • There is tactile, pictorial and written text signage on or near the door.
  • The door opens both ways and has a high visual contrast.
  • The width of the door opening is 89cm.
  • The door has a lever twist lock.
  • Internally the door has a high visual contrast.
  • There is a grab rail on the internal door with a high visual contrast.
• Dimensions and Features View
  • The dimensions of the cubicle are 288cm (width) x 207cm (depth) and there is room for a wheelchair user to manoeuvre (150cm x 150cm).
  • There is a lateral transfer space to the right as you face the toilet.
  • The lateral transfer space is 220cm (from the side of the toilet pan).
  • There is a spatula flush on the transfer side.
  • There is a horizontal grab rail on the non-transfer side.
  • The horizontal grab rail has a high visual contrast.
  • There is a vertical grab rail on the transfer side.
  • The vertical grab rail has a high visual contrast.
  • There is a dropdown rail on the transfer side.
  • The dropdown rail has a high visual contrast.
  • The toilet seat is 49cm from the floor.
  • The toilet seat has a high visual contrast.
  • There is not a wall mounted toilet roll holder.
  • The wash basin and taps can be reached when seated on the toilet.
  • The wash basin is 74cm from the floor.
  • The wash basin has a lever mixer tap.
  • The vertical grab rails are on both sides of the wash basin.
  • The wash basin grab rails have a high visual contrast.
  • There is a soap dispenser, however it is not wall mounted.
  • There is a wall mounted towel dispenser which cannot be reached when seated on the toilet.
  • The towel dispenser has a high visual contrast.
  • The towel dispenser is 112cm from the floor.
  • There is a wall mounted hand dryer.
  • The hand dryer has a medium visual contrast.
  • The hand dryer is 99cm from the floor.
  • There is a pull cord emergency alarm, however it is not within 10cm from the floor.
  • There is a full length mirror.
  • There is an unobstructed shelf.
  • The shelf does not meet the AccessAble criteria for Stoma Friendly Toilets.
  • The cubicle has a waste bin and a sanitary bin.
  • There are multiple coat hooks.
  • The coat hooks are 108cm and 142cm from the floor.
  • The walls and floor have a high visual contrast.
  • Lighting levels were even at the time of the survey, with unshaded light sources.

You are on Toilet with Adaptations (Level 7 - Core D - Left Hand Transfer). Skip to the next section.

Toilet with Adaptations (Level 7 - Core D - Left Hand Transfer)

Collapse all Expand all

• Location and Access View
  • The toilet surveyed is located on level 7 to the rear left of the building, near the Core D lift.
  • The distance from the Core D lift is 18m.
  • The most accessible route to the toilet has step-free level access and manual doors.
  • There is step-free level access into the facility.
  • There is tactile, pictorial and written text signage on or near the door.
  • The door opens outwards and has a low visual contrast.
  • The width of the door opening is 88cm.
  • The door has a lever twist lock.
  • Internally the door has a low visual contrast.
  • There is a grab rail on the internal door with a high visual contrast.
• Dimensions and Features View
  • The dimensions of the cubicle are 150cm (width) x 218cm (depth) and there is room for a wheelchair user to manoeuvre (150cm x 150cm).
  • There is a lateral transfer space to the left as you face the toilet.
  • The lateral transfer space is 81cm (from the side of the toilet pan).
  • There is a spatula flush on the transfer side.
  • There is a horizontal grab rail on the non-transfer side.
  • The horizontal grab rail has a high visual contrast.
  • There is a vertical grab rail on the transfer side.
  • The vertical grab rail has a high visual contrast.
  • There is a dropdown rail on the transfer side.
  • The dropdown rail has a high visual contrast.
  • The toilet seat is 48cm from the floor.
  • The toilet seat has a high visual contrast.
  • There is not a wall mounted toilet roll holder.
  • The wash basin and taps can be reached when seated on the toilet.
  • The wash basin is 74cm from the floor.
  • The wash basin has a lever mixer tap.
  • The vertical grab rails are on both sides of the wash basin.
  • The wash basin grab rails have a high visual contrast.
  • There is a soap dispenser, however it is not wall mounted.
  • There is a wall mounted towel dispenser which cannot be reached when seated on the toilet.
  • The towel dispenser has a high visual contrast.
  • The towel dispenser is 116cm from the floor.
  • There is a wall mounted hand dryer.
  • The hand dryer has a medium visual contrast.
  • The hand dryer is 98cm from the floor.
  • There is a pull cord emergency alarm, however it is not within 10cm from the floor.
  • There is a full length mirror.
  • There is an unobstructed shelf.
  • The shelf does not meet the AccessAble criteria for Stoma Friendly Toilets.
  • The cubicle has a waste bin and a sanitary bin.
  • There are multiple coat hooks.
  • The coat hooks are 107cm and 143cm from the floor.
  • The walls and floor have a high visual contrast.
  • Lighting levels were even at the time of the survey, with unshaded light sources.
